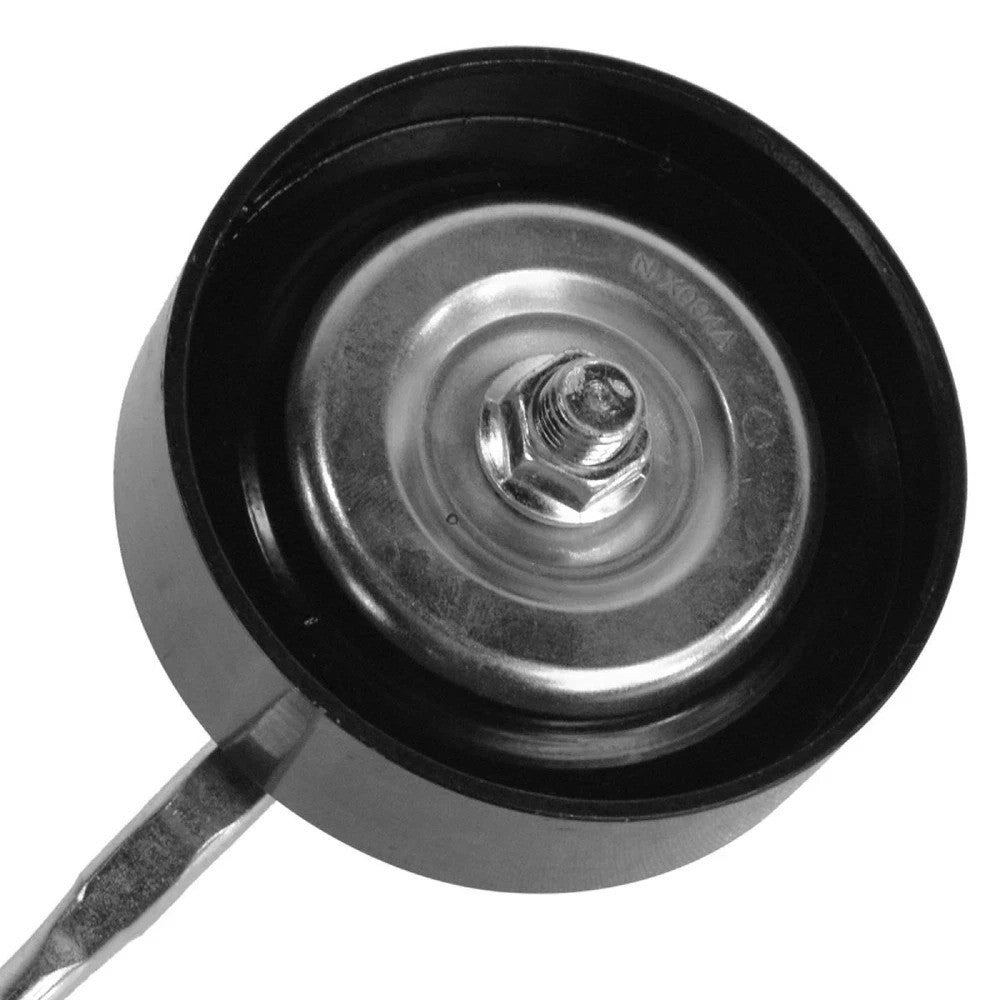

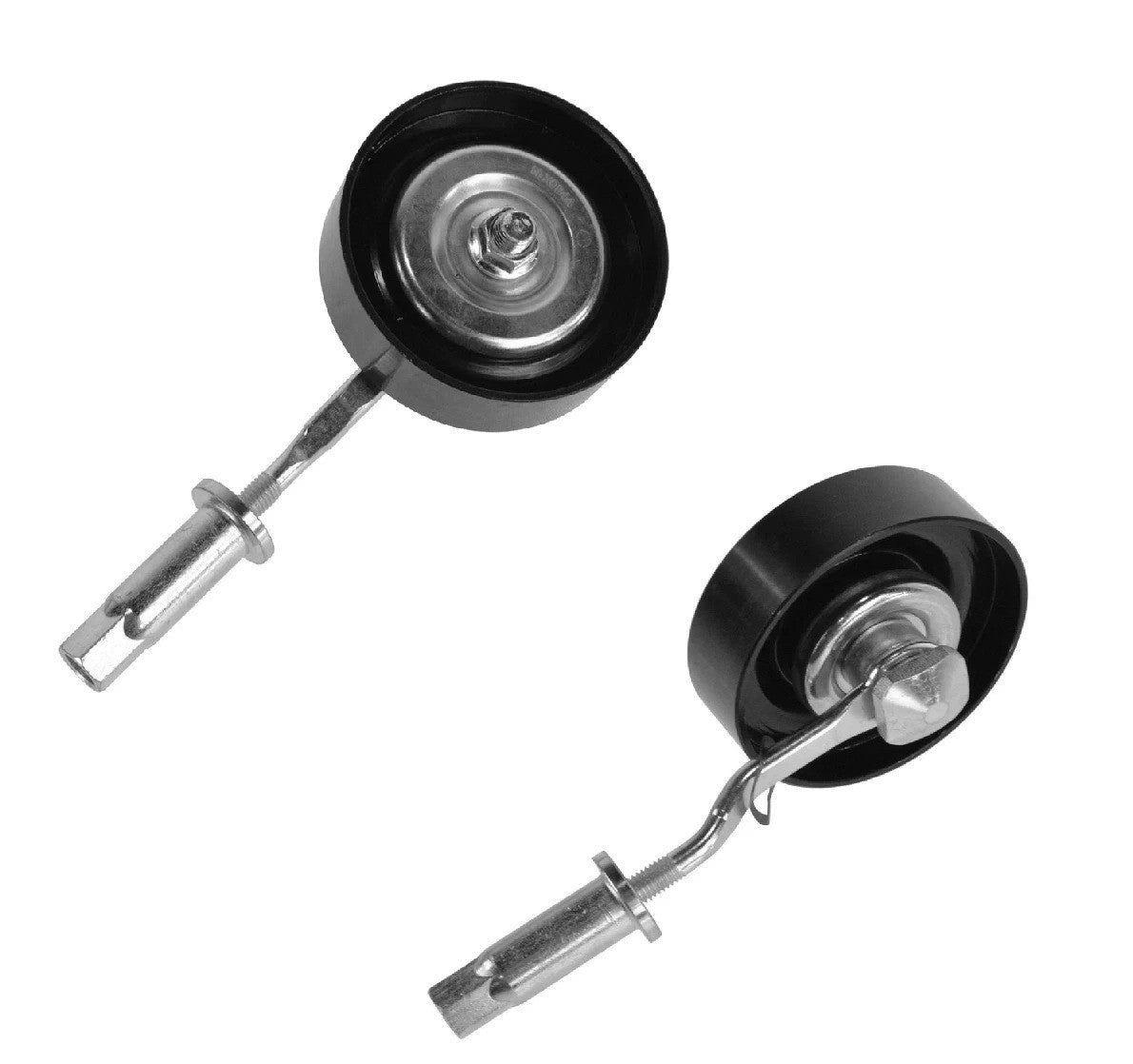

Serpentine Belt Idler Pulley with Adjusting Arm

Professional Drive Belt Tension Restoration for Nissan and Infiniti V6 Engines

Restore the quiet, reliable operation of your engine's accessory drive system with this premium Serpentine Belt Idler Pulley and Adjusting Arm Assembly. Specifically designed for the 3.0L and 3.5L V6 engines (VQ series), this component maintains the critical tension required for the alternator and air conditioning compressor. Over time, the internal bearings of the factory pulley can dry out or become contaminated, leading to high-pitched squealing, chirping, or total belt failure.

This complete unit includes the specialized adjusting arm, allowing for precise manual tensioning. The high-grade steel pulley features a precision-ground, sealed ball bearing engineered to handle high RPMs and the intense heat of the engine bay. Replacing the pulley and arm as a set ensures that the adjustment mechanism is not seized and the belt tracking remains perfectly aligned.

Fitment Verification and Vehicle Applications

This assembly is engineered for the Front Accessory Drive on the following V6 models. Please verify your specific engine displacement:

• Infiniti I30: 2000, 2001.

• Infiniti I35: 2002, 2003, 2004.

• Nissan Altima (3.5L V6): 2002, 2003, 2004, 2005, 2006.

• Nissan Maxima (3.0L & 3.5L V6): 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008.

• Nissan Murano (3.5L V6): 2003, 2004, 2005, 2006, 2007.

Technical Specifications and Attributes

• Includes: Idler Pulley and Threaded Adjusting Arm / Bracket.

• Pulley Material: High-Strength Steel.

• Bearing Design: Sealed, Maintenance-Free Ball Bearing.

• Adjustment Type: Manual Lead-Screw Style.

• Duty Rating: Heavy-Duty.

• Fitment Type: Direct Replacement.

What’s in the Box

• (1) Serpentine Belt Idler Pulley

• (1) Threaded Adjusting Arm Assembly

• (1) Integrated Locking Nut and Bolt

Industry Cross-Reference Numbers

• Nissan: 1192531U0C, 11925-31U0C, 11925-31U00

• Gates: 36087

• Dorman - TECHoice: 419-624

• Continental: 49108

• Dayco: 89134

• SKP: SK89134

• DIY Solutions: BEP00228

Installation and Technical Tips

• Manual Tensioning Warning: Unlike modern automatic tensioners, this system requires manual adjustment. Use the "thumb-pressure" rule: there should be approximately 1/4 to 1/2 inch of deflection on the longest run of the belt. Over-tensioning can cause premature failure of the alternator or A/C compressor bearings.

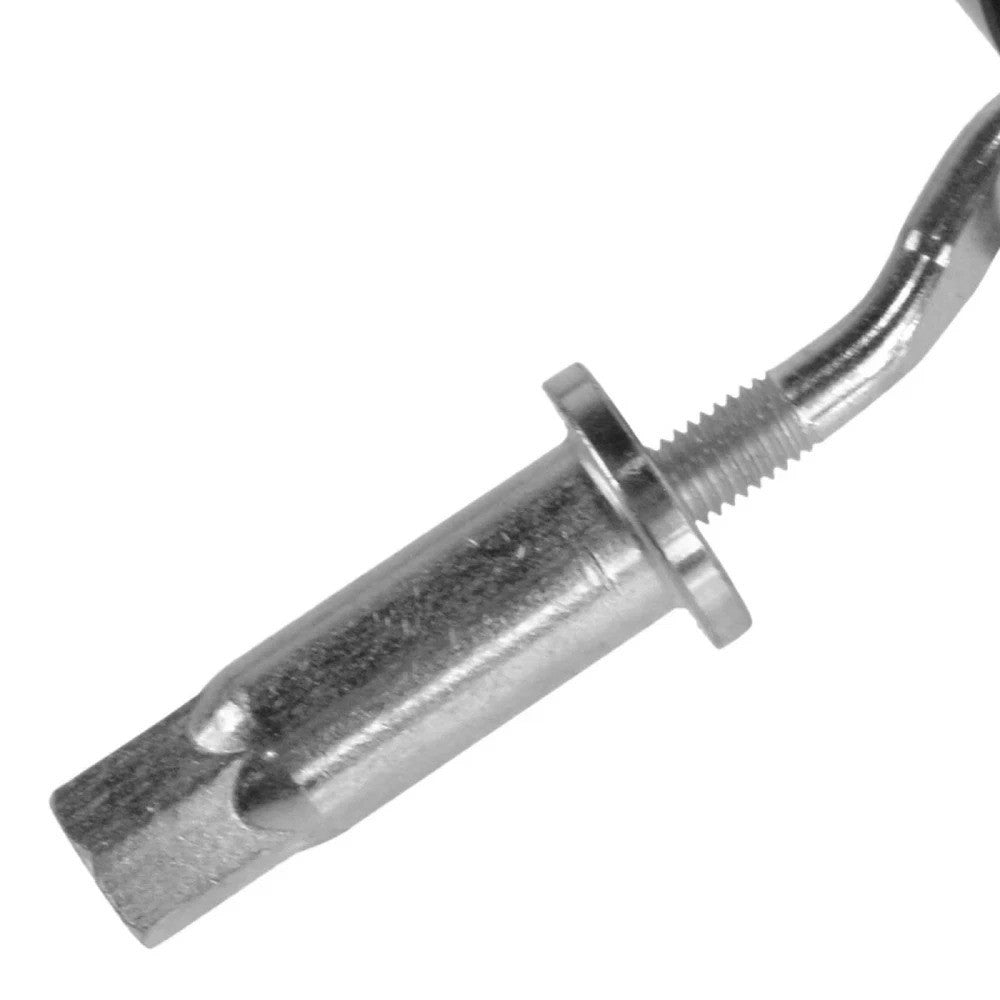

• Inspect the Lead Screw: Before installation, ensure the threads on the adjusting arm are clean. Applying a drop of anti-seize to the adjustment bolt will make future belt services significantly easier.

• Locking Nut Protocol: Once the desired tension is achieved using the long adjustment bolt, you must tighten the locking nut on the face of the pulley. Failure to tighten the locking nut will cause the pulley to vibrate loose, leading to immediate belt loss.

• Belt Alignment: After the first 50 miles of driving, perform a visual inspection to ensure the belt is centered on the new pulley. New belts can "stretch" slightly, requiring a minor secondary adjustment to the tension.
