Stamped Steel Engine Oil Pan 12563240 for Buick Chevy Olds Pontiac 3.8L
Regular price
$108.27

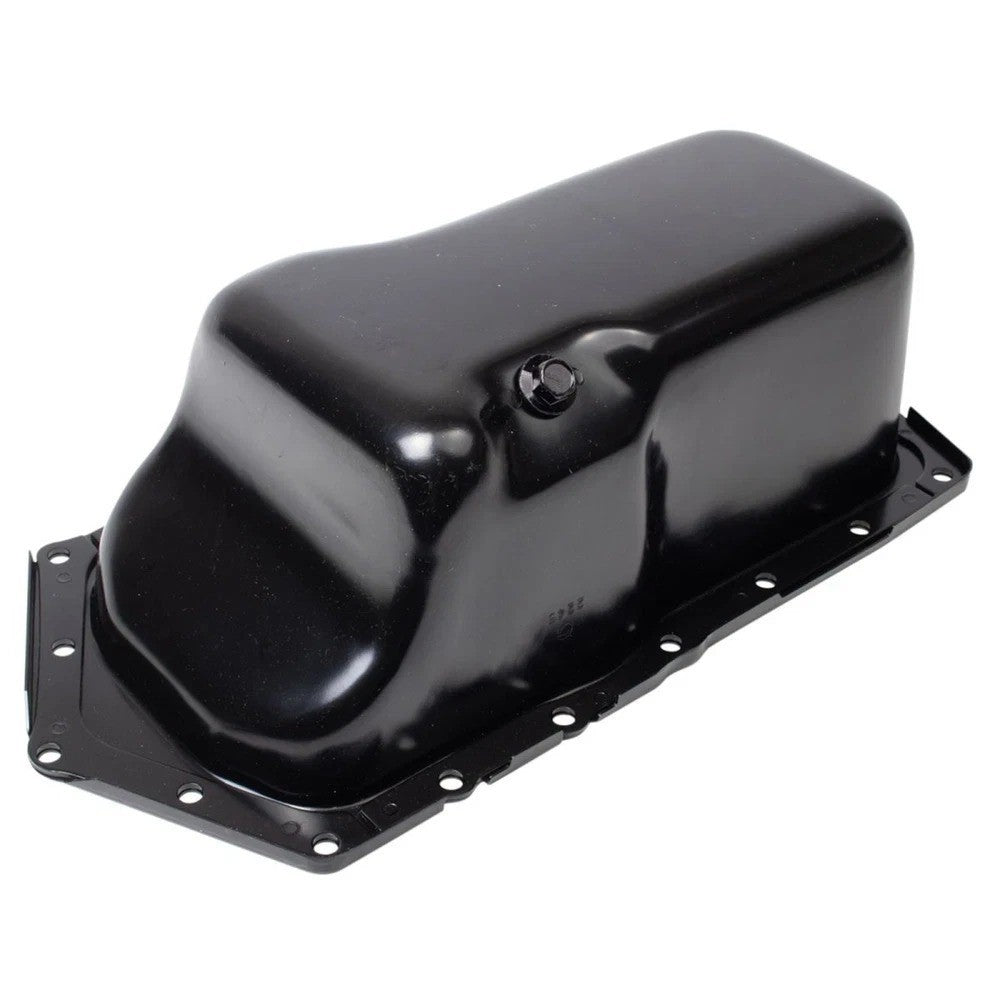

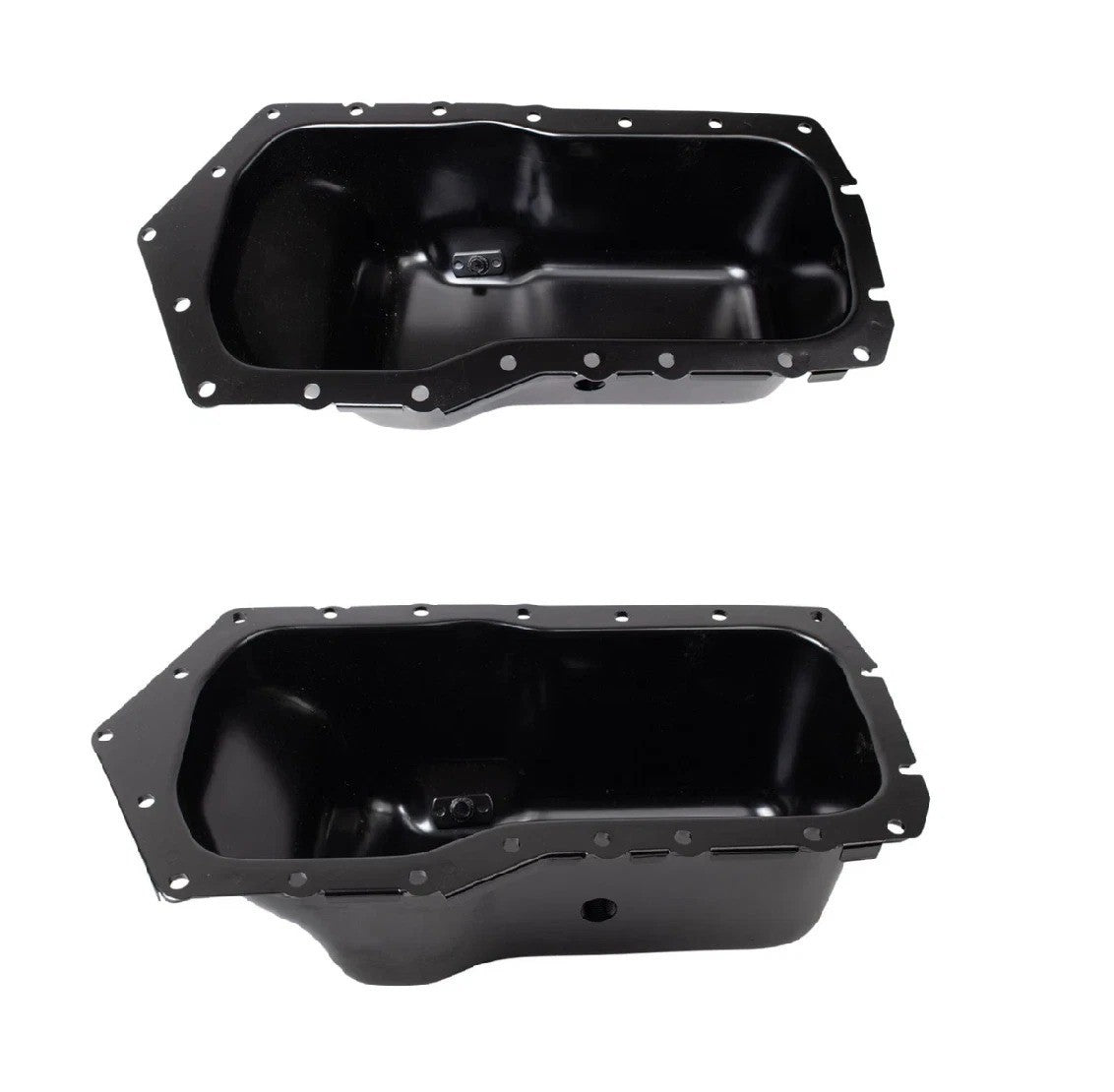

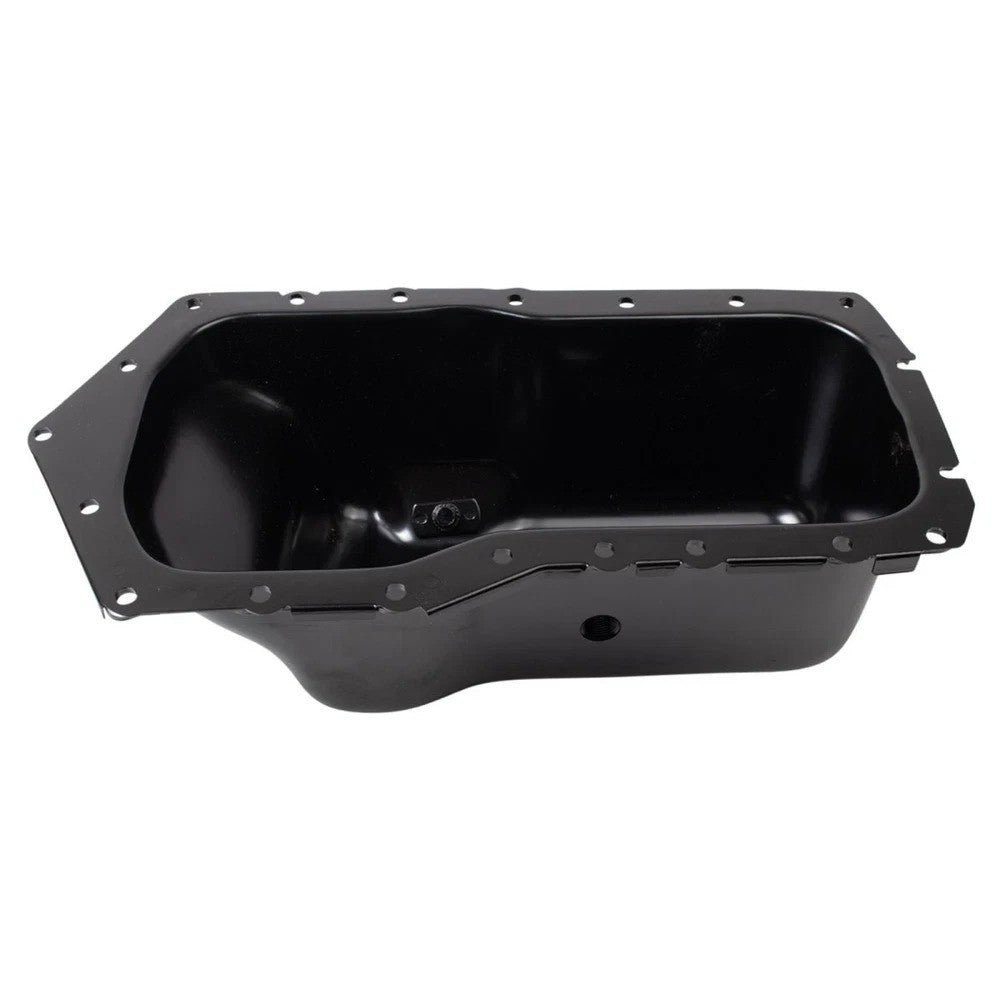

Stamped Steel Engine Oil Pan
Replacement for Buick, Chevrolet, Oldsmobile, and Pontiac 3.8L V6 Engines
This replacement engine oil pan is constructed from high-strength stamped steel, designed to provide a precise fit and reliable oil containment for the General Motors 3.8L (3800) V6 engine family. It features a specialized provision for the low oil level sensor, ensuring full compatibility with your vehicle's factory monitoring system. The pan is finished with a corrosion-resistant coating to protect against the elements and extend the service life of the engine's lubrication system.
Fitment Verification and Vehicle Applications
This pan is engineered for the Series II and Series III 3800 V6 engines. It fits a wide range of front-wheel-drive GM sedans and coupes.
Buick LeSabre / Park Avenue / Riviera: 1995–1999 (3.8L V6).
Buick Regal: 1995–2004 (3.8L V6).
Chevrolet Impala / Monte Carlo: 2000–2005 (3.8L V6).
Chevrolet Lumina: 1998–1999 (3.8L V6).
Oldsmobile 88 / 98: 1995–1999 (3.8L V6).
Oldsmobile Intrigue: 1998–1999 (3.8L V6).
Pontiac Bonneville: 1995–1999 (3.8L V6).
Pontiac Grand Prix: 1997–2004 (3.8L V6).
Technical Specifications and Attributes
These attributes ensure the pan meets the volume and mounting requirements of the 3800 engine platform.
Construction and Design
Material: Heavy-Duty Stamped Steel.
Design: Includes Low Oil Sensor Provision (Port included).
Drain Plug Included: Yes.
Drain Thread Size: M14 x 1.5.
Oil Level Sensor Port: Yes.
Important Notes
Gasket or Seal: Not Included (Requires a new oil pan gasket or RTV sealant for installation).
Sump Depth: Standard capacity to match factory specifications.
Finish: Black painted or e-coated for rust prevention.
What’s in the Box
(1) Stamped Steel Engine Oil Pan
(1) Matching Oil Drain Plug
Industry Cross-Reference Numbers
This unit is a direct functional replacement for the following manufacturer and aftermarket part numbers:
GM Genuine Parts (OE): 12563240
Dorman: 264-124, 264-126
Spectra Premium: GMP11B
Hollander: 311-00776
DIY Solutions: TAN00095
Installation and Maintenance Tips
Sensor Transfer: Carefully remove the low oil level sensor from your original pan and inspect the O-ring. It is highly recommended to install a new sensor O-ring to prevent leaks at the port.
Surface Preparation: Ensure the engine block mounting surface is completely free of old gasket material and oil residue. Use a plastic scraper and brake cleaner for a clean mating surface.
Torque Sequence: To prevent the steel flange from warping, tighten the mounting bolts in a "star" or "criss-cross" pattern to the factory-recommended torque (typically 10–12 lb-ft for this engine).
Leak Testing: After installation and filling with fresh 5W-30 oil, run the engine for several minutes and inspect the perimeter of the pan and the drain plug for any signs of seepage.
