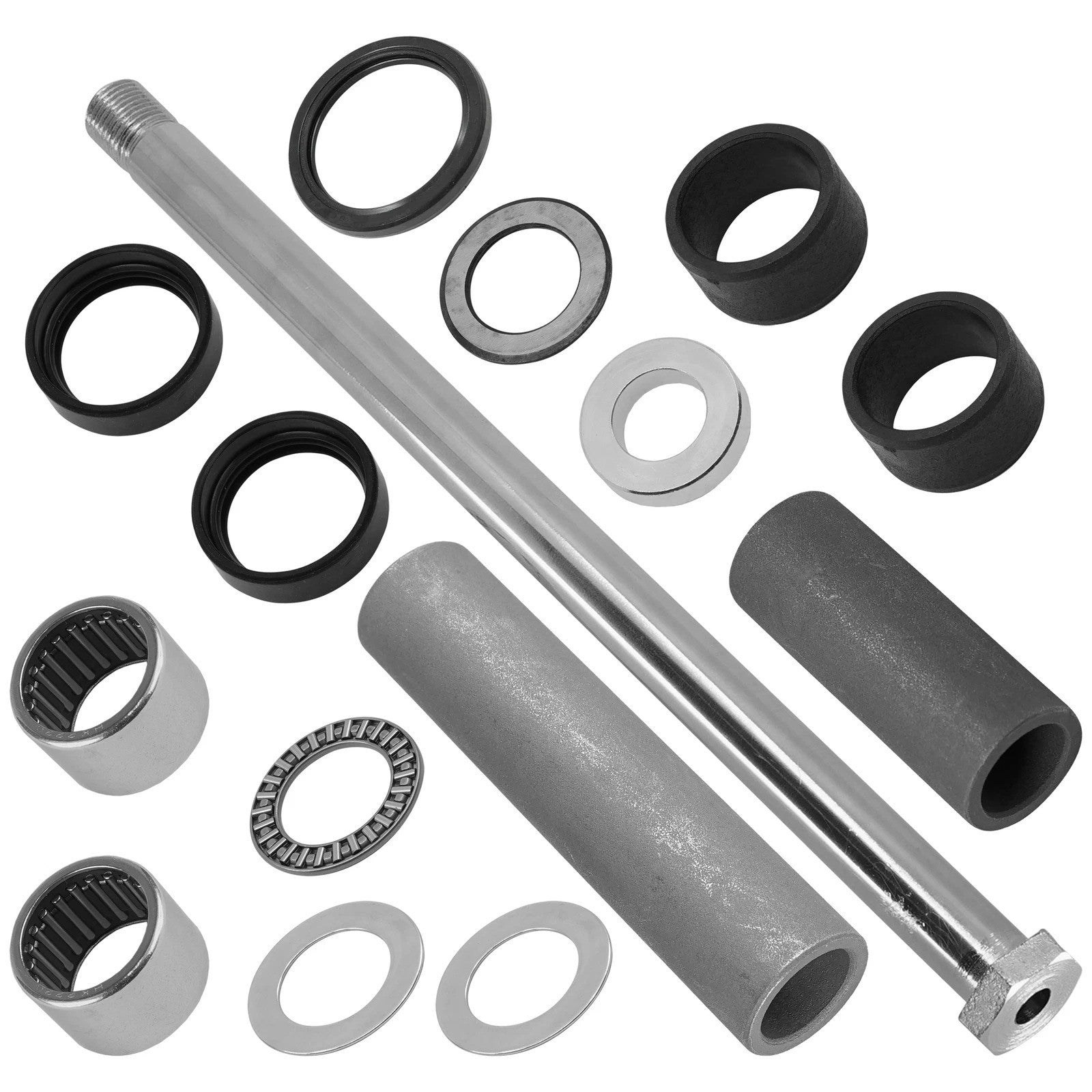

Rear Swing Arm Kit For Yamaha Raptor 660R YFM660R 2001-2005 5LP-22110-00-00 ATV
Regular price
$58.88
Premium Quality Replacement Part
Rear Swing Arm Kit
For Yamaha Models:
Raptor 660R YFM660R 2001-2005
Raptor 660R YFM660R Black Limited Edition 2003-2004
Raptor 660R YFM660R SE 2005
Order Includes:

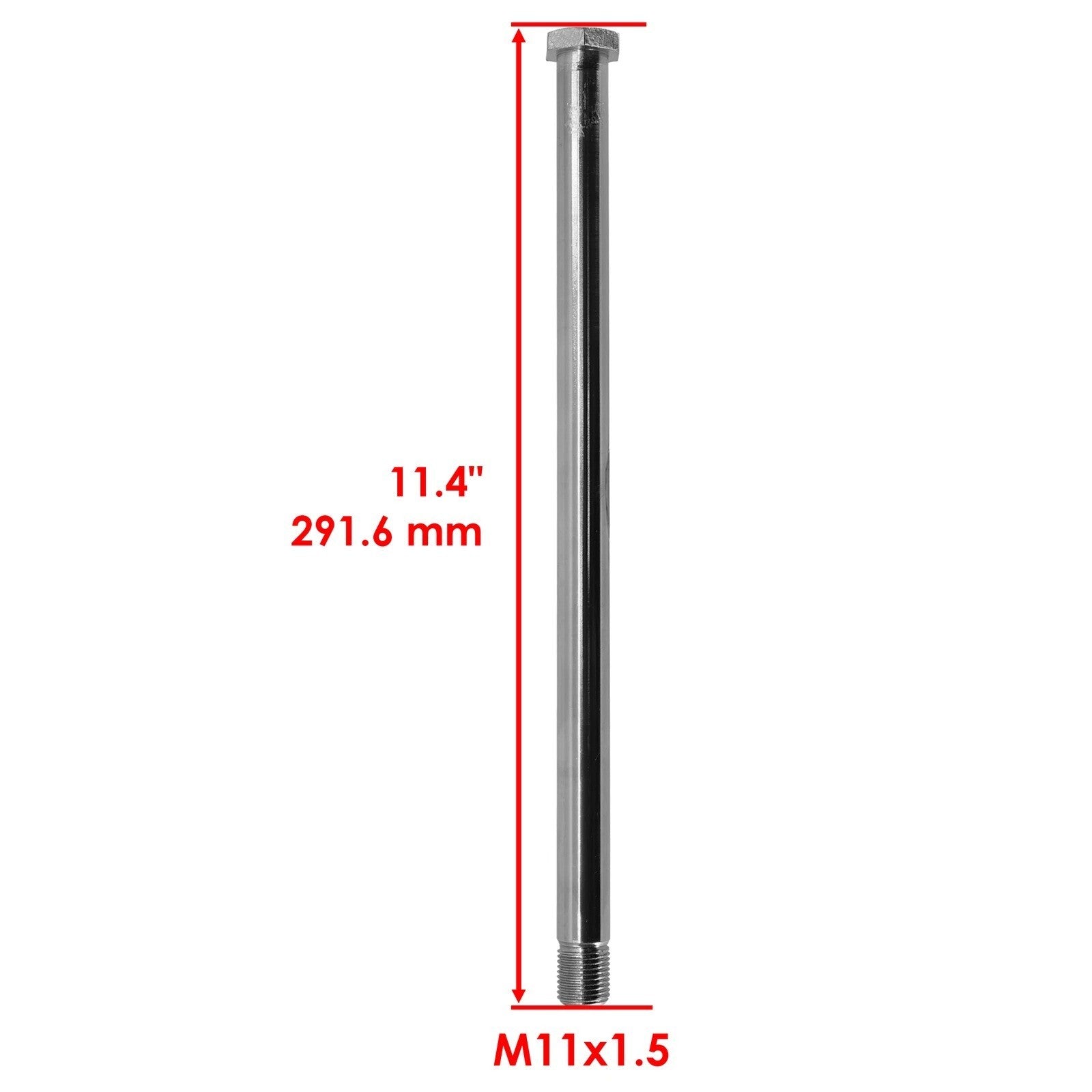

1x Pivot Shaft Bolt : 5LP-22141-00-00
Height : 291.6mm | 11.4"
M11 x 1.5

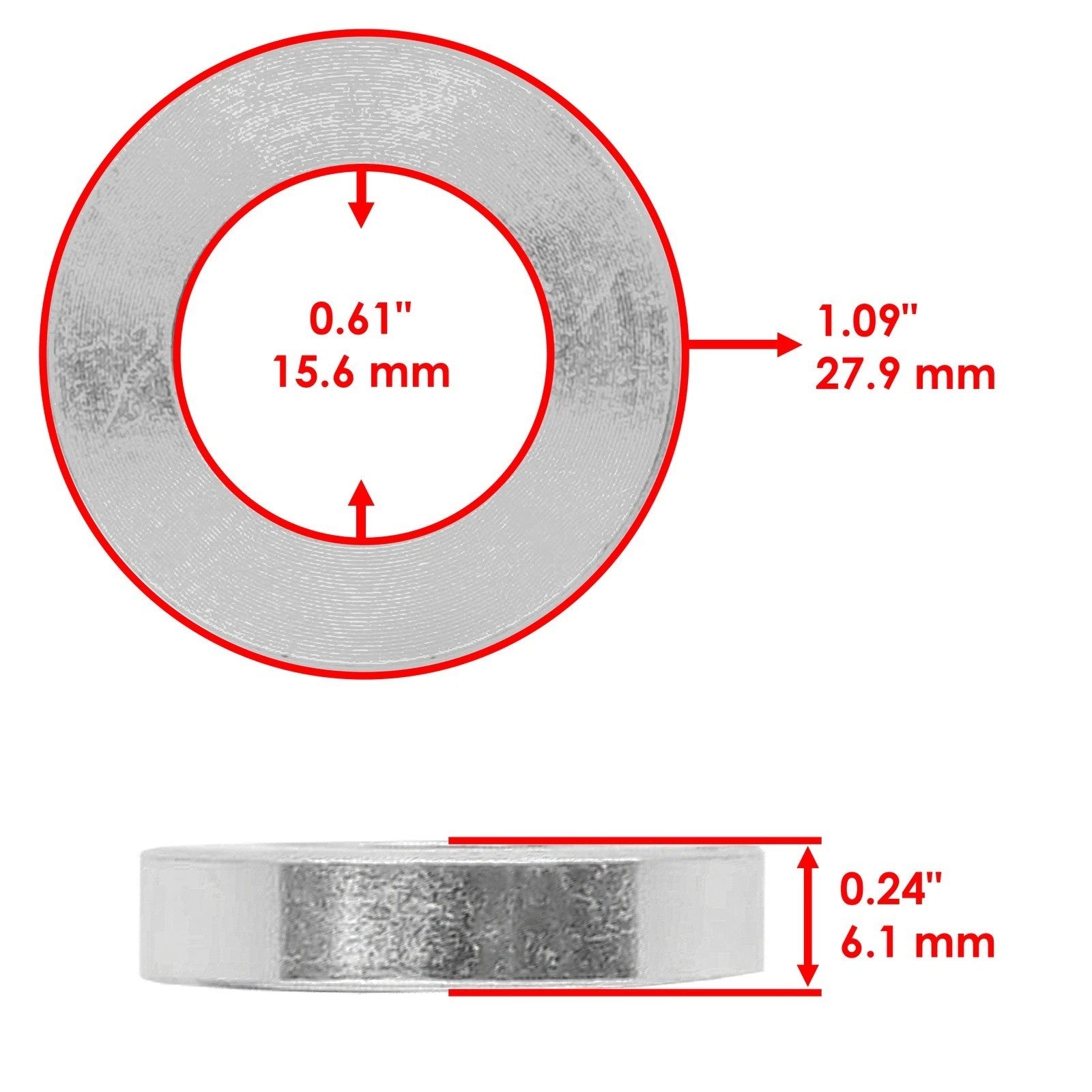

1x Swingarm Collar : 90387-16006-00
Inner Diameter : 15.6mm | 0.61"
Outer Diameter : 27.9mm | 1.09"
Width : 6.1mm | 0.24"

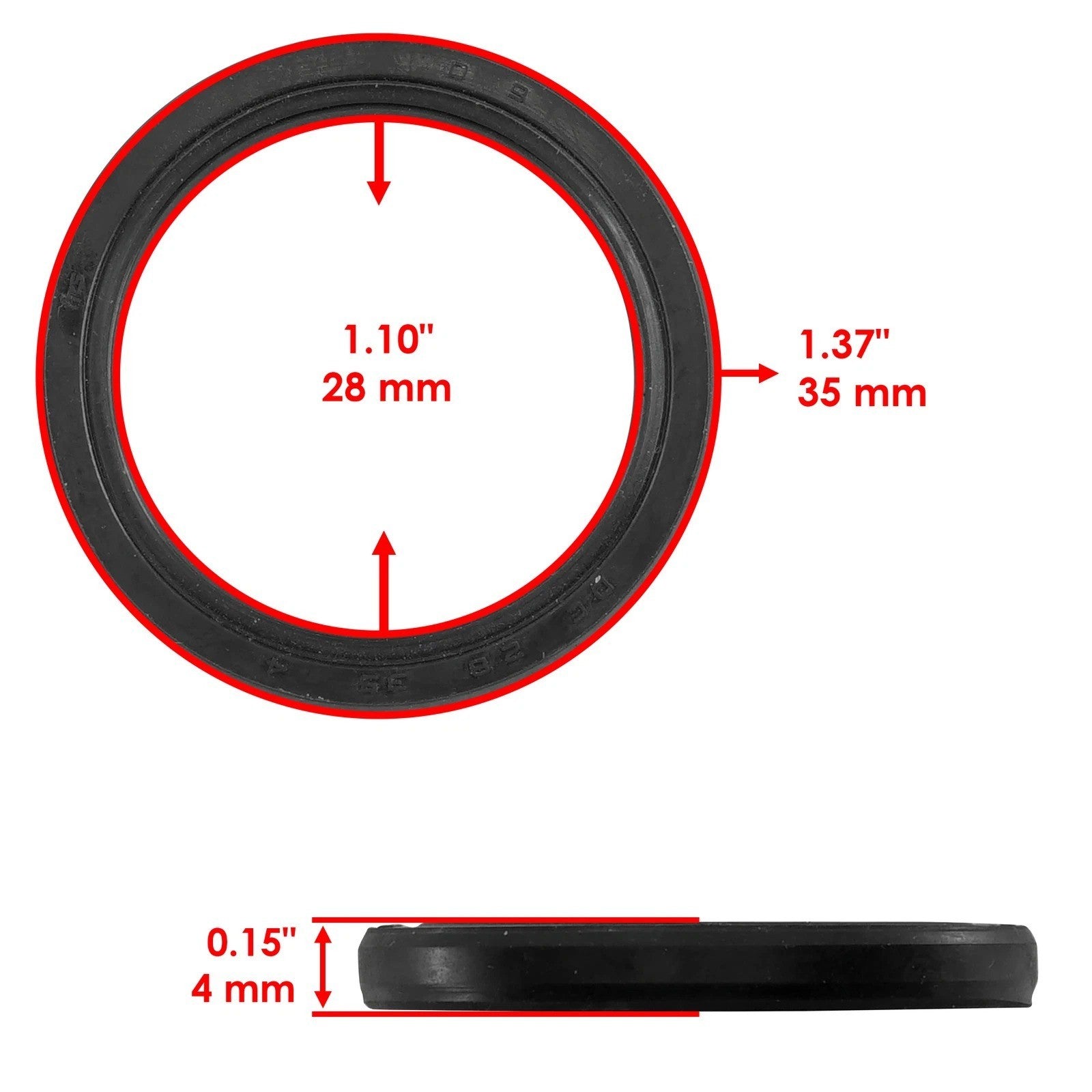

1x Seal : 93109-28043-00
Inner Diameter : 28mm | 1.10 "
Outer Diameter : 35mm | 1.37 "
Width : 4mm | 0.15 "
1x Bearing: 93342-22217-00
Inner Diameter: 22.2 mm | 0.87"
Outer Diameter: 35.0 mm | 1.37"
Bearing Thickness: 2 mm
Washer Thickness: 1 mm

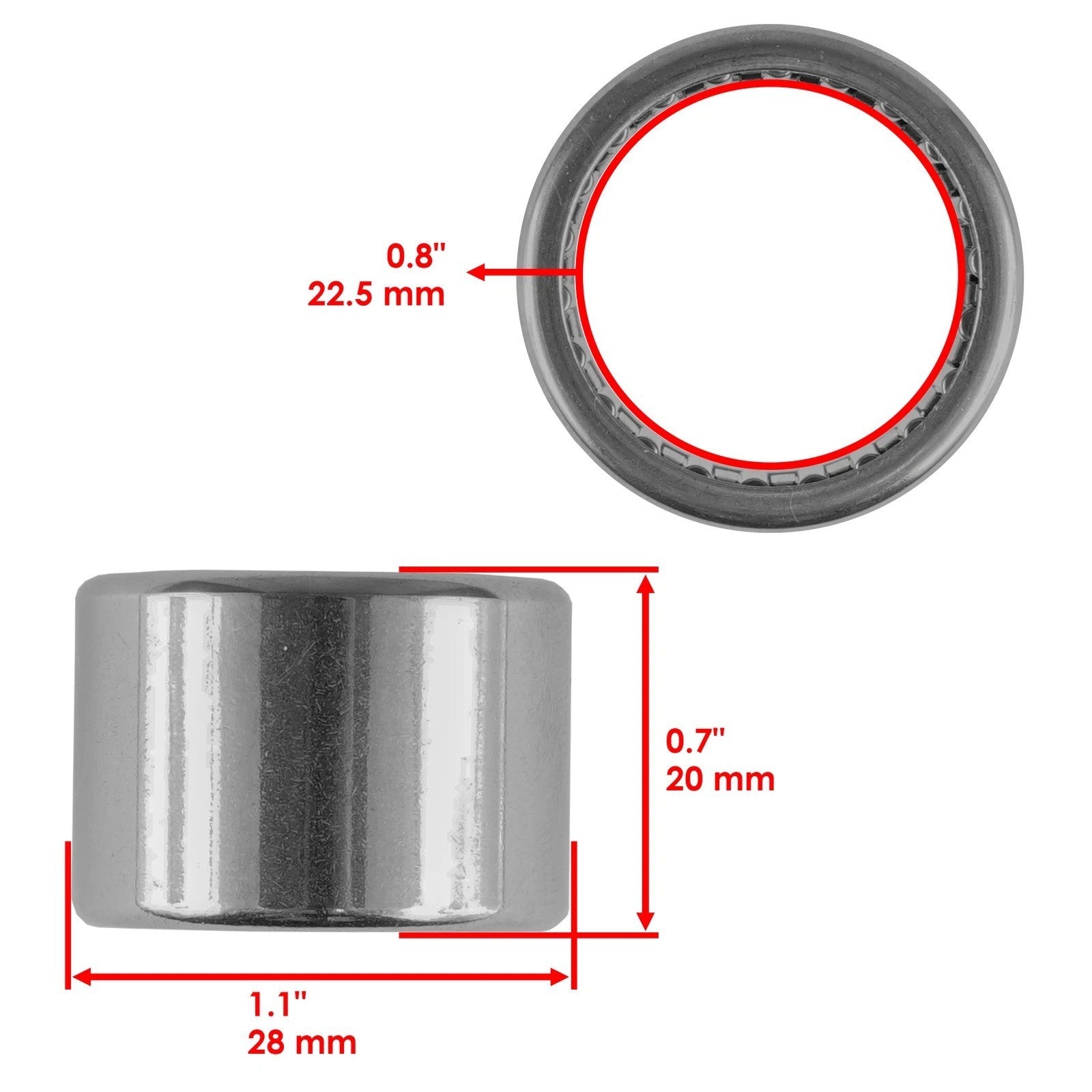

2x Needle Bearing : 93317-32231-00 93317-22237-00
Width : 20.0 mm | 0.7"
Length: 28.0 mm | 1.1"
Inner Diameter: 22.5 mm | 0.8"

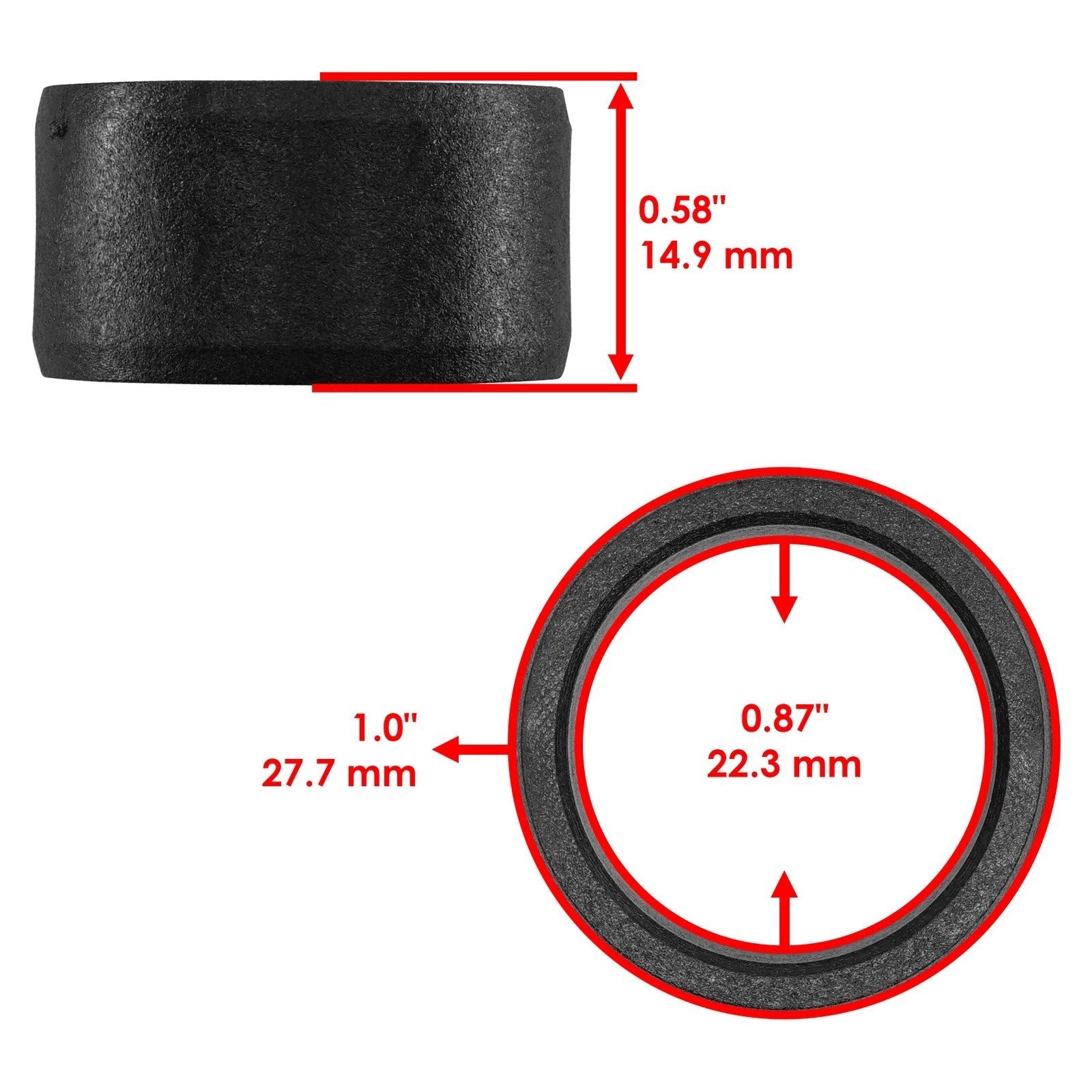

2x Solid Bushing: 90380-22111-00
Width: 14.9 mm | 0.58"
Inner Diameter: 22.3 mm | 0.87"
Outer Diameter: 27.7 mm | 1.0"

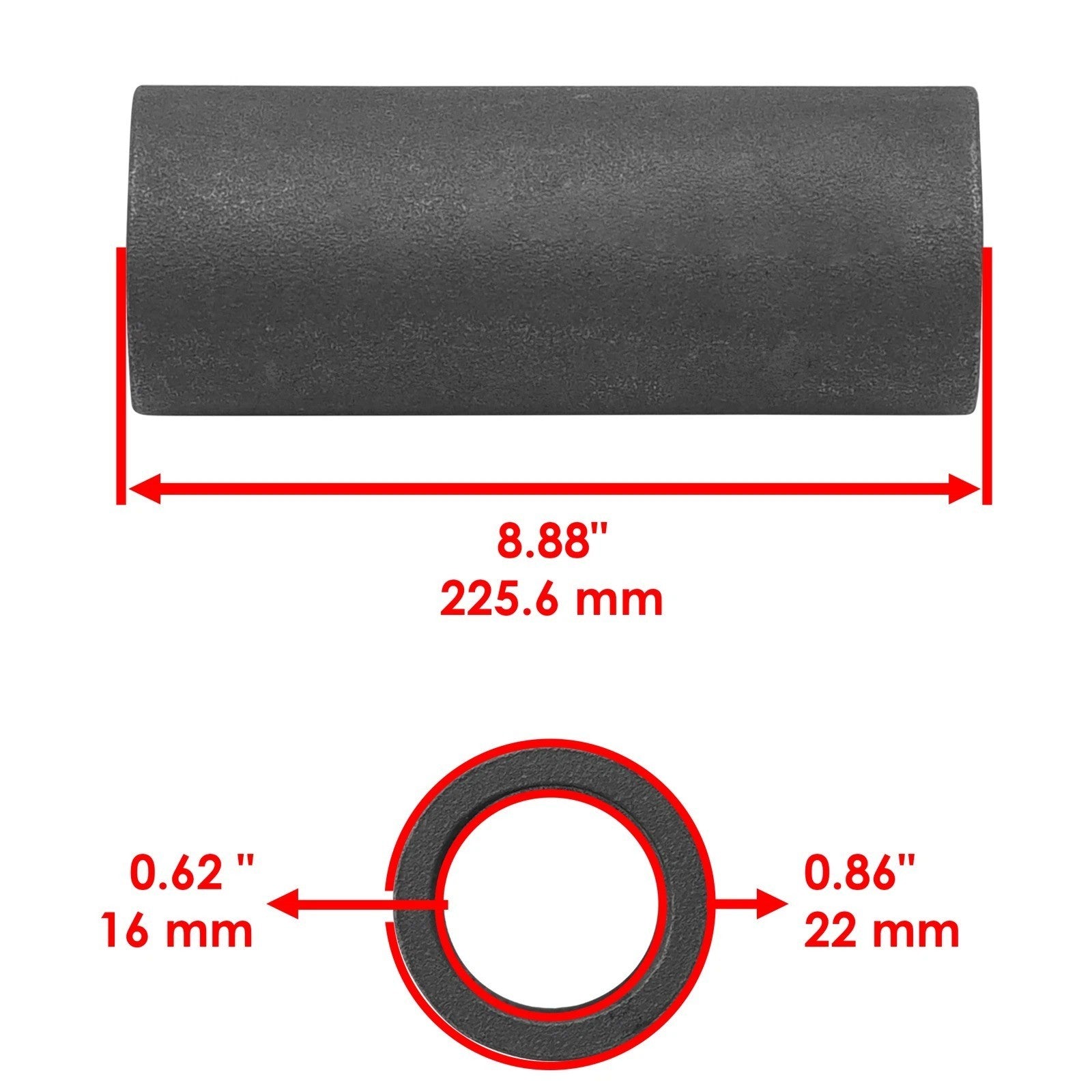

1x Swing Arm Bushing : 5LP-22123-00-00
Diameter : 16X22mm
Length : 225.6mm

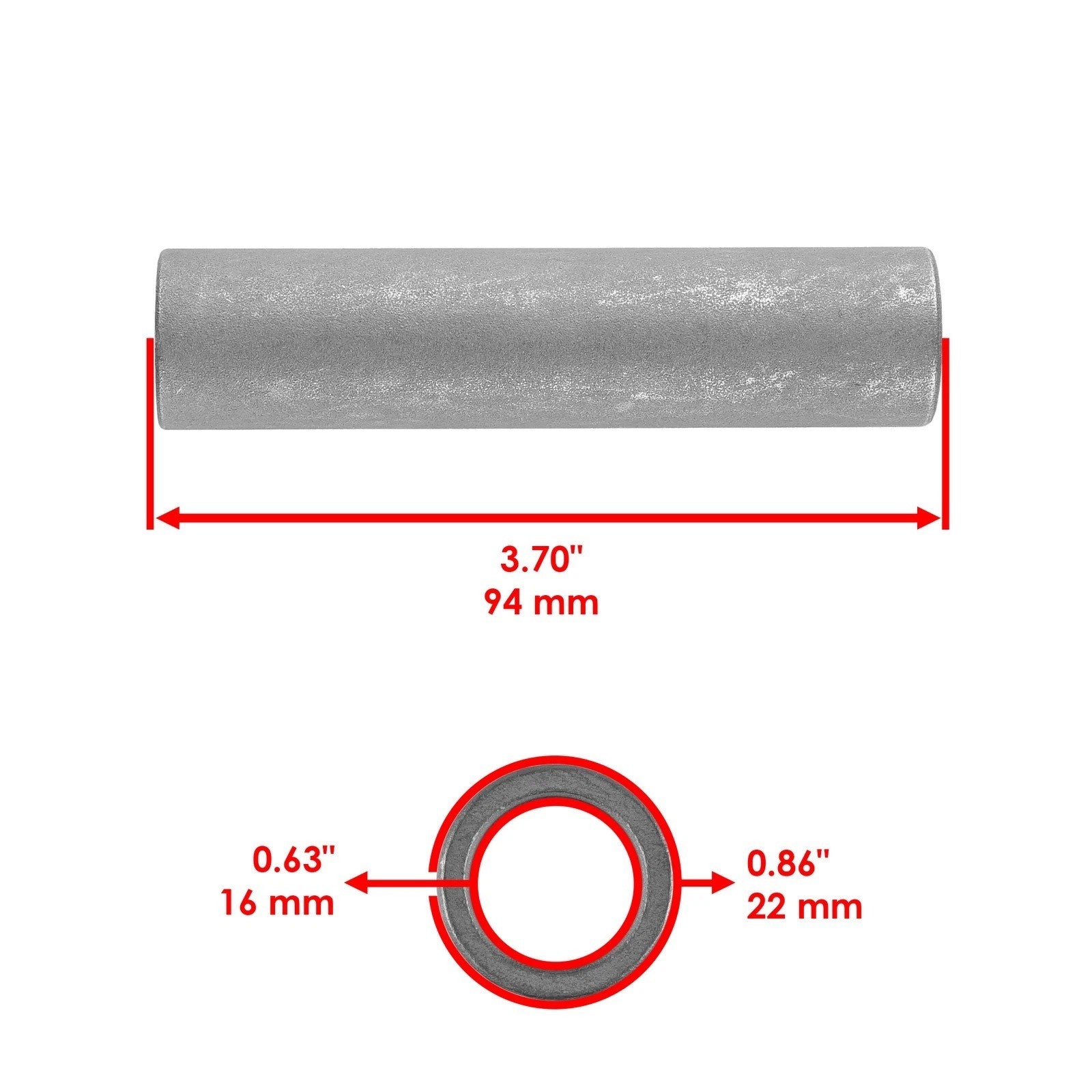

1x Long Pivot Shaft : 5LP-22184-00-00
Length: 94mm | 3.70 "
Inner Diameter: 16mm | 0.63 "
Outer Diameter: 22mm | 0.86 "

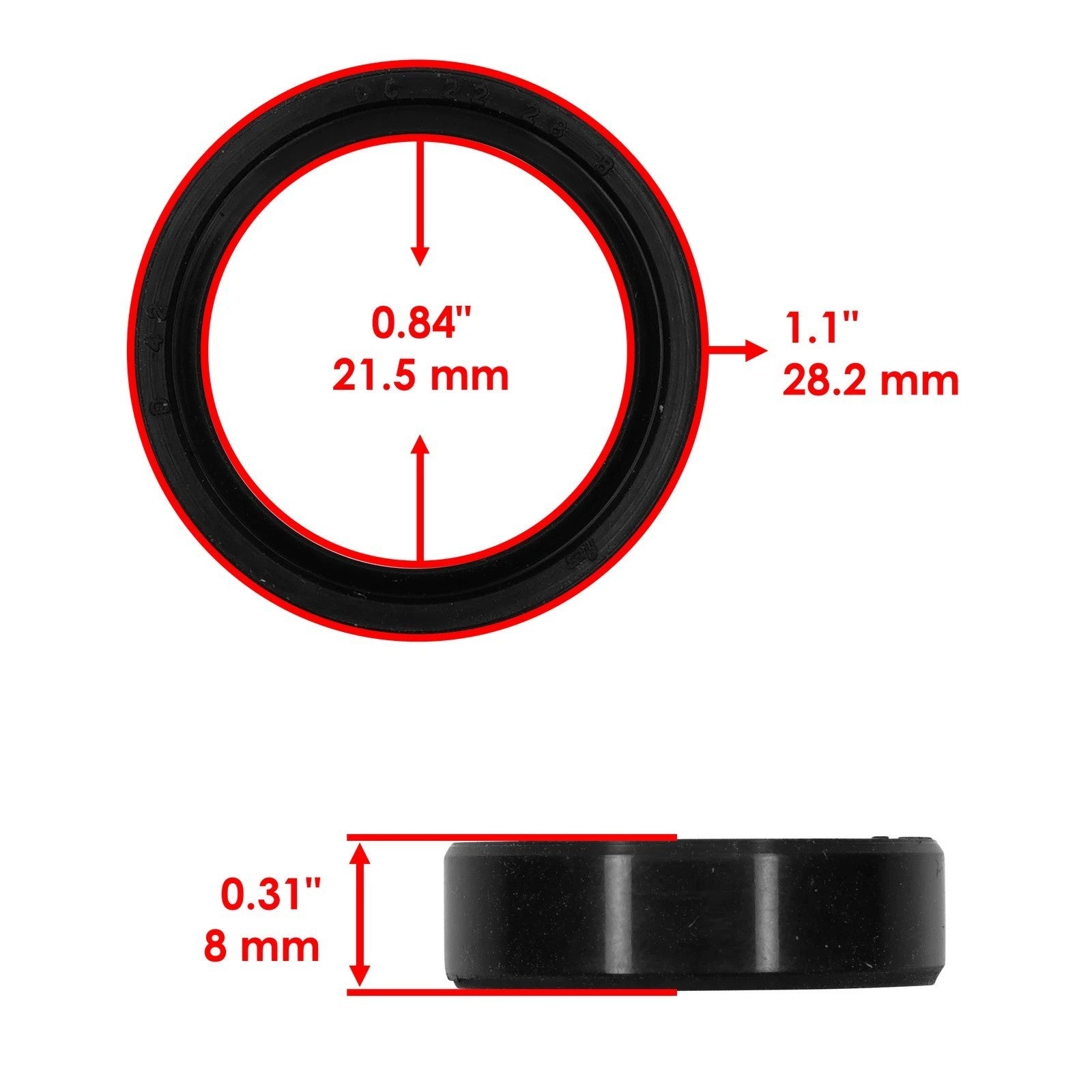

2x Oil Seal: 93106-22019-00 Dc 22-28-8
Width: 8.0 mm | 0.31"
Inner Diameter: 21.5 mm | 0.84"
Outer Diameter: 28.2 mm | 1.1"

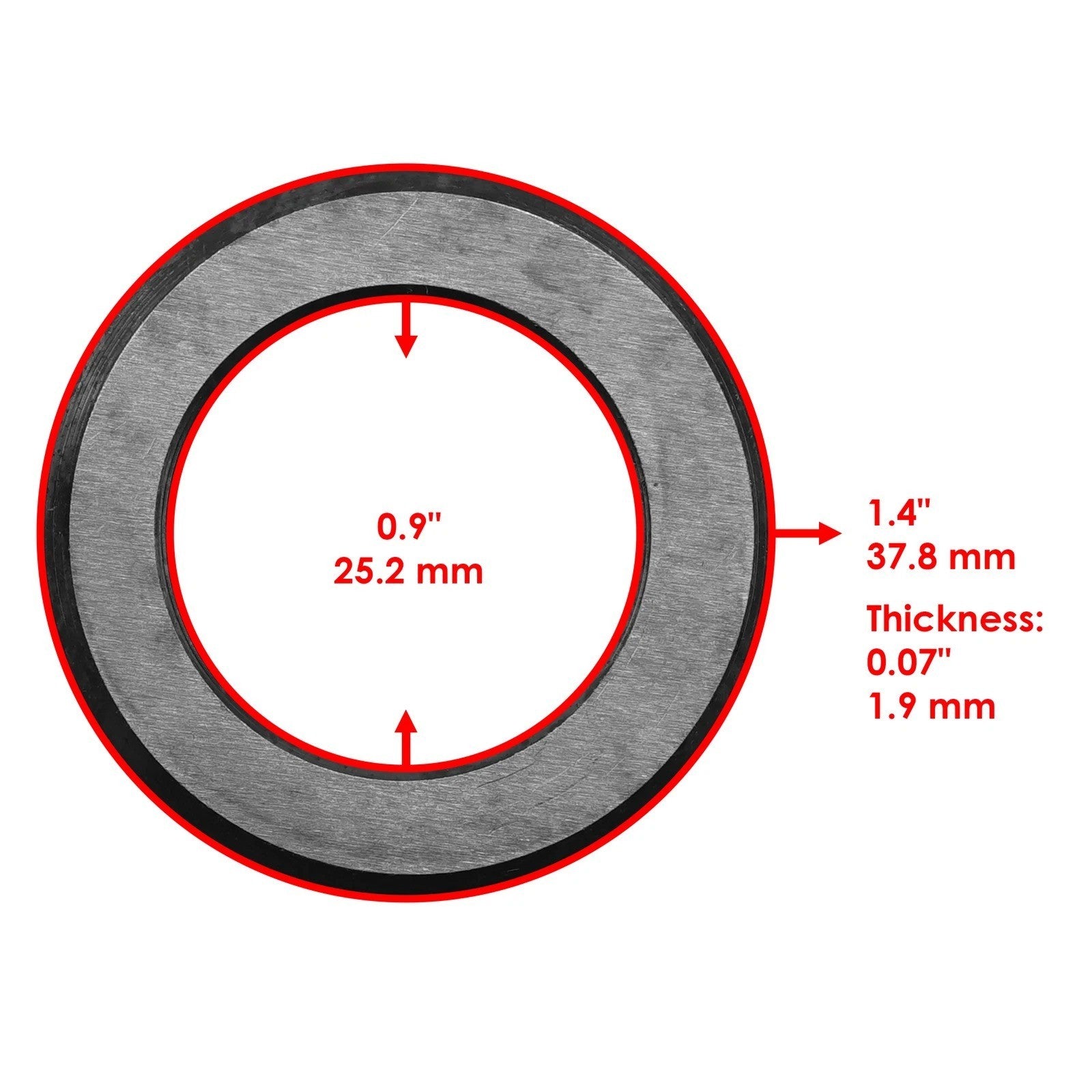

1x Washer : 3YF-22149-00-00, 90201-244A8-00
Inner Diameter: 25.2mm | 0.9"
Outer Diameter: 37.8mm | 1.4"

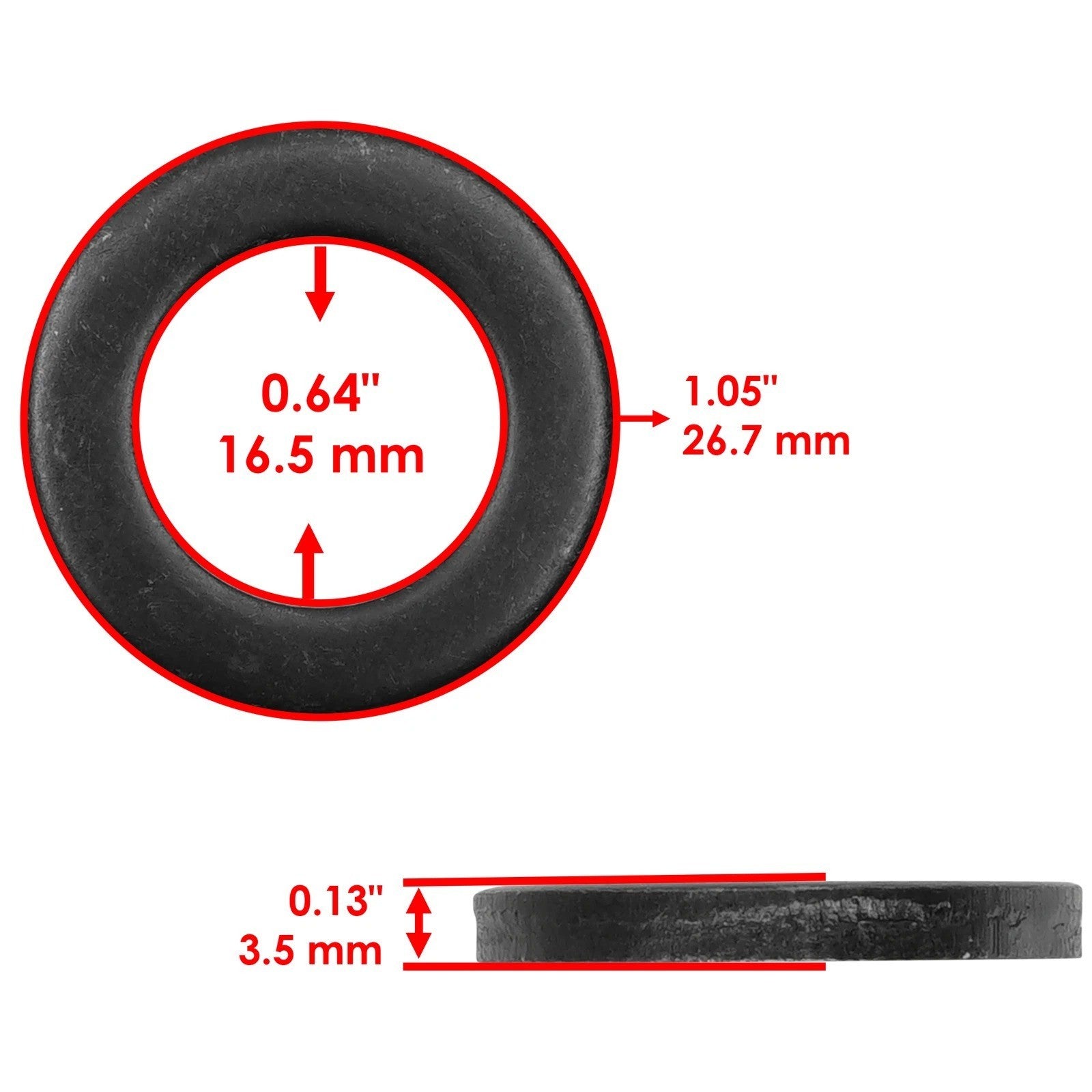

1x Plate Washer : 90201-160F6-00
Inner Diameter: 16.5mm | 0.64"
Outer Diameter: 26.7mm | 1.05"
Thickness: 3.5mm | 0.13"
1 x Thrust Cover | 4X7-22129-00-00
Width: 13 mm | 0.5"
Inner Diameter: 15.9 mm | 0.62"
Outer Diameter: 44.9 mm | 1.76"

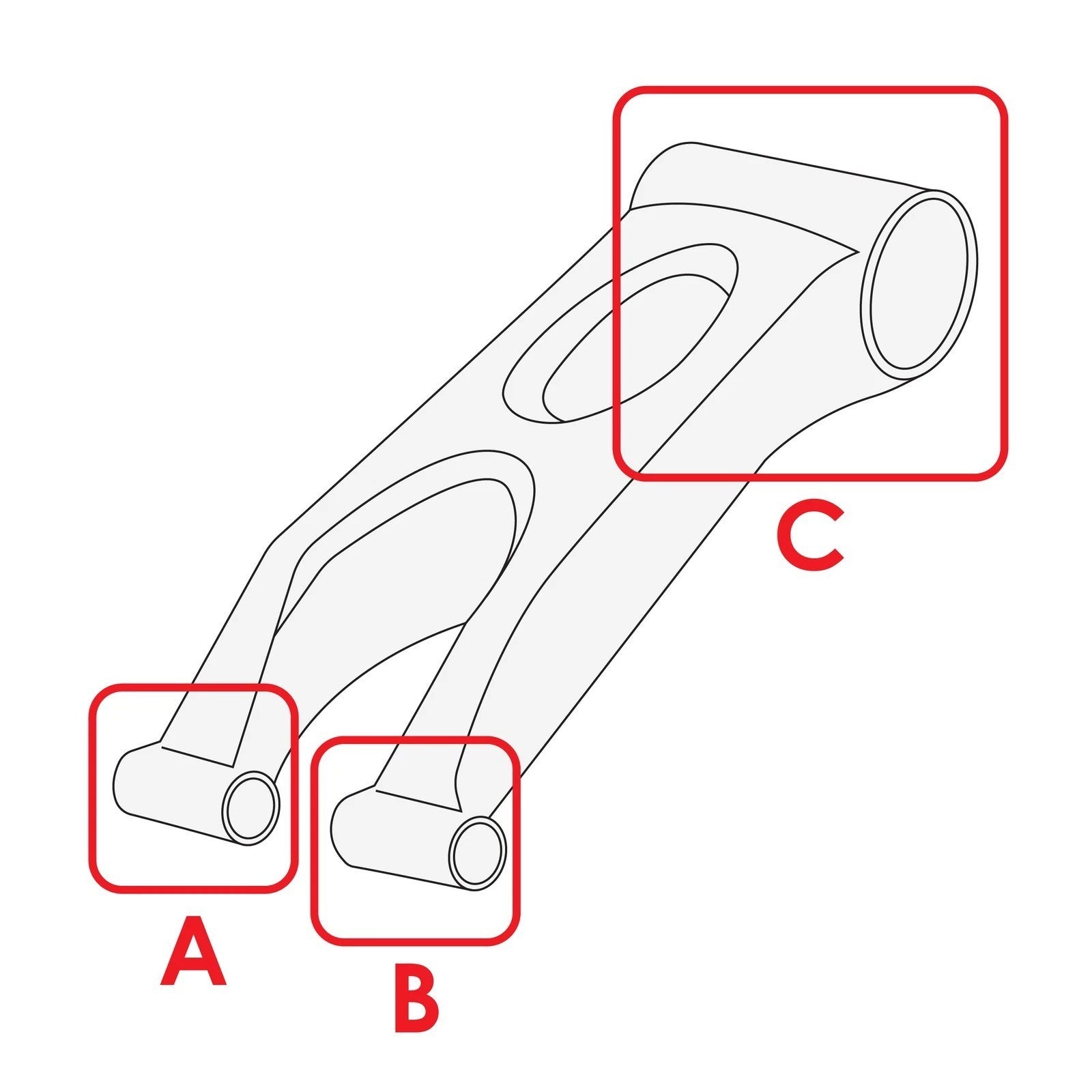

Note : Installs On Location (A) and (B) In Second Picture
Rear Swing Arm Kit
For Yamaha Models:
Raptor 660R YFM660R 2001-2005
Raptor 660R YFM660R Black Limited Edition 2003-2004
Raptor 660R YFM660R SE 2005
Order Includes:
1x Pivot Shaft Bolt : 5LP-22141-00-00
Height : 291.6mm | 11.4"
M11 x 1.5
1x Swingarm Collar : 90387-16006-00
Inner Diameter : 15.6mm | 0.61"
Outer Diameter : 27.9mm | 1.09"
Width : 6.1mm | 0.24"
1x Seal : 93109-28043-00
Inner Diameter : 28mm | 1.10 "
Outer Diameter : 35mm | 1.37 "
Width : 4mm | 0.15 "
1x Bearing: 93342-22217-00
Inner Diameter: 22.2 mm | 0.87"
Outer Diameter: 35.0 mm | 1.37"
Bearing Thickness: 2 mm
Washer Thickness: 1 mm
2x Needle Bearing : 93317-32231-00 93317-22237-00
Width : 20.0 mm | 0.7"
Length: 28.0 mm | 1.1"
Inner Diameter: 22.5 mm | 0.8"
2x Solid Bushing: 90380-22111-00
Width: 14.9 mm | 0.58"
Inner Diameter: 22.3 mm | 0.87"
Outer Diameter: 27.7 mm | 1.0"
1x Swing Arm Bushing : 5LP-22123-00-00
Diameter : 16X22mm
Length : 225.6mm
1x Long Pivot Shaft : 5LP-22184-00-00
Length: 94mm | 3.70 "
Inner Diameter: 16mm | 0.63 "
Outer Diameter: 22mm | 0.86 "
2x Oil Seal: 93106-22019-00 Dc 22-28-8
Width: 8.0 mm | 0.31"
Inner Diameter: 21.5 mm | 0.84"
Outer Diameter: 28.2 mm | 1.1"
1x Washer : 3YF-22149-00-00, 90201-244A8-00
Inner Diameter: 25.2mm | 0.9"
Outer Diameter: 37.8mm | 1.4"
1x Plate Washer : 90201-160F6-00
Inner Diameter: 16.5mm | 0.64"
Outer Diameter: 26.7mm | 1.05"
Thickness: 3.5mm | 0.13"
1 x Thrust Cover | 4X7-22129-00-00
Width: 13 mm | 0.5"
Inner Diameter: 15.9 mm | 0.62"
Outer Diameter: 44.9 mm | 1.76"
Note : Installs On Location (A) and (B) In Second Picture
