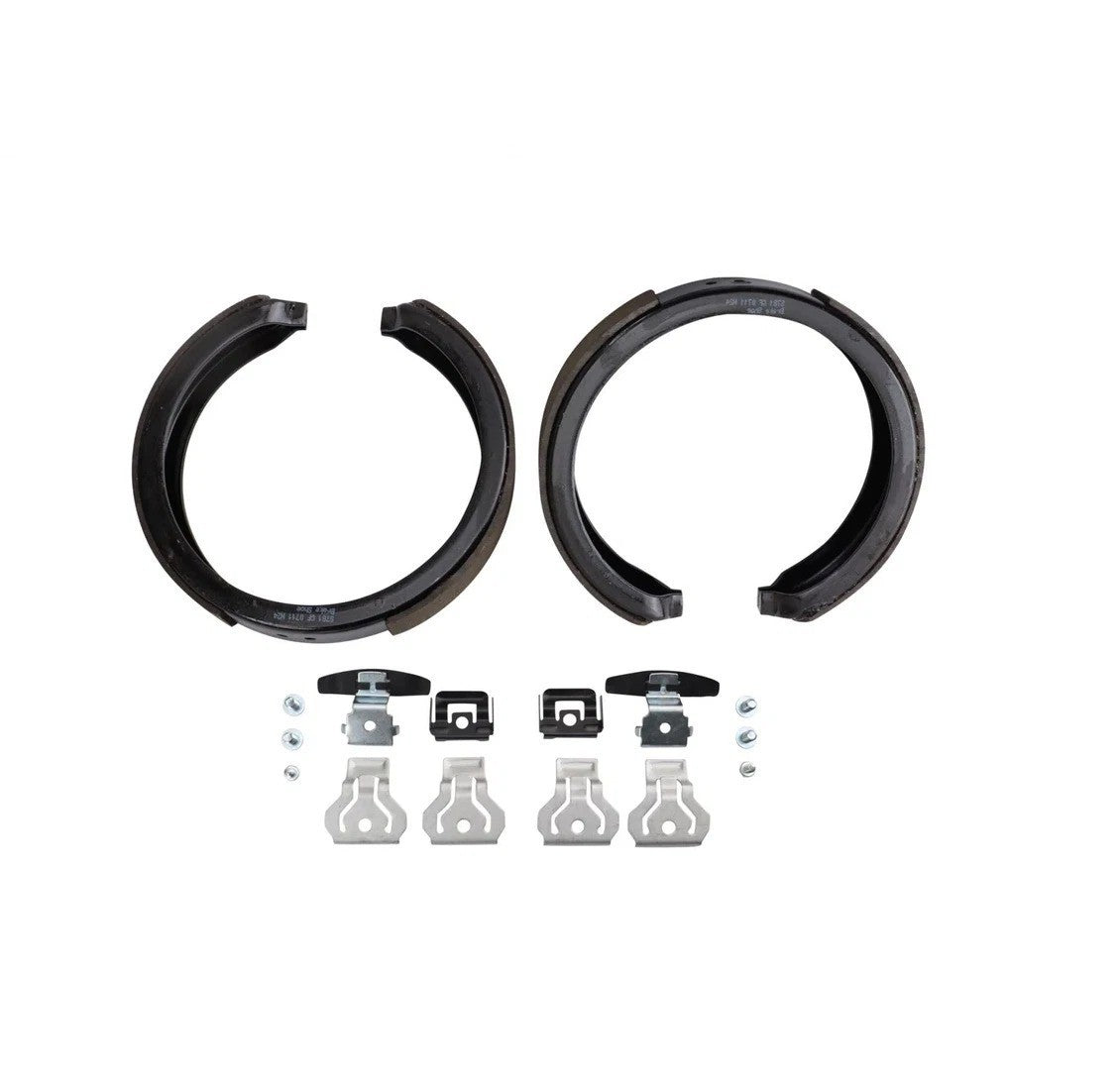

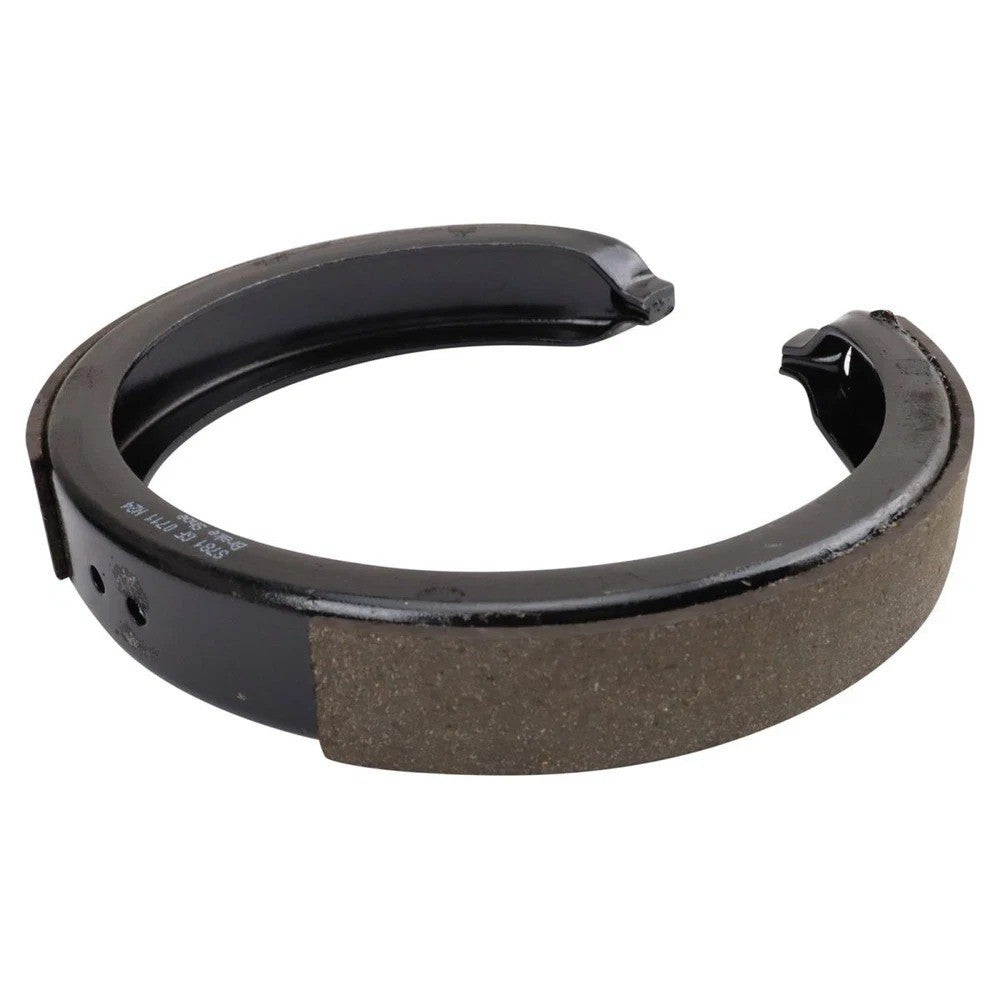

Rear Parking Brake Shoe Set

Premium Emergency Brake Restoration for GM Full-Size Trucks, SUVs, and Sedans

Maintain your vehicle’s stationary safety and prevent transmission strain with this Rear Parking Brake Shoe Set. Specifically engineered for General Motors "Drum-in-Hat" rear disc brake systems, these shoes reside within the internal drum of the rear rotor. Over time, moisture and road debris can cause the friction material to de-bond or glaze, especially on high-mileage trucks and SUVs where the parking brake is rarely exercised or accidentally left engaged while driving.

This set is manufactured using a high-friction organic compound designed to provide maximum static holding power on steep inclines. The steel backing plates are precision-curved to ensure uniform contact with the inner drum surface, allowing for easier adjustment and a firmer pedal or lever feel.

Fitment Verification and Vehicle Applications

This kit is highly versatile, fitting a wide range of GM, Isuzu, and Saab vehicles. Please verify your specific chassis and drivetrain options:

• Chevrolet & GMC 1500 Trucks: Silverado/Sierra 1500 (1999–2013), Silverado/Sierra 1500 Classic (2007).

• Chevrolet & GMC Full-Size SUVs: Tahoe, Suburban 1500, Yukon, Yukon XL 1500 (2000–2014).

• Cadillac Luxury Models: Escalade, ESV, EXT (2002–2010), Deville (2000–2005), DTS (2006–2010).

• Mid-Size SUVs (GMT360): Trailblazer, Envoy, Rainier, Bravada, Ascender, Saab 9-7X (2002–2009).

• Vans: Express 1500, Savana 1500 (2003–2014), Astro/Safari (2003–2005).

• Specialty Fitment: Fits 1500HD, 2500, and 2500HD models specifically equipped with 4-Wheel Steering options.

Technical Specifications and Attributes

• Brake System: Internal Drum-in-Hat (Rear Disc Brake models).

• Friction Material: Low-Abrasion Organic Compound.

• Quantity: 4-Piece Set (Full Rear Axle Coverage).

• Construction: Precision-Arched Steel Backing.

• Fitment Type: Direct Replacement.

What’s in the Box

• (4) Rear Parking Brake Shoes (Complete Rear Axle Set)

Industry Cross-Reference Numbers

• General Motors: 15817020, 88935747, 88982875, 89026787, 12477908, 12482786

• Isuzu: 8889357470

• ACDelco: 14K101, 171-0897

• Raybestos: 791PG

• Wagner: PAB791

Installation and Technical Tips

• Overcoming the Rust Ridge: On high-mileage trucks, a rust ridge often forms on the inner drum of the rotor. If the rotor is stuck, use the star-wheel adjuster through the access hole on the backing plate to contract the shoes inward. This creates the necessary clearance to pull the rotor off without damaging the internal springs.

• Hardware Replacement: The hold-down clips and return springs in these systems are prone to corrosion and losing tension. We strongly recommend installing a new Parking Brake Hardware Kit at the same time to ensure the shoes retract properly and do not drag against the drum.

• The "Click" Adjustment: Once the new shoes are installed, adjust the star wheel until the rotor can just barely slide over the shoes. There should be a very slight "drag" when rotating the hub by hand. This ensures immediate parking brake engagement and prevents excessive pedal travel.

• Clean the Drum: Use brake cleaner and a wire brush to remove rust and old friction dust from the inner drum surface of the rotor before installing the new shoes. A clean surface is essential for the "static bite" required to hold a heavy truck on a hill.
