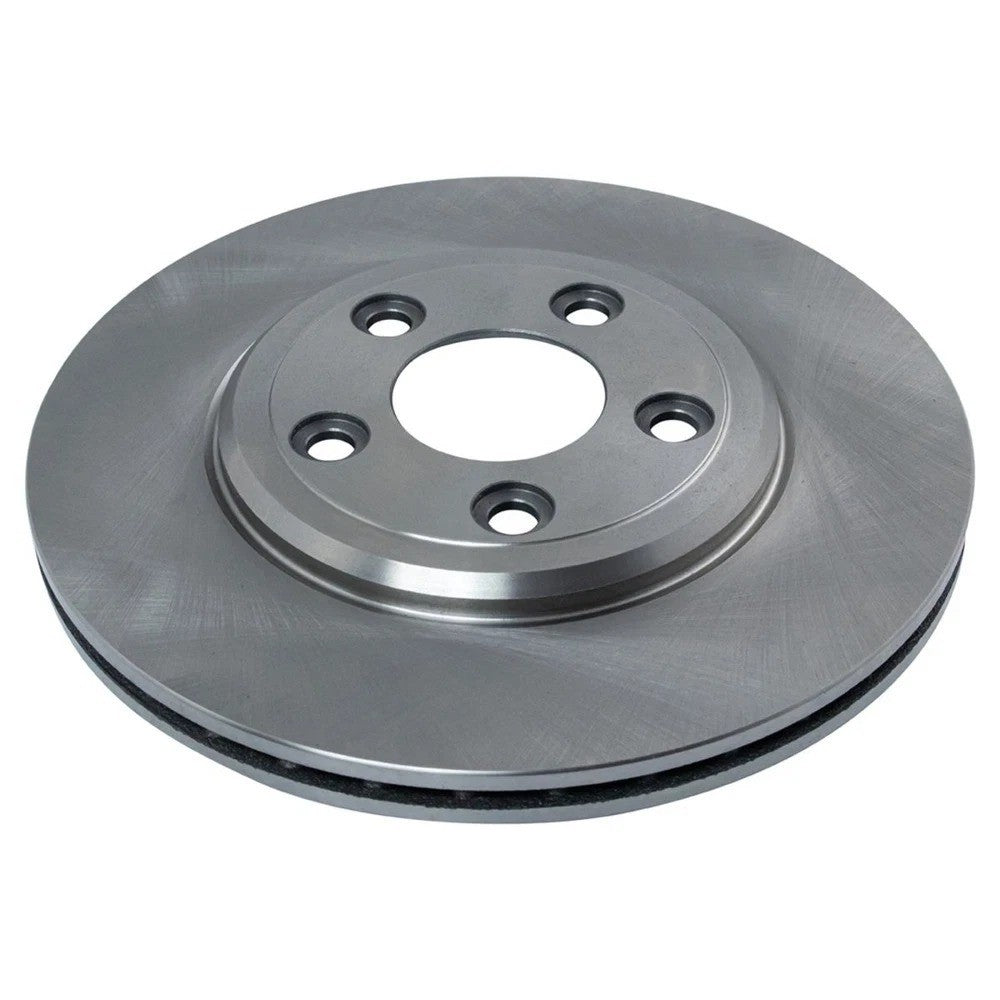

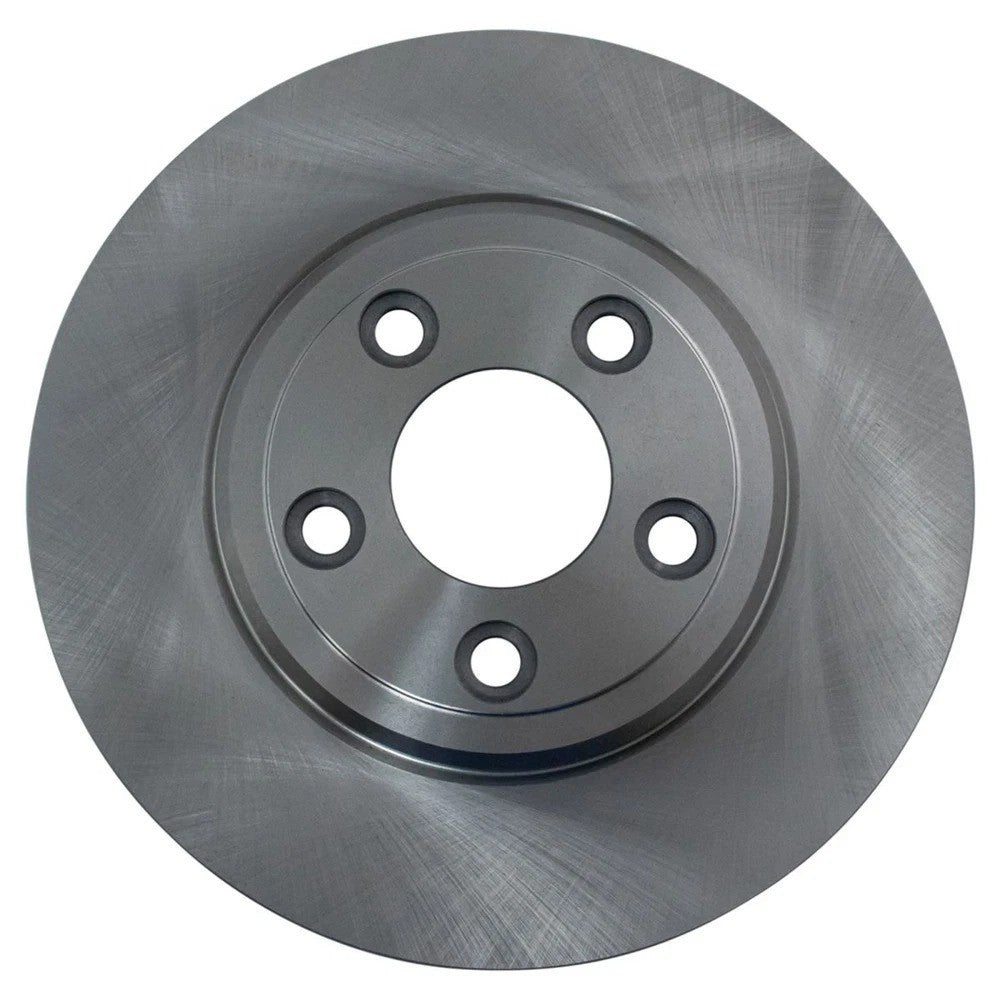

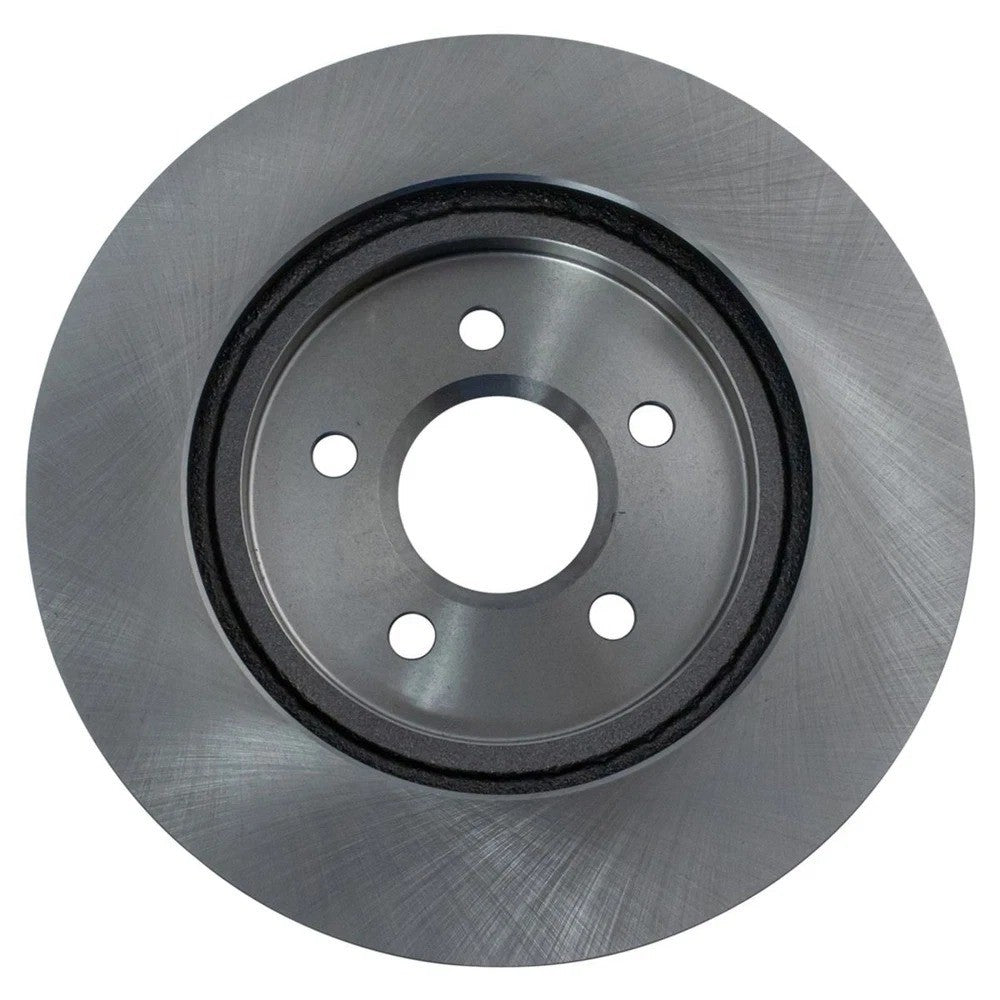

Rear Disc Brake Rotor Pair

Premium Vented Braking for Lincoln LS, Ford Thunderbird, and Jaguar S-Type

Ensure your vehicle maintains its original luxury stopping performance with this 2-Piece Rear Disc Brake Rotor Set. Unlike many standard rear rotors that are solid, these units feature a vented design specifically engineered to handle the thermal demands of the DEW98 and X350 chassis platforms. By utilizing internal cooling vanes, these rotors dissipate heat more effectively, reducing the risk of brake fade during spirited driving or heavy traffic.

Each rotor is precision-cast from high-carbon iron to provide a stable friction surface. With an outside diameter of 288 mm (11.34 in) and a nominal thickness of 20 mm, these rotors are double-disc ground to ensure a smooth, non-directional finish. This meticulous manufacturing process virtually eliminates the lateral runout and pedal pulsation often associated with inferior replacements.

Fitment Verification and Vehicle Applications

This set is designed for the Rear Driver and Passenger Side on the following models:

• Lincoln LS: 2000, 2001, 2002, 2003, 2004, 2005, 2006.

• Ford Thunderbird: 2002, 2003, 2004, 2005.

• Jaguar S-Type: 2000–2002 (All); 2003–2005 (Base Model); 2005 (Sport).

• Jaguar XJ8: 2003–2005; 2006 (To Chassis # G49700).

• Jaguar Vanden Plas: 2004; 2005–2006 (To Chassis # G49700).

• Jaguar XJR: 2003 only.

Note: Always verify your chassis number (the last digits of your VIN) for 2006 Jaguar models, as a mid-year production change may alter brake specifications.

Technical Specifications and Attributes

• Rotor Type: Vented (Internal Vane Cooling).

• Quantity: 2 Piece Set.

• Outside Diameter: 288 mm (11.34 in).

• Nominal Thickness: 20 mm (0.79 in).

• Discard Thickness: 19 mm (0.75 in).

• Overall Height: 33 mm (1.3 in).

• Lug Configuration: 5-Lug Bolt Pattern.

• Bolt Circle (PCD): 108 mm (4.25 in).

• Center Hole Diameter: 65 mm (2.56 in).

• Material: Heavy-Duty Cast Iron.

What’s in the Box

• (1) Rear Driver Side Vented Brake Rotor

• (1) Rear Passenger Side Vented Brake Rotor

Industry Cross-Reference Numbers

• Raybestos Brakes: 66840, 66840R, 66840FZN

• Bendix: PRT5269

• Wagner: BD125724, BD180175

• DuraGo: BR54089

• Aimco: 54089

Installation and Technical Tips

• Remove Shipping Oil: These rotors are coated in a specialized oil to prevent rust during storage. Use a dedicated brake cleaner to spray down both friction surfaces until they are bone-dry before installing your brake pads.

• Inspect Rear Calipers: The Lincoln LS and Jaguar S-Type utilize a "screw-in" style rear caliper for the parking brake mechanism. Ensure you use the correct caliper reset tool to retract the piston; forcing it straight back with a C-clamp will damage the internal adjuster.

• Hub Maintenance: Use a steel wire brush to clean the wheel hub surface. Any rust buildup between the hub and the new rotor can cause "induced runout," leading to a pulsing brake pedal even with brand-new parts.

• Bedding-In Process: For the first 150–200 miles, perform moderate stops and avoid "riding" the brakes. This allows the pads to transfer a thin, even layer of friction material to the new rotor surface, which is essential for quiet, long-term operation.
