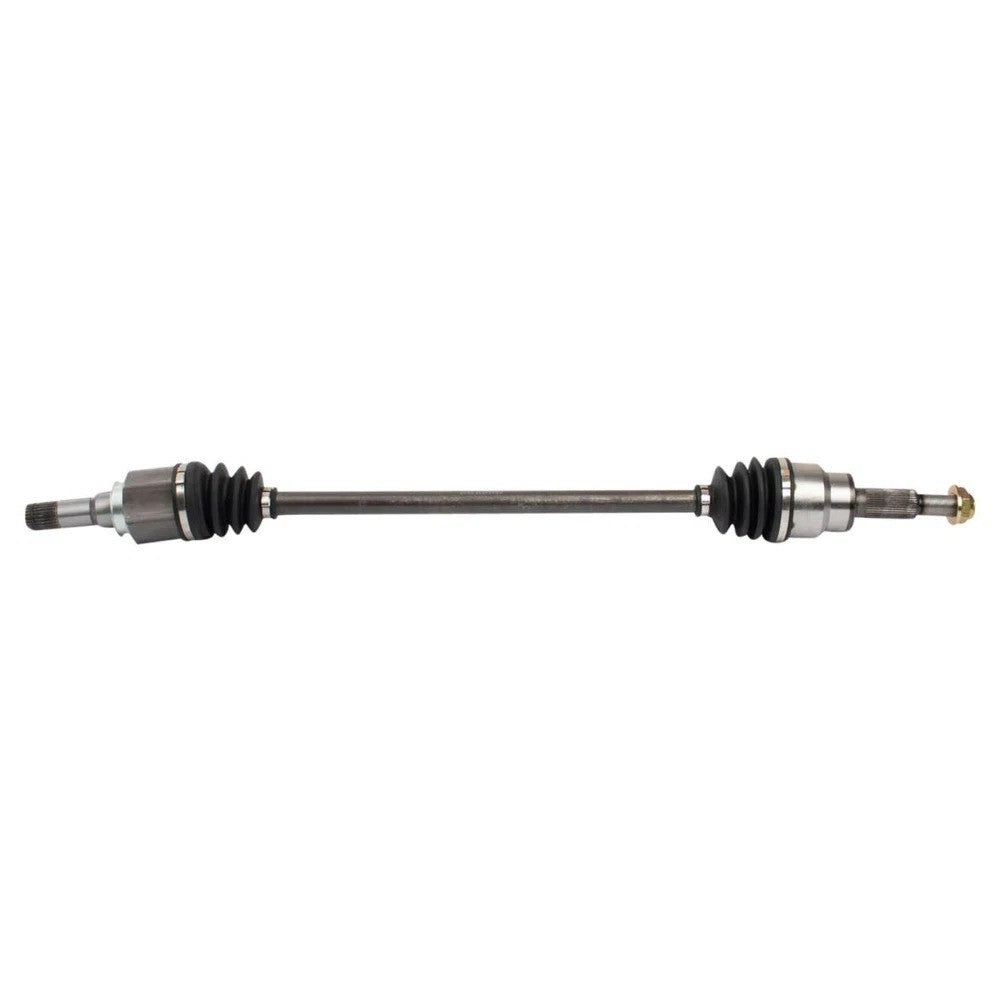

Rear CV Axle Assembly Set Fits 2011-2019 Ford Explorer
Regular price
$247.77

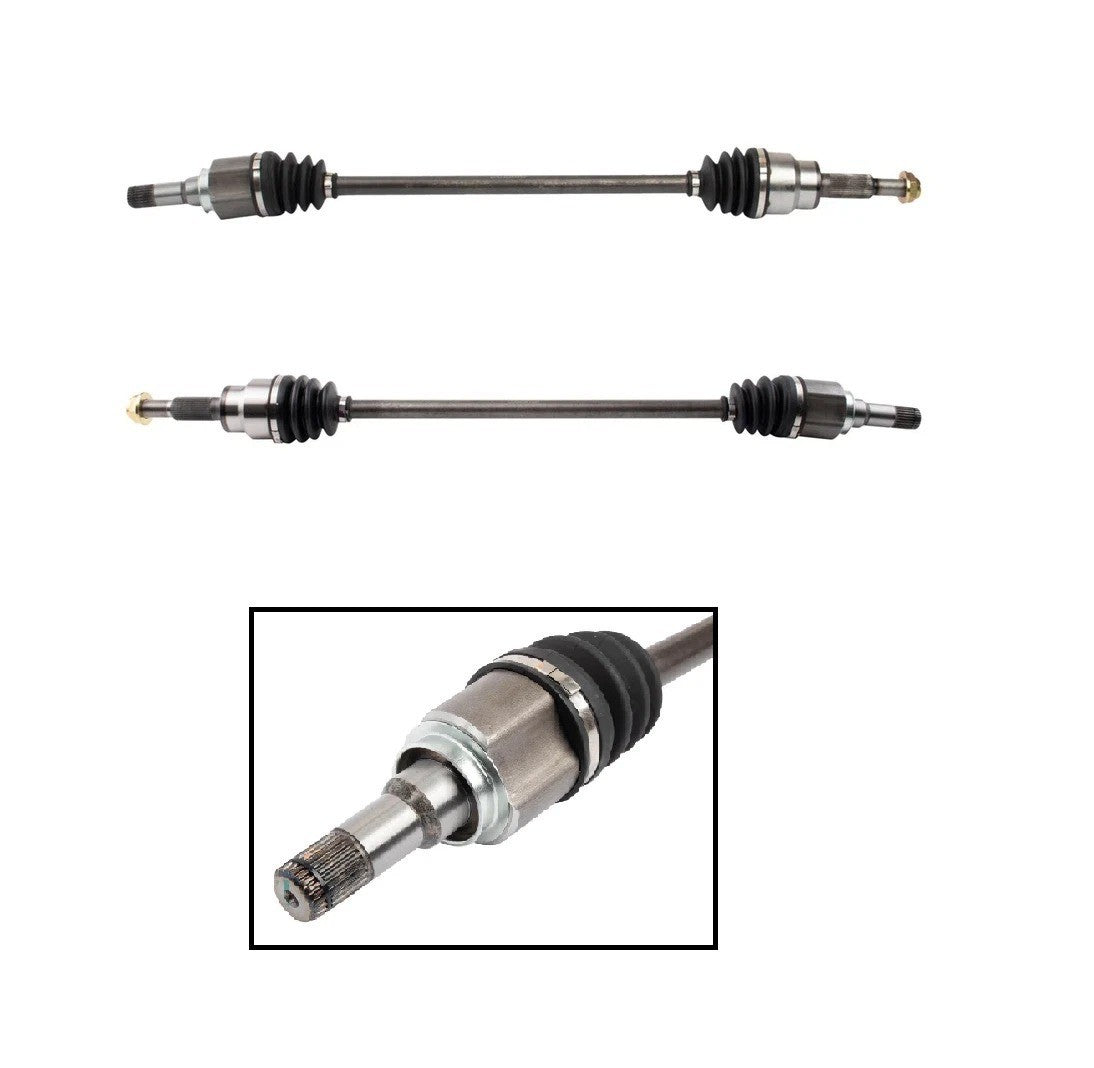

Rear CV Axle Shaft Assembly Pair
Complete Drive Axle Restoration for Ford Explorer and Police Interceptor
Restore the smooth power delivery and quiet operation of your drivetrain with this 2-Piece Rear CV Axle Assembly Set. Engineered specifically for the Ford Explorer and Police Interceptor Utility platforms, these axles are designed to withstand the high-torque demands of All-Wheel Drive (AWD) systems. Over time, factory CV joints can develop torn boots, leading to grease loss and internal wear that causes "clicking" sounds, vibration during acceleration, and shuddering at highway speeds.
Replacing both the driver and passenger side axles simultaneously ensures balanced performance across the rear differential and prevents the uneven wear that often occurs when only one side is serviced. Each axle features precision-machined splines and high-quality neoprene boots to provide a superior barrier against road contaminants and moisture.
Fitment Verification and Vehicle Applications
This 2-piece kit is designed for the Rear axle on the following models:
Ford Explorer (AWD): 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019.
Ford Police Interceptor Utility (AWD): 2013.
Ford Police Interceptor Utility: 2014, 2015, 2016, 2017, 2018, 2019.
Fitment Note: These axles are specifically designed for the rear-drive configuration of the Explorer's D4 platform. Please verify your vehicle's spline count and differential type to ensure a perfect match, especially for high-performance or heavy-duty police fleet variants.
Technical Specifications and Attributes
Quantity: 2-Piece Set.
Position: Rear Driver Side (LH) and Rear Passenger Side (RH).
Construction: High-strength heat-treated steel shafts.
Joint Type: Constant Velocity (CV).
Boot Material: Heavy-duty Neoprene for maximum ozone and puncture resistance.
Lubrication: Pre-packed with high-temperature molybdenum grease.
Grade Type: Standard Replacement.
What’s in the Box
(1) Rear Driver Side CV Axle Assembly
(1) Rear Passenger Side CV Axle Assembly
(2) Replacement Axle Nuts
Industry Cross-Reference Numbers
Ford: BB5Z4K138A, BB5Z4K138B, BB5Z4K139A, BB5Z4K139B
CARDONE: 66-2261, 66-2262
TrakMotive: FD-8194, FD-8195
GSP: NCV11068, NCV11069
Installation and Technical Tips
Torque Sequence: It is critical to use a calibrated torque wrench when installing the new axle nuts. Improperly torqued nuts are the leading cause of premature wheel bearing failure and hub damage.
Differential Seal Inspection: Before sliding the new axles into the differential, inspect the output seals for any signs of leaking or brittleness. Replacing these seals while the axles are out is a cost-effective way to prevent future maintenance issues.

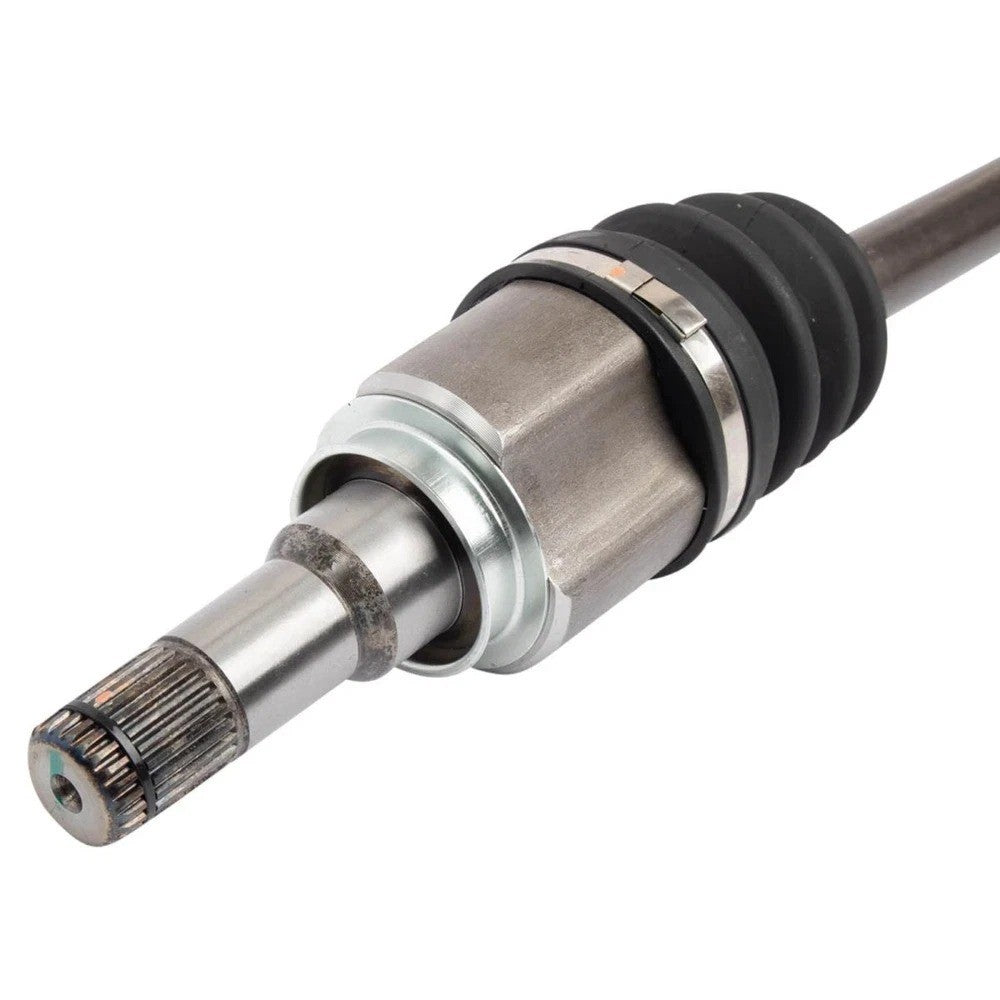

Spline Alignment: Apply a small amount of multi-purpose grease to the inboard and outboard splines. This helps the axle slide smoothly into the differential and wheel hub, preventing damage to the splines or the transmission seals.
Boot Clearance Check: Once the vehicle is back on the ground, ensure the CV boots have adequate clearance from the rear suspension arms and brake lines. Properly routed components prevent the boots from rubbing and tearing during suspension travel.
