Rear Complete Control Arm Bushing Kit for Polaris Sportsman 850 2016-2022
Regular price
$74.37
Premium Quality Replacement Part
Rear Complete Control Arm Pivot & Bushing Kit
For Polaris Models:
Sportsman 850 2020-2022
Sportsman 850 High Lifter Edition 2016-2022
Sportsman Touring 850 2020-2022

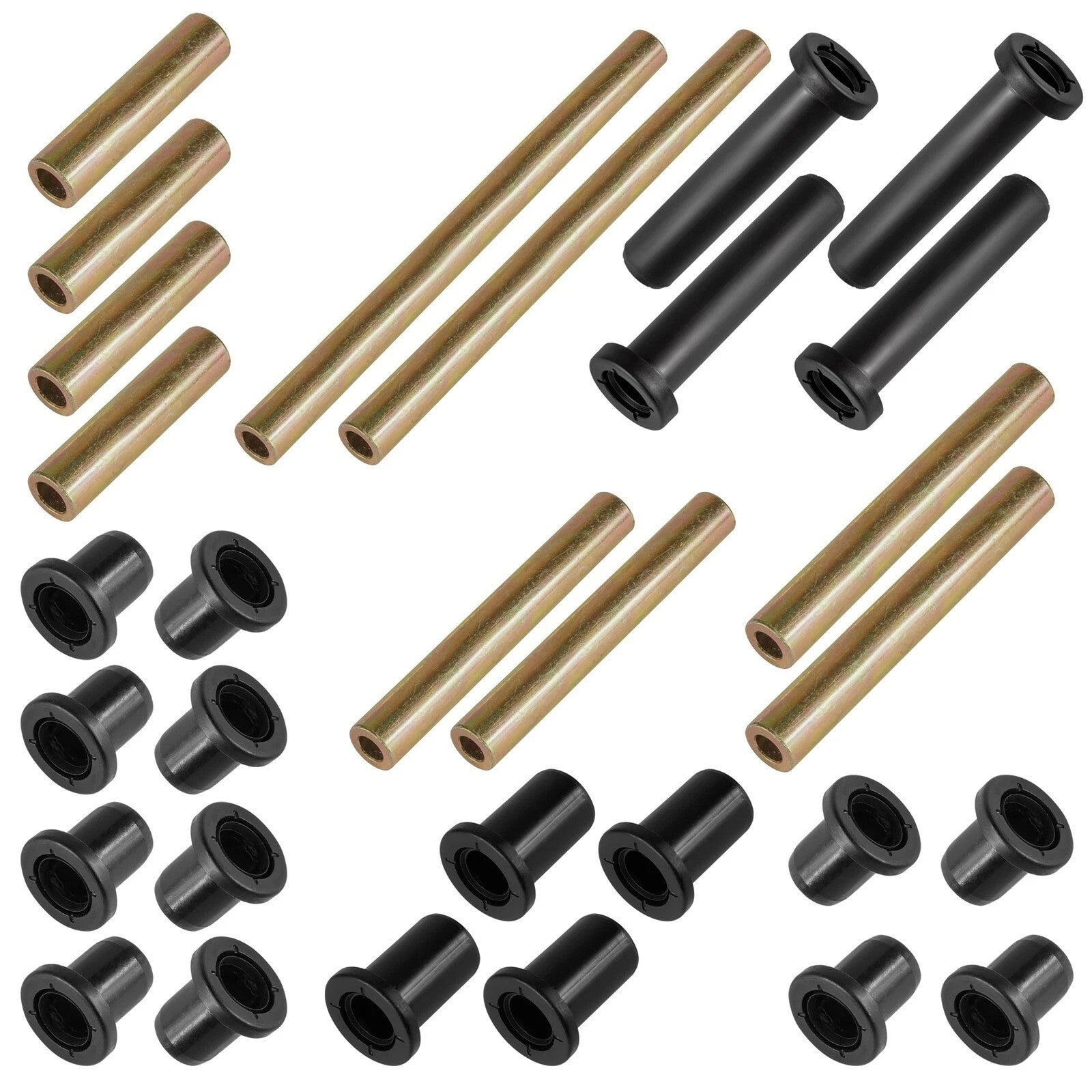

Order Includes :
4 x Lower Inner Pivot Shaft | 5137346
12 x Lower Inner Bushing | 5439874 5436832 5436505
2 x Lower Outer Pivot Shaft | 5136473
4 x Lower Outer Bushing | 5437651
2 x Upper Inner Pivot Shaft | 5137594 5136468
2 x Upper Outer Pivot Shaft | 5137590 5135501
4 x Upper Inner Bushing | 5436973 5431596 5433066 5434551 5436220
Dimensions & Measurements :

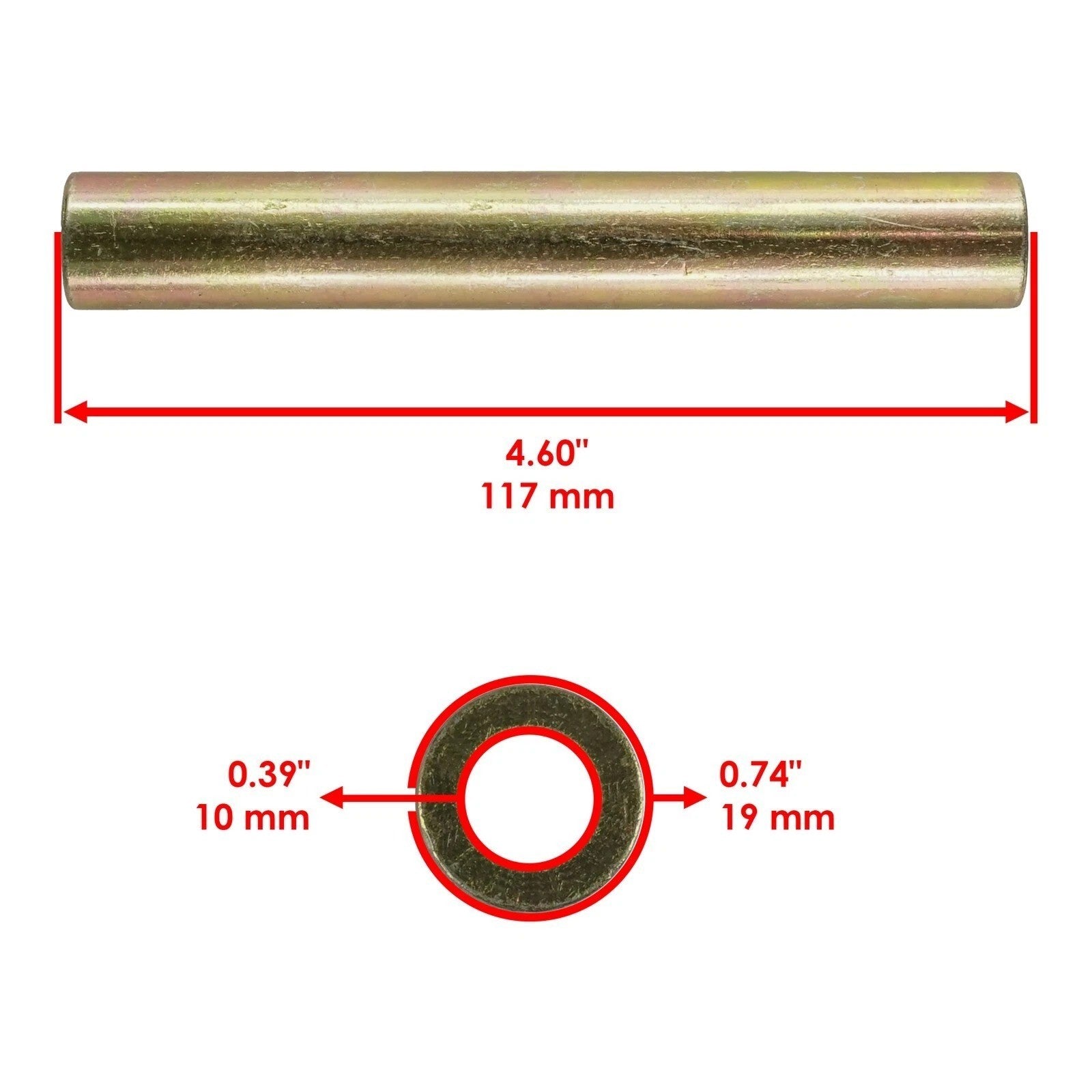

Lower Outer Pivot Shaft
Length : 117mm | 4.60"
Inner Diameter : 10mm | 0.39"
Outer Diameter : 19mm | 0.74"
Lower Inner Pivot Shaft
Length : 63.5mm | 2.5"
Inner Diameter : 10mm | 0.39"
Outer Diameter : 16mm | 0.62"

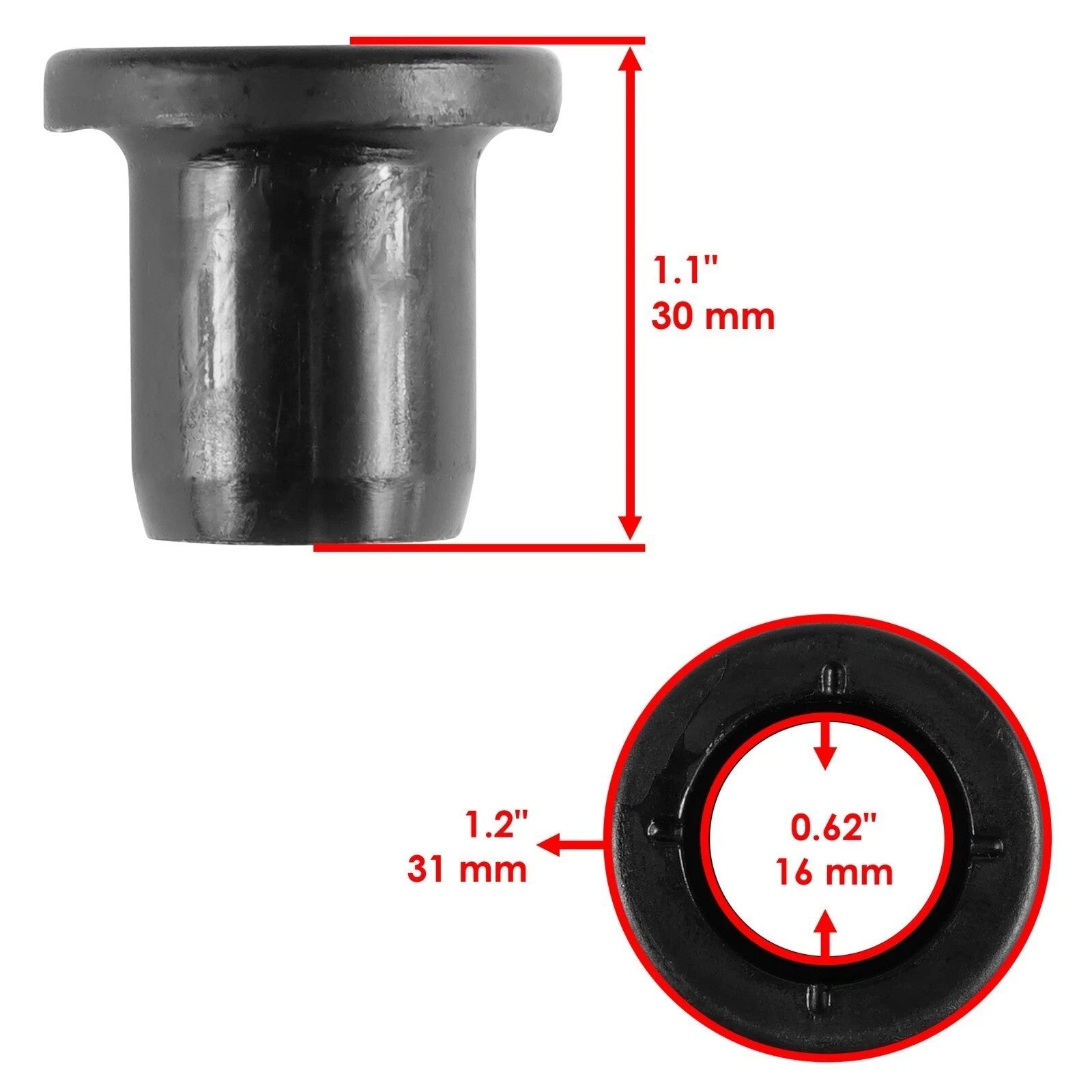

Lower Inner Bushing
Height : 30mm | 1.1"
Inner Diameter : 16mm | 0.62"
Outer Diameter : 31mm | 1.2"

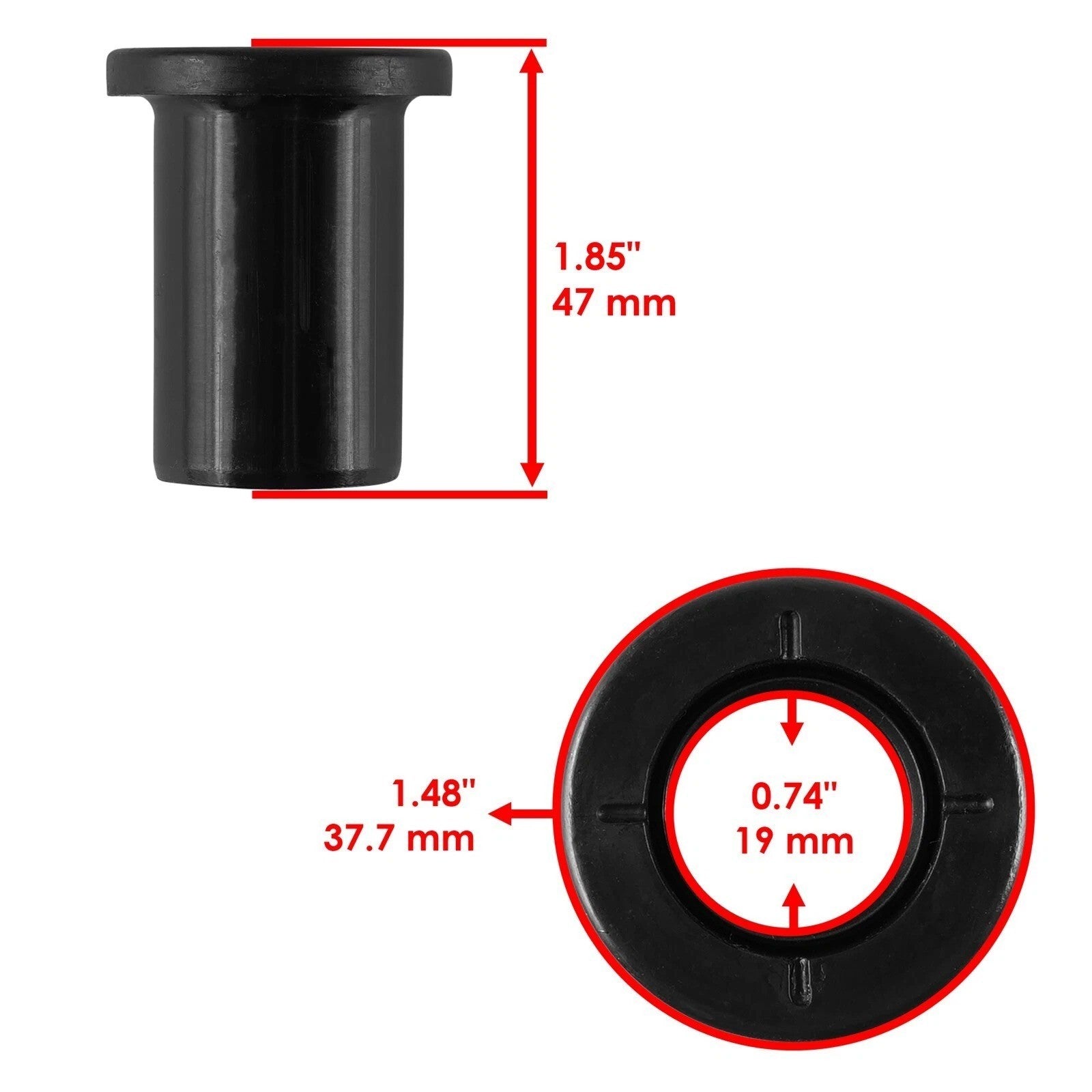

Lower Outer Bushing
Height : 47mm | 1.85"
Inner Diameter : 19mm | 0.74"
Outer Diameter : 37.7mm | 1.48"

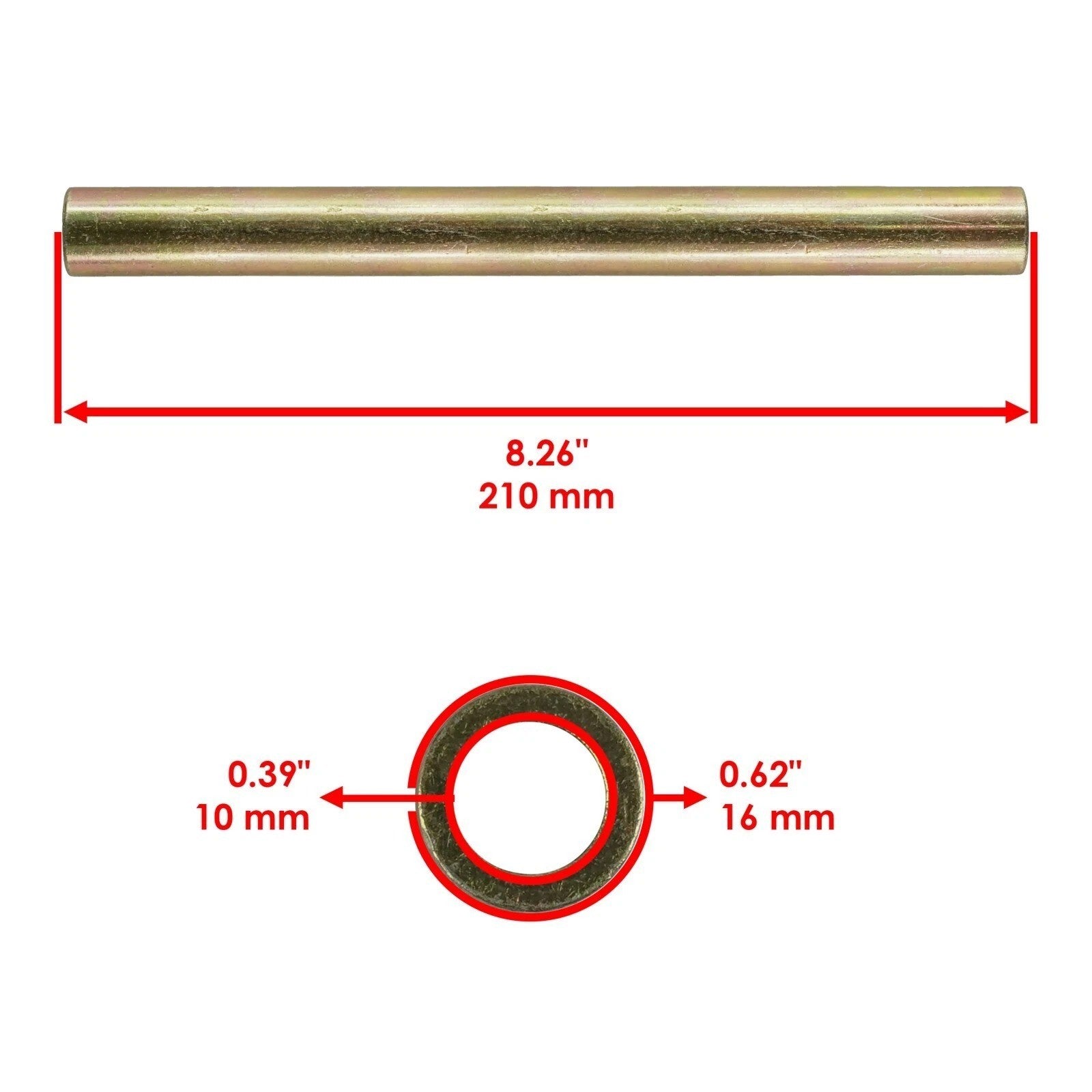

Upper Inner Pivot Shaft
Inner Diameter : 10mm | 0.39"
Outer Diameter : 16mm | 0.62"
Length : 210mm | 8.26"
Upper Outer Pivot Shaft
Inner Diameter : 10mm | 0.39"
Outer Diameter : 16mm | 0.62"
Length : 105mm | 4.13"

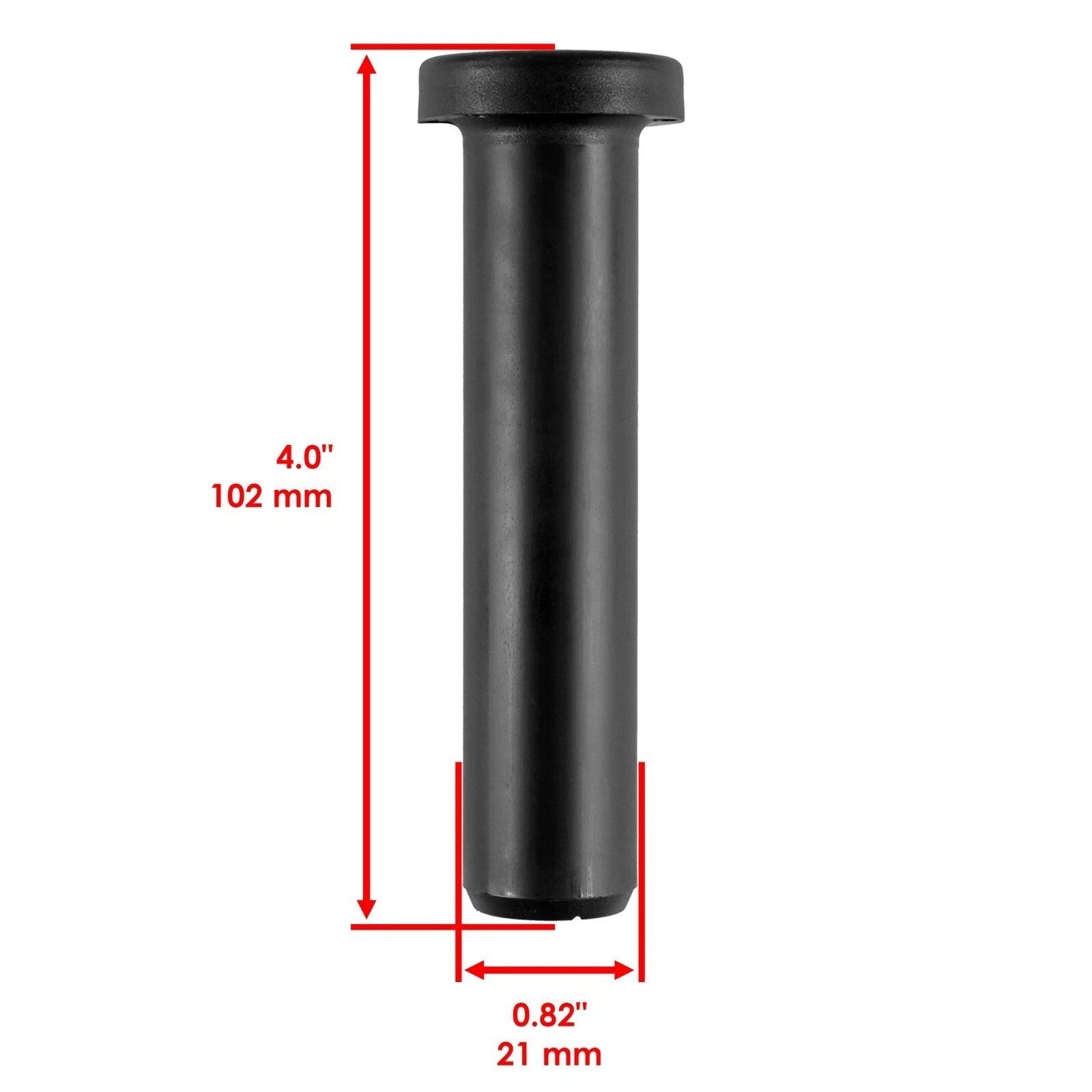

Upper Inner Bushing
Height : 102mm | 4.0"
Length : 21mm | 0.82"

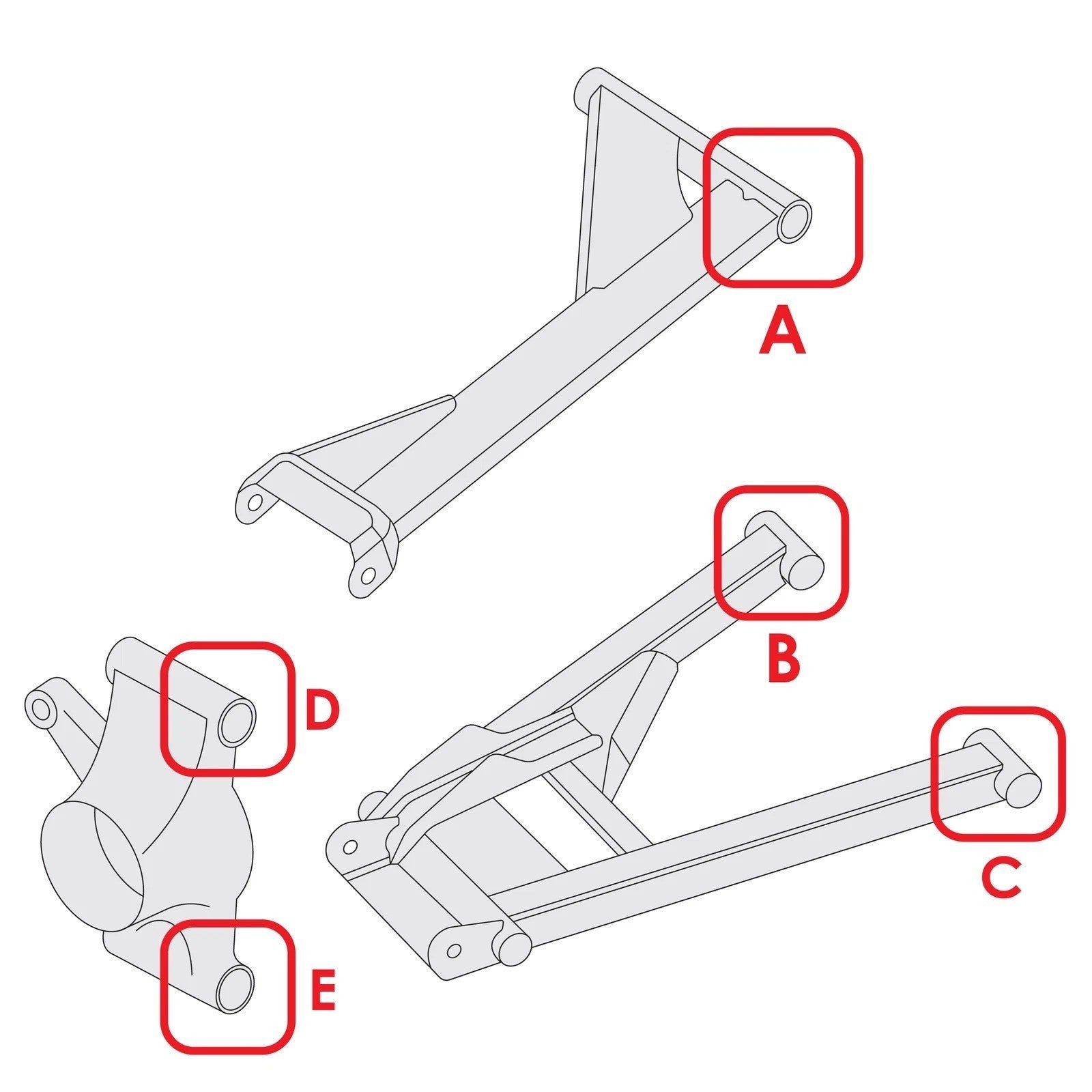

Note: Installs On Location (A) (B) (C) (E) (D) In Second Picture
Control Arm Part Number:
Rear Upper Left 1025619-067 1017216-067 1025619-385 1017216-385
Rear Upper Right 1025620-067 1017217-067 1025620-385 1017217-385
Rear Lower Left 1019410-067 1017864-067 1018215-067
Rear Lower Right 1019411-067 1017865-067 1018216-067
**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
