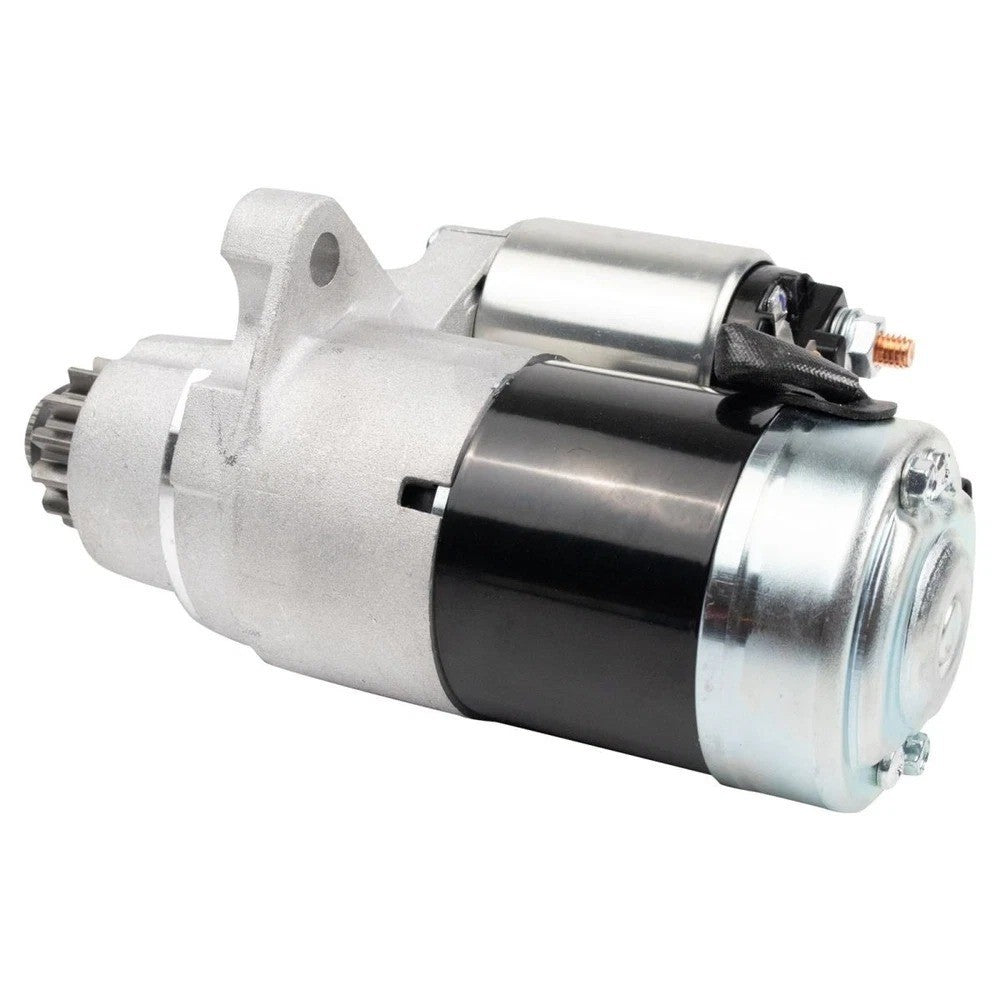

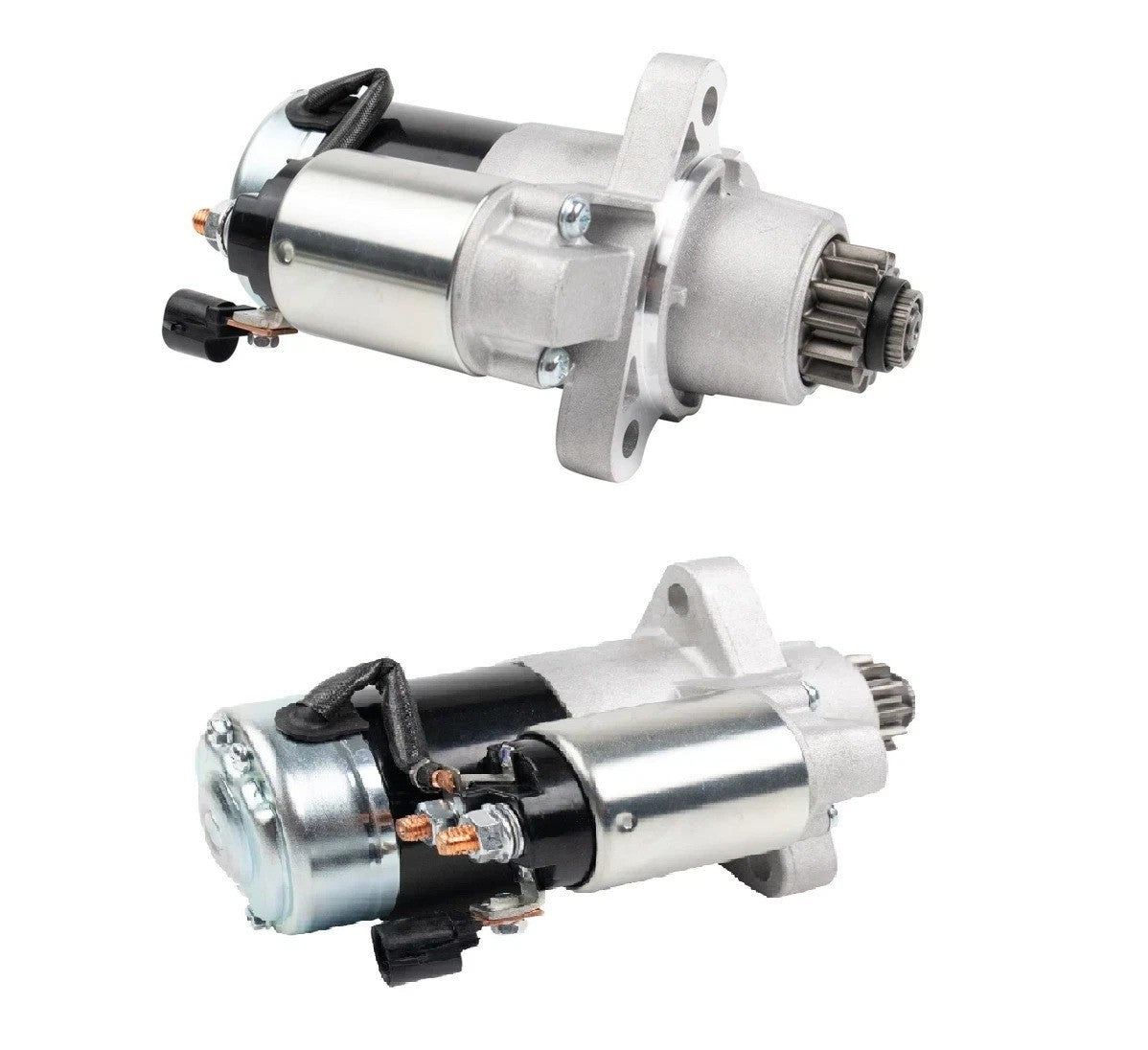

High-Torque Replacement Starter Motor

Dependable Ignition Performance for 3.5L Nissan Maxima and Murano

Eliminate the frustration of slow cranking or a non-starting engine with this premium New Starter Motor. Specifically engineered for the 3.5L V6 Nissan powertrain, this unit is a high-performance replacement for your factory starter. It features a Permanent Magnet Gear Reduction (PMGR) design, which provides significantly more torque than older direct-drive models while maintaining a lighter, more compact footprint for easier installation in tight engine bays.

Constructed with a precision-cast aluminum housing and high-conductivity copper windings, this starter is built to dissipate heat effectively and resist internal corrosion. Each unit comes with the solenoid pre-attached and is factory-tested to ensure immediate engagement and smooth retraction, protecting your engine's flexplate from premature wear.

Fitment Verification and Vehicle Applications

This starter is designed for the following Nissan models equipped with the 3.5L V6 engine and automatic transmission:

• Nissan Maxima: 2007, 2008.

• Nissan Murano: 2003, 2004, 2005, 2006, 2007.

• Compatibility Note: This unit is designed for standard ignition systems and is not intended for vehicles equipped with Automatic Start/Stop technology.

Technical Specifications and Attributes

• Voltage: 12 VDC.

• Power Rating: 1.4 KW.

• Design Type: Permanent Magnet Gear Reduction (PMGR).

• Gear Reduction Ratio: 4.91:1.

• Starter Rotation: Counterclockwise (Left).

• Tooth Quantity: 13-Tooth Pinion.

• Housing Material: Die-Cast Aluminum.

• Family Type: Mitsubishi Style.

• Solenoid: Included and Pre-Attached.

What’s in the Box

• (1) Complete New Starter Motor Assembly with Attached Solenoid

Industry Cross-Reference Numbers

• Lester: 17863

• TYC: 1-17863

• WAI: 17863N

• BBB Industries: 17863

• Delco-Remy: 17380

• USA Industries: S2863

• MPA: 17863

Installation and Technical Tips

• Electrical Safety: Always disconnect the negative battery cable before attempting to remove the old starter. The positive cable connected to the solenoid is live and can cause a dangerous short-circuit if it contacts the engine block or frame.

• Surface Preparation: Ensure the mounting surface on the transmission housing is clean and free of rust or debris. Because the starter grounds through its mounting flange, a clean connection is vital for maximum cranking power.

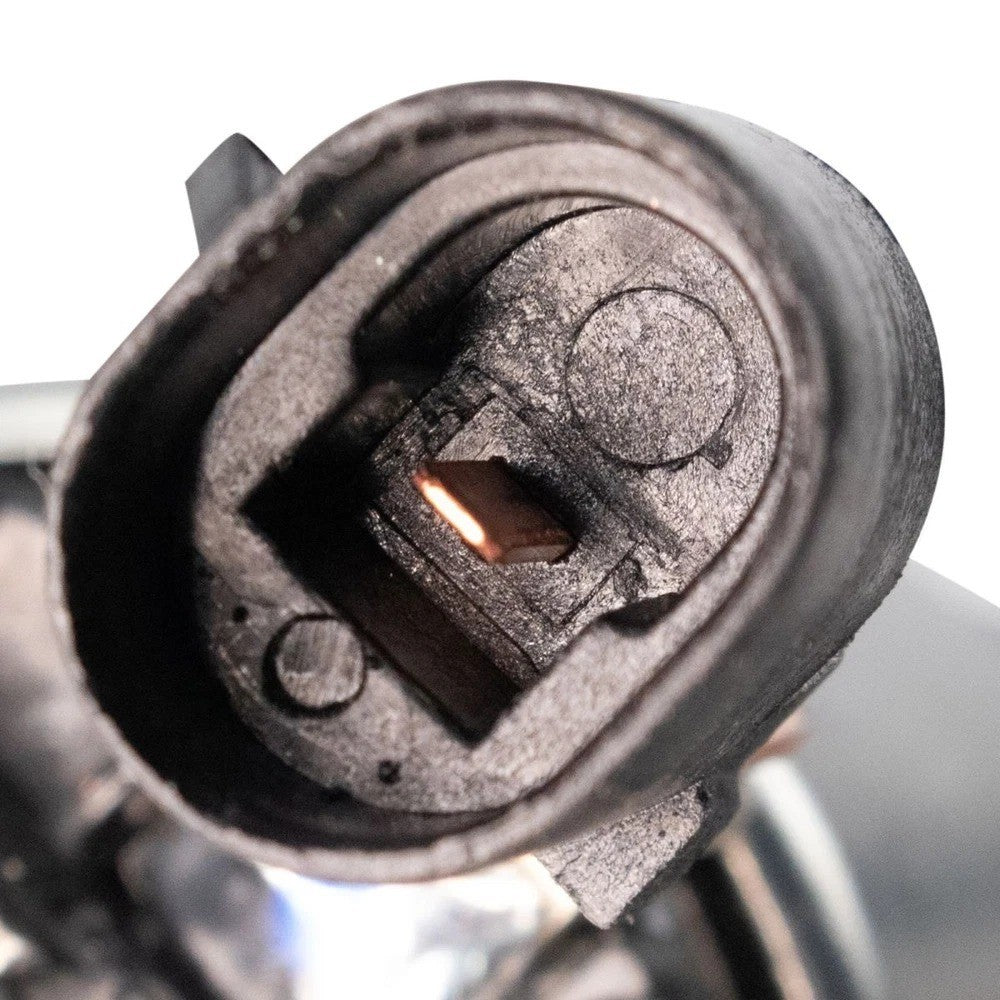

• Inspect the Trigger Wire: Check the small "S" terminal (trigger wire) connector for corrosion. If the connector is green or brittle, clean it or replace the terminal to prevent intermittent "clicking" or starting failure.

• Battery Condition: A failing starter often mimics the symptoms of a weak battery. Before installing the new unit, verify that your battery is fully charged and capable of holding a load to avoid putting unnecessary stress on the new motor.
