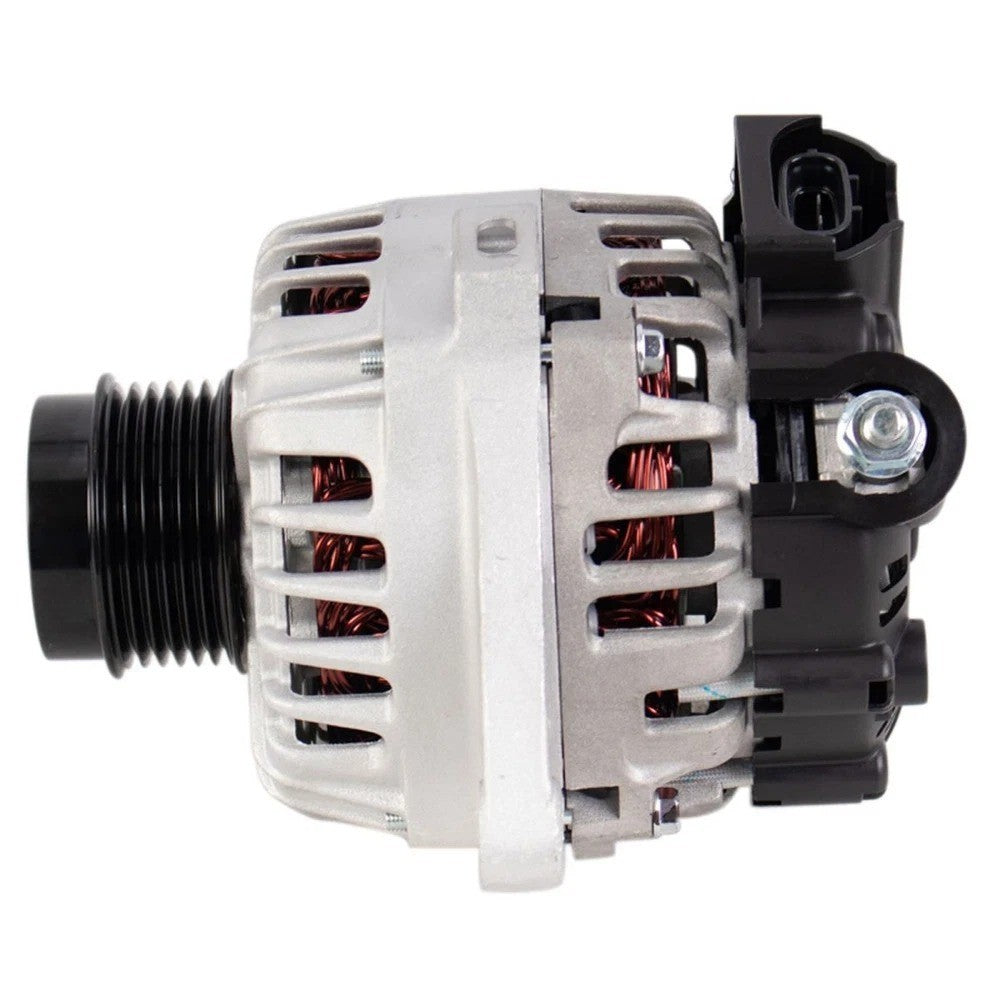

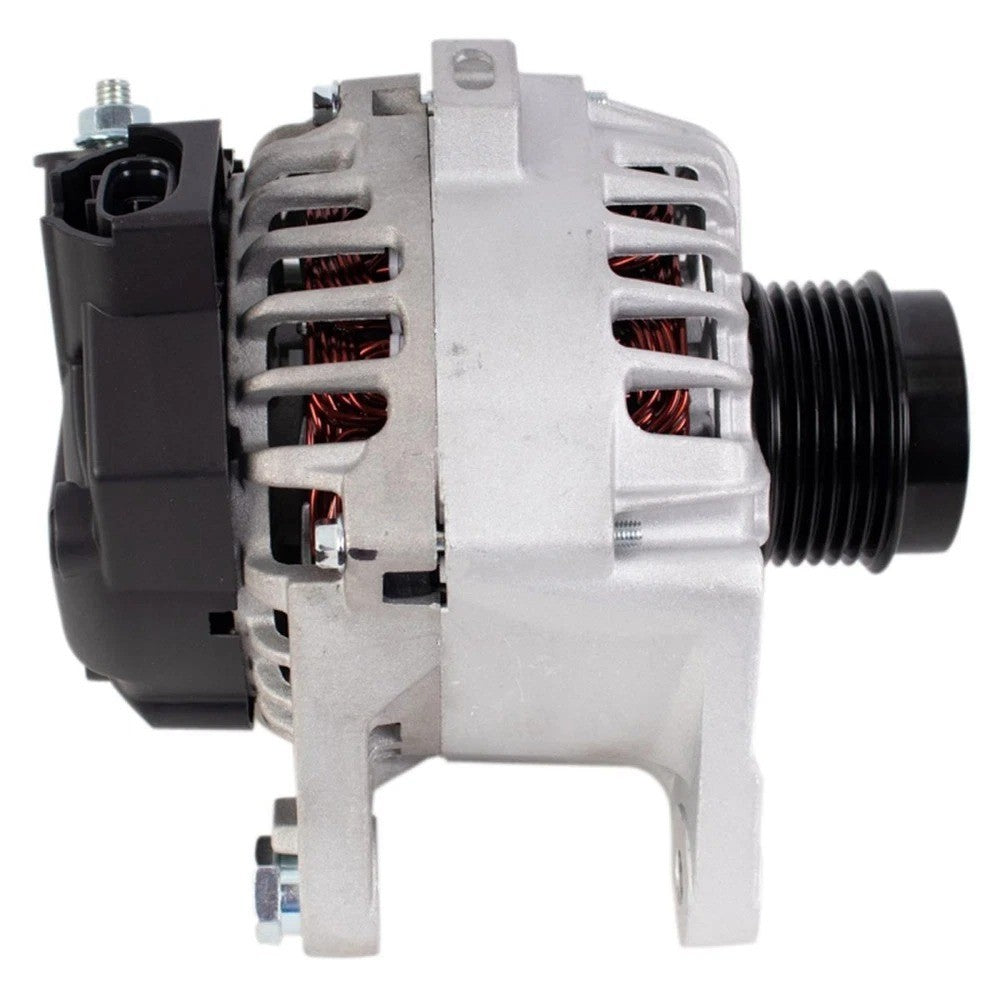

New 90 Amp Valeo Style Alternator

Reliable Electrical Power for 2011–2017 Hyundai and Kia 1.8L/2.0L

Ensure your vehicle’s charging system operates at peak efficiency with this premium 90 Amp Alternator. Specifically engineered for the Hyundai Elantra and Kia Forte/Soul platforms, this unit is built to the high-efficiency Valeo Family design. It provides the stable voltage necessary to power essential vehicle electronics, ignition systems, and safety features while maintaining your battery's charge under various load conditions.

This alternator features a Decoupled Clutch Pulley, designed to reduce vibration and extend the life of your serpentine belt by absorbing engine pulsations. Constructed with high-quality internal fans and heat-resistant windings, this unit is a 100% new replacement that eliminates the need for a core return.

Fitment Verification and Vehicle Applications

This alternator is designed for models equipped with the 90 Amp Valeo Style option:

• Hyundai Elantra: * 2011–2012 (1.8L)

  • 2013–2015 (All)

  • 2016 (1.8L Korea Built - 1st VIN Digit "K" - Without Internal Microcontroller)

  • 2016–2017 (2.0L)

• Hyundai Elantra Coupe: 2013–2014

• Hyundai Elantra GT: 2013–2017

• Kia Forte / Forte Koup / Forte5: 2014–2016 (2.0L models without Start/Stop System)

• Kia Soul: 2012–2013 (2.0L without Start/Stop System)

Critical Fitment Note: This unit is specifically for vehicles with the 90 Amp charging system and Valeo style architecture. It is not compatible with vehicles utilizing the "Auto Start-Stop" (Idle Stop & Go) technology or higher-output 110A/130A systems.

Technical Specifications and Attributes

• Amperage Rating: 90 Amps

• Voltage: 12 VDC

• Pulley Type: 6-Groove Serpentine with Decoupled Clutch

• Rotation: Clockwise (Right)

• Fan Type: Internal

• Mounting Foot Distance: 2.32 inches (59 mm)

• Pulley Offset (1st Groove): 1.65 inches (42 mm)

• Design Family: VALEO

What’s in the Box

• (1) New 90 Amp Alternator with Decoupled Clutch Pulley

Industry Cross-Reference Numbers

• Hyundai/Kia: 37300-2E200, 373002E200, 373002E250, 37300-2E200RU

• Hollander: 601-50388

• TYC: 2-11610

• WAI / Lester: 11610, 11610N

• BBB Industries: 11610

• MPA: 10113

Installation and Technical Tips

• Battery Preparation: Always disconnect the negative battery cable before installation. A short circuit during the B+ cable transfer can blow the main fusible link or damage the vehicle's computer.

• The "Full Charge" Requirement: Do not use the new alternator to charge a deeply discharged or dead battery. Forcing a new alternator to charge a flat battery can burn out the internal diodes and void the warranty. Always use a dedicated charger to bring your battery to at least 12.6V before starting the vehicle.

• Clutch Pulley Function: This alternator includes a decoupled pulley. This is a one-way clutch that allows the alternator to "freewheel" when engine RPM drops suddenly, preventing belt squeal and reducing stress on the belt tensioner. Ensure your new belt is properly aligned to prevent premature pulley wear.

• Terminal Cleaning: Inspect the ring terminal on your B+ cable. If there is green corrosion or dark heat staining, clean it with a wire brush or replace the terminal to ensure proper current flow and prevent overheating at the post.
