High-Output 130A Replacement Alternator

Reliable Charging System Performance for Hyundai and Kia V6 Engines

Ensure your vehicle’s electrical system remains fully powered with this premium 130-Amp Replacement Alternator. Specifically designed for the high-demand requirements of Hyundai and Kia V6 powerplants, this unit is an essential fix for dimming headlights, slow engine cranking, or a failing battery. Engineered to meet rigorous standards, it provides a stable 12V DC output to support advanced onboard electronics, infotainment systems, and climate controls.

This alternator features an Internal Fan (IF) design for superior heat dissipation and a Nippondenso-style internal regulator for precise voltage management. Built with high-conductivity copper windings and a precision-balanced rotor, it delivers quiet operation and a long service life under the high-temperature conditions common in modern engine bays.

Fitment Verification and Vehicle Applications

This alternator is designed for the following 3.3L and 3.8L V6 applications. Please verify your production date where noted:

• Hyundai Azera: 2006, 2007, 2008, 2009, 2010, 2011.

• Hyundai Entourage: 2007, 2008.

• Hyundai Santa Fe (V6 3.3L): 2007, 2008, 2009.

  • Note for 2008 models: Validated for vehicles manufactured To 12/10/07 Production Date.

• Hyundai Sonata (V6 3.3L): 2006, 2007, 2008, 2009, 2010.

• Hyundai Veracruz: 2007, 2008, 2009, 2010, 2011, 2012.

• Kia Sedona: 2006, 2007, 2008, 2009.

• Kia Sorento: 2007, 2008, 2009.

Technical Specifications and Attributes

• Voltage: 12 VDC.

• Amperage Rating: 130 A.

• Rotation Direction: Clockwise (Right).

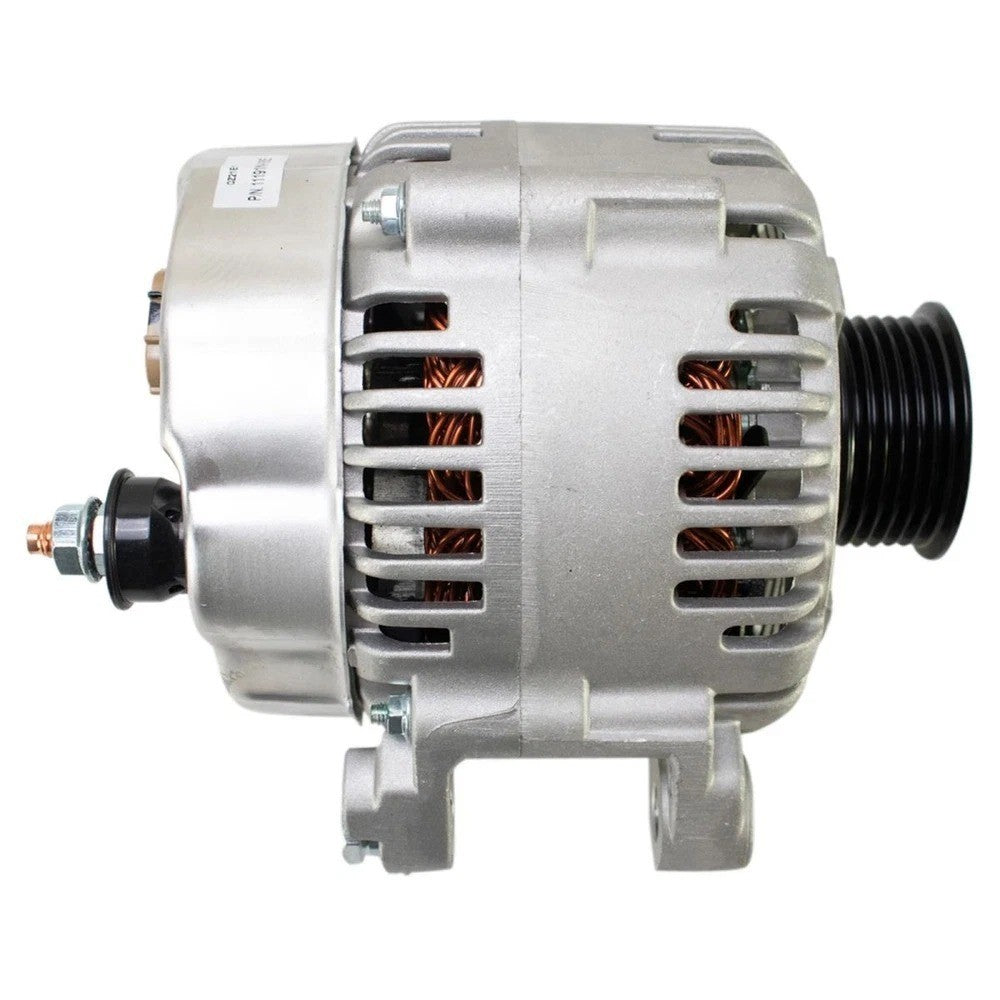

• Pulley Type: 7-Groove Serpentine (Included).

• Pulley Diameter/Spacing: 1.73 in (43.5 mm) to first groove.

• Mounting Feet Distance: 1.69 in (43 mm).

• Design: Internal Fan / Internal Regulator (Family: Nippondenso).

• Pulley Style: Standard (Non-Clutch/Non-Decoupled).

What’s in the Box

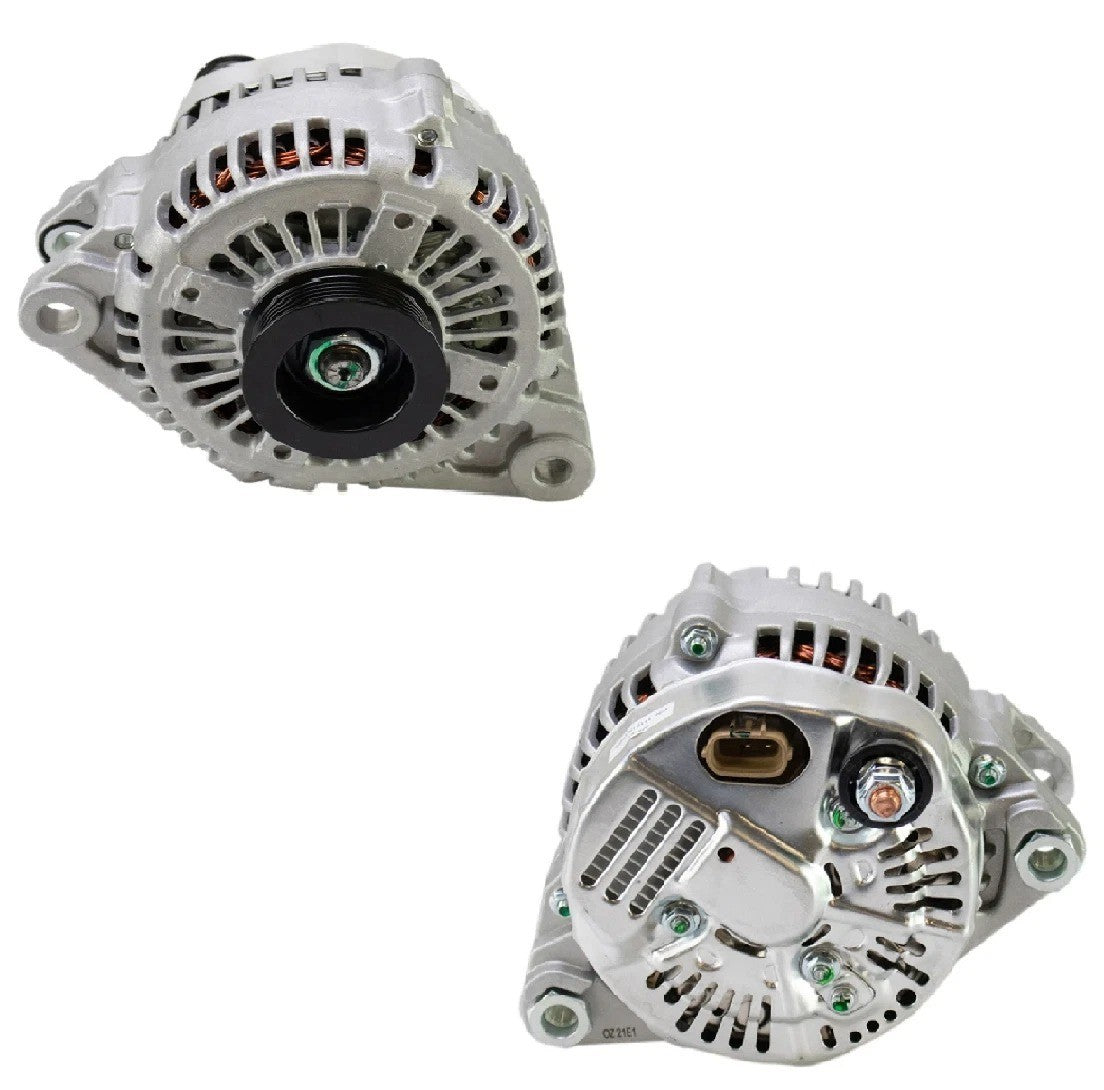

• (1) Complete New Alternator Assembly with Pre-Installed 7-Groove Pulley.

Industry Cross-Reference Numbers

• Lester / WAI: 11191, 11191N

• TYC: 2-11191

• Hollander: 601-50117

• Delco-Remy: 12727

• MPA: 15599

• BBB Industries: 11191, N11191

• DIY Solutions: ECS00068

Installation and Technical Tips

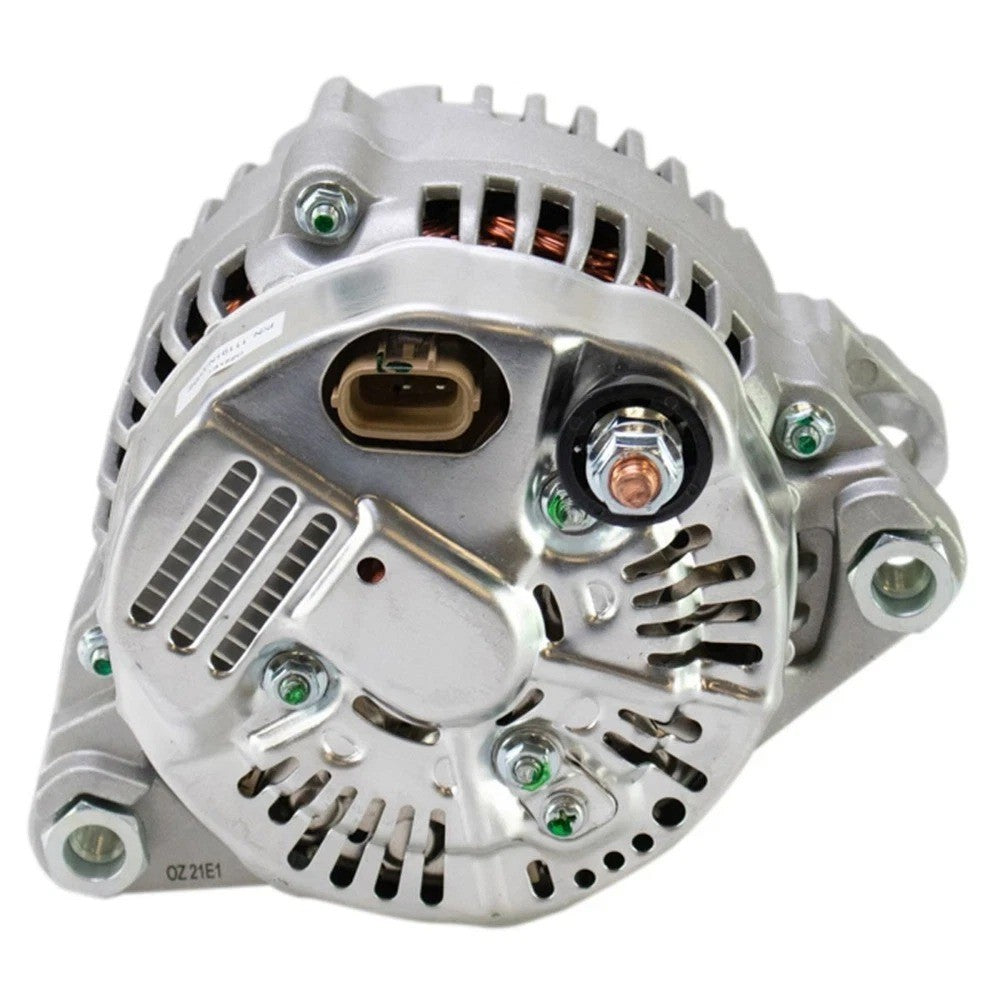

• Battery Safety: Always disconnect the negative battery cable before installation. The "B+" output stud on the alternator is connected directly to the battery; touching it with a tool while grounded can cause a dangerous electrical short.

• Check for Oil Contamination: These V6 engines are known for valve cover gasket leaks. If oil drips onto the alternator, it will saturate the internal brushes and cause premature failure. Address any oil leaks before installing the new unit.

• Belt Condition: Inspect your 7-groove serpentine belt for glazing, cracks, or "chunking." A worn belt will slip on the new pulley, reducing charging efficiency and causing annoying squeal.

• Terminal Integrity: Ensure the main power wire terminal is clean and free of corrosion. High resistance at the "B+" nut is a leading cause of melted connectors and low voltage readings.
