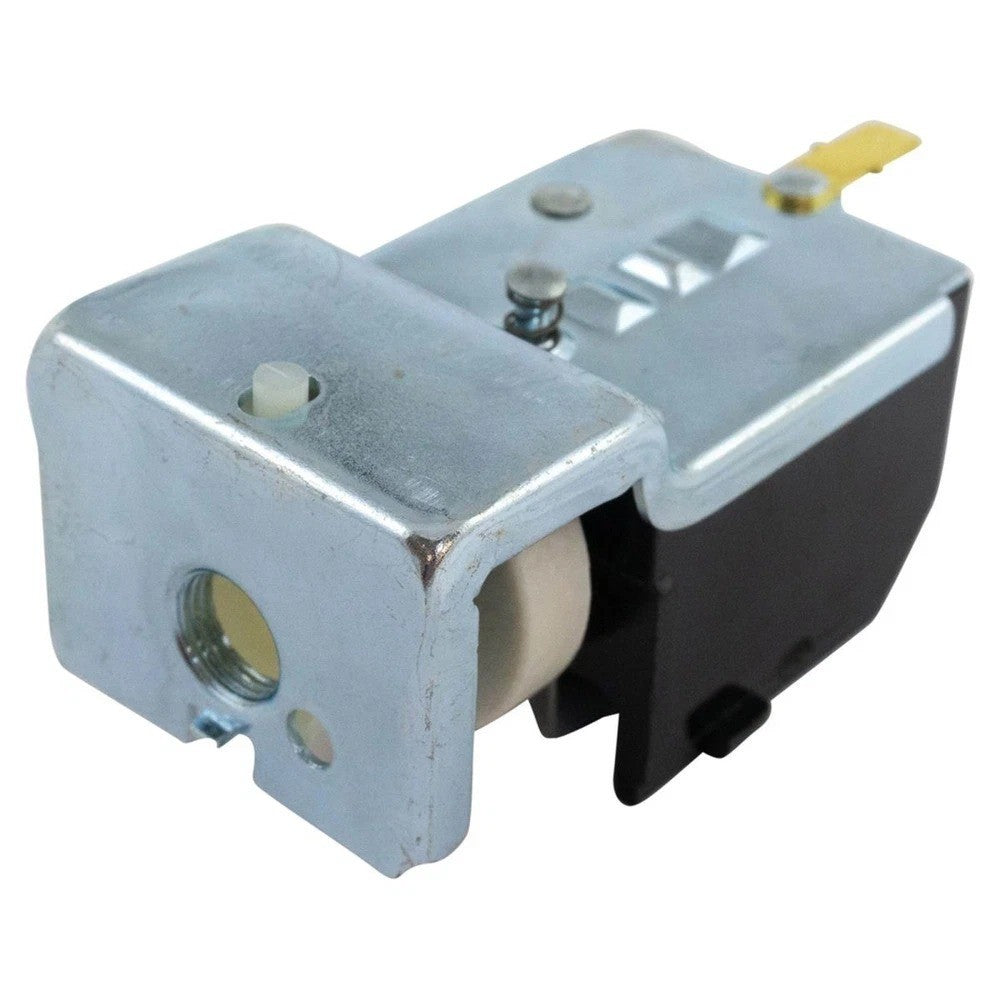

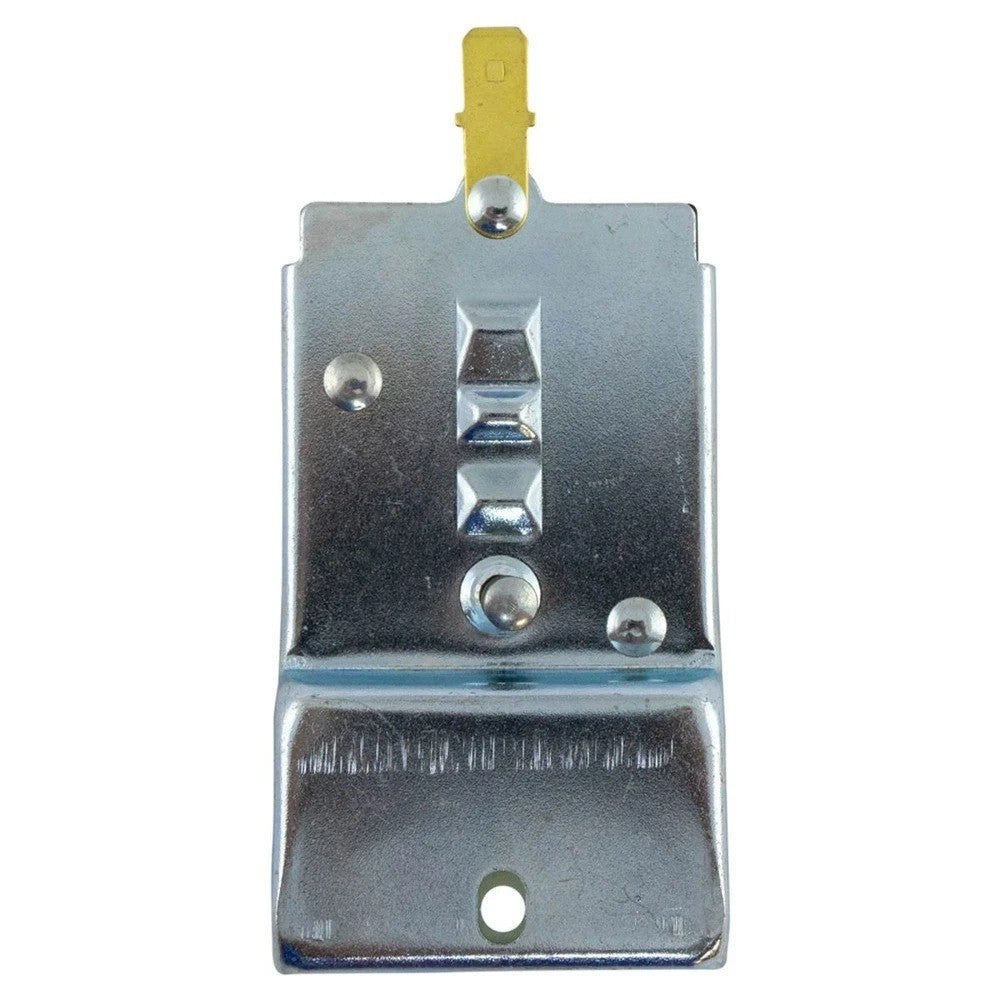

Classic Dashboard Headlight Control Switch

Multi-Function Lighting Replacement for AMC, Mopar, and Jeep

Restore the operation of your classic vehicle’s lighting system with this high-durability Dashboard Headlight Switch. Engineered to exact specifications for vintage 1960s, 70s, and 80s American domestic platforms, this switch manages the primary headlights, parking lamps, and instrument panel dimming. It is the ideal solution for repairing flickering lights, non-functional dashboard illumination, or a seized pull-knob mechanism.

This switch features a robust internal rheostat designed to handle the thermal load of original incandescent lighting while providing smooth, incremental control over interior brightness. With a heavy-duty metal housing and factory-profile electrical terminals, it offers a secure fit into the dashboard and a reliable interface with your existing wiring harness.

Fitment Verification and Vehicle Applications

This universal-style switch fits a vast array of classic cars, trucks, and vans:

• American Motors (AMC): Ambassador, American, AMX, Concord, Eagle, Gremlin, Hornet, Javelin, Marlin, Matador, Pacer, Rebel, Rogue, Spirit (1965–1981).

• Dodge Truck / Van: D100, D200, D300 Series, W-Series 4WD, Ramcharger, B100/B200/B300 Vans (1965–1978).

• Dodge Passenger Cars: Dart (1965–1976).

• Jeep: J10, J20, J-Series pickups (J-2500 through J-4800) (1971–1977).

• Plymouth: Barracuda, Belvedere, Fury (I, II, III), GTX, Road Runner, Satellite, Scamp, Valiant (1965–1976).

Technical Specifications and Attributes

• Switch Type: Push-Pull with Rotary Dimmer.

• Functionality: Headlights, Parking Lights, Instrument Dimming, Dome Light Override.

• Terminal Type: Blade terminals configured for factory-style rectangular plugs.

• Housing Material: Metal with ceramic insulator.

• Voltage Compatibility: 12V DC systems.

• Knob/Shaft: Accepts standard vintage threaded or clip-on shafts (check original knob for compatibility).

What’s in the Box

• (1) Dashboard Headlight Switch Assembly

Industry Cross-Reference Numbers

• Standard Motor Products: DS165, DS165T, DS298

• ACDelco: D1577D

• Airtex / Wells: 1S2159, SW232, 1S1451

• AMC: 1972305

• Duralast: SW232

• Original Engine Management: HLS33

Installation and Technical Tips

• Shaft Removal: To install the switch in the dash, you must remove the pull-knob and shaft. Locate the small, spring-loaded release button on the side of the switch body. Pull the knob to the "On" position, depress the button, and pull the shaft completely out of the assembly.

• Electrical Safety: Always disconnect the negative battery cable before reaching behind the dash. Vintage wiring harnesses often lack modern circuit protection, and a short against the metal dashboard frame can damage the entire loom.

• Rheostat Heat: It is normal for the ceramic portion of the switch to feel warm during operation, as it uses resistance to dim the dashboard lights. However, if it becomes hot to the touch or smells of burning, check for a short in your instrument cluster wiring.

• Grounding: Ensure the switch is firmly mounted to the dashboard. Some classic vehicles utilize the physical contact between the switch body and the metal dash frame as a ground path for the interior dome light circuit.
