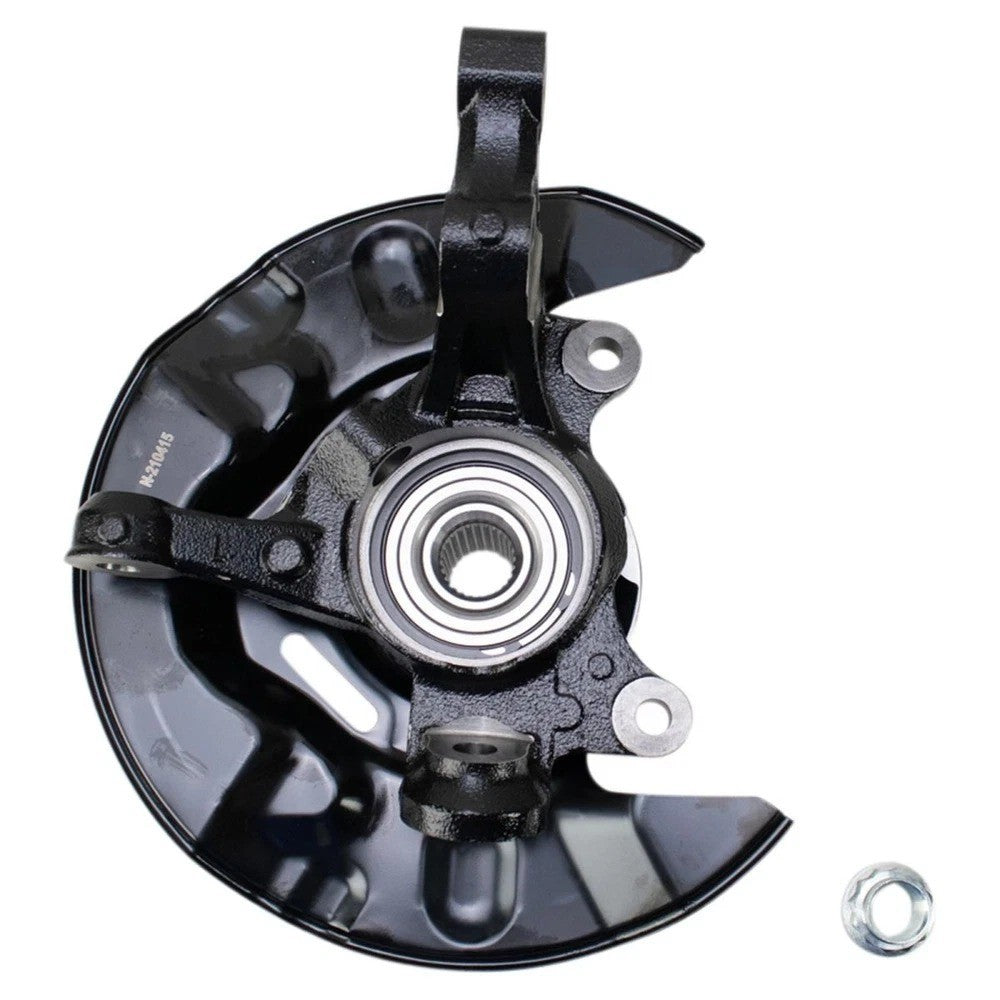

Front Loaded Steering Knuckle and Hub Assembly Set

Complete Bolt-On Front End Solution for 2003–2008 Toyota Matrix

Streamline your suspension repair and eliminate the need for a hydraulic press with this 2-Piece Front Steering Knuckle Assembly Set. These "loaded" knuckles come fully pre-assembled, featuring the steering knuckle, high-grade wheel bearing, wheel hub, and dust shield already pressed and snapped into place. This all-in-one solution effectively resolves common front-end issues such as persistent wheel bearing hum, steering vibration, and compromised spindle geometry.

Constructed from premium-grade cast iron and precision-machined to meet factory tolerances, these assemblies ensure a perfect fit for your vehicle's braking and steering systems. By replacing the entire unit rather than just the bearing, you avoid the common risk of damaging the hub or knuckle during the removal of old, seized components, ensuring long-term reliability and a quiet ride.

Fitment Verification and Vehicle Applications

This set is designed for the Front Axle (Left and Right) on vehicles equipped with 4-Wheel ABS Brakes.

• Toyota Matrix (Front Wheel Drive): 2003, 2004, 2005, 2006.

• Toyota Matrix (All Trim Levels): 2007, 2008.

• Important Note: This kit is specifically designed for Front Wheel Drive (FWD) configurations with 4-wheel ABS. Please verify your drive type before purchase, as All-Wheel Drive (AWD) models require different hub and knuckle specifications.

Technical Specifications and Attributes

• Quantity: 2-Piece Set (Driver and Passenger Sides).

• Assembly Type: Fully Loaded (Pre-pressed Hub and Bearing).

• Material: High-Strength Cast Iron.

• ABS Integration: Fully compatible with factory 4-wheel ABS sensor configurations.

• Bearing Type: Sealed, high-performance ball bearing.

• Dust Shield: Pre-installed corrosion-resistant backing plate.

What’s in the Box

• (1) Front Driver Side (LH) Steering Knuckle Assembly

• (1) Front Passenger Side (RH) Steering Knuckle Assembly

• Assemblies include: Steering Knuckle, Wheel Hub, Wheel Bearing, Retaining Ring, and Dust Shield.

Industry Cross-Reference Numbers

• Toyota: 4321112420, 4321212370, 43502-32080, 4778112240, 4778212240, 9008036136, 9052179002

• Dorman - OE Solutions: 698-384, 698-385

• MOOG Hub Assemblies: LK063, LK064, LK071, LK072

• General Motors: 88970117, 88970118

• Timken: 510070

• TRQ: BHA42821, BHA42822

• SKF / Chicago Rawhide: FW188

Installation and Technical Tips

• Alignment is Essential: Because the steering knuckle is the central mounting point for your strut and lower control arm, your vehicle’s alignment will be disturbed during installation. A professional four-wheel alignment is required immediately following the repair to prevent uneven tire wear.

• Axle Spline Prep: Before inserting the CV axle into the new hub, clean the axle splines with a wire brush and apply a light coat of high-temperature anti-seize. This prevents the metal from bonding due to salt and road debris, simplifying future service.

• Torque to Spec: Use a calibrated torque wrench for the axle nut, caliper bracket bolts, and ball joint castle nuts. Correct torque on the axle nut is vital for setting the internal preload on the wheel bearing; improper torque is the leading cause of premature bearing failure.

• Hardware Inspection: While the knuckle is removed, inspect the condition of your lower ball joints and outer tie rod ends. Since these components must be disconnected to install the knuckle, it is the most cost-effective time to replace them if the boots are torn or play is present.
