8-Piece Front Steering Rebuild Kit

Complete Steering Linkage Restoration for 1988–1992 GM 4WD Trucks

Eliminate front-end wander and steering slop with this 8-Piece Comprehensive Steering Service Kit. Specifically engineered for the GMT400 platform (4WD models), this kit replaces the entire steering linkage system from the gearbox to the knuckles. Over time, the internal ball-and-socket joints in your tie rods and the pivot bearings in your idler and pitman arms develop excessive play, leading to "numb" steering, poor tracking, and rapid tire wear.

This heavy-duty kit features a complete Idler Arm and Bracket Assembly, solving the common failure point where the bracket pivot wears out alongside the arm itself. Each component is manufactured from forged steel with precision-machined threads and premium internal bearings to restore the tight, responsive handling your truck had when it left the factory.

Fitment Verification and Vehicle Applications

This kit is designed for the Front Steering System on 4-Wheel Drive (4WD) models:

• Chevrolet K1500 / K2500 / K3500 Pickup: 1988, 1989, 1990, 1991, 1992.

• GMC K1500 / K2500 / K3500 Pickup: 1988, 1989, 1990, 1991, 1992.

• GMC Yukon (4WD): 1992.

• Fitment Note: This kit is exclusive to 4WD (K-Series) models. It is not compatible with 2WD (C-Series) trucks, which utilize different steering geometry and cross-member configurations.

What’s in the Box

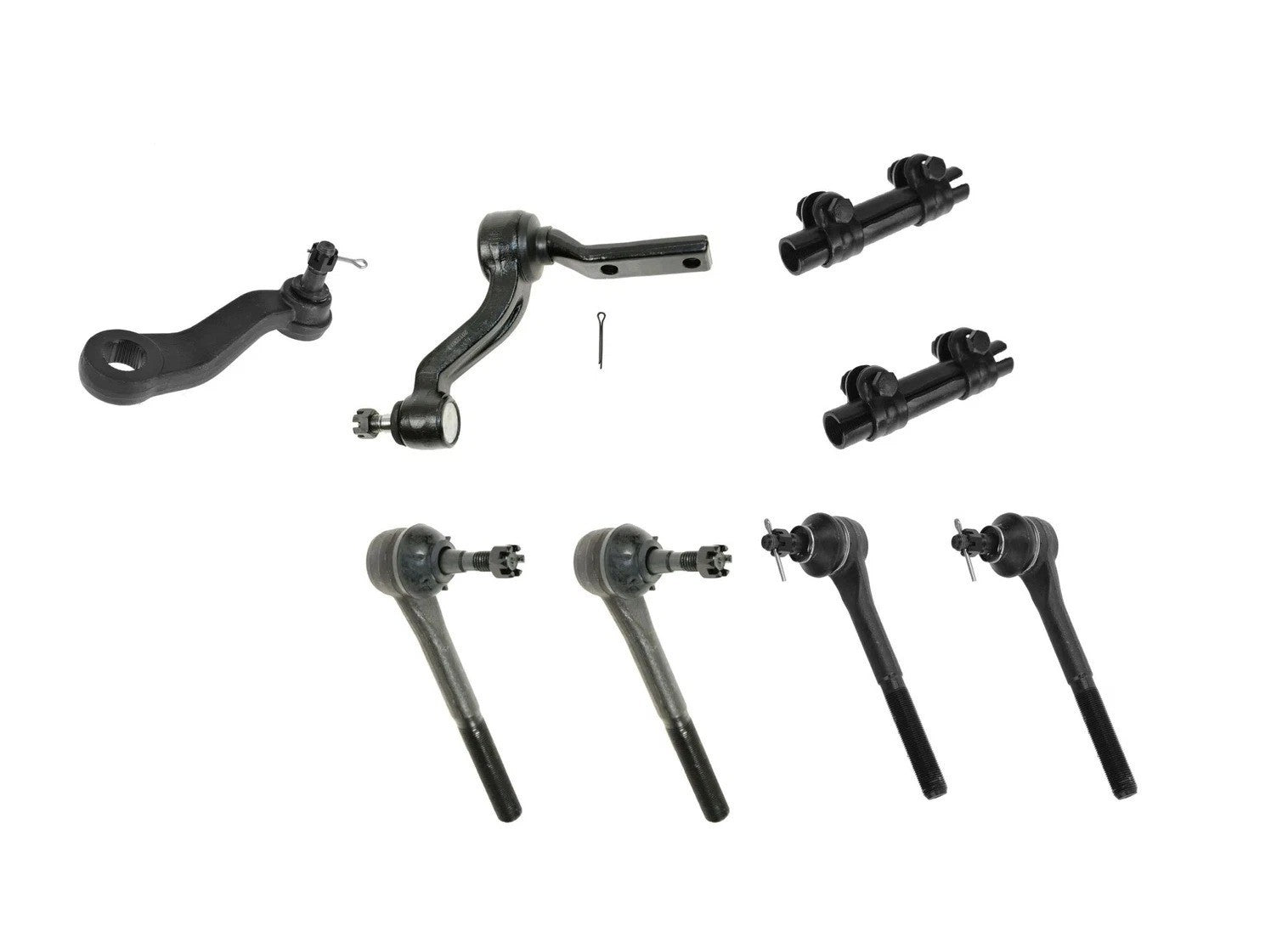

This 8-piece master set includes:

• (1) Heavy Duty Idler Arm & Bracket Assembly (Complete passenger-side pivot)

• (1) Pitman Arm (Connects steering gearbox to the center link)

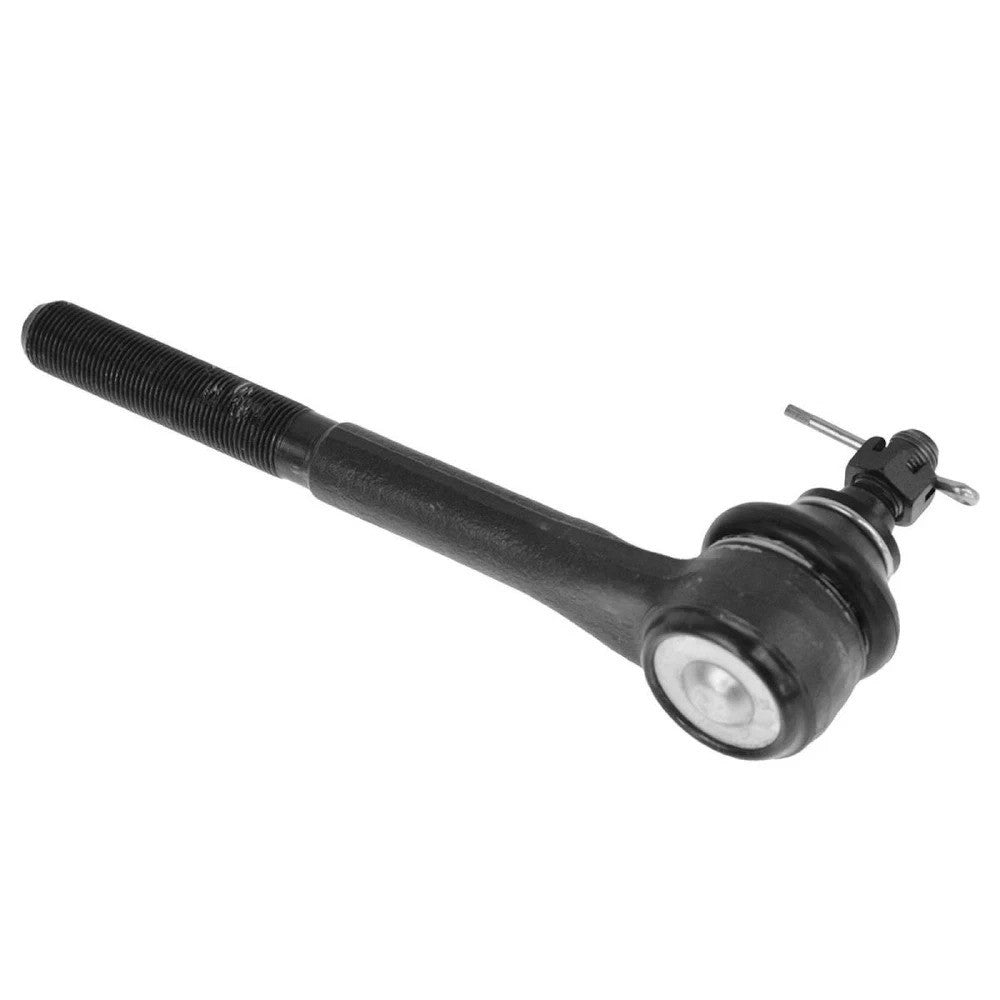

• (2) Front Inner Tie Rod Ends

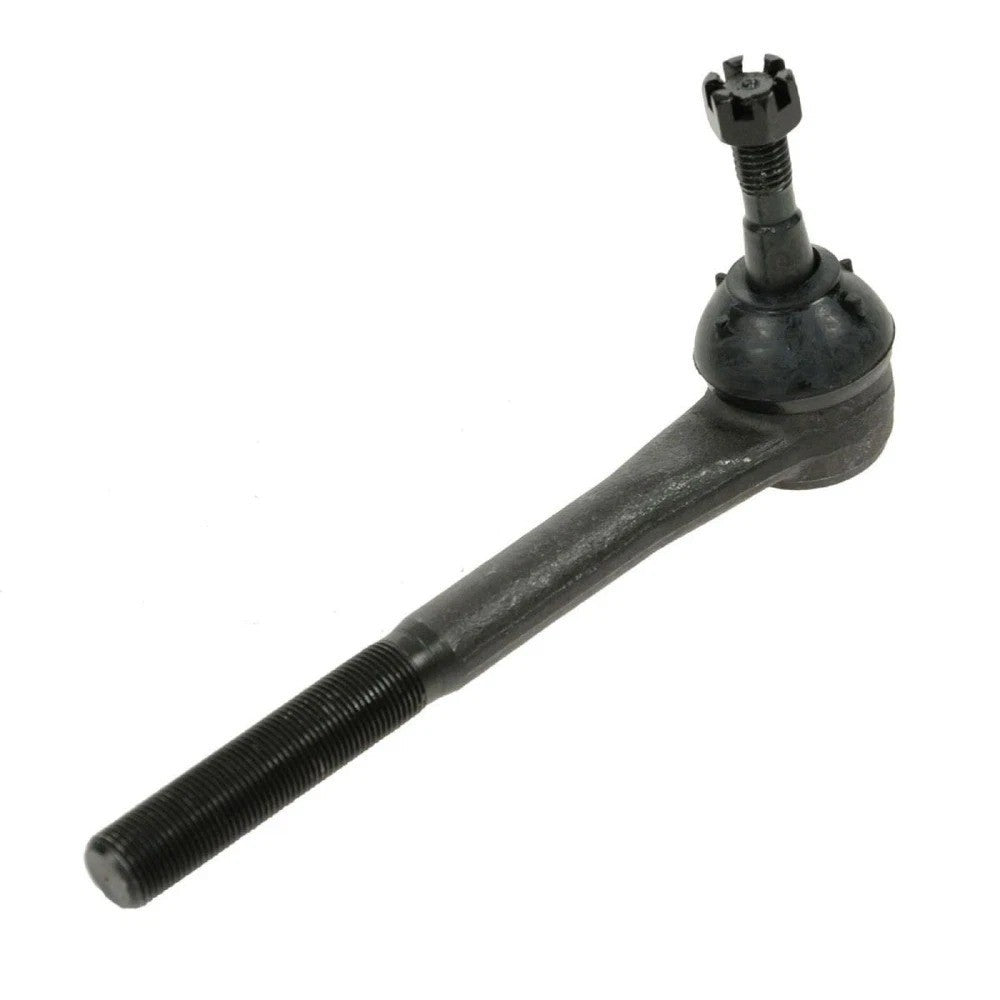

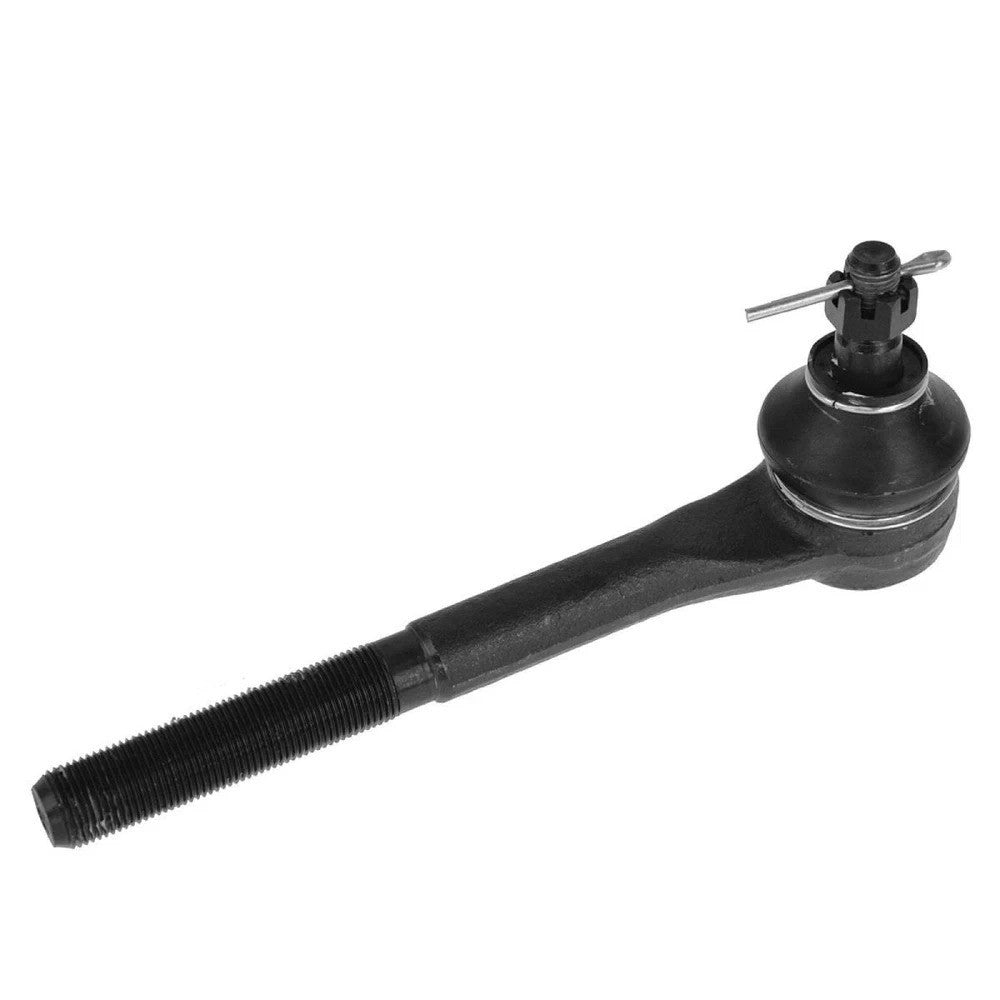

• (2) Front Outer Tie Rod Ends

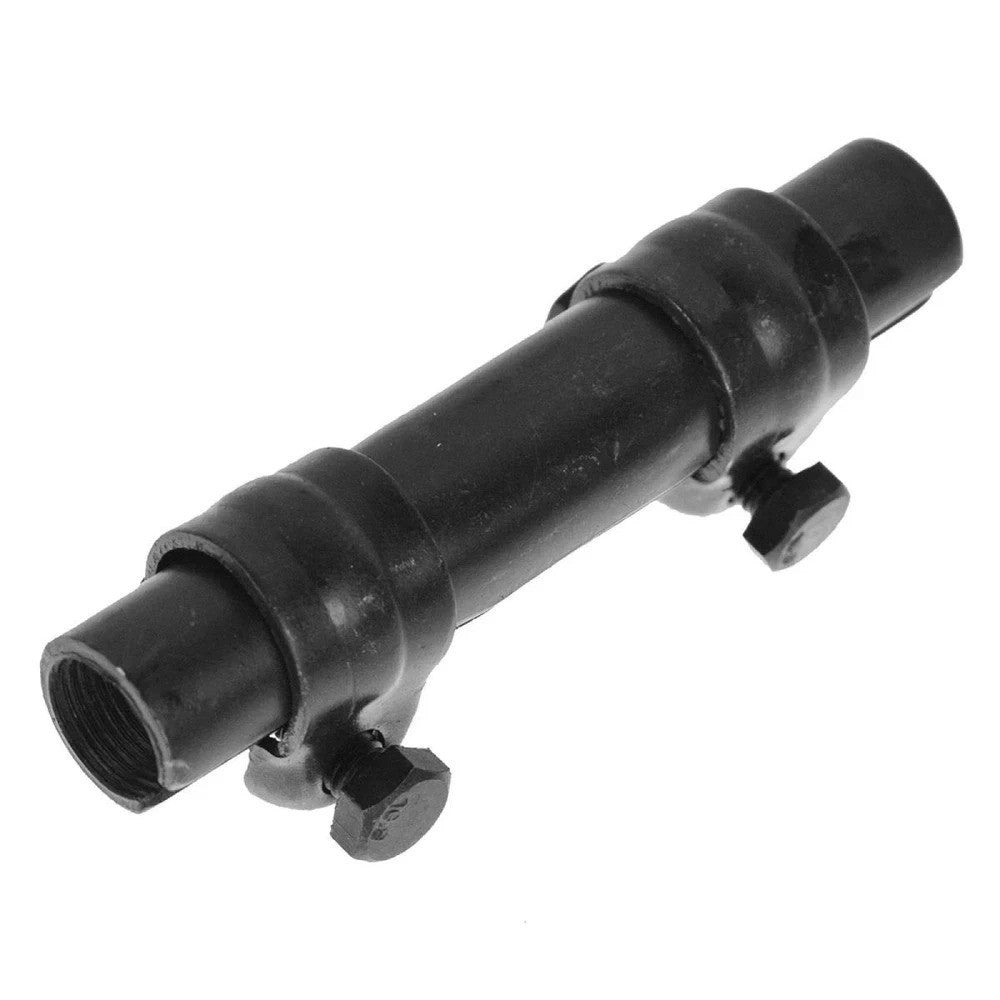

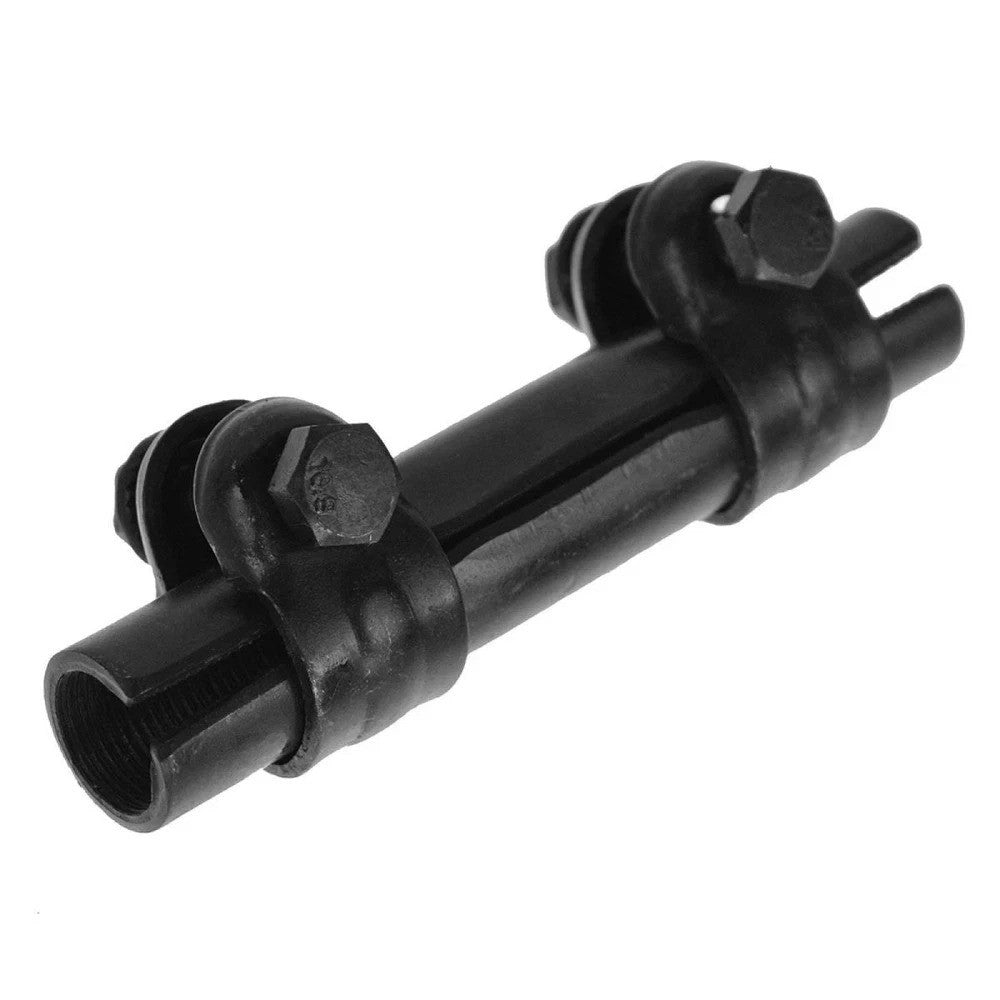

• (2) Front Tie Rod Adjusting Sleeves (Connects inner and outer rods)

Technical Specifications and Attributes

• Quantity: 8-Piece Complete Kit.

• Material: High-Strength Forged Steel.

• Finish: Anti-Corrosion Black Coating.

• Design: Greasable joints (where applicable) for maximum service life.

• Dust Boots: Premium polychloroprene to seal out road salt and grime.

• Fitment Type: Direct Bolt-on Replacement.

Industry Cross-Reference Numbers

• MOOG Chassis Products: K6335, K6390, K6666, ES2836RL, ES2838RL, ES2004S, DS1413

• General Motors: 26059031, 26059033, 26016461, 26048561, 26051896, 7839709

• Mevotech Supreme: MK6335, MK6390, MES2836RL, MES2838RL, MES2004S

• Dorman: 534-430

• TRQ: PSA67635

Installation and Technical Tips

• Pitman Arm Removal: A specialized Pitman Arm Puller is required for this installation. Avoid using hammers on the steering gearbox shaft, as the impact can damage the internal seals and bearings of the gearbox.

• Idler Bracket Support: The included Idler Arm Bracket is a significant upgrade over replacing the arm alone. Ensure the mounting surface on the vehicle frame is clean and free of rust scale to ensure the bracket sits perfectly level.

• Adjusting Sleeves: Apply a small amount of anti-seize lubricant to the threads of the new tie rod ends before threading them into the sleeves. This will make future alignments significantly easier for the technician.

• Mandatory Alignment: Replacing steering components fundamentally alters your vehicle's "Toe" setting. A professional four-wheel alignment is mandatory immediately after installation to ensure safety and prevent premature tire failure.
