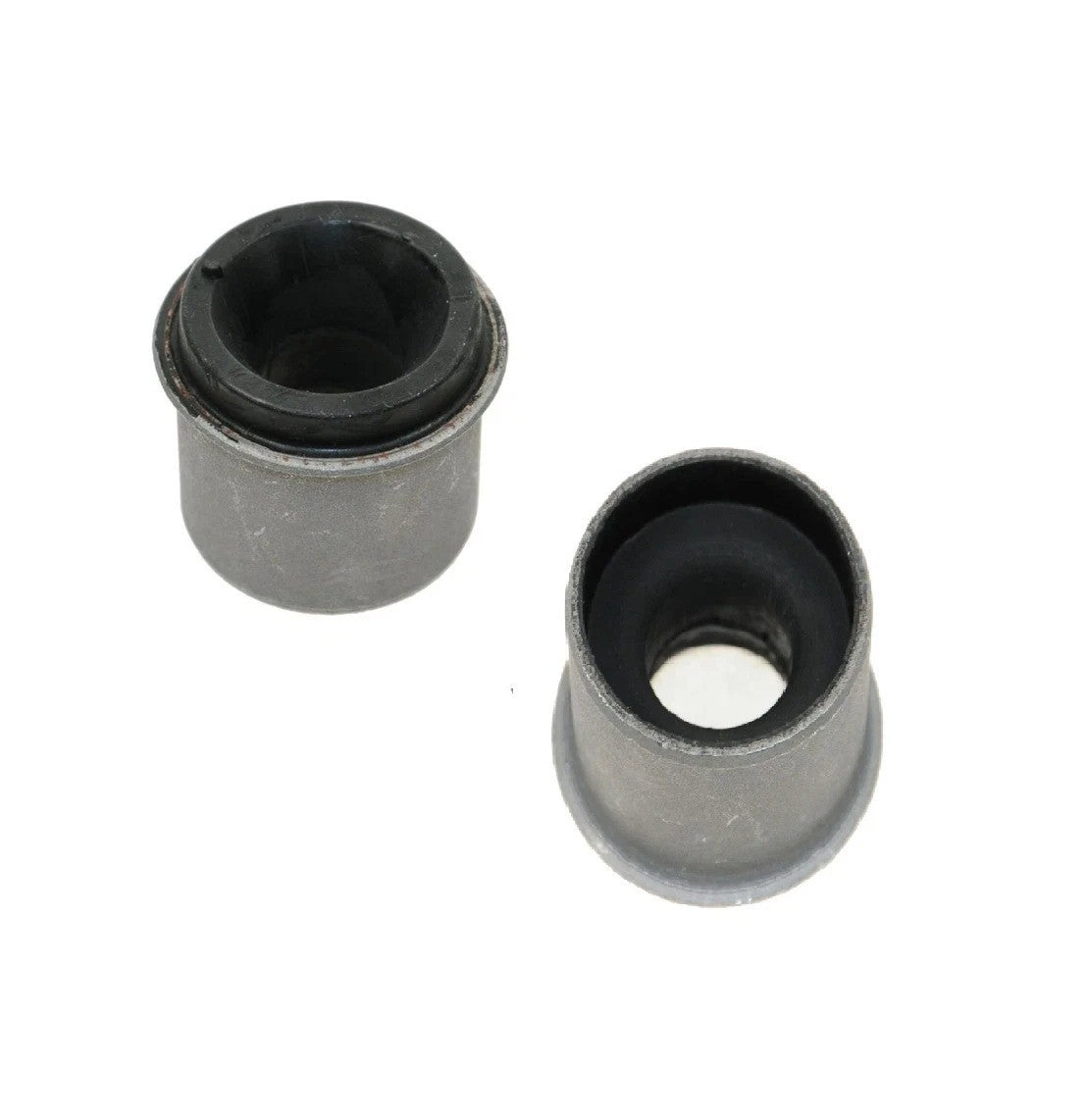

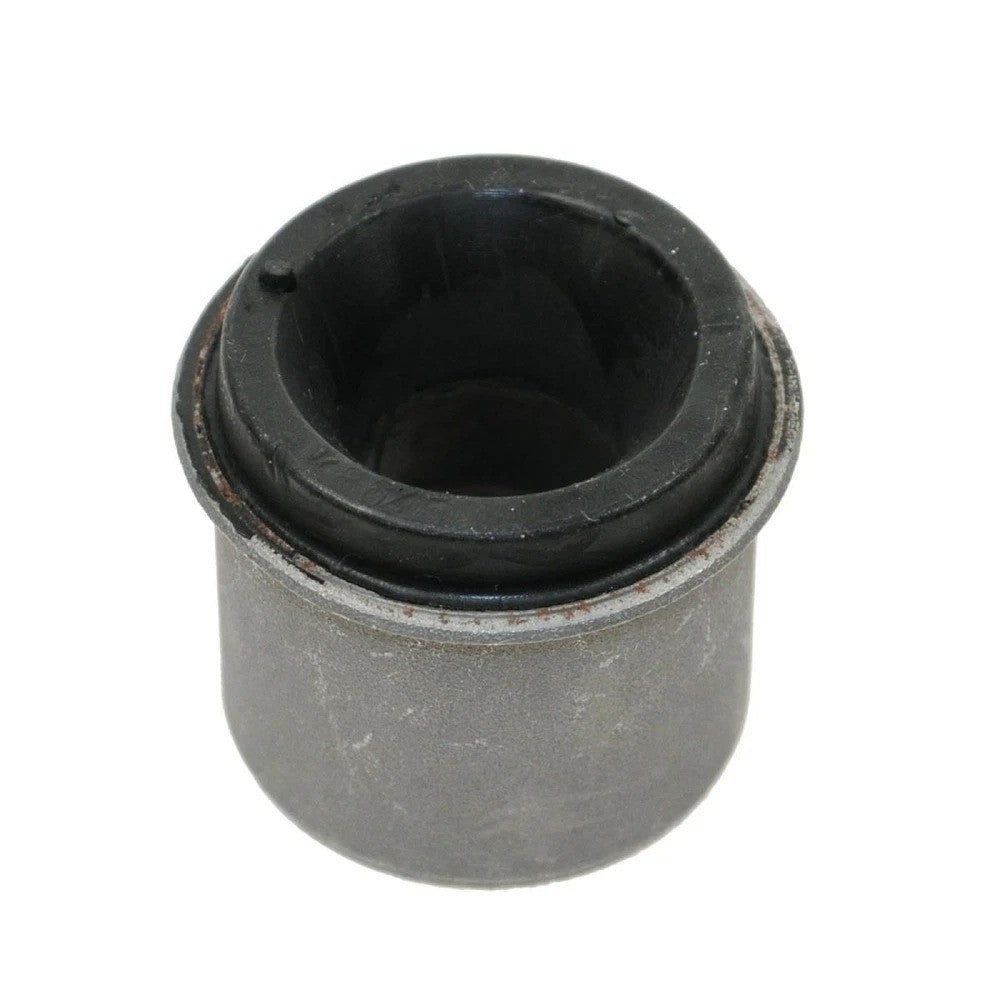

Front Sway Bar I-Beam Axle Bushing Set

Heavy-Duty Stability Restoration for 1992–2006 Ford E-Series Vans

Reclaim the steering precision and handling stability of your Ford Econoline with this premium 2-Piece Front Sway Bar Bushing Set. Specifically engineered for the unique Twin I-Beam front suspension, these bushings serve as the critical mounting interface between the stabilizer bar and the front axle beams. Over time, the heavy weight and high center of gravity of E-Series vans cause original rubber bushings to compress and deteriorate, resulting in increased body roll, front-end "wander," and audible clunking over bumps.

Manufactured from a high-density, heat-stabilized synthetic compound, these bushings are designed to outperform and outlast standard rubber components. They provide a firm, secure hold on the sway bar, ensuring that suspension energy is correctly transferred through the stabilizer system rather than being lost in bushing deflection. This is an essential upgrade for any Econoline used for towing, commercial hauling, or camper conversions.

Fitment Verification and Vehicle Applications

This set includes the Front Driver Side and Front Passenger Side bushings for the I-Beam Axle mounting location:

Ford E-150

• E150 (Base/Super): 2003, 2004, 2005, 2006.

• E150 Club Wagon: 2003, 2004, 2005.

• E150 Econoline / Club Wagon: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002.

Ford E-250

• E250 (Base/Extended): 2003, 2004, 2005, 2006.

• E250 Econoline: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002.

Ford E-350 / E-450

• E350 Super Duty: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006.

• E350 Econoline / Club Wagon: 1992–2002.

• E450 Super Duty / Econoline SD: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006.

Technical Specifications and Attributes

• Quantity: 2-Piece Set.

• Position: Front Sway Bar to I-Beam Axle.

• Material: High-grade, oil-resistant elastomer.

• Design: Split-bore for easy installation without removing the entire bar.

• Durability: Resistant to road salt, ozone, and engine fluids.

What’s in the Box

• (1) Front Driver Side Sway Bar Bushing (at I-Beam Axle)

• (1) Front Passenger Side Sway Bar Bushing (at I-Beam Axle)

Industry Cross-Reference Numbers

• Ford: F2UZ5K486A, F2UZ-5K486-A

• MOOG Chassis Products: K8645

• Mevotech Supreme: MK8645

• DIY Solutions: SUS01522

Installation and Technical Tips

• Location Verification: Please note that these bushings are for the Axle-to-Sway Bar connection. If your van has a clunk coming from the frame area, you may also need the "Sway Bar to Frame" bushings, which are a different size.

• Cleaning the Bar: Before installing the new pair, use a wire brush to remove rust and debris from the sway bar. A smooth surface ensures the bushing can pivot slightly without binding or squeaking.

• Lubrication: Apply a liberal amount of silicone-based grease (non-petroleum) to the inside of the bushing. This reduces friction and prevents the annoying "squeak" often heard when navigating driveways or speed bumps.

• Bracket Alignment: When reinstalling the metal mounting brackets, start the bolts by hand to avoid cross-threading. Tighten the bolts evenly to ensure the bushing is compressed uniformly around the bar.
