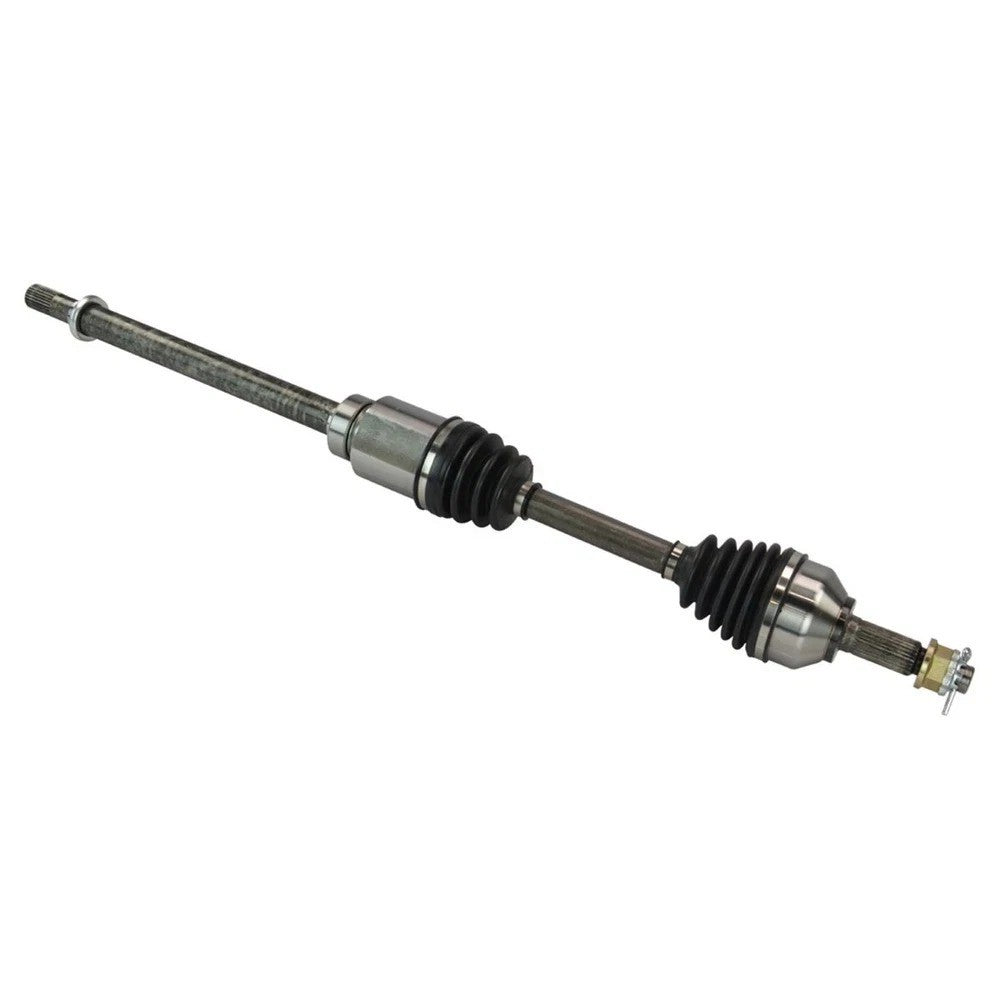

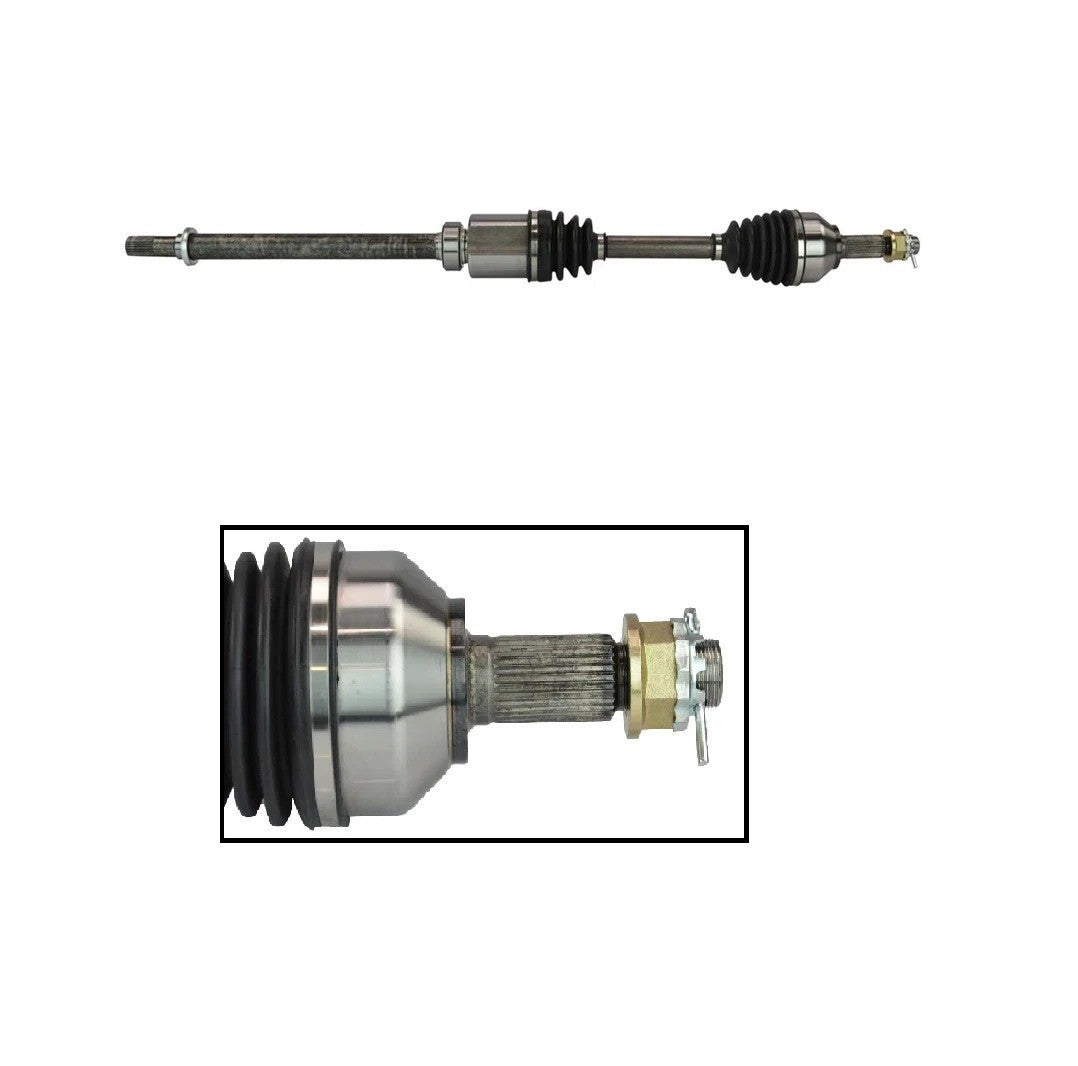

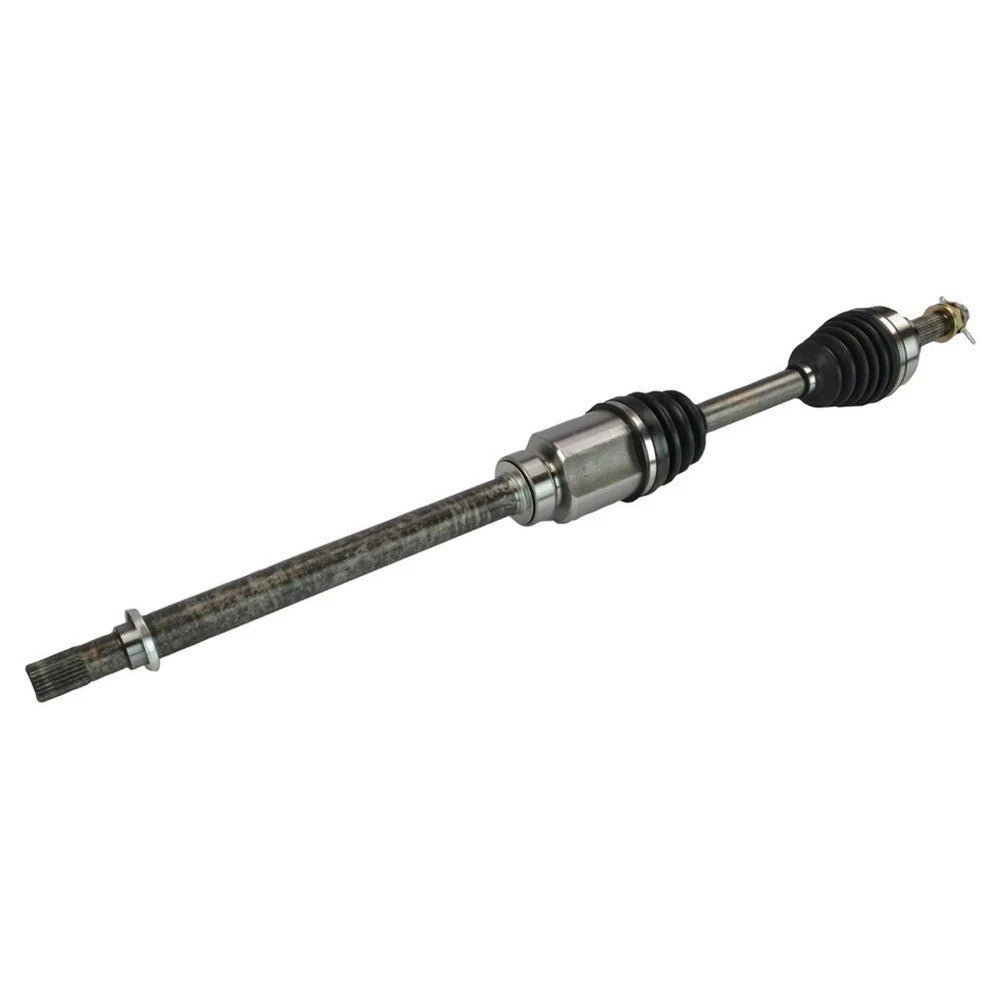

Front Passenger Side CV Axle Assembly

Precision Driveline Restoration for Nissan Rogue All-Wheel Drive

Restore the smooth, vibration-free operation of your drivetrain with this premium Front Right CV Axle Shaft. Specifically engineered for the All-Wheel Drive (AWD) Nissan Rogue platform, this complete half-shaft assembly is a direct replacement for worn or clicking factory units. Over time, the protective boots on CV joints can crack, leading to grease loss and internal wear that causes "clicking" during turns or high-speed shuddering.

This axle is manufactured using high-strength steel shafts and precision-machined internal joints to ensure consistent power delivery to the wheels. Both the inboard and outboard joints are protected by heavy-duty Neoprene boots, which offer superior resistance to ozone, road salt, and extreme temperature fluctuations compared to standard rubber. Pre-packed with high-temperature molybdenum grease, this assembly is designed to reduce friction and extend the service life of your vehicle's front end.

Fitment Verification and Vehicle Applications

This axle is designed for the Front Passenger Side (Right) on AWD models only:

• Nissan Rogue (AWD): 2008, 2009, 2010, 2011, 2012, 2013.

• Nissan Rogue Select (AWD): 2014, 2015.

• Manufacturing Note: Specifically fits Japan-built models (First digit of VIN starts with "J").

• Important Compatibility: This unit is for All-Wheel Drive configurations and does not include an integrated ABS tone ring (ABS signal is typically read via the wheel bearing sensor on these models).

Technical Specifications and Attributes

• Location: Front Right (Passenger Side).

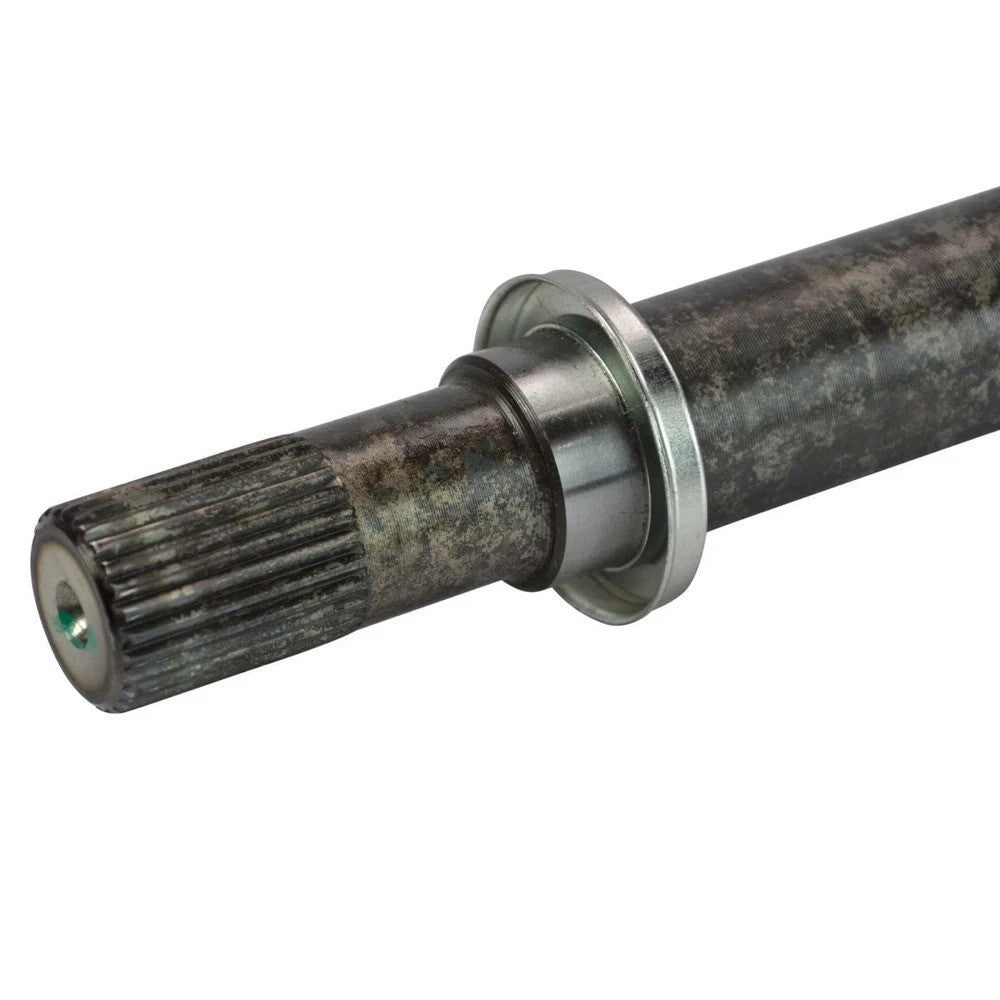

• Inboard Spline Quantity: 27.

• Outboard Spline Quantity: 29.

• Compressed Length: 38.19 in (970 mm).

• Joint Type: Male (Inboard and Outboard).

• Boot Material: Durable Neoprene.

• Axle Nut Included: Yes (M24 x 1.5).

• Axle Nut Socket Size: 32 mm (1.26 in).

• ABS Tone Ring: Not Included (Sensor-on-hub design).

What’s in the Box

• (1) Complete Front Right CV Axle Shaft Assembly

• (1) New Hub Spindle Axle Nut

Industry Cross-Reference Numbers

• Nissan: 39100-JG04C, 39100-JM10A

• Cardone New: 66-6287

• TrakMotive: NI-8347

• GSP: NCV53001

• Hollander: 447-50638R

Installation and Technical Tips

• Transmission Seal Replacement: It is highly recommended to install a new transmission output seal when replacing the CV axle. Reusing an old seal often results in fluid leaks at the inboard joint interface, which can lead to CVT transmission issues.

• Torque to Specification: The axle nut is a critical safety fastener. Always use a calibrated torque wrench to tighten the new 32mm nut to the factory-specified torque. Do not use an impact wrench for final tightening, as over-torquing can lead to premature wheel bearing failure.

• Check Transmission Fluid: During removal of the passenger side axle, a small amount of CVT fluid may escape from the transaxle. Ensure you check and top off the fluid level using the correct Nissan-approved CVT fluid after installation is complete.

• Japanese Production Check: Always verify your VIN before ordering. This part is optimized for Rogue models produced in Japan (VIN starting with "J"); models produced in other regions may utilize different spline lengths or diameters.
