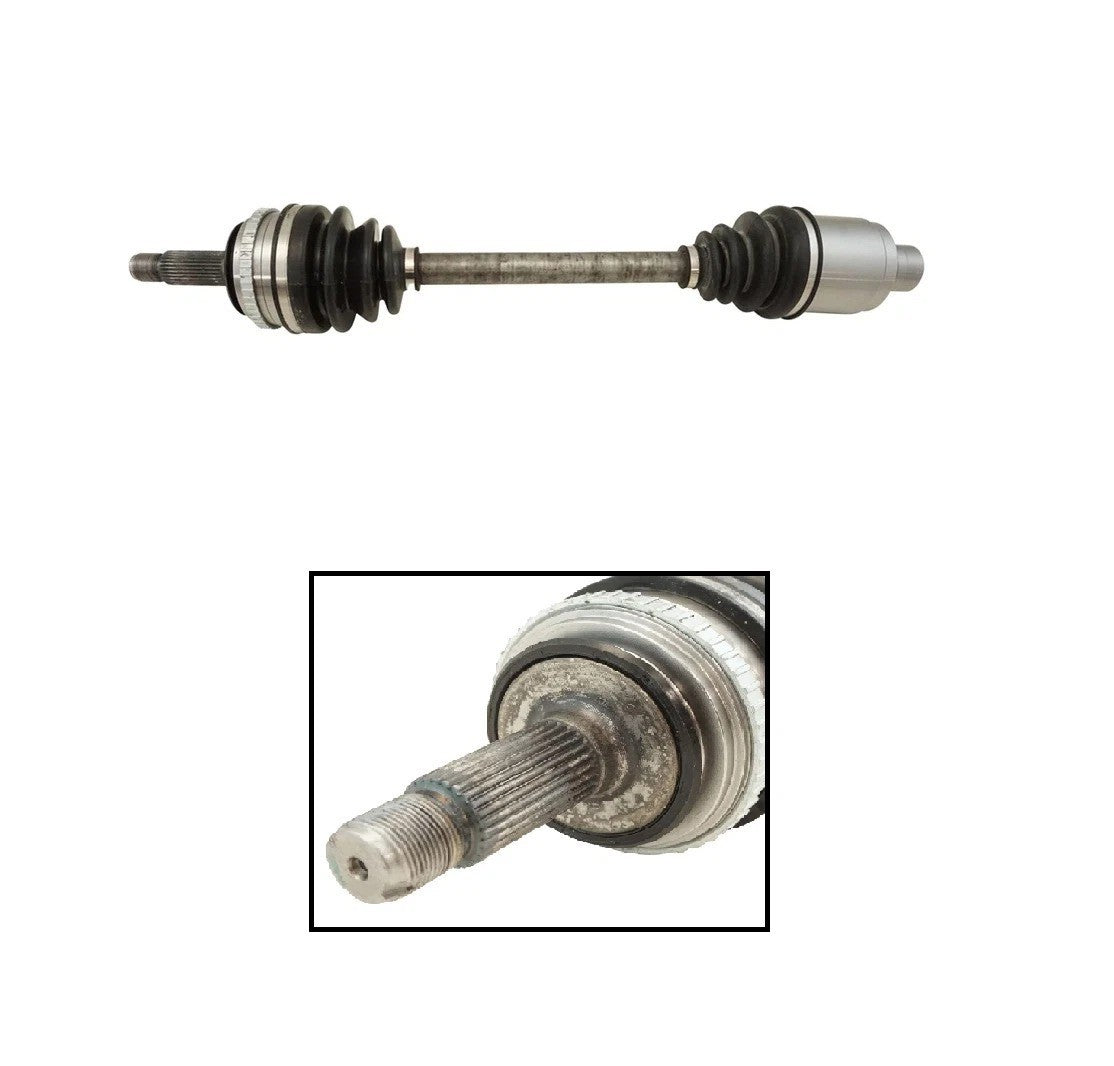

Front Right CV Axle Shaft For 2001-2002 Acura MDX 2003-2004 Honda Pilot
Regular price
$170.27
Front Passenger Side CV Axle Assembly
Premium Drive Axle Replacement for Acura MDX and Honda Pilot
Restore smooth power delivery and eliminate drivetrain vibrations with this precision-engineered Front Passenger Side (Right) CV Axle Shaft. Built to withstand the high torque and heavy load requirements of mid-size SUVs, this assembly is a direct replacement for factory units that have developed torn boots, grease leaks, or worn internal joints.
Each axle is manufactured using high-strength steel and features heat-treated internal components to ensure long-term durability. The joints are pre-lubricated with a high-performance moly grease that resists thermal breakdown, while the neoprene boots provide superior protection against road debris and moisture. This unit also includes a pre-installed ABS tone ring, ensuring full compatibility with your vehicle's anti-lock braking and traction control systems.
Fitment Verification and Vehicle Applications
This axle is designed specifically for the Front Right (Passenger Side) on the following 3.5L V6 models:
-
Acura MDX: 2001, 2002.
Honda Pilot: 2003, 2004.
Drive Configuration: Compatible with 4WD/AWD models.
Technical Specifications and Attributes
Compressed Length: 25.75 in (654 mm).

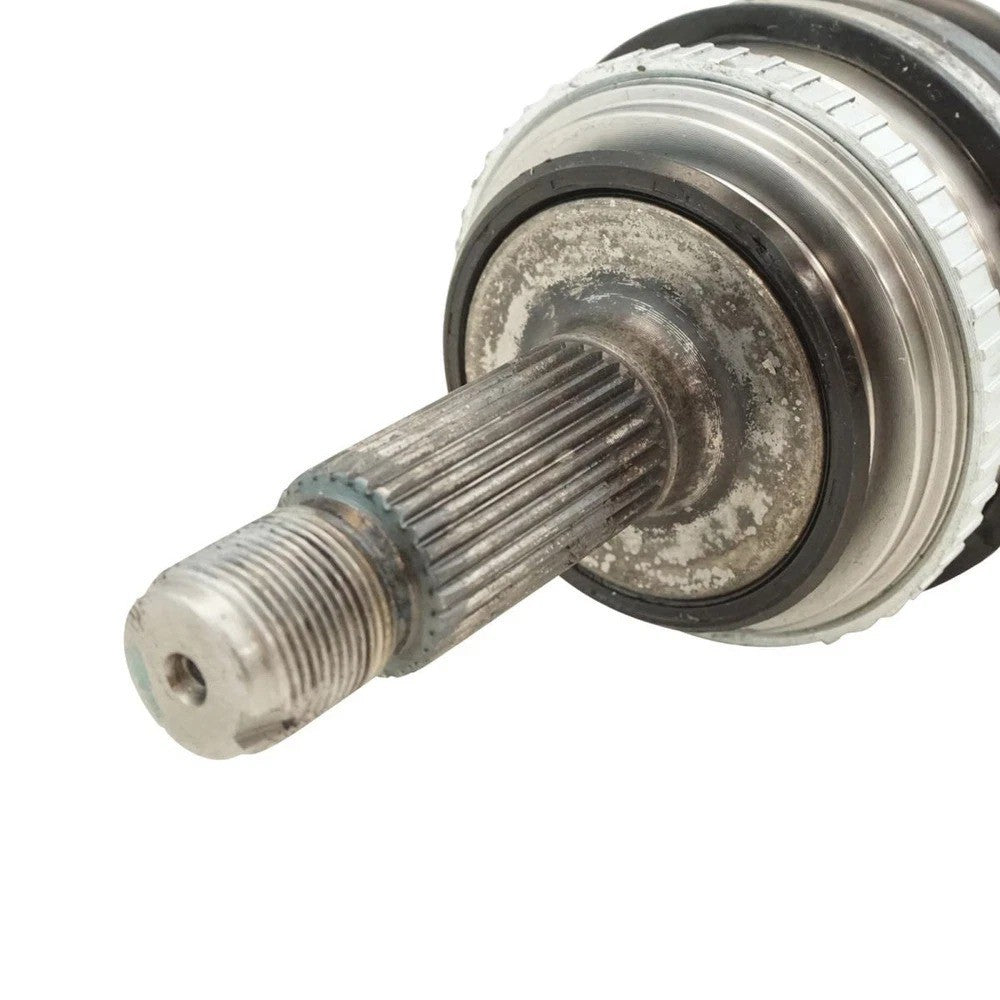

Outboard Spline Count: 28 (Male).

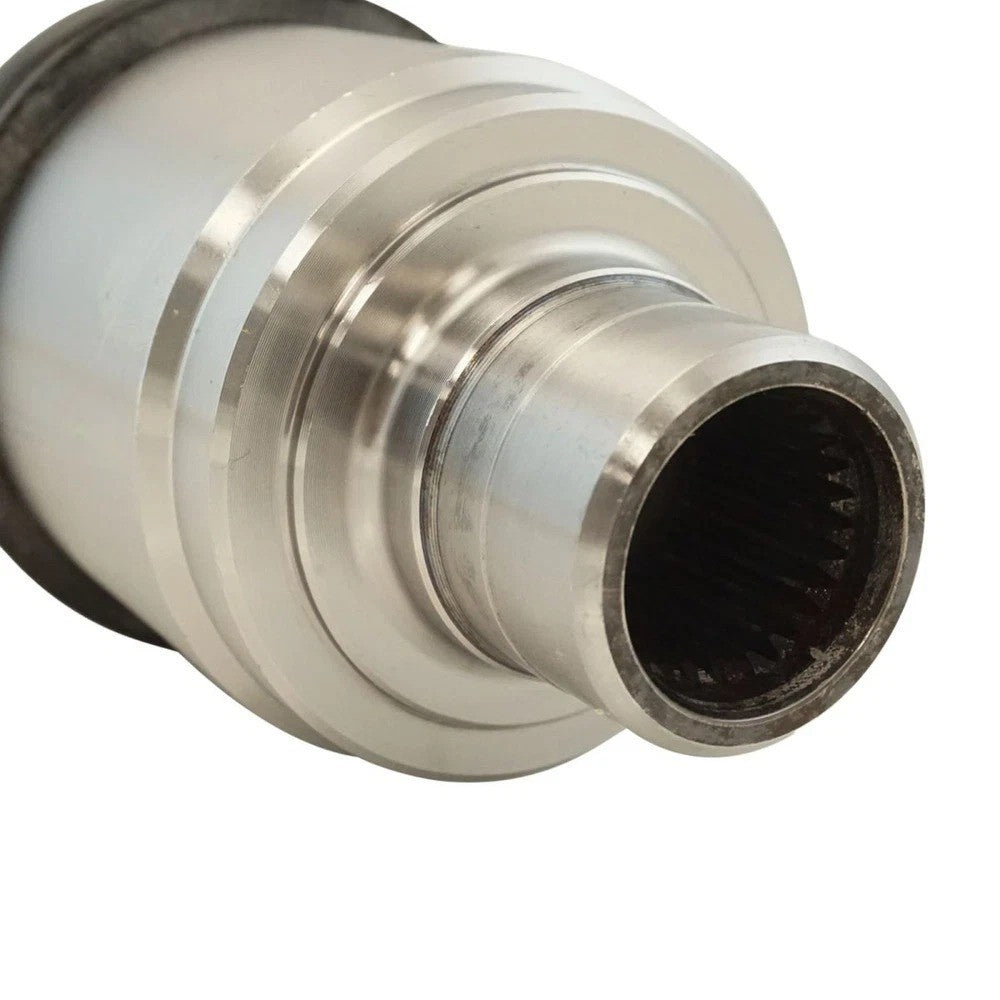

Inboard Spline Count: 29 (Female Joint).
ABS Tone Ring: Included (50 Teeth).
Axle Nut: Included (M24 x 1.5 Thread).
Socket Size Required: 36 mm (1.42 in).
Boot Material: Heavy-Duty Neoprene for maximum flexibility and tear resistance.
Joint Type: Constant Velocity (CV) with precision-ground races.
What’s in the Box
(1) Front Passenger Side CV Axle Assembly

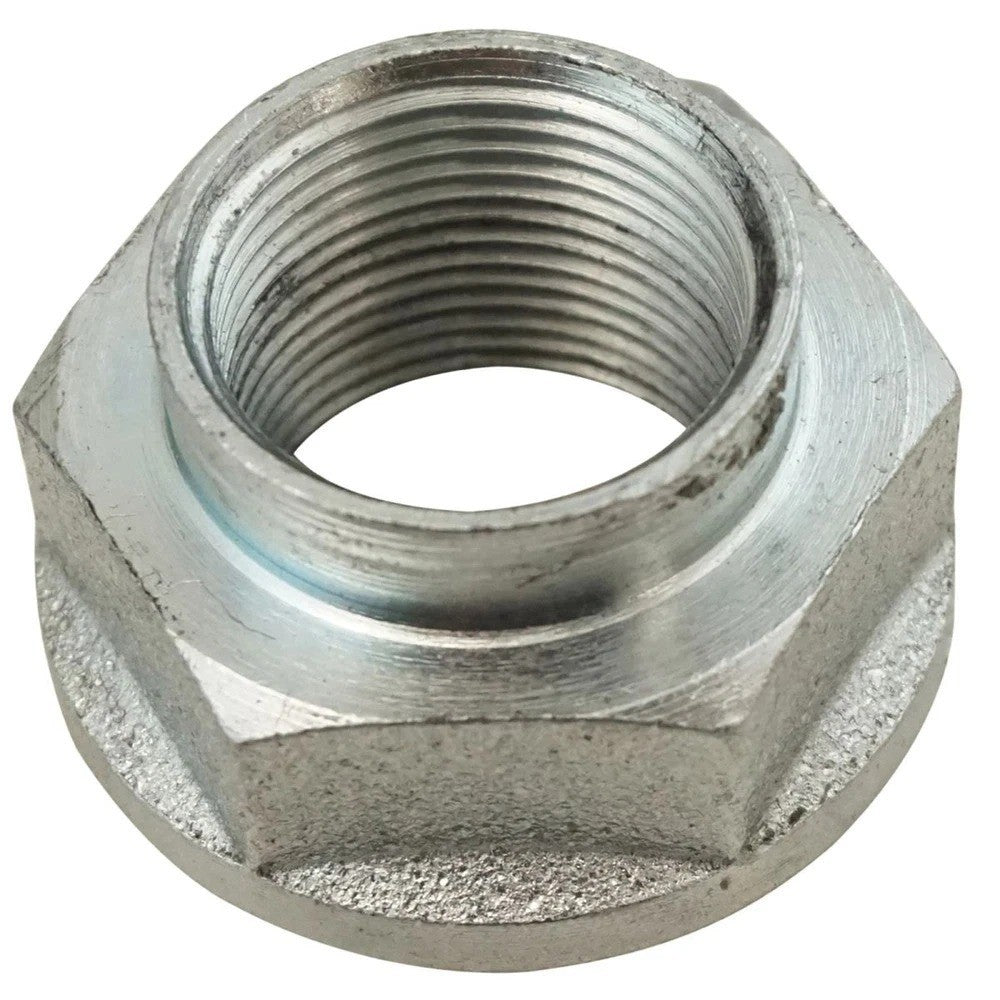

(1) New Spindle Nut (Axle Nut)
Industry Cross-Reference Numbers
Acura: 44305-S3V-A52
Honda: 44305-S9V-A01
-
Cardone: 66-4203
GSP: NCV36554
Installation and Technical Tips
Seal Replacement: It is highly recommended to install a new transmission output shaft seal when replacing the CV axle. Using a new seal prevents transmission fluid leaks that can occur if the original seal is disturbed or worn.
-
Torque to Spec: Always use a calibrated torque wrench to tighten the axle nut. Improper torque can lead to premature wheel bearing failure or unsecured axle seating.
Refer to your service manual for the exact foot-pound requirements. Fluid Check: Be prepared for a small amount of transmission fluid to leak when the old axle is removed. Keep a drain pan ready and ensure your transmission fluid level is topped off after the installation is complete.
ABS Alignment: Ensure the ABS sensor is clean and properly seated after installing the new axle to prevent "phantom" ABS light triggers caused by debris on the sensor tip.
