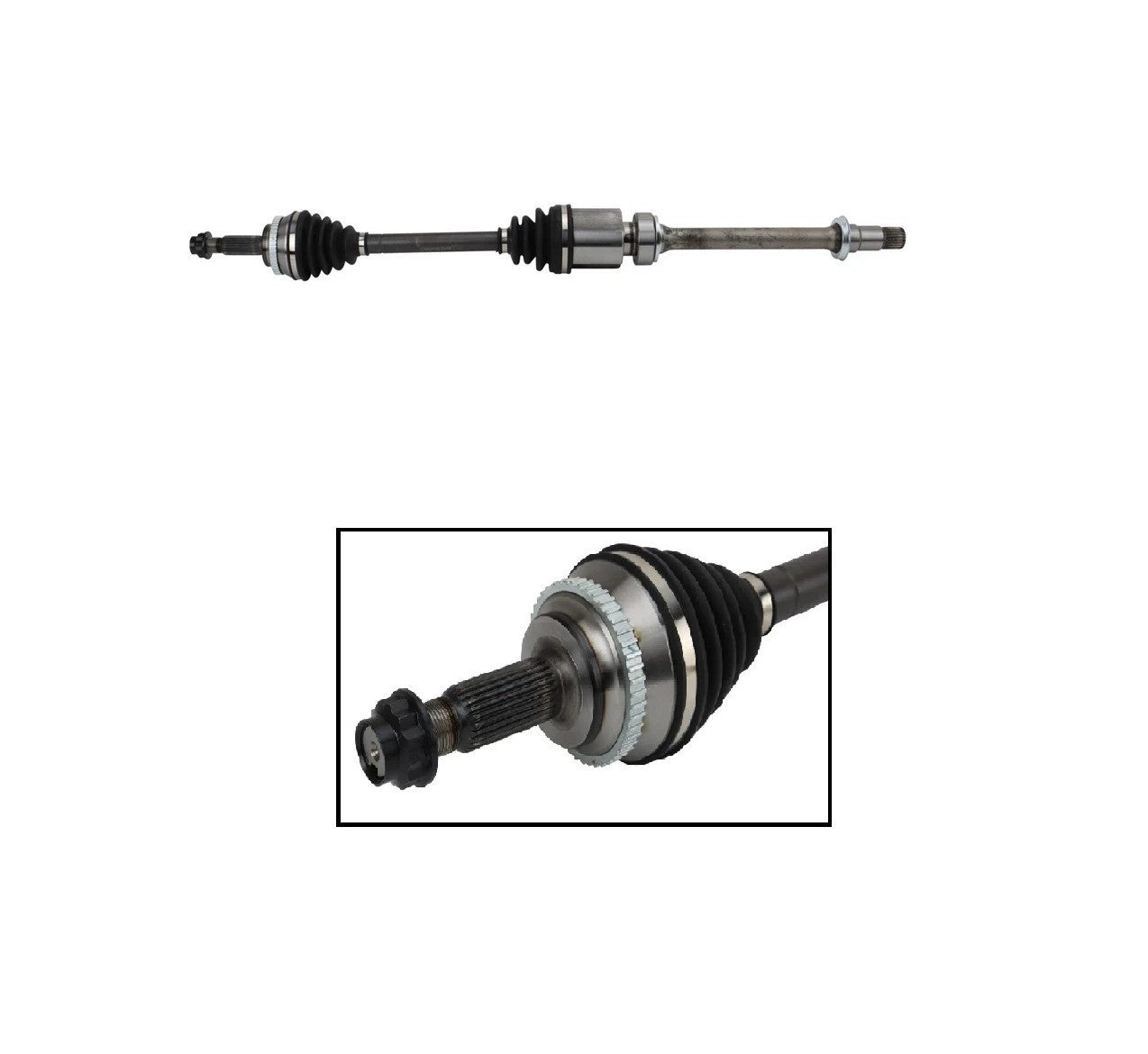

Front Passenger Side CV Axle Assembly

Premium Drive Shaft Replacement for 2.4L Toyota Corolla, Matrix, and Pontiac Vibe

This CV axle assembly is a precision-manufactured replacement designed to restore smooth power delivery and eliminate vibrations caused by worn constant velocity joints. It is specifically engineered for the high-output 2.4L engine variants of the Corolla, Matrix, and Vibe platforms. The unit comes fully assembled with premium neoprene boots and high-temperature grease to ensure long-term durability under diverse driving conditions.

Fitment Verification and Vehicle Applications

This drive shaft is designed for the front passenger side (Right Hand) on Front-Wheel Drive (FWD) models equipped with the 2.4L L4 engine. It is not compatible with All-Wheel Drive (AWD) variants or models equipped with the 1.8L engine.

• 2009–2010 Pontiac Vibe: Base and GT models with 2.4L engine.

• 2009–2010 Toyota Corolla: XRS models with 2.4L engine.

• 2009–2010 Toyota Matrix: XRS models (FWD) with 2.4L engine.

• 2009–2013 Toyota Matrix: S models (FWD) with 2.4L engine.

Technical Specifications and Attributes

Verifying the spline count and compressed length is critical to ensure the axle seats properly into both the transmission and the wheel hub.

Dimensional Data

• Compressed Length: 942 mm (37.09 in)

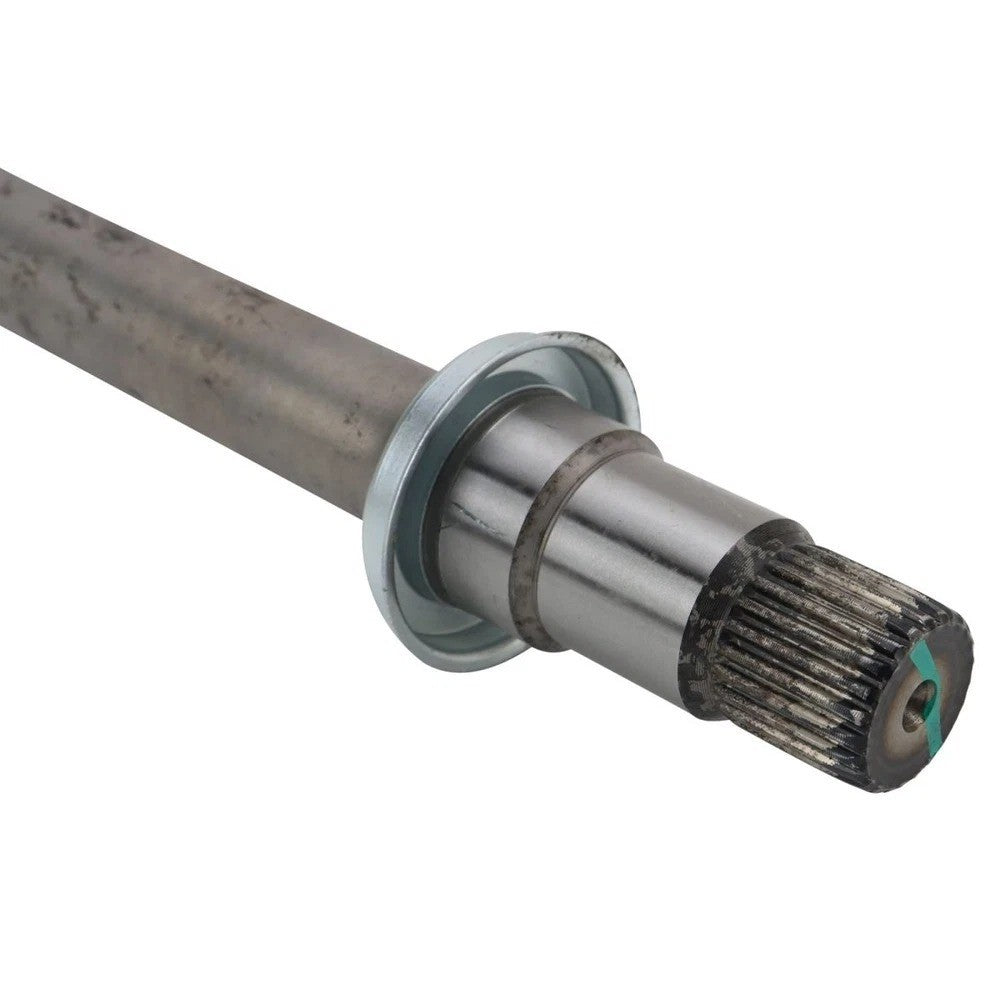

• Outboard Spline Quantity: 24 Teeth

• Inboard Spline Quantity: 24 Teeth

• Axle Nut Thread Size: M22 x 1.5

• Axle Nut Socket Size: 30 mm (1.18 in)

Component Features

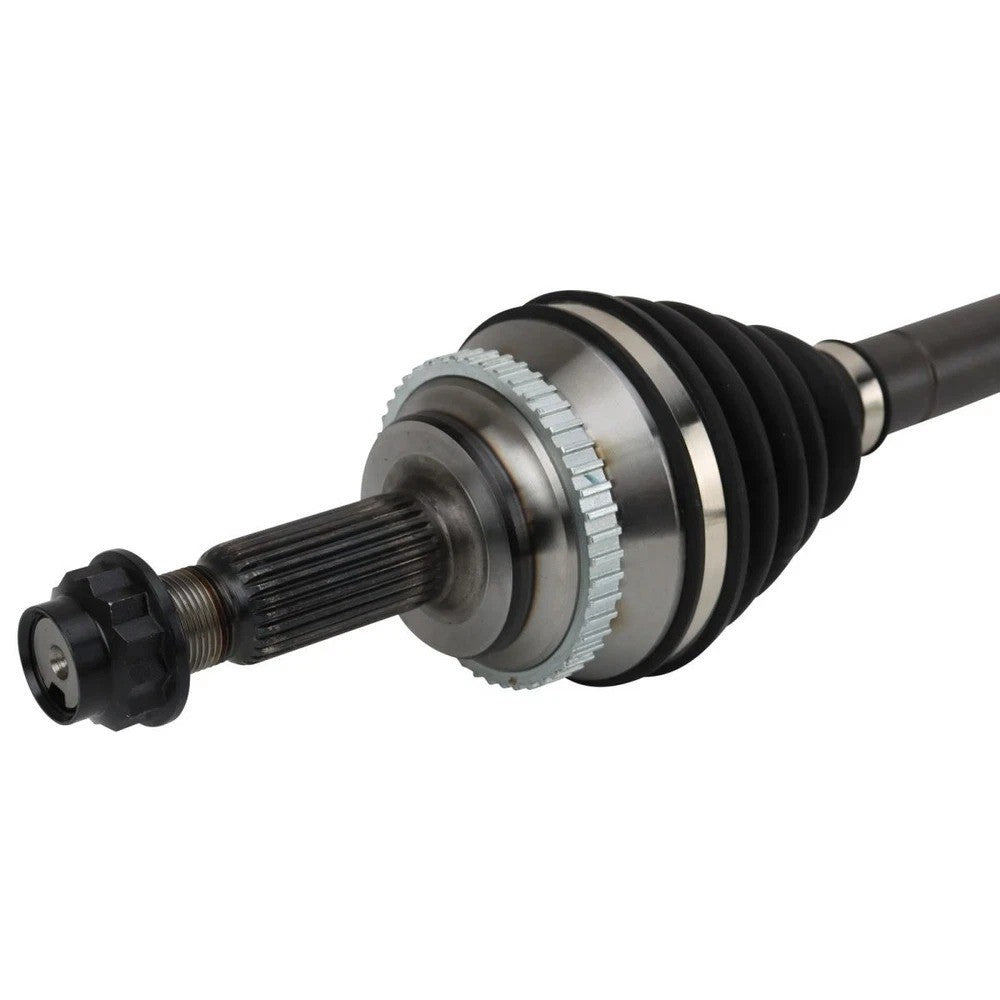

• ABS Integration: Includes a 48-tooth ABS tone ring for full compatibility with anti-lock braking and traction control systems.

• Joint Design: Male inboard and outboard joints (Fixed-ball outboard and sliding-tripod inboard).

• Boot Material: Heavy-duty Neoprene for superior resistance to ozone, cracking, and environmental contaminants.

• Hardware: Includes a new axle nut for secure installation.

Industry Cross-Reference Numbers

This axle assembly serves as a direct functional replacement for the following manufacturer and aftermarket part numbers:

• Toyota (OE): 4341001140

• Pontiac / GM (OE): 19183748

• Cardone: 66-5290, 665290

• GSP: NCV69538

• TrakMotive: TO8228

Installation and Safety Information

• Transmission Fluid: Be prepared for a small amount of transmission fluid to leak when the old inboard joint is removed. It is recommended to have a drain pan ready and top off the fluid according to the manufacturer's specifications after installation.

• Seal Inspection: Inspect the transmission output shaft seal while the axle is removed. If the seal shows signs of weeping or cracking, it should be replaced to prevent future leaks.

• Torque Specification: The axle nut must be torqued to the specific factory setting (typically between 150-220 ft-lbs depending on the model) and properly staked to prevent it from loosening. Do not use an impact wrench for the final torqueing process as it can damage the wheel bearings.

• ABS Sensor Care: Be careful not to strike or damage the ABS wheel speed sensor when removing the old axle or seating the new 48-tooth tone ring into the steering knuckle.
