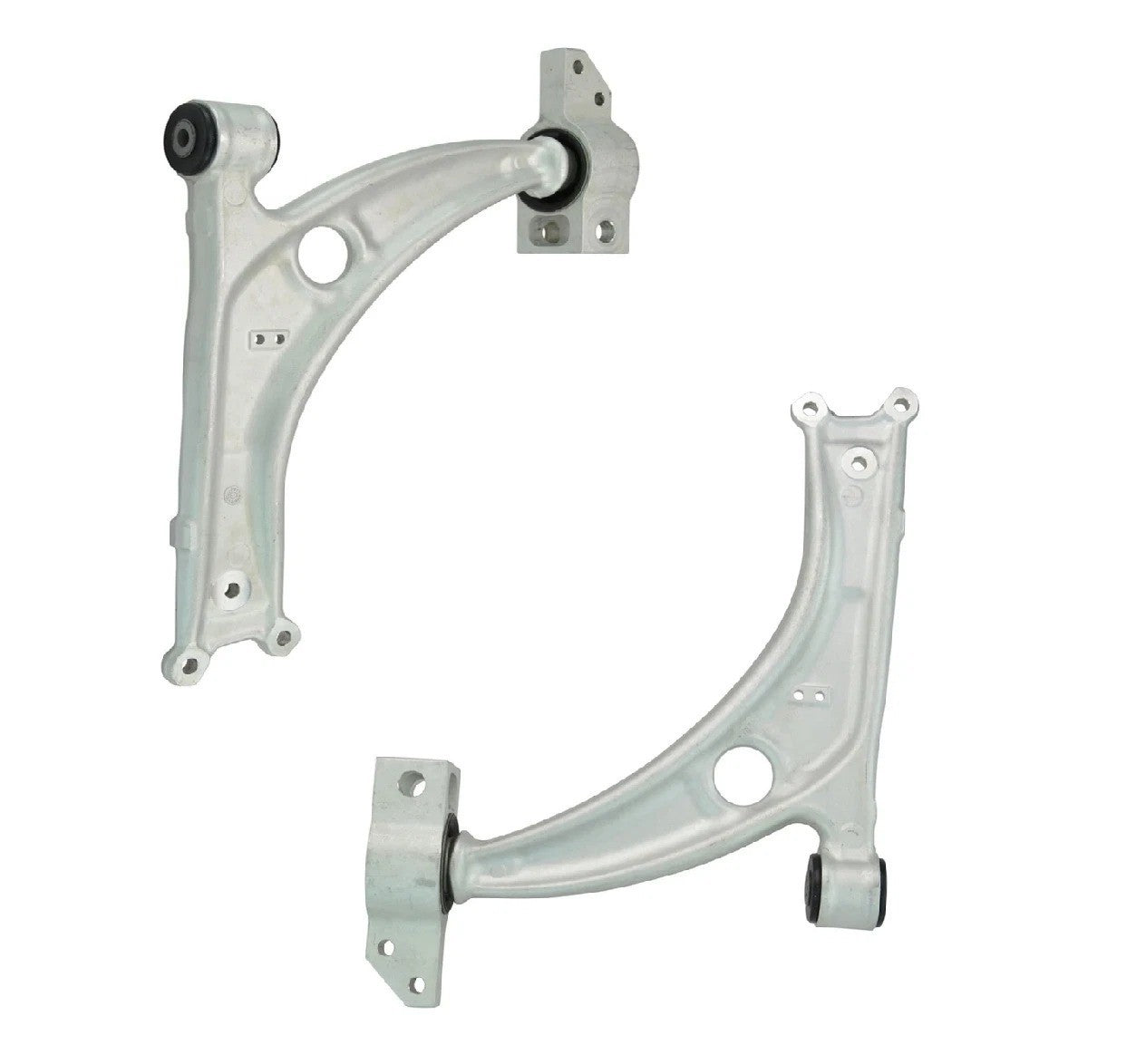

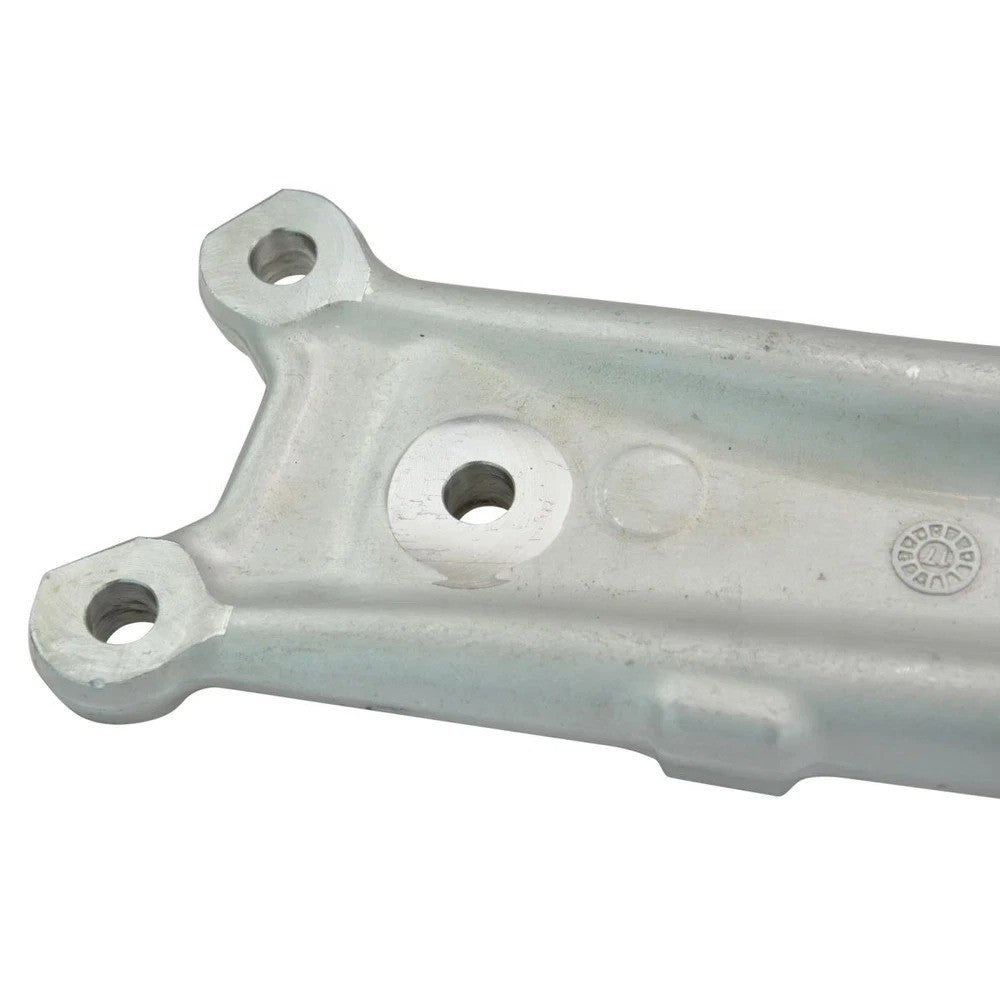

Front Lower Aluminum Control Arm

Lightweight High-Performance Suspension for Audi and Volkswagen

Restore the precision handling and structural integrity of your vehicle's front suspension with this premium Aluminum Lower Control Arm. Engineered specifically for the PQ35/PQ46 platforms, this arm is designed for vehicles equipped with factory aluminum suspension components. Using aluminum instead of traditional stamped steel significantly reduces unsprung weight, allowing the suspension to react more quickly to road surfaces for improved comfort and sharper steering response.

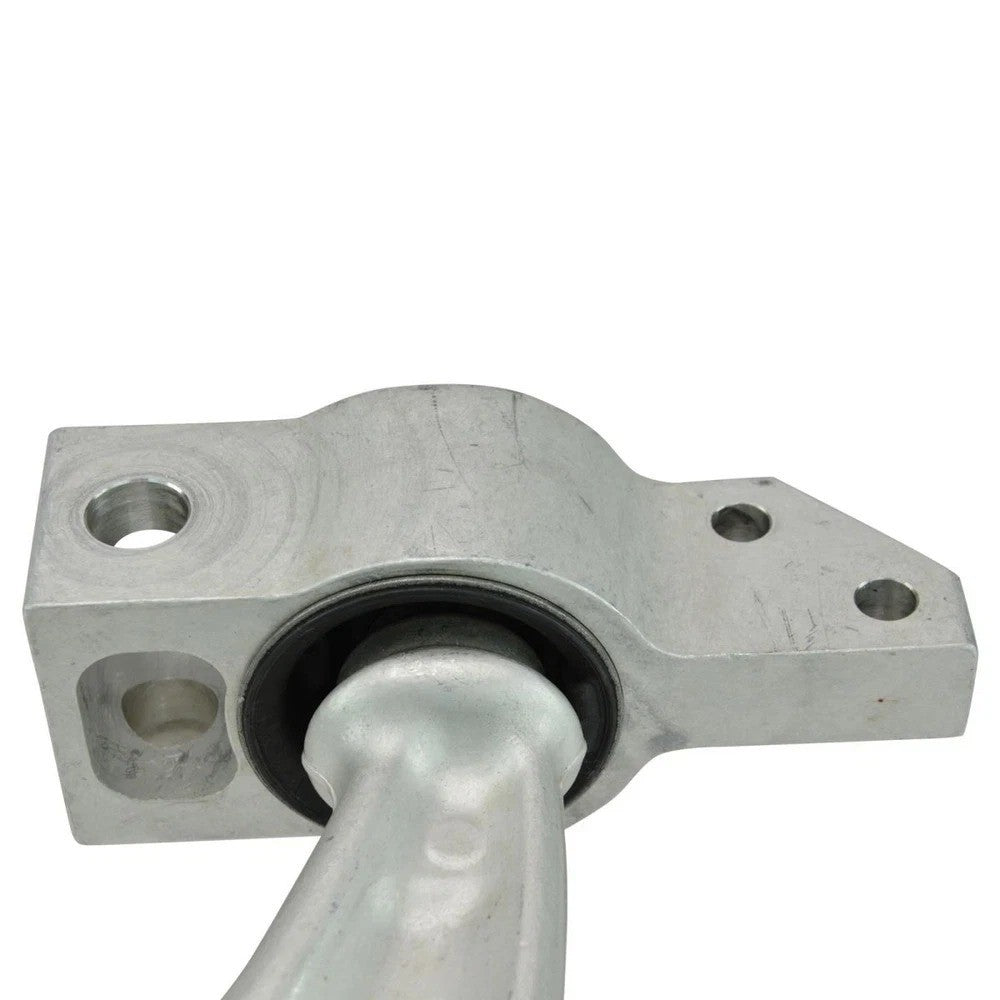

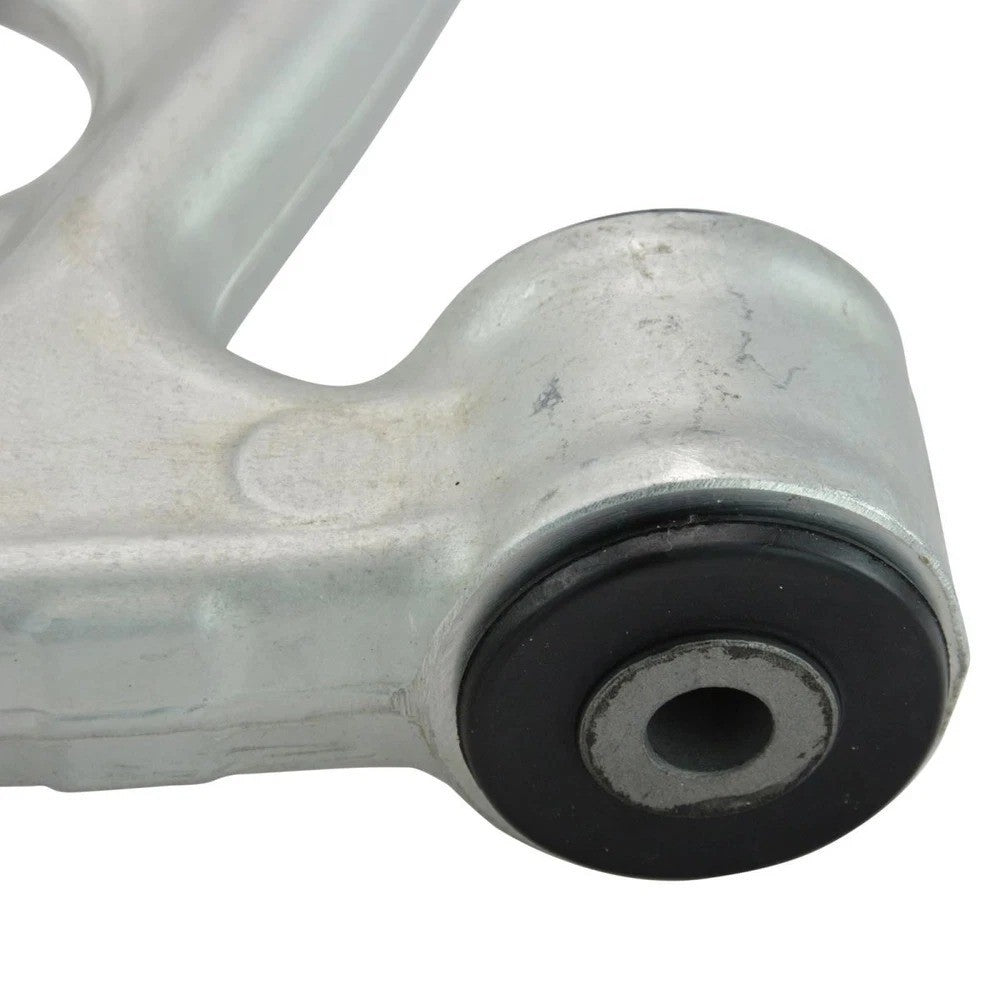

This control arm comes with high-density, vibration-dampening bushings pre-installed, eliminating the need for specialized pressing tools during installation. The unit is designed for a bolt-in ball joint configuration, ensuring a straightforward installation process that maintains factory-spec camber and caster geometry.

Fitment Verification and Vehicle Applications

This control arm is non-directional and serves as a direct-fit replacement for either the Front Driver Side (Left) or Front Passenger Side (Right).

Important Fitment Note: This part is exclusively for models originally equipped with Aluminum lower control arms.

Audi

• Q3 / Q3 Quattro: 2015, 2016, 2017, 2018.

Volkswagen

• CC: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 (Models with Aluminum arms).

• Passat: 2006, 2007, 2008, 2009, 2010 (Models with Aluminum arms).

• Tiguan: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 (Models with Aluminum arms).

Technical Specifications and Attributes

• Material: Lightweight High-Strength Aluminum.

• Position: Front Lower (Left or Right).

• Bushings: Included and pre-installed.

• Ball Joint Mounting: Bolt-In style (Ball joint sold separately).

• Adjustability: Non-Adjustable (Fixed factory geometry).

• Design: Cast aluminum construction for superior corrosion resistance and weight savings.

What’s in the Box

• (1) Front Lower Aluminum Control Arm with pre-installed bushings.

Industry Cross-Reference Numbers

• Volkswagen / Audi: 3C0407151, 3C0407151A, 3C0407151E, 3C0407151G

• MOOG: CK620589, RK620589, K620589

• Dorman: 520-469

• Mevotech Supreme: CMS701142, CMS70121

• TRW: JTC1398

• Delphi: TC2161

• Beck/Arnley: 101-6242

Installation and Technical Tips

• Verify Material: Before purchasing, check your vehicle's current control arms with a magnet. If the magnet does not stick, you have aluminum arms and this is the correct replacement. If it sticks, you likely have the stamped steel version which requires a different part number.

• Torque to Static Ride Height: To prevent "bushing clocking" and premature rubber failure, do not fully tighten the bushing bolts while the car is on jack stands. Hand-tighten the bolts, lower the vehicle until the wheels are on the ground (supporting its own weight), and then perform the final torque to factory specifications.

• Stretch Bolts: Many Audi and VW suspension bolts are "One-Time Use" torque-to-yield fasteners. It is highly recommended to replace the mounting hardware to ensure the bolts maintain proper tension under load.

• Post-Installation Alignment: Any time a control arm is removed or replaced, the front-end alignment is disturbed. A professional 4-wheel alignment is necessary to ensure the vehicle tracks straight and to prevent rapid tire wear.
