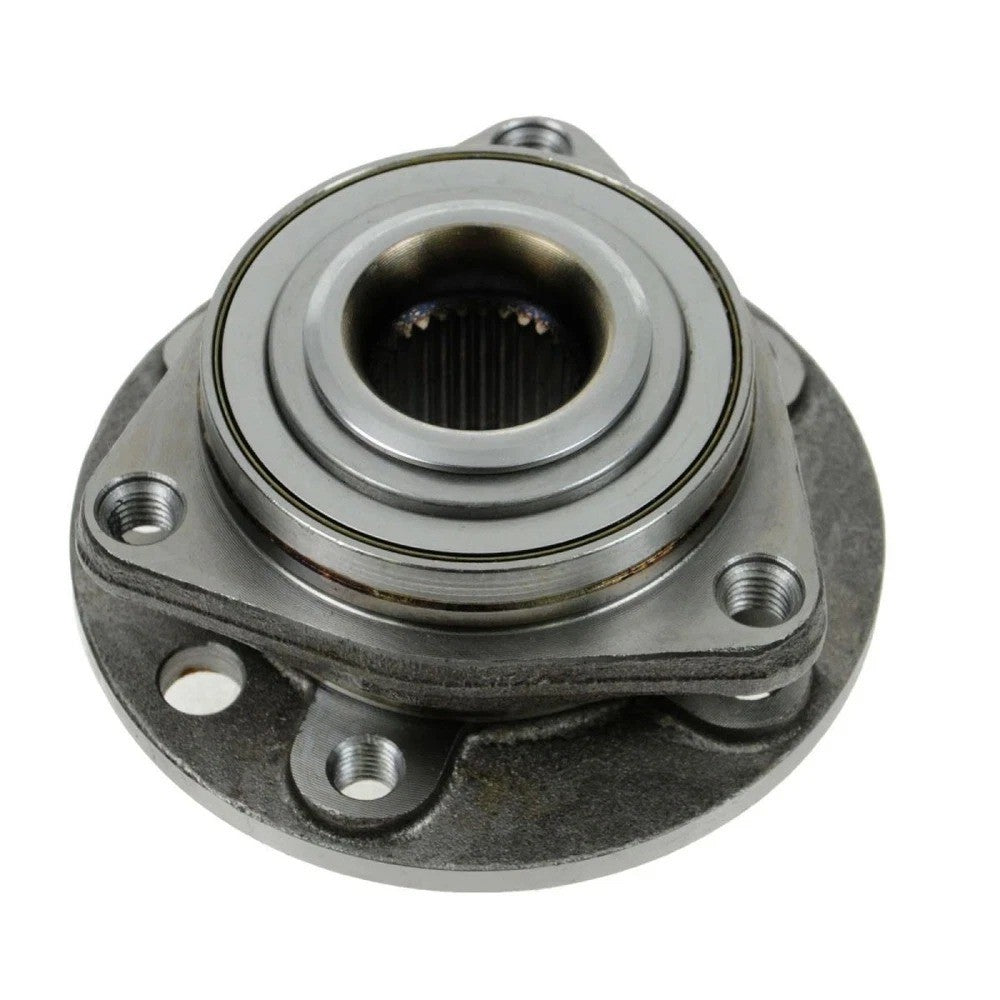

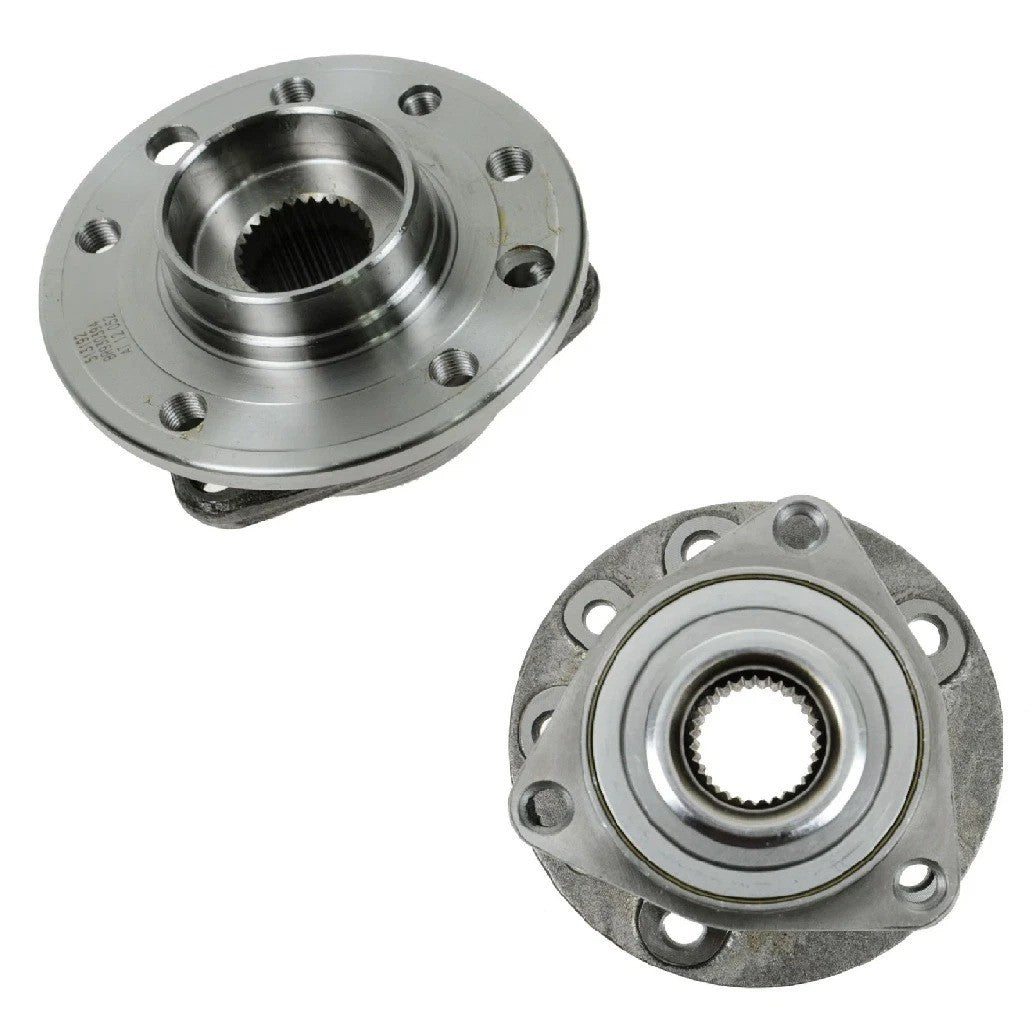

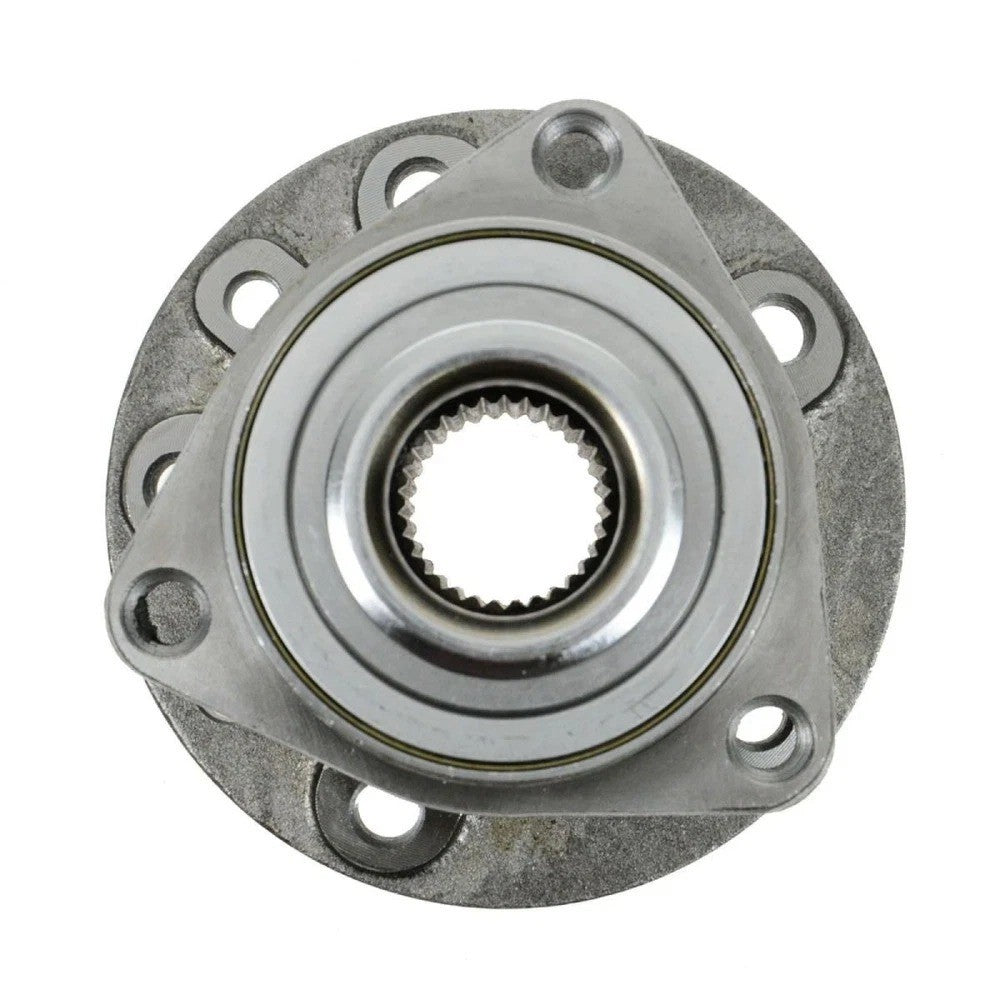

Front Wheel Hub and Bearing Assembly

Premium Hub Restoration for 2002–2009 Saab 9-5

Restore the precision handling and quiet ride of your vehicle with this premium Front Wheel Hub and Bearing Assembly. Engineered specifically for the second-generation chassis of the Saab 9-5, this Generation 3 unit integrates the bearing and the mounting flange into a single, maintenance-free component. Over time, the internal ball bearings can suffer from race pitting due to moisture or impact, leading to a "humming" noise or vibrations that worsen at highway speeds. This direct-replacement hub eliminates those symptoms, providing the structural integrity required for the front-wheel-drive torque of your Saab.

This assembly is precision-machined from high-carbon steel to ensure lateral run-out is within factory tolerances, preventing brake pedal pulsation and uneven tire wear. The internal raceways are pre-lubricated with a high-temperature synthetic grease and protected by dual-lip seals to withstand the harsh thermal environment created by heavy braking.

Fitment Verification and Vehicle Applications

This assembly is designed for the Front Axle (Left or Right Side) on the following models:

• Saab 9-5 (All Trims): 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009.

• Body Styles: Fits both the Sedan and the SportCombi (Wagon).

• Important Note: This hub features a 30-spline internal interface and a 3-bolt triangle flange. Please verify your vehicle's build year, as 1999–2001 models utilize a different hub design and are not compatible with this unit.

Technical Specifications and Attributes

• Position: Front Driver Side (LH) or Front Passenger Side (RH).

• Bearing Type: Ball Bearing (Generation 3).

• Flange Shape: Triangle (3-Bolt Mounting).

• Spline Quantity: 30.

• Bolt Circle Diameter: 110 mm (4.33 in).

• Flange Diameter: 137 mm (5.39 in).

• Wheel Pilot Diameter: 65 mm (2.56 in).

• Brake Pilot Diameter: 70 mm (2.75 in).

• ABS Sensor: Not included (Requires reuse of existing sensor or separate purchase).

• Hardware: Wheel studs and flange bolts are not included.

What’s in the Box

• (1) Complete Front Wheel Hub and Bearing Assembly

Industry Cross-Reference Numbers

• Saab: 5392493, 12795805, 93186387

• Timken / Moog: 513192

• SKF: BR930394, VKBA3619

• Beck/Arnley: 051-6127

• Centric Parts: 400.38002

• Raybestos: 713192

Installation and Technical Tips

• Proper Torque is Critical: When installing the axle nut, do not use an impact wrench for final tightening. Excessive force can crush the internal bearing races, leading to immediate failure. Use a calibrated torque wrench to meet the factory specification (typically 125 lb-ft plus a 45-degree turn).

• Clean the Knuckle: Before mounting the new hub, use a wire brush to remove all rust and debris from the steering knuckle’s bore. A small amount of anti-seize applied to the flange-to-knuckle mating surface will prevent future corrosion and make any subsequent removals much easier.

• ABS Component Handling: Since this unit does not include the ABS sensor, take care when removing and re-installing your existing sensor. Ensure the magnetic ring area on the back of the hub is clean; any metal shavings or grease on the magnetic surface can cause traction control or ABS error codes.

• Check the Axle Nut: Most manufacturers recommend replacing the axle nut with a new one every time the hub is removed. A used nut may not retain the proper locking tension, risking the security of the entire assembly.
