Front Driver CV Axle Assembly for 10-22 RX350 09-15 Venza 13-18 Highlander
Front Driver CV Axle Assembly for 10-22 RX350 09-15 Venza 13-18 Highlander
$185.77

Front Driver Side CV Axle Assembly

Precision Drivetrain Restoration for Lexus and Toyota SUVs

Restore smooth power delivery and eliminate unwanted vibrations with this Premium Front Driver Side CV Axle Assembly. This Constant Velocity (CV) axle is a 100% new, complete unit designed to transfer torque from the transmission to the wheels while allowing for full steering articulation and suspension travel. If your vehicle is experiencing clicking sounds during turns, grease leakage from the inner or outer joints, or shuddering during acceleration, your factory axle has likely reached the end of its service life.

Engineered with high-strength forged steel shafts and precision-machined joints, this assembly is built for long-term durability. It features heavy-duty neoprene boots that provide superior resistance to road debris, extreme temperatures, and ozone, ensuring the high-temperature molybdenum grease stays inside the joint to prevent premature wear.

Fitment Verification and Vehicle Applications

This CV axle is designed for the Front Left (Driver Side) on the following models:

  • Lexus RX350: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022.

  • Toyota Venza: 2009, 2010, 2011, 2012, 2013, 2014, 2015.

  • Toyota Highlander (L4 2.7L): 2013, 2017, 2018 (AWD & FWD).

  • Toyota Highlander (V6 3.5L FWD): 2017, 2018.

  • Toyota Highlander (LE, LE Plus, Limited, XLE): 2014, 2015, 2016.

Fitment Note: This assembly includes an ABS Tone Ring with 48 Teeth. Please verify your vehicle's engine and drivetrain configuration, as axle specifications can vary between different hybrid and standard gasoline powertrains.

Technical Specifications and Attributes

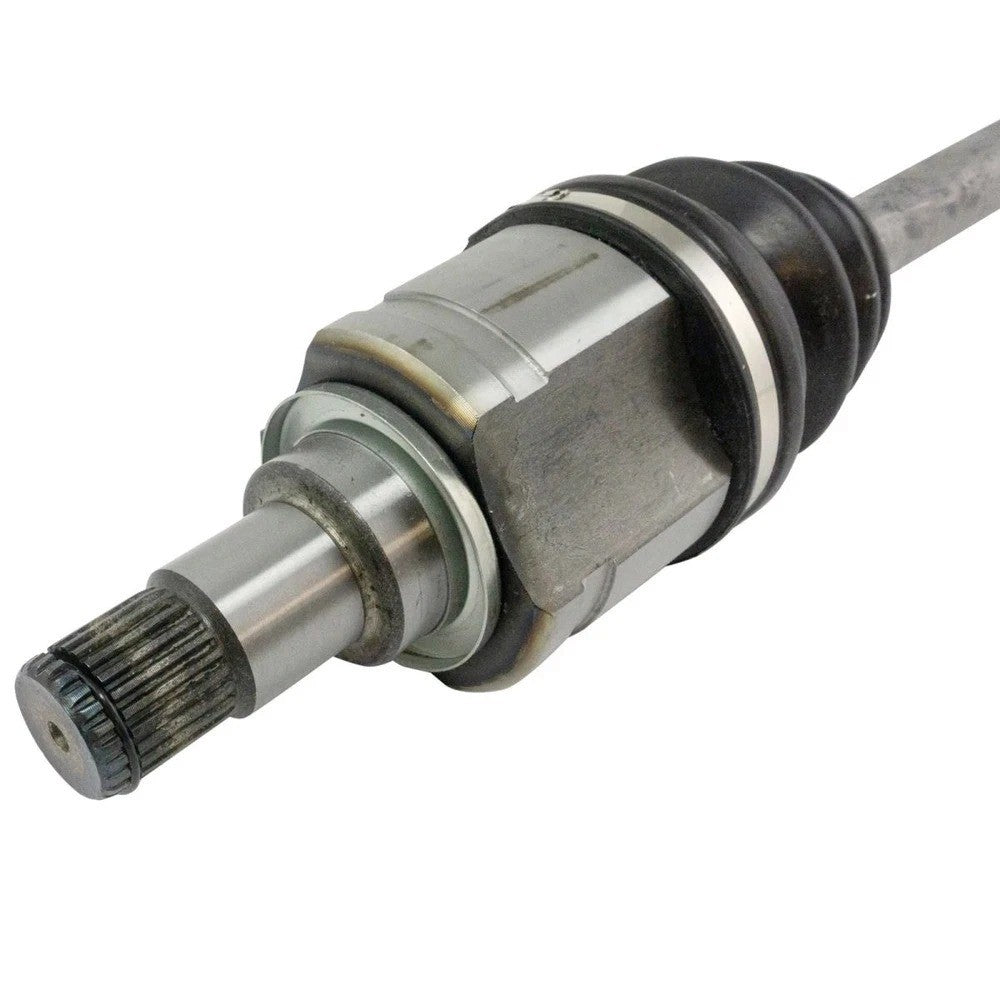

  • Inboard Spline Quantity: 24.

  • Outboard Spline Quantity: 30.

  • Compressed Length: 26.57 inches (675 mm).

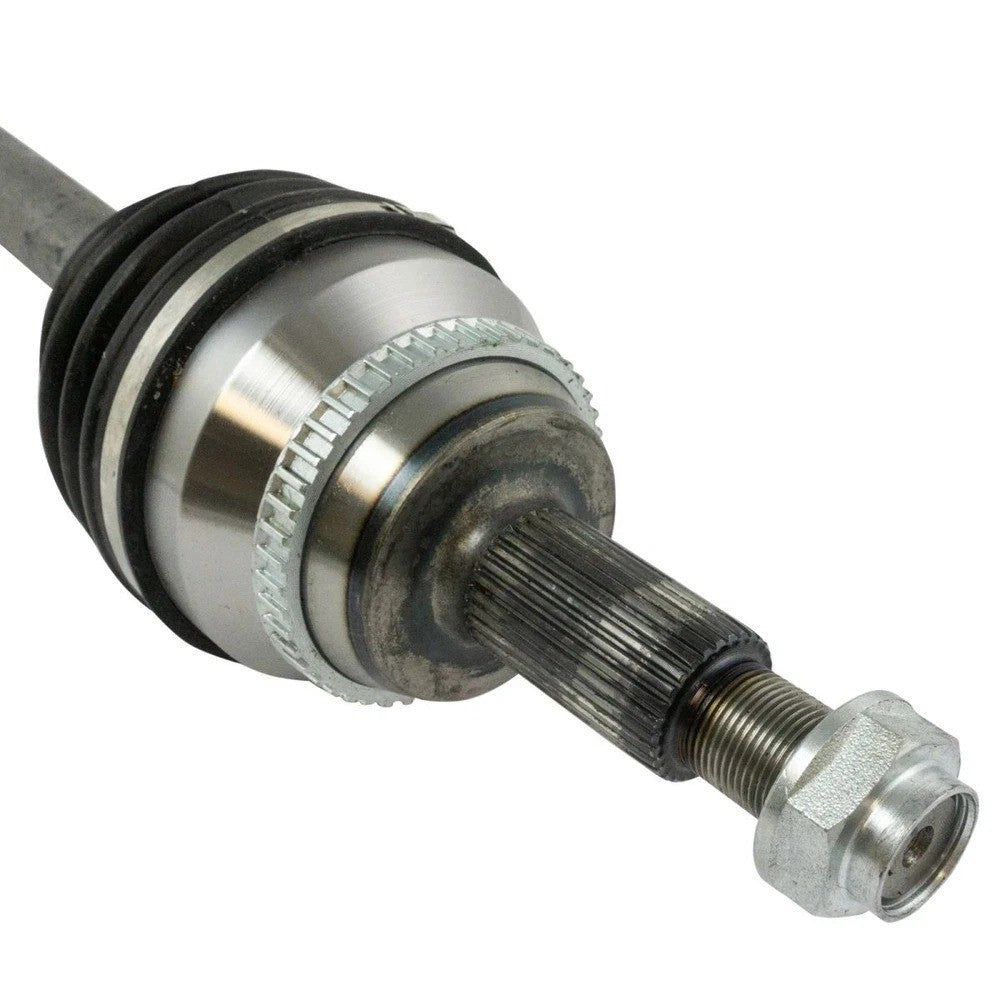

  • ABS Tone Ring Included: Yes (48 Teeth).

  • Axle Nut Thread Size: M22x1.5.

  • Axle Nut Socket Size: 1.18 inches (30 mm).

  • Joint Type: Male (Inboard and Outboard).

  • Boot Material: High-Grade Neoprene.

  • Hardware: New Axle Nut included.

  • Grade Type: Standard Replacement.

What’s in the Box

  • (1) Complete Front Driver Side CV Axle Assembly

  • (1) New Hub Nut

Industry Cross-Reference Numbers

  • Lexus: 434200E030

  • Toyota: 434200T010, 434200T020

  • CARDONE New: 66-5308, 665308

  • GSP: NCV69166

Installation and Technical Tips

  • Fluid Management: Have a drain pan ready when removing the inboard joint from the transmission, as a small amount of gear oil or transmission fluid may escape.

  • Seal Inspection: Always inspect the transmission output shaft seal for leaks or tears while the axle is removed. It is best practice to replace the seal during axle service to ensure a leak-free repair.

  • Proper Torque: Use a calibrated torque wrench for the 30mm axle nut. Accurate torque is critical for the longevity of the wheel bearing; over-tightening can crush the bearing races, while under-tightening can lead to hub failure.

  • Seating the Clip: When sliding the inboard joint into the transmission, you should feel a distinct "click" as the internal C-clip seats into the differential. Gently tug on the inboard housing to ensure it is locked in place before reassembling the suspension.
