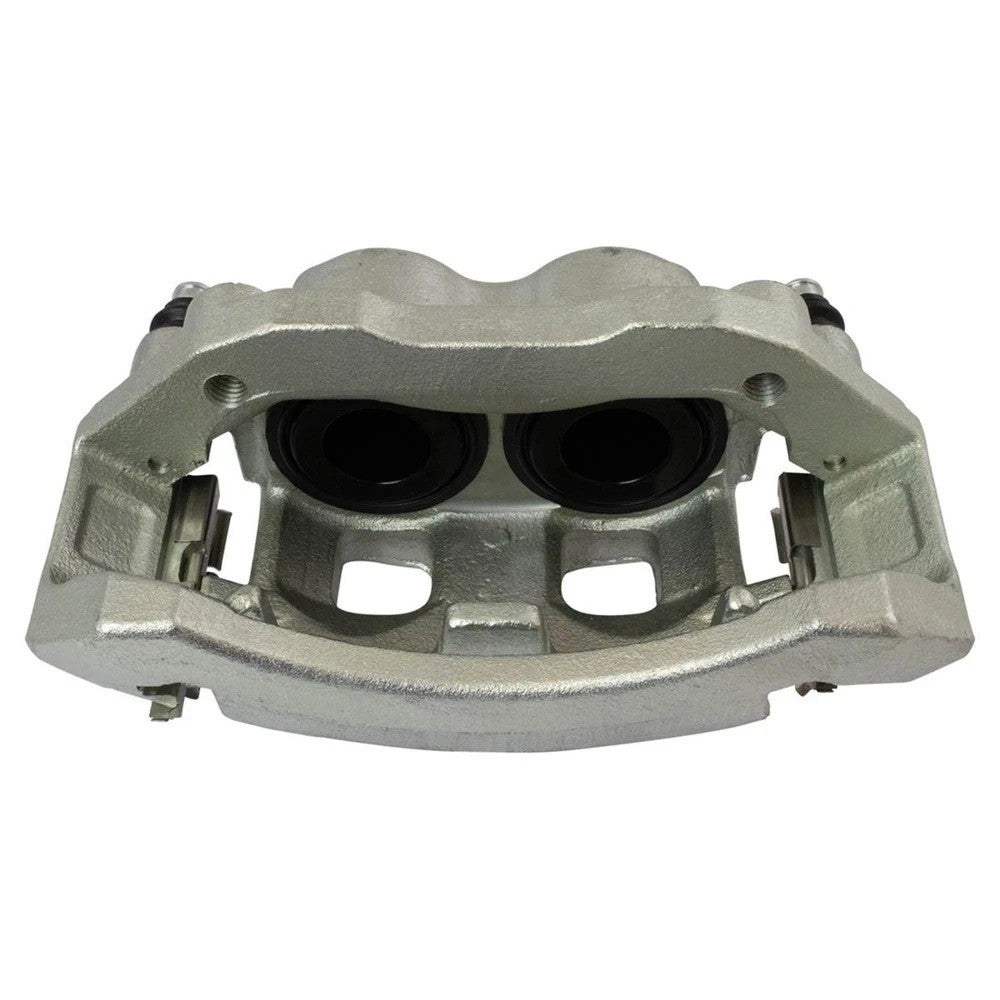

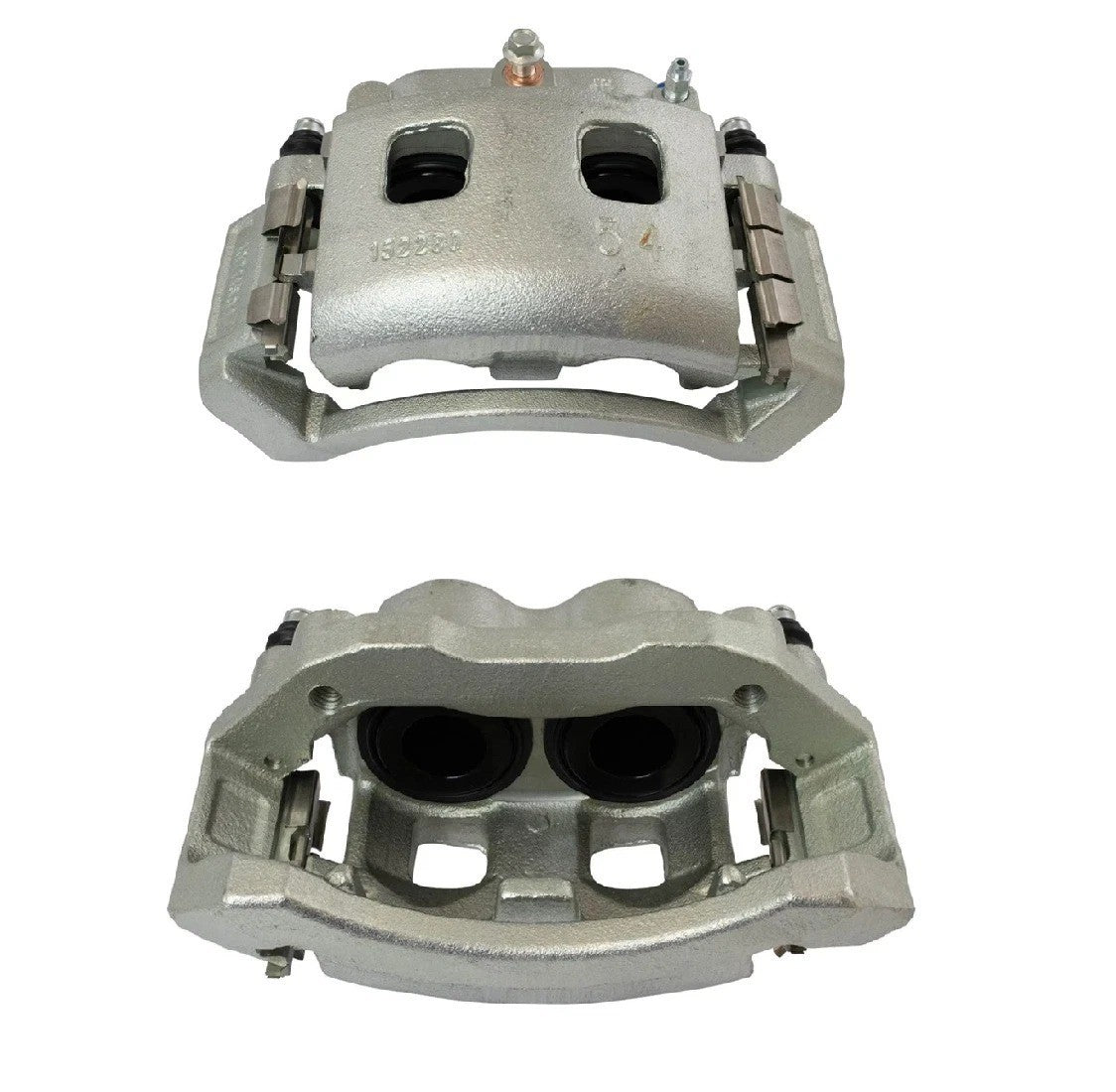

Front Disc Brake Caliper with Mounting Bracket

Heavy-Duty Dual-Piston Casting for Dodge Trucks and SUVs

Restore the hydraulic clamping force and safety of your vehicle's braking system with this Premium Front Disc Brake Caliper. Engineered to handle the weight and towing demands of the Dodge Ram and Durango platforms, this caliper features a dual-piston design to provide even pressure distribution across the brake pad surface. This promotes consistent stopping power and helps prevent the uneven pad wear or "tapering" often seen with aging factory units.

This caliper is supplied as a complete assembly, including the heavy-duty mounting bracket and necessary installation hardware. The pistons are constructed from high-quality phenolic material, which is specifically chosen for its superior heat resistance compared to traditional steel, reducing the risk of brake fluid boiling during heavy-use or high-temperature conditions.

Fitment Verification and Vehicle Applications

This caliper assembly is designed for the following specific vehicle applications:

• Dodge Durango: 2004, 2005, 2006 (Front Driver Side).

• Dodge Ram 1500 Truck: 2002, 2003 (Front Passenger Side).

• Dodge Ram 1500 (Laramie, SLT, ST): 2004, 2005 (Front Passenger Side).

Important Note on Orientation: Due to the internal fluid routing and bleeder screw placement, this part serves as the Driver Side (Left) for the Durango, but as the Passenger Side (Right) for the Ram 1500 within the years listed above. Please verify your specific corner of the vehicle before installation.

Technical Specifications and Attributes

• Piston Quantity: 2 (Dual-Piston Design).

• Piston Diameter: 54 mm.

• Piston Material: Phenolic (High Heat Resistance).

• Caliper Type: Floating.

• Casting Material: High-Strength Cast Iron.

• Mounting Bracket Included: Yes.

• Hardware Included: Yes (Installation Clips/Hardware).

• Grade Type: Standard Replacement.

What’s in the Box

• (1) Dual-Piston Disc Brake Caliper

• (1) Caliper Mounting Bracket

• (1) Premium Hardware Kit (Clips and Seals)

• (1) Set of Copper Banjo Washers

Industry Cross-Reference Numbers

• ACDelco: 18FR2071

• CARDONE: 18-B4832

• Raybestos: FRC11687

• BBB Industries: 99-17718R-C

• UCX: 14-1199

Installation and Technical Tips

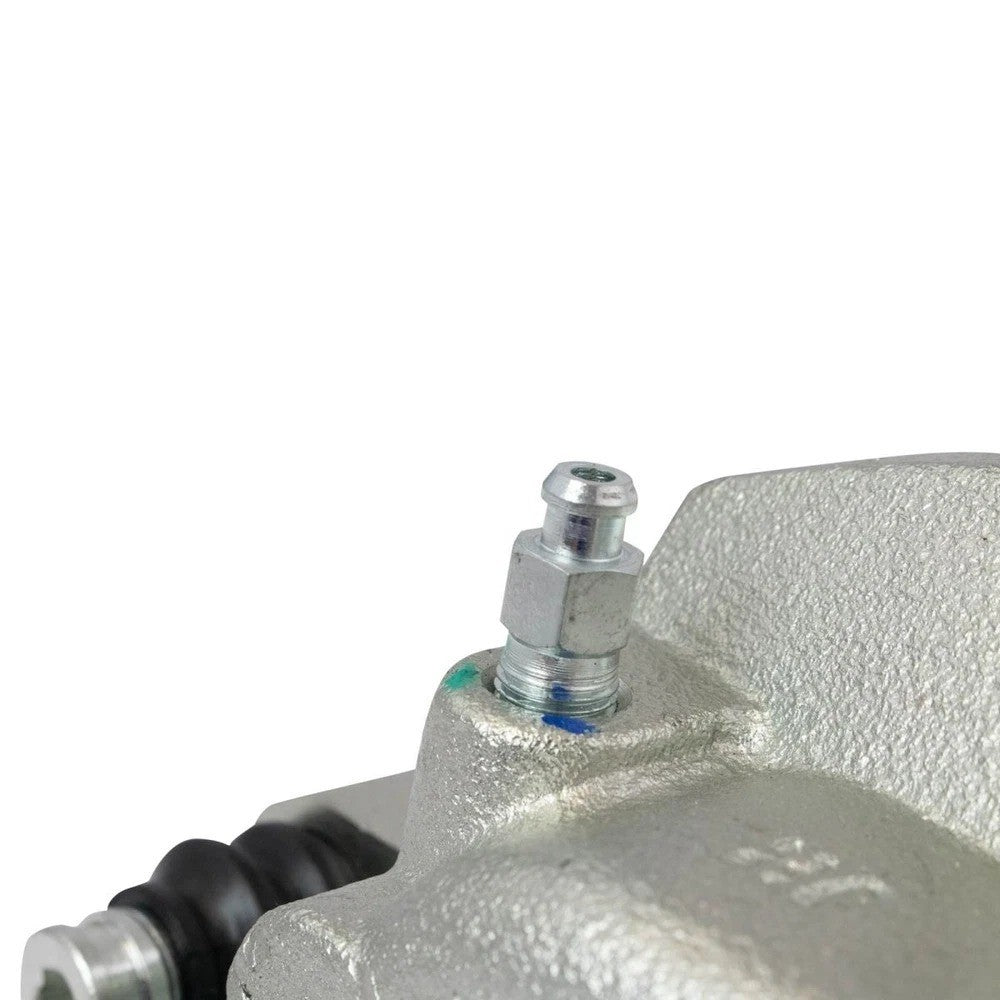

• Bleeder Screw Orientation: Upon installation, confirm that the bleeder screw is located at the highest point of the caliper. If the bleeder is at the bottom, air will remain trapped in the upper chamber, leading to a dangerous "spongy" brake pedal.

• Phenolic Piston Care: Phenolic pistons offer excellent heat insulation but can be more sensitive to mechanical impact than steel pistons. When compressing the pistons to fit over new pads, use a flat brake tool or an old brake pad to apply even pressure and avoid chipping the piston edges.

• Lubricate Slide Pins: Even though the bracket is included, always apply a thin layer of high-temperature synthetic brake lubricant to the slide pins. This allows the floating caliper to move freely, preventing the brakes from dragging or sticking.

• Hydraulic Seal: This kit includes new copper crush washers. Ensure the mounting surface on the brake hose banjo fitting is clean and free of debris before torquing the banjo bolt to prevent slow hydraulic leaks.
