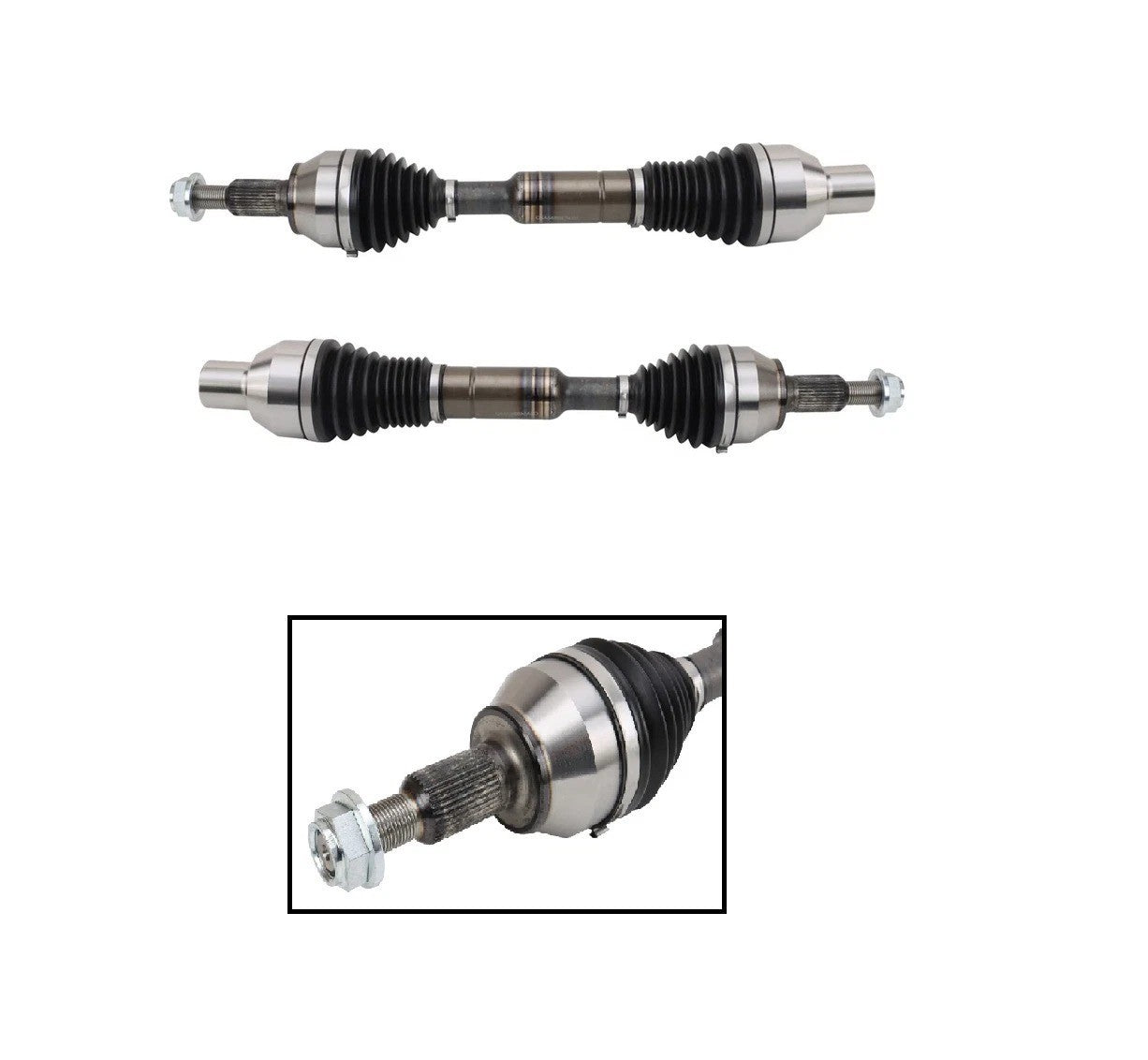

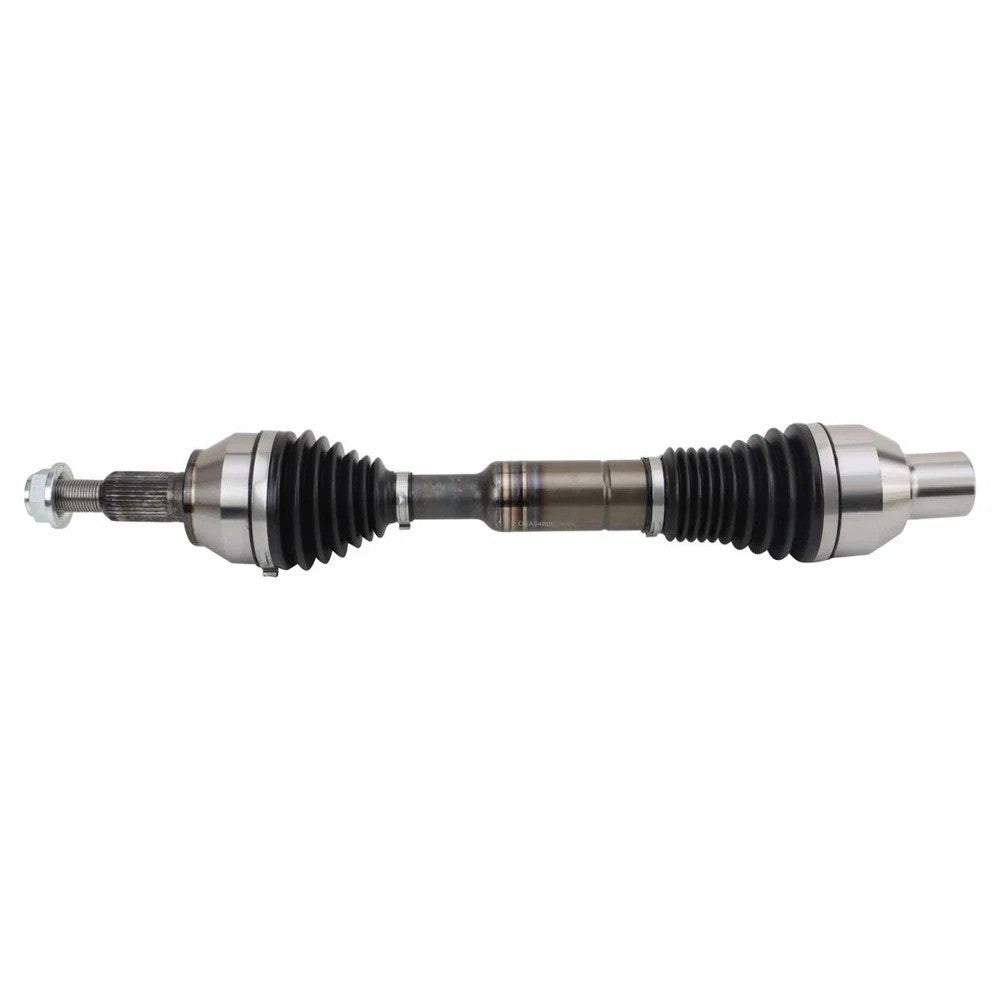

Front Heavy-Duty CV Axle Assembly Pair

High-Performance Drivetrain Restoration for Ram 1500 4WD

Upgrade your truck's drivetrain with this 2-Piece Heavy-Duty CV Axle Assembly Set. Specifically engineered for the rigorous demands of the Ram 1500 4WD platform, these performance-grade axles are built to exceed standard specifications. They are ideal for vehicles subject to towing, hauling, or frequent off-road use where standard axles may fail. Each assembly is designed to handle increased torque loads and maintain smooth power delivery even at extreme suspension angles.

Constructed with high-strength chromoly steel or reinforced alloy, these axles feature precision-machined internal cages and races. The joints are protected by premium-grade boots that offer superior resistance to tearing and ozone cracking, while high-temperature synthetic grease ensures consistent lubrication under the most demanding thermal conditions.

Fitment Verification and Vehicle Applications

This set is designed for the Front Driver (Left) and Front Passenger (Right) positions. Please verify your wheel configuration and drivetrain type:

• Ram 1500 Truck (4WD): 2012, 2013, 2014, 2015, 2016, 2017, 2018.

• Ram 1500 Classic (4WD): 2019, 2020, 2021.

• Wheel Lug Requirement: Designed specifically for vehicles with 5-Lug Wheels.

• Fitment Note: Valid for the "DS" body style (including the Classic models). These do not fit the 6-lug "New Body Style" (DT) chassis introduced in 2019.

Technical Specifications and Attributes

• Product Grade: Heavy-Duty / Performance.

• Quantity: 2-Piece Set (Complete Front Axle Coverage).

• Joint Type: Constant Velocity (CV) with high-articulation capability.

• Boot Construction: Enhanced puncture-resistant material.

• Spline Count: Precision-matched to factory differential and hub specifications.

• Fitment Type: Direct Replacement.

What’s in the Box

• (1) Front Driver Side Heavy-Duty CV Axle Assembly

• (1) Front Passenger Side Heavy-Duty CV Axle Assembly

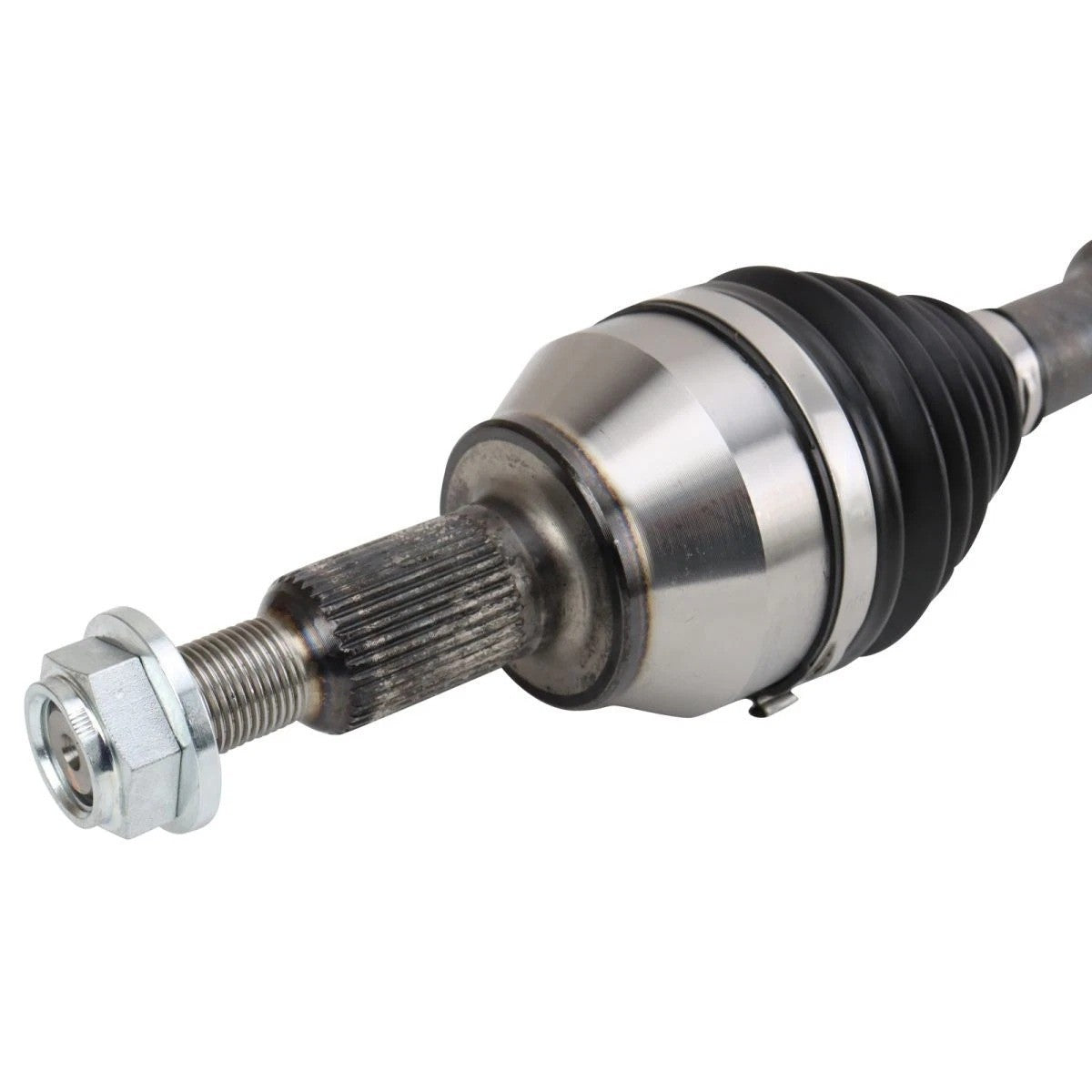

• (2) Replacement High-Torque Spindle Nuts

Industry Cross-Reference Numbers

• OEM Part Number: RL028398AA, 68028398AA

• GSP: NCV10040XDP

• TrakMotive: CH8256XTT

• Cardone: 66-3545HD

Installation and Technical Tips

• Hub Nut Torque: Proper installation is critical for the longevity of your wheel bearings. Use a calibrated torque wrench to tighten the axle nut to the manufacturer’s specification (typically 185 ft-lbs for this application). Under-tightening can cause the bearing to separate, while over-tightening can cause premature bearing failure.

• Differential Seal Replacement: It is highly recommended to replace the front differential output seals whenever the CV axles are removed. Reinstalling axles into old, hardened seals often results in fluid leaks shortly after the repair.

• Snap-Ring Verification: When seating the inboard end of the axle into the differential, ensure the internal snap-ring has fully engaged. You should feel a distinct "click" when the axle is properly locked into the side gear.

• Check for Suspension Interference: If your truck features a leveling kit or suspension lift, manually cycle the steering from lock to lock after installation to ensure the CV boots do not contact any suspension components.
