Front CV Axle Shaft Assembly RH Passenger Side for 09-18 Corolla Vibe Matrix
Regular price
$148.57
Front Passenger Side CV Axle Assembly
Precision Driveline Restoration for Toyota Corolla, Matrix, and Pontiac Vibe
Restore the smooth, vibration-free performance of your vehicle with this premium Front Right CV Axle Shaft. Specifically engineered for the 1.8L Toyota Corolla platform and its counterparts, this complete half-shaft assembly is a direct-fit solution for worn or clicking factory units. Over time, the protective boots on your CV (Constant Velocity) joints can crack, allowing road grit to enter and grease to escape. This results in the characteristic clicking sound during turns and high-speed vibrations that compromise safety and comfort.
This axle is manufactured using high-strength steel shafts and precision-machined internal cages to ensure consistent power delivery. Both the inboard and outboard joints are protected by heavy-duty Neoprene boots, which offer superior resistance to ozone, road salt, and extreme temperature fluctuations. Pre-packed with high-temperature molybdenum grease, this assembly is designed to reduce friction and extend the service life of your front-end drivetrain.
Fitment Verification and Vehicle Applications
This axle is designed for the Front Right (Passenger Side) on the following 1.8L L4 models:
Toyota Corolla (Base, LE, S, XLE): 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018.
Toyota Matrix (Base Model): 2009, 2010, 2011, 2012, 2013.
Pontiac Vibe (1.8L): 2009 (From 8/01/08 Production Date), 2010.
Configuration: Specifically for models equipped with the 1.8L engine and standard braking systems.
Technical Specifications and Attributes
Location: Front Right (Passenger Side).
Inboard Spline Quantity: 20 (Male).
Outboard Spline Quantity: 26 (Male).
Compressed Length: 36.34 in (923 mm).

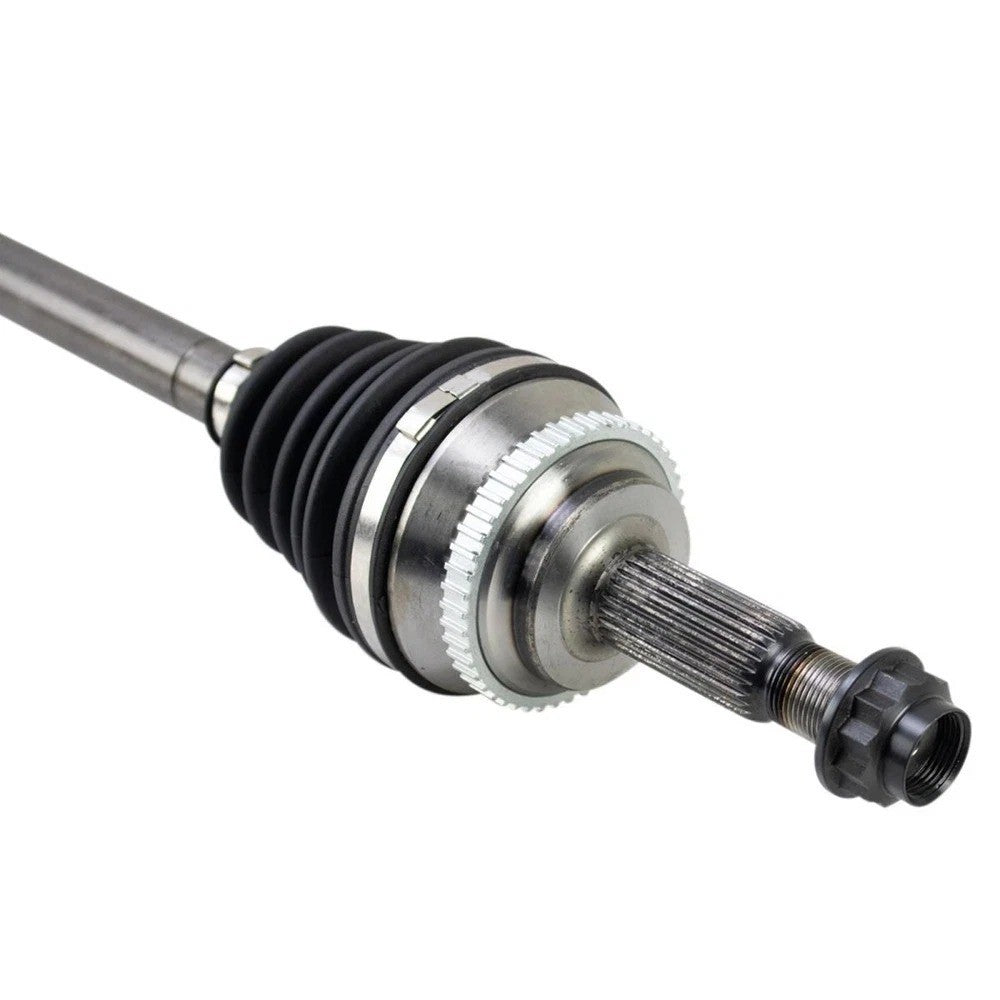

ABS Tone Ring: Included (48-Tooth).
Boot Material: Durable Neoprene.
Axle Nut Included: Yes (M22 x 1.5).
Axle Nut Socket Size: 30 mm (1.18 in).
Grade Type: Standard Replacement.
What’s in the Box
(1) Complete Front Passenger Side CV Axle Shaft Assembly
(1) New Hub Spindle Axle Nut
Industry Cross-Reference Numbers
Toyota: 43410-02A02
General Motors: 19204984
Cardone New: 66-5224
GSP: NCV69588
Hollander: 447-50815R
Installation and Technical Tips
Seal Replacement: It is highly recommended to install a new transmission output seal during this repair. Reusing an old seal can lead to fluid leaks at the inboard joint interface, which can eventually cause transmission damage.
Torque to Specification: The axle nut is a critical safety component. Use a calibrated torque wrench to tighten the new 30mm nut to the factory-specified setting (typically 159 ft-lbs for this model). Avoid using an impact wrench for final tightening, as excessive force can damage the wheel bearing.
ABS Verification: This unit includes a 48-tooth ABS tone ring. Before installation, visually confirm that your original axle also utilized a tone ring on the shaft; some later models may utilize a sensor integrated into the wheel bearing.
Transmission Fluid: Be prepared for a small amount of transmission fluid to drain when the inboard joint is removed. Ensure you have the correct Toyota-approved fluid (such as ATF WS) on hand to top off the system after the new axle is installed.
