Front CV Axle Shaft Assembly Driver Side LH for VW Golf Beetle Jetta MT New
Regular price
$134.62

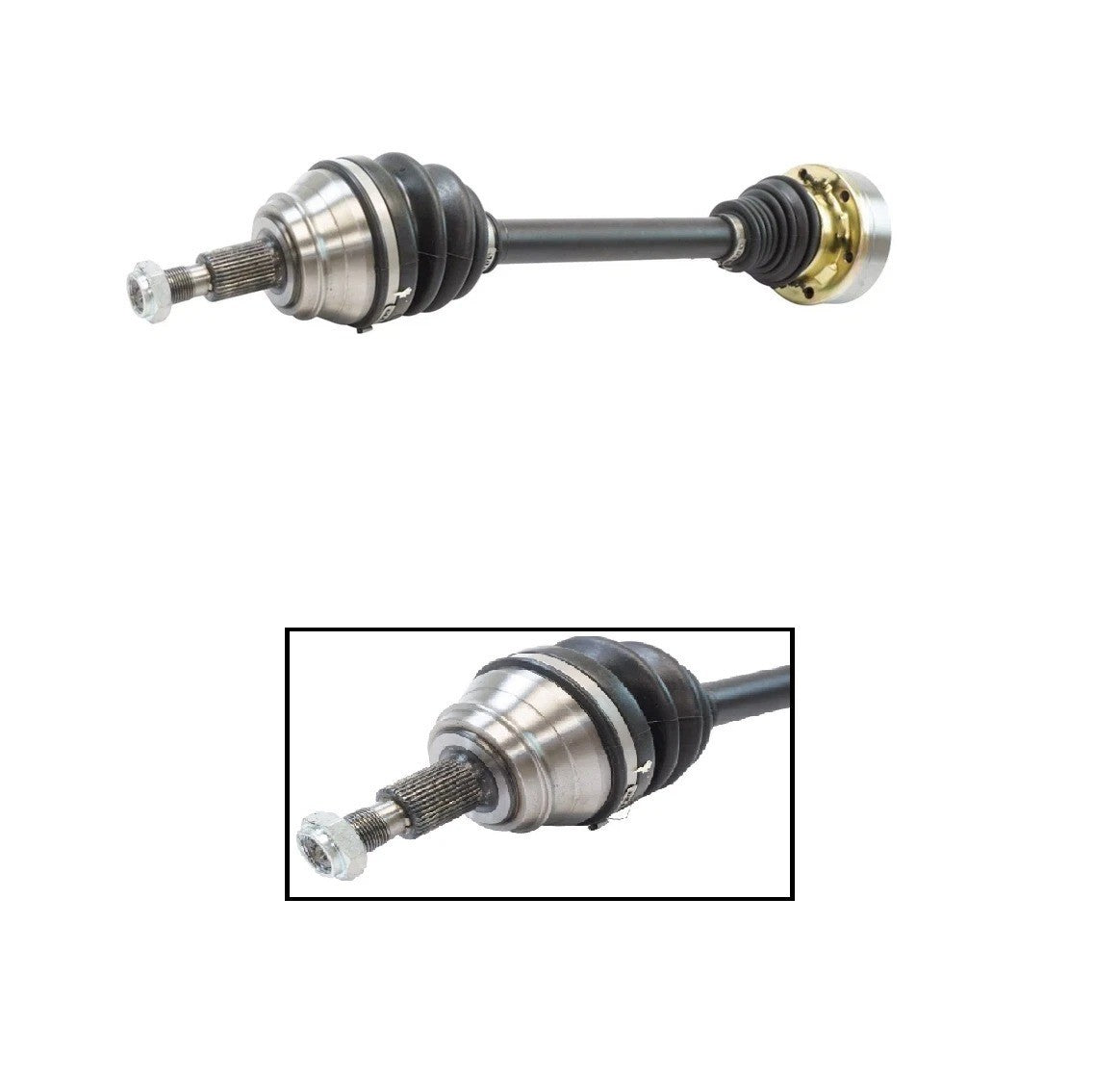

Front Driver Side CV Axle Shaft Assembly
Precision Drivetrain Performance for Volkswagen Manual Transmission Models
Restore the smooth, vibration-free power delivery of your Volkswagen with this premium Front Driver Side (LH) CV Axle Assembly. Engineered to meet the demanding torque requirements of manual transmission vehicles, this axle is a direct-fit replacement for worn constant velocity joints. If your vehicle is experiencing clicking during sharp turns, shuddering under acceleration, or has a torn grease boot, this 100% new assembly provides the structural integrity and lubrication necessary to protect your drivetrain and wheel bearings.
Each axle is manufactured to standard replacement specifications, featuring Neoprene boots for superior ozone and weather resistance. The internal joints are pre-packed with high-performance molybdenum grease to reduce friction and heat, ensuring a long service life even under heavy driving conditions.
Fitment Verification and Vehicle Applications
This axle is designed for the Front Left (Driver Side) on vehicles primarily equipped with a Manual Transmission. Please verify your engine and VIN details:
VW Beetle: 1998–2010 (Manual Transmission models; including GLS TDI).
VW Golf / GTI: 1995–2001 (VR6, 1.9L, 2.0L); 2004–2006 (TDI/BEW engine).
VW Jetta / GLI: 1994–1996 (GLX); 1999–2005 (1.9L, 2.0L; 8th VIN Digit J or M); 2006–2008 (2.0T, GLI, Wolfsburg Edition).
VW Passat / Corrado: 1992–1994 (Corrado); 1993–1997 (Passat GLX).
Important Transmission Note: This axle is specifically for Manual Transmissions. The "Pancake" style inboard joint is a hallmark of the Volkswagen manual drivetrain and will not interchange with automatic transmission variants.
Technical Specifications and Attributes
Position: Front Left (Driver Side).
Compressed Length: 21.81 in (554 mm).
Outboard Spline Quantity: 36.

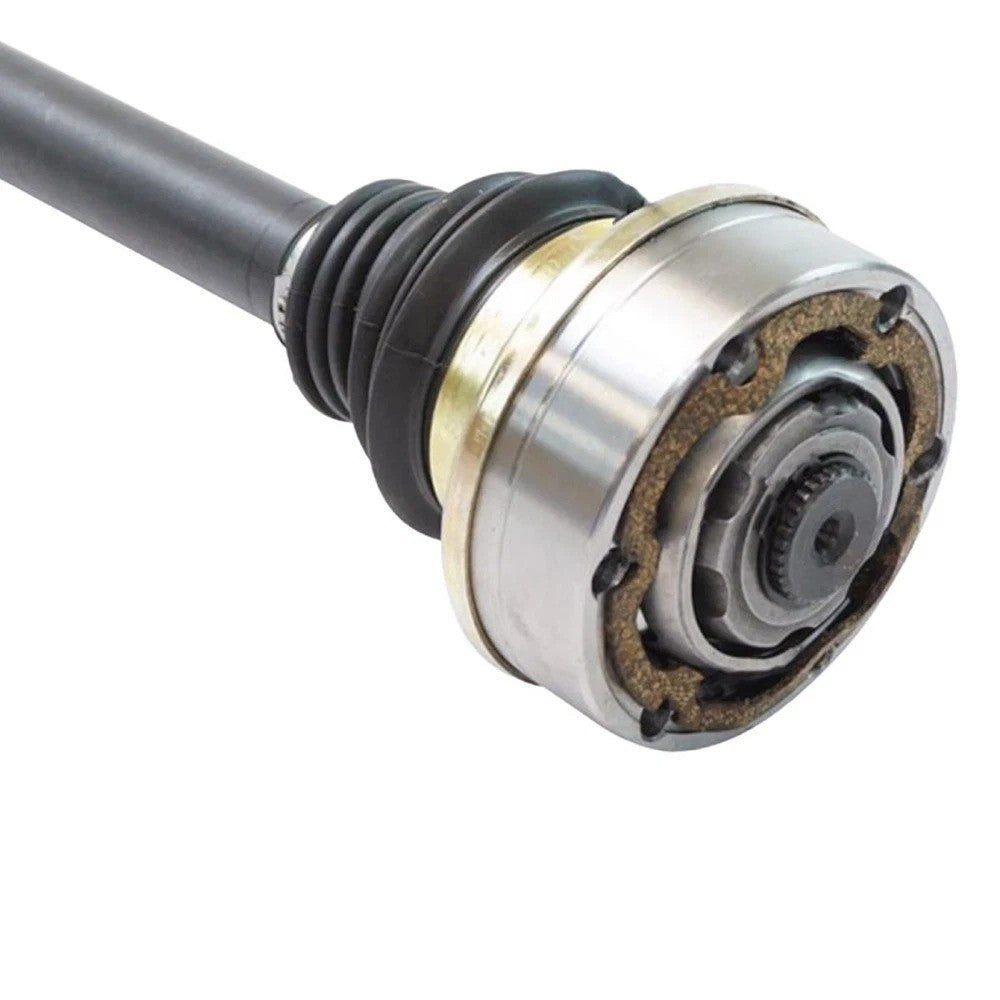

Inboard Joint Type: Pancake (Flange mount).

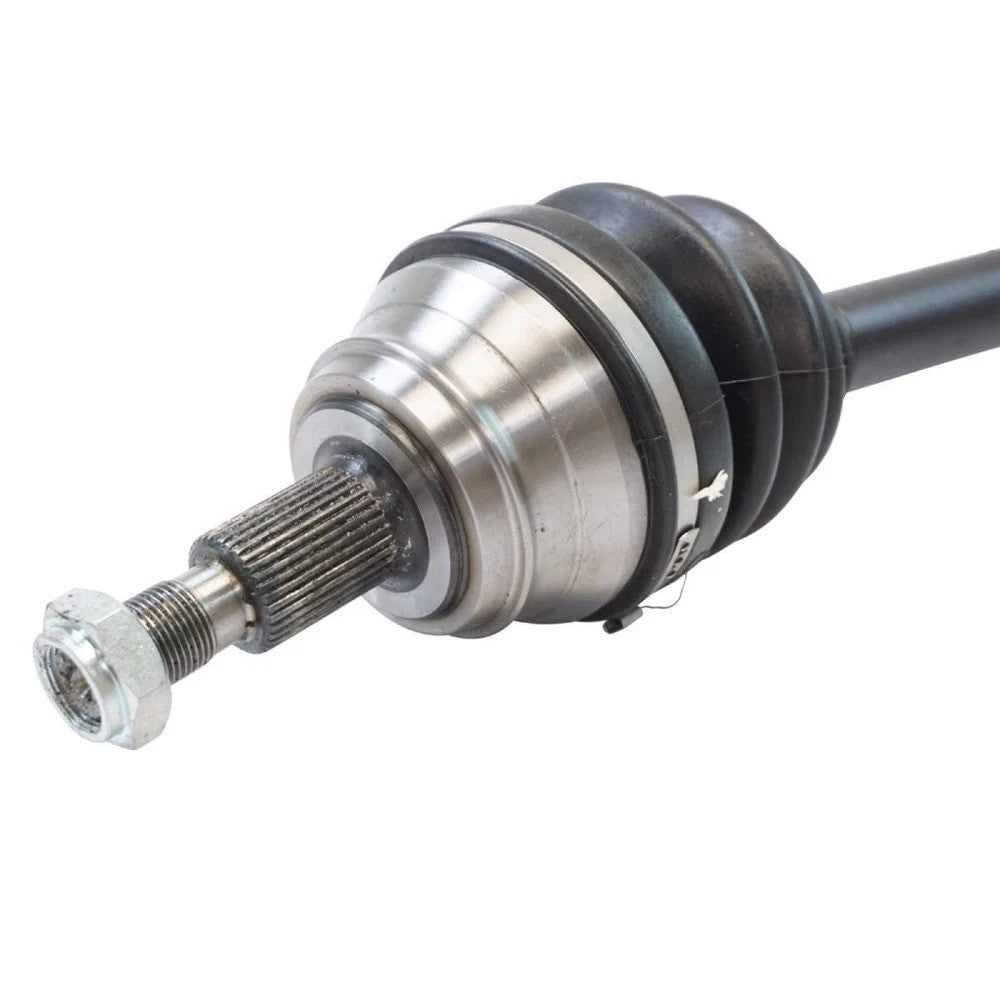

Outboard Joint Type: Male.
Axle Nut Thread: M20 x 1.5.
Axle Nut Socket Size: 30 mm (1.18 in).
Boot Material: High-grade Neoprene (Inboard & Outboard).
ABS Tone Ring: Not Included (Requires reuse of existing ring or vehicle uses hub-based sensing).
What’s in the Box
(1) New Front Driver Side CV Axle Assembly
(1) New M20 x 1.5 Axle Nut
Industry Cross-Reference Numbers
Volkswagen: 1J0407271NR, 1H0407271C, 1J0407271AD, 1J0407271JD, 357407271R
CARDONE New: 66-7252
GSP: NCV72011, NCV72057
TrakMotive: VW8001
OEM Part Number: 1J0407271NR
Installation and Technical Tips
Triple-Square Fasteners: The inboard "Pancake" joint attaches to the transmission output flange using specialized M8 or M10 Triple-Square (XZN) bolts. Ensure these are cleaned of grease and debris before attempting to loosen them to prevent stripping the bolt heads.
One-Time Use Hardware: The included 30mm axle nut is a stretch-bolt design. It must be torqued to factory specifications—typically a high initial torque followed by a specific degree turn—to properly seat the wheel bearing. Never reuse an old axle nut.
Seal Inspection: While the axle is out, inspect the transmission output flange seal. If there is evidence of gear oil weeping, replacing the seal now will prevent a future teardown.
Torque Under Load: For the best results, perform the final torque on the axle nut while the vehicle is on the ground or the brakes are firmly applied to prevent the axle from spinning.
