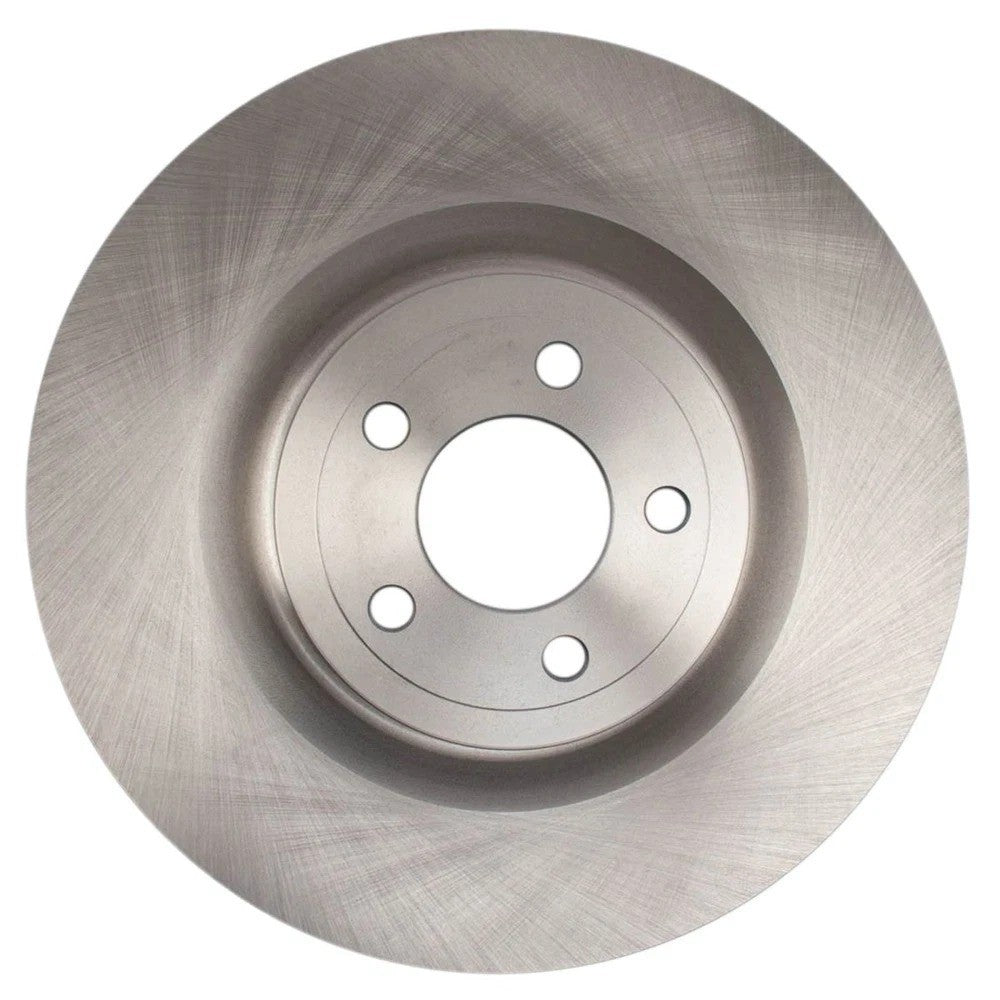

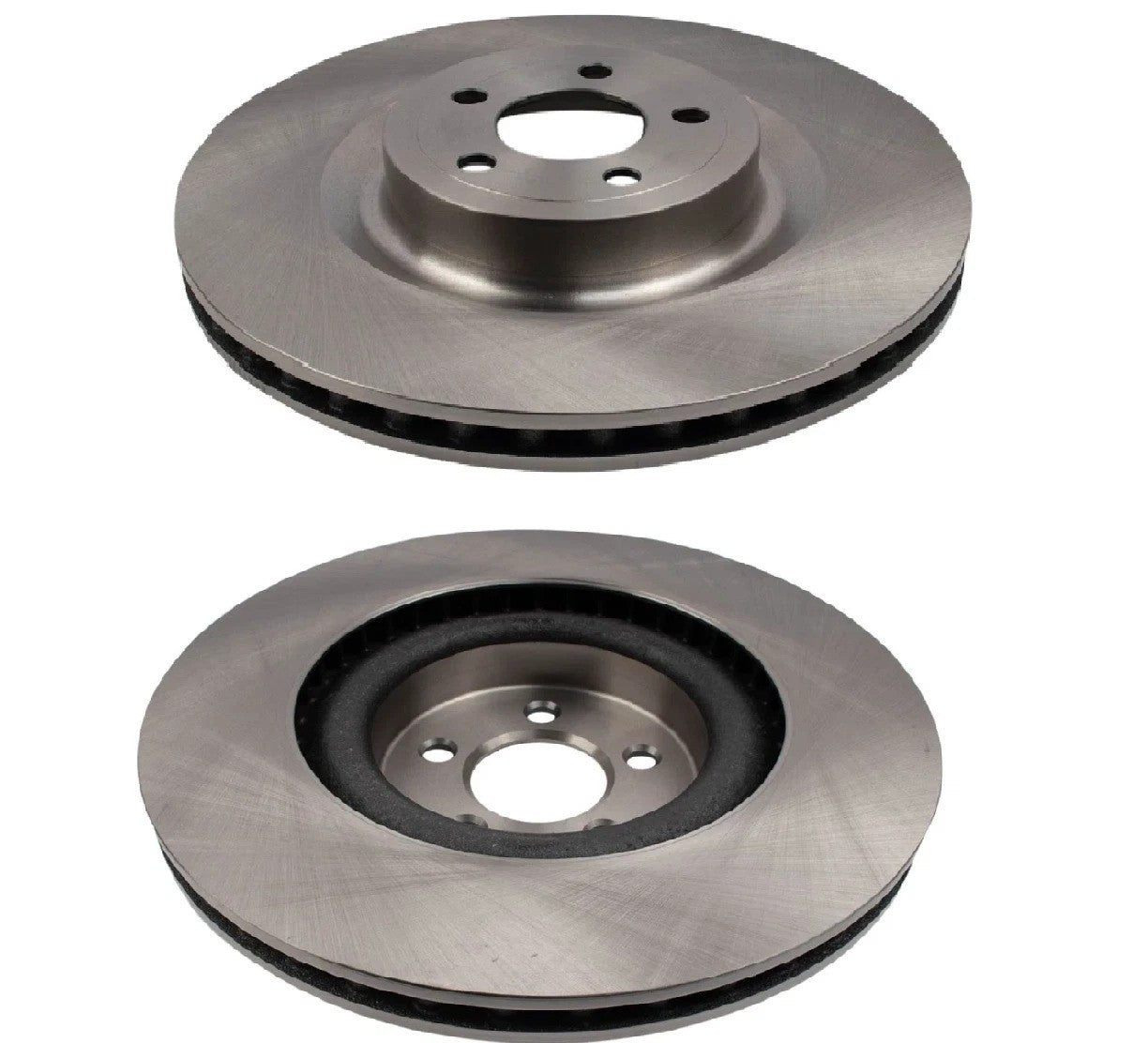

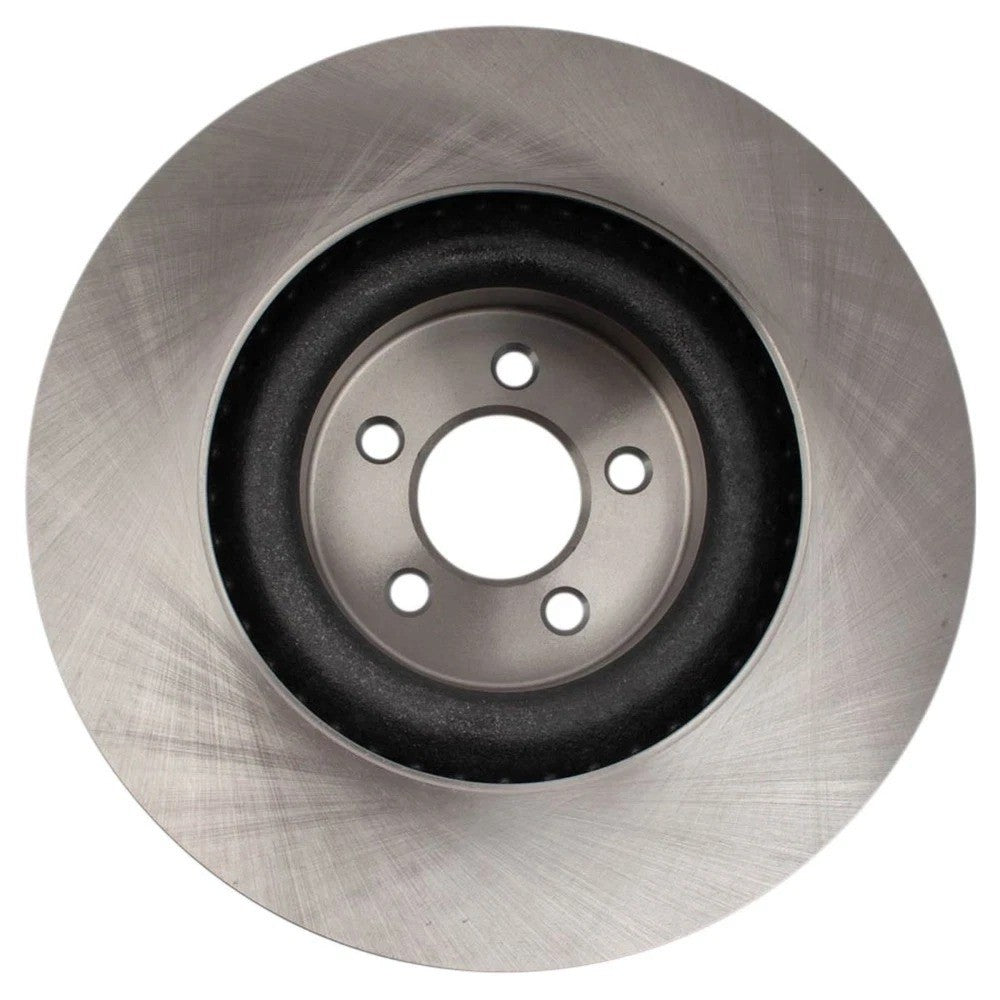

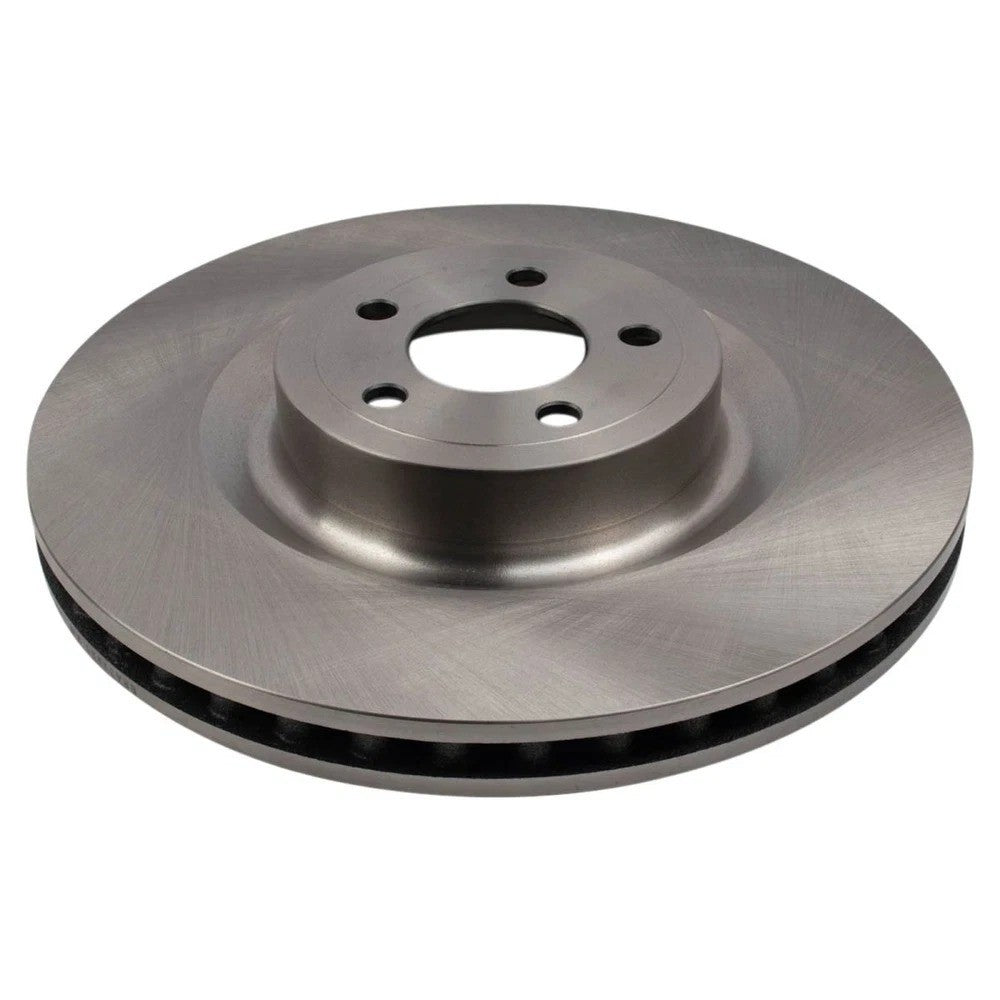

Front Brake Rotors Set For 2015-2023 Ford Mustang
Regular price
$262.38
2-Piece Performance Front Brake Rotor Set
High-Performance 380mm Discs for Ford Mustang Brembo & 6-Piston Systems
Restore the elite stopping power of your S550 platform with this 2-Piece Front Brake Rotor Set. Specifically engineered for Mustangs equipped with the factory 6-Piston Brembo Brake Package, these rotors are designed to handle the extreme thermal loads generated by high-performance driving. At nearly 15 inches in diameter, these vented rotors provide the necessary surface area for consistent, fade-resistant deceleration and the structural integrity required for the Performance Package and Mach 1 trims.
Each rotor is precision-cast from high-carbon iron to ensure maximum durability and heat dissipation. The internally vented design pulls air through the center of the disc, rapidly cooling the friction surface to protect your calipers and pads during aggressive maneuvers.
Fitment Verification and Vehicle Applications
This set is designed specifically for Front-Wheel positions on models equipped with 6-Piston Calipers and 380mm (14.96") Rotors:
Ford Mustang GT / GT Premium: 2015–2018 (With Performance/Brembo Package); 2019–2022.
Ford Mustang Bullitt: 2019, 2020.
Ford Mustang Mach 1: 2021, 2022.
Ford Mustang EcoBoost / Premium: 2021, 2022 (Equipped with 6-Piston Caliper option).
Ford Mustang GT 50 Years Limited Edition: 2015.
Ford Mustang (All Trims): 2023 (Equipped with 6-Piston Calipers).
Critical Fitment Note: These rotors will not fit base models with 4-piston or sliding calipers (320mm or 352mm rotors). Please verify your caliper type and rotor diameter before purchase.
Technical Specifications and Attributes
Outside Diameter: 14.96 in (380 mm).
Nominal Thickness: 1.34 in (34 mm).
Discard Thickness: 1.26 in (32 mm).
Overall Height: 2.52 in (64 mm).
Center Hole Diameter: 2.8 in (71 mm).
Bolt Circle Diameter: 4.49 in (114 mm).
Lug Hole Quantity: 5.
Venting Type: Internally Vented.
Material: Heavy-Duty Cast Iron.
Surface Type: Smooth (Standard Replacement).
What’s in the Box
(1) Front Driver Side Performance Brake Rotor
(1) Front Passenger Side Performance Brake Rotor
Industry Cross-Reference Numbers
Ford / Motorcraft: FR3Z1125B, FR3Z1125D, GR3Z1125L, KR3Z1125G, BRRF439
Raybestos Brakes: 681954R
Centric Parts: 121.61116, 125.61116, 320.61116C
Wagner: BD180696E
BrakeBest: 621785RGS, 681954
Installation and Technical Tips
Thorough Degreasing: High-performance rotors are coated in a rust-inhibitor for shipping. Use a premium brake cleaner to strip both friction faces completely. Any leftover residue can lead to pad "smearing" and uneven braking.
-
Hub Mating Surface: Due to the large diameter of these rotors, even a tiny speck of rust on the wheel hub can cause lateral runout (wobble).
Thoroughly clean the hub face with a wire brush until the metal is bright before seating the new rotor. 6-Piston Caliper Clearance: When sliding the caliper back over the new, full-thickness rotors, take care not to nick the finish on your Brembo units. Ensure the brake pads are fully retracted into the 6-piston housings to allow for the 34mm nominal thickness.
Bedding Procedure: To ensure long life, perform 8 to 10 aggressive decelerations from 60 mph to 15 mph in a safe area. This "seasons" the iron and transfers a uniform layer of friction material from the pads to the rotors, preventing hot spots and future warping.
