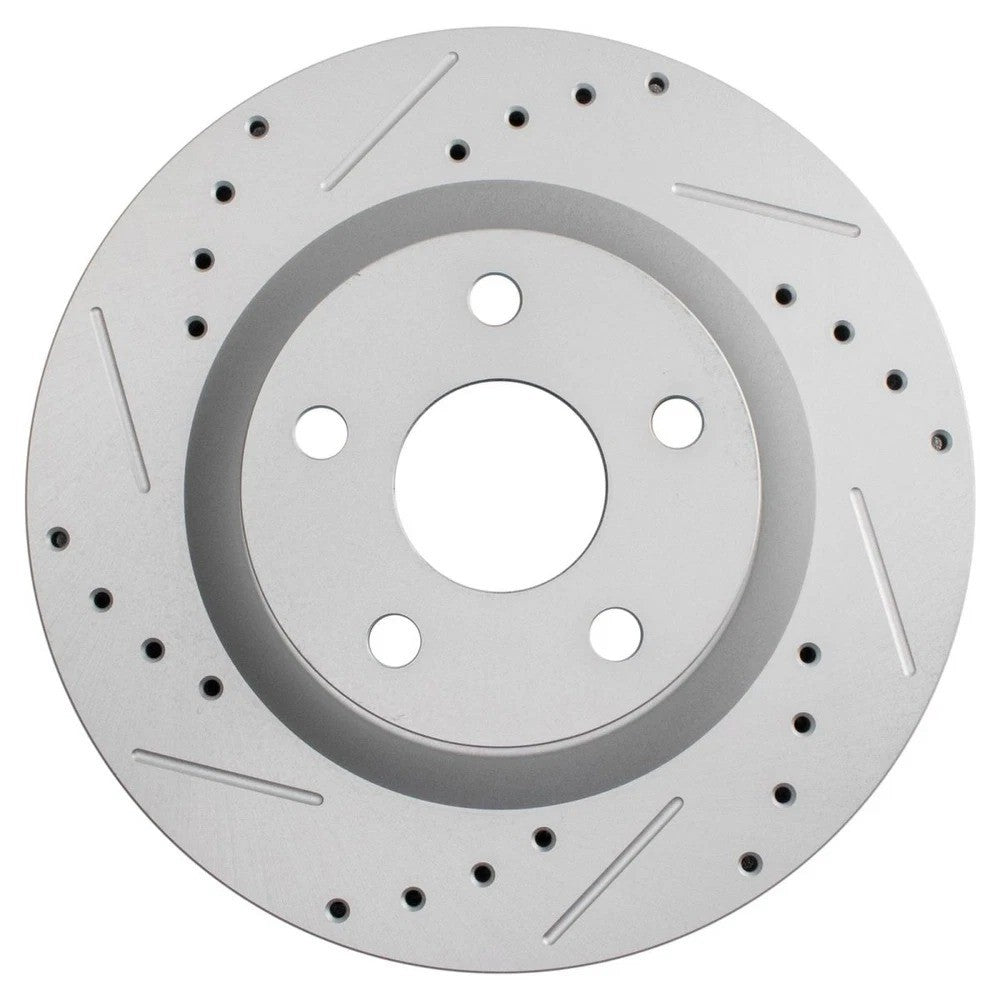

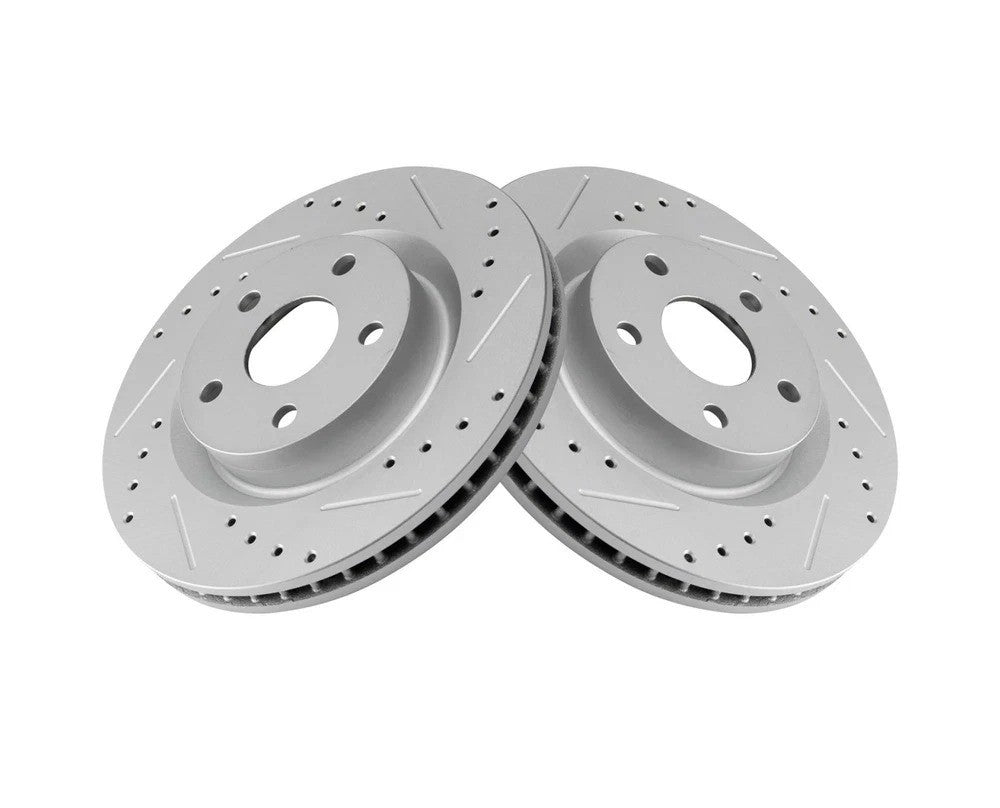

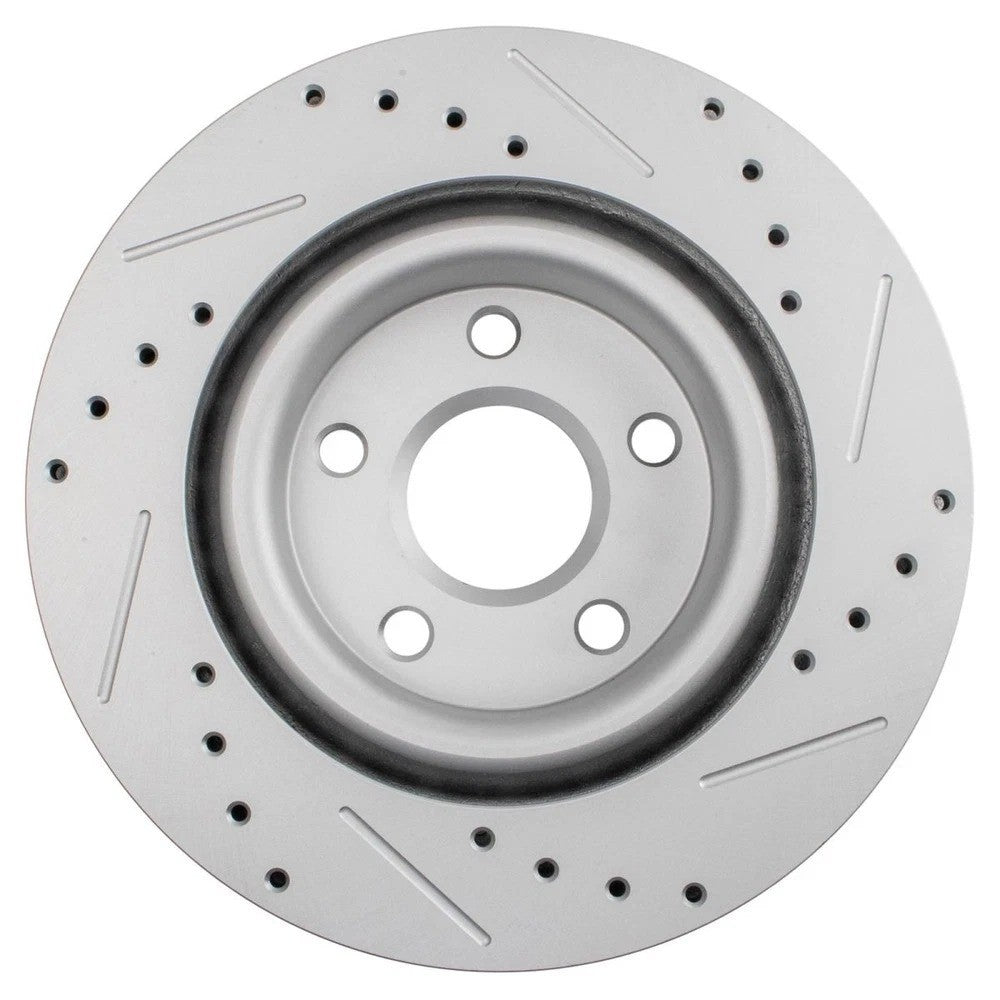

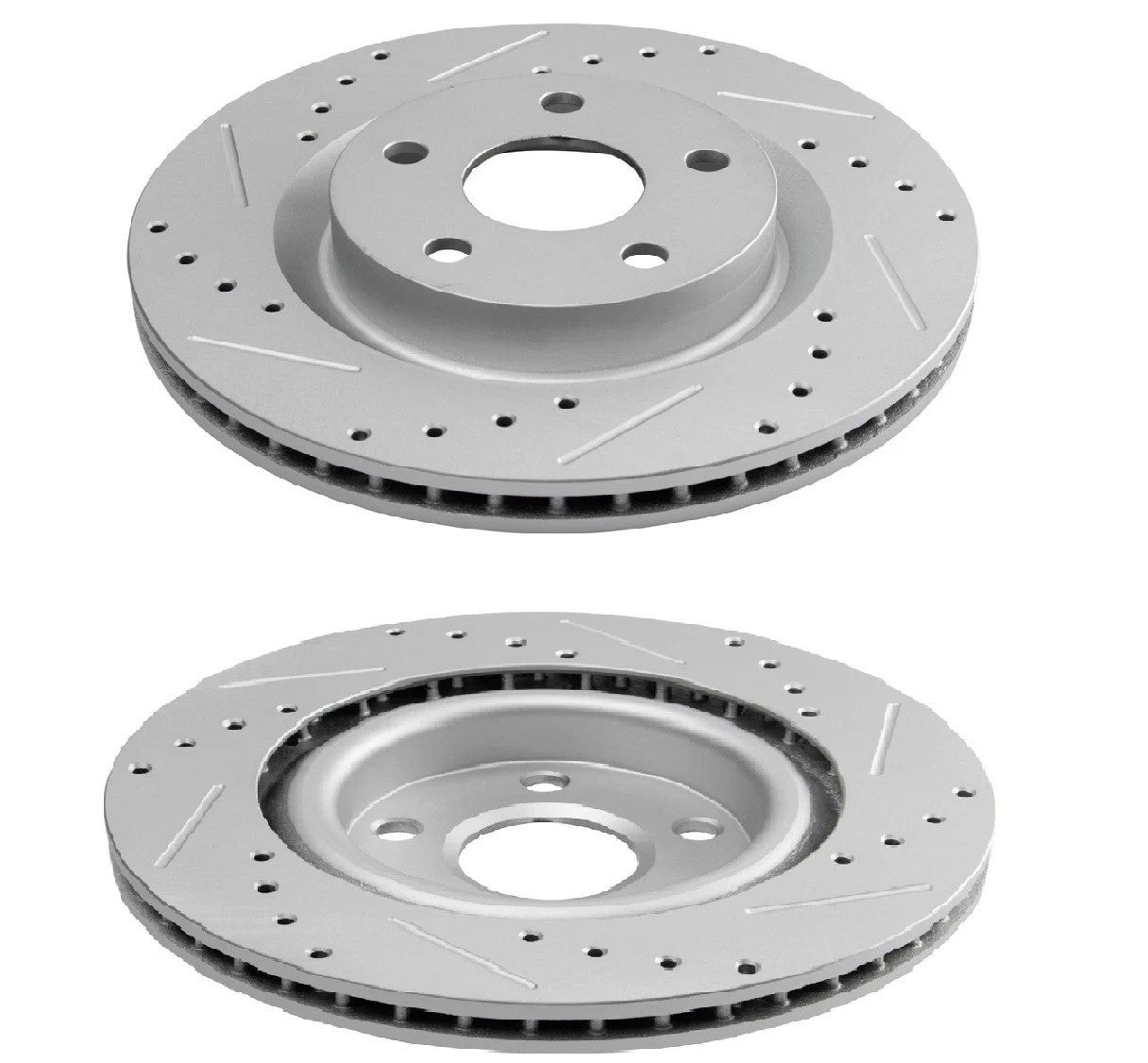

Front G-Coated Performance Drilled & Slotted Rotor Set

High-Performance Thermal Management for 2008–2009 Pontiac G8 GT

Elevate the stopping power and visual appeal of your sport sedan with this 2-Piece Premium G-Coated Performance Rotor Set. Specifically engineered for the Zeta-platform Pontiac G8 GT, these rotors feature a precision Drilled and Slotted design. The cross-drilled holes allow for rapid heat dissipation and gas evacuation during heavy braking, while the slots continuously wipe the friction surface clear of brake dust and moisture. This combination significantly reduces brake fade and ensures a consistent, firm pedal feel during spirited driving.

To combat corrosion and maintain a clean appearance behind your wheels, each rotor is treated with a Premium G-Coated finish. This advanced rust-resistant coating protects the hub, internal vanes, and outer edges, preventing the unsightly "orange rust" common on standard cast iron rotors. Precision balanced to within strict tolerances, these rotors eliminate the steering wheel shudder and pedal pulsation often found in lower-grade replacements.

Fitment Verification and Vehicle Applications

This 2-piece set services the Front Axle (Driver and Passenger Side) for the following application:

• Pontiac G8 GT (6.0L V8): 2008, 2009.

• Engineering Note: These rotors are designed for the 321mm (12.64 inch) front brake system found on the GT trim.

• Important Compatibility: These are not compatible with the GXP trim (which uses larger 355mm Brembo rotors) or the Base V6 trim (which uses a 298mm front rotor). Please verify your outside diameter (321mm) and 5-lug configuration before purchase.

Technical Specifications and Attributes

• Quantity: 2-Piece Set (Left and Right).

• Surface Type: Cross-Drilled and Slotted (Performance Grade).

• Rotor Coating: Premium Silver G-Coated (Anti-Corrosive).

• Venting: Vented for maximum cooling efficiency.

• Outside Diameter: 12.64 in (321 mm).

• Nominal Thickness: 1.18 in (30 mm).

• Discard Thickness: 1.10 in (28 mm).

• Overall Height: 2.05 in (52 mm).

• Center Hole Diameter: 2.65 in (67.4 mm).

• Bolt Circle Diameter: 4.72 in (120 mm).

• Lug/Stud Hole Count: 5.

What’s in the Box

• (1) Front Driver Side G-Coated Performance Brake Rotor

• (1) Front Passenger Side G-Coated Performance Brake Rotor

Industry Cross-Reference Numbers

• Raybestos: 580720

• Bendix: PRT5865

• Wagner: BD180189

• DuraGo: BR900518

• Aimco: 55169

Installation and Technical Tips

• Hub Surface Preparation: The Pontiac G8 platform is highly sensitive to lateral run-out. Use a wire brush or hub cleaning tool to remove all rust and debris from the face of the wheel hub. Even a thin layer of scale can cause the rotor to sit unevenly, resulting in a vibration that mimics a warped rotor.

• Brake Cleaner Pre-Wash: Although these rotors feature a G-Coating, it is best practice to wipe the friction surfaces with a dedicated brake parts cleaner before installation to remove any oils, fingerprints, or packaging residue that could contaminate your new brake pads.

• Caliper Slide Lubrication: Ensure your caliper slide pins are cleaned and lubricated with high-temperature silicone brake grease. Seized or sluggish pins will cause uneven pad pressure, leading to "hot spots" on your new performance rotors.

• The Bedding-In Process: To properly "mate" the pads to the new drilled and slotted surfaces, perform 5 to 10 moderate stops from 40 mph to 10 mph. Avoid coming to a full stop during this cycle to prevent pad material from imprinting unevenly on the hot rotor.
