Front Brake Rotors Set For 2007-2009 Ford Edge Lincoln MKX
Regular price
$128.42

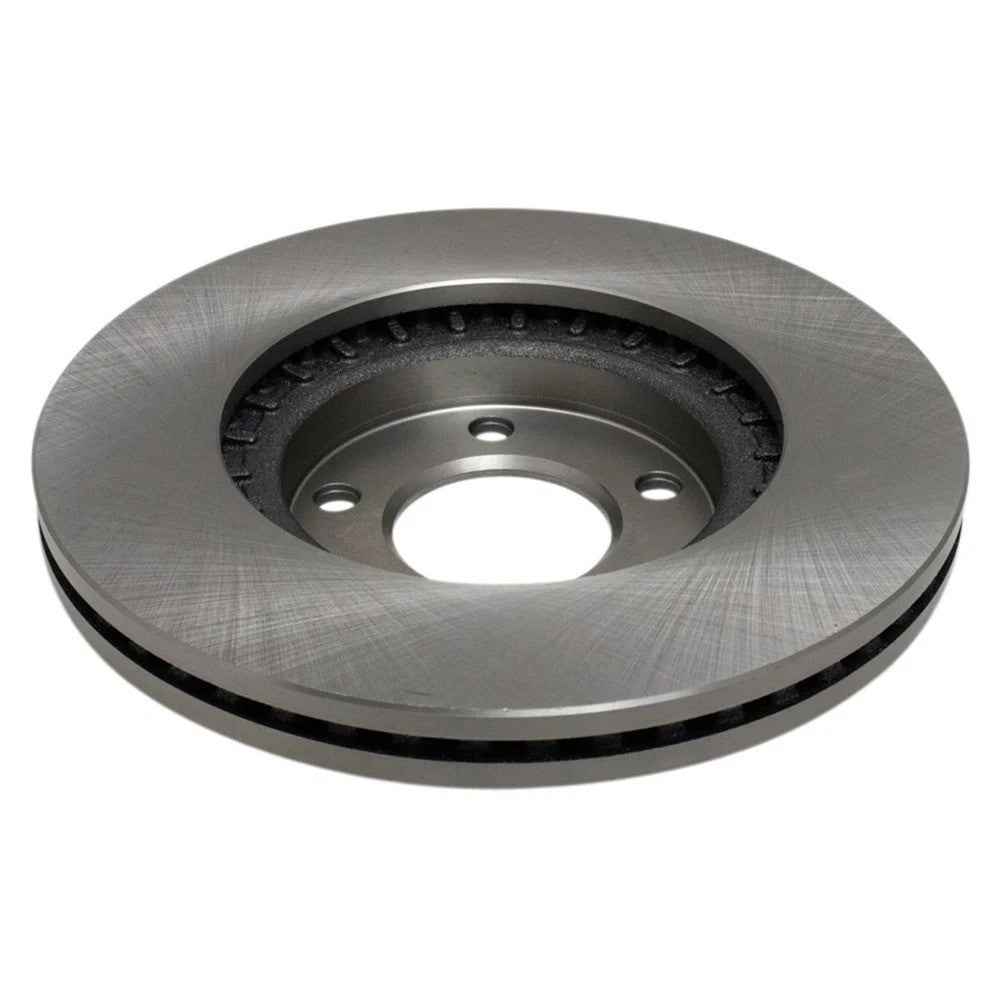

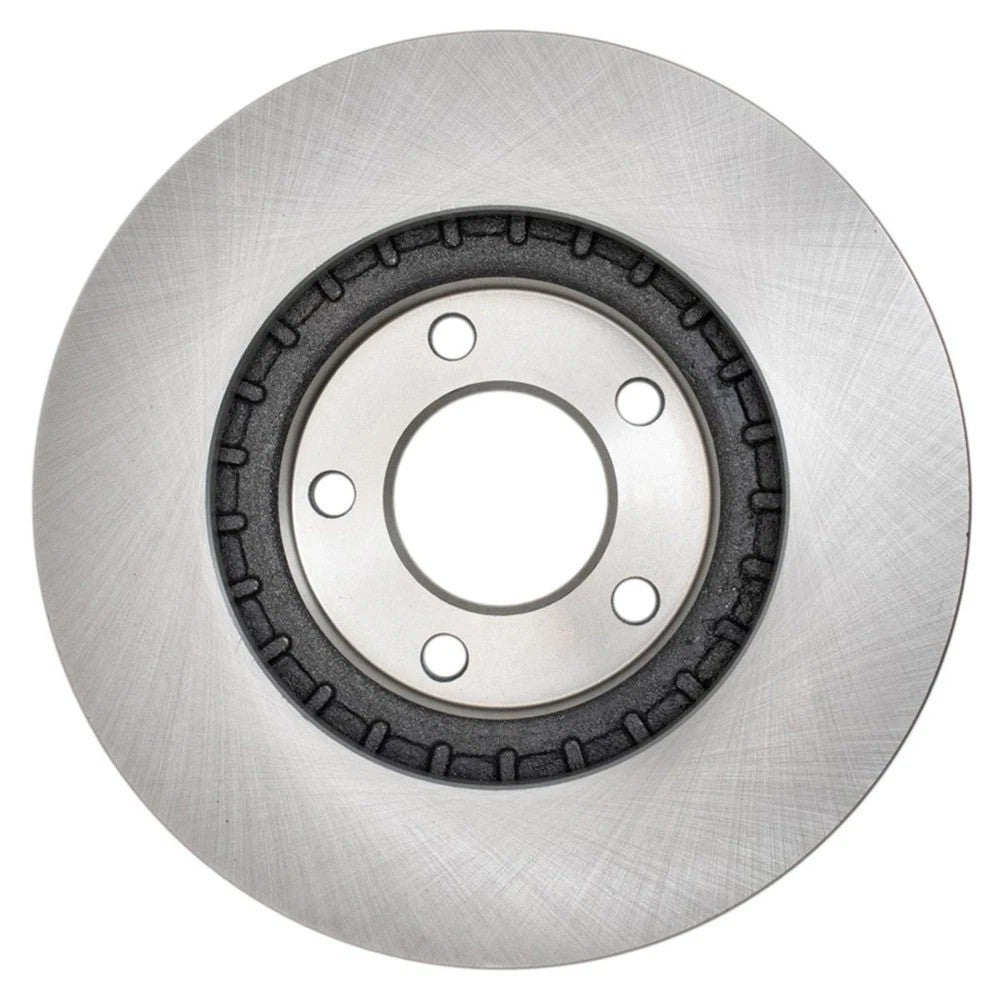

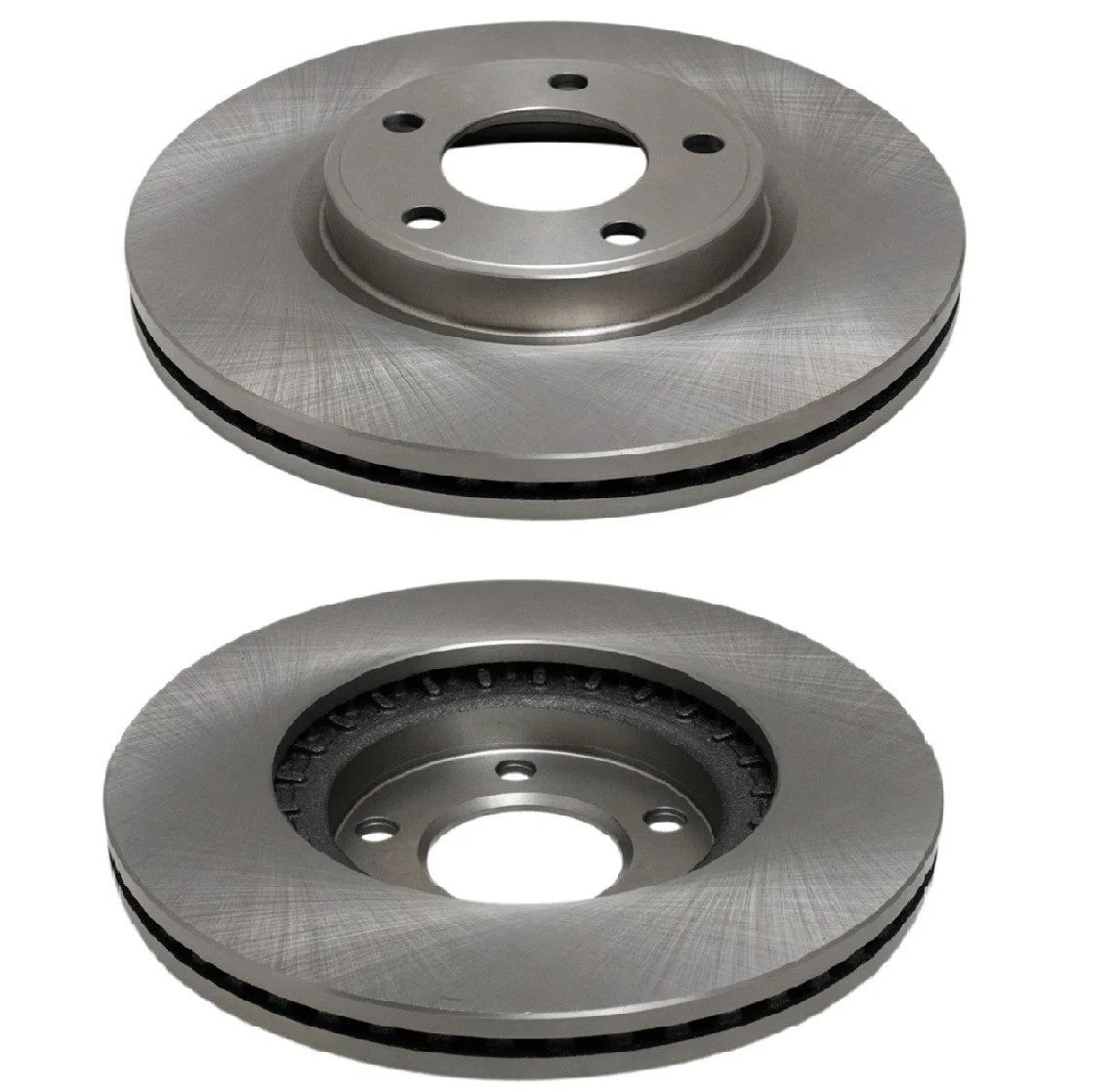

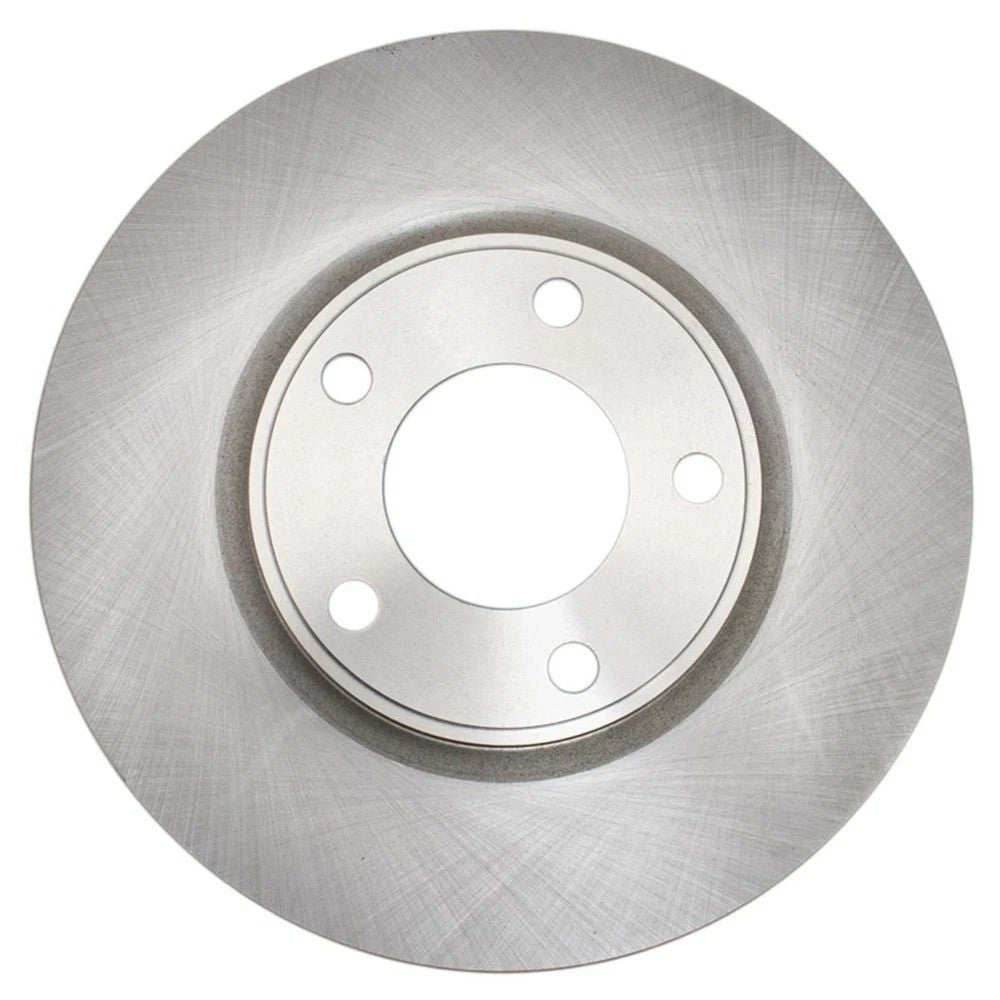

2-Piece Front Brake Rotor Set
Consistent Braking Performance for 2007–2009 Ford Edge and Lincoln MKX
Restore the smoothness and reliability of your vehicle's braking system with this Premium 2-Piece Front Disc Brake Rotor Set. Engineered specifically for crossovers equipped with the 296mm diameter front braking system, these rotors are designed to eliminate the pedal pulsation and steering wheel vibration associated with warped or worn discs. Whether commuting through stop-and-go traffic or traveling at highway speeds, these rotors provide the structural integrity and heat management required for safe, predictable stops.
Manufactured from high-strength cast iron, these rotors feature a vented design to maximize airflow and dissipate heat rapidly. This cooling efficiency is essential for maintaining braking power during repetitive use and preventing thermal fatigue. Each rotor is precision-machined to ensure a smooth, flat friction surface, allowing for an easier break-in period and optimal contact with your brake pads.
Fitment Verification and Vehicle Applications
This 2-piece set is designed for the Front Axle (Left and Right) on the following models:
Ford Edge (Front Wheel Drive): 2007, 2008, 2009.
Lincoln MKX: 2007, 2008, 2009.
Critical Fitment Note: These rotors feature an 11.65-inch (296mm) Outside Diameter. Ford and Lincoln models in these years may also be equipped with a larger 12.6-inch (320mm) braking system. Please verify your existing rotor diameter before purchase to ensure proper caliper clearance and braking performance.
Technical Specifications and Attributes
Outside Diameter: 11.65 inches (296 mm).
Nominal Thickness: 1.1 inches (28 mm).
Discard Thickness: 1.02 inches (26 mm).
Venting Type: Vented (For improved thermal dissipation).
Wheel Lug Count: 5 Lugs.
Bolt Circle Diameter: 4.49 inches (114 mm).
Center Hole Diameter: 2.83 inches (72 mm).
Overall Height: 1.89 inches (48 mm).
Material: High-Grade Cast Iron.
Grade Type: Standard Replacement.
What’s in the Box
(1) Front Driver Side Brake Rotor
(1) Front Passenger Side Brake Rotor
Industry Cross-Reference Numbers
Bendix: PRT5701
Raybestos Brakes: 680545, 680545R, 680545P
Wagner: BD126429
DuraGo: BR900296
Hollander: 530-00126
Aimco: 54155
Installation and Technical Tips
Surface Preparation: These rotors are shipped with a protective oil coating to prevent rust during storage. You must thoroughly clean both friction surfaces with a high-quality brake parts cleaner before installation to prevent pad contamination.
Hub Maintenance: Use a wire brush to remove rust, scale, and debris from the wheel hub surface. Even a small amount of buildup can cause the rotor to sit unevenly, resulting in lateral runout and pedal pulsation.
New Brake Pads: It is highly recommended to install new brake pads whenever replacing rotors. Using old, unevenly worn pads on new rotors can create hot spots and significantly reduce the service life of the new discs.
Proper Torque Sequence: Use a calibrated torque wrench to tighten lug nuts to the manufacturer's specification in a star pattern. Uneven lug torque is a leading cause of rotor distortion and premature warping.
