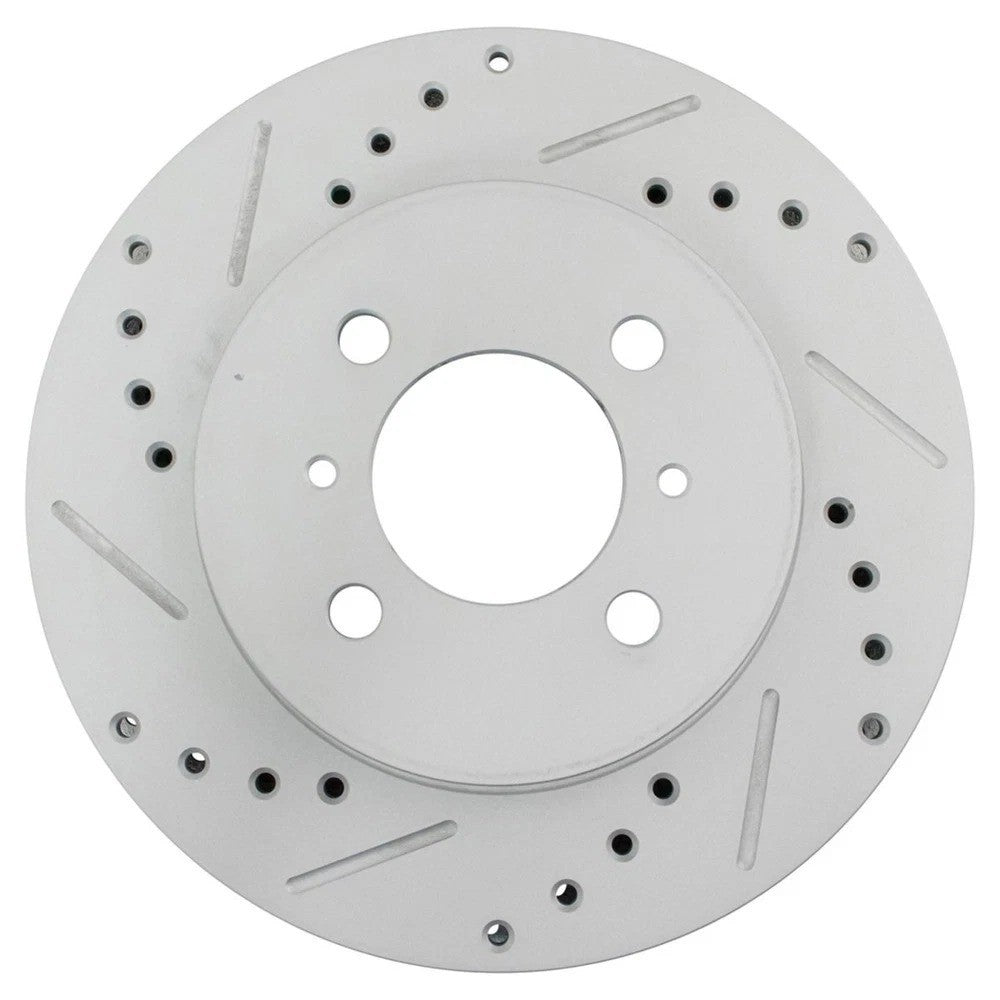

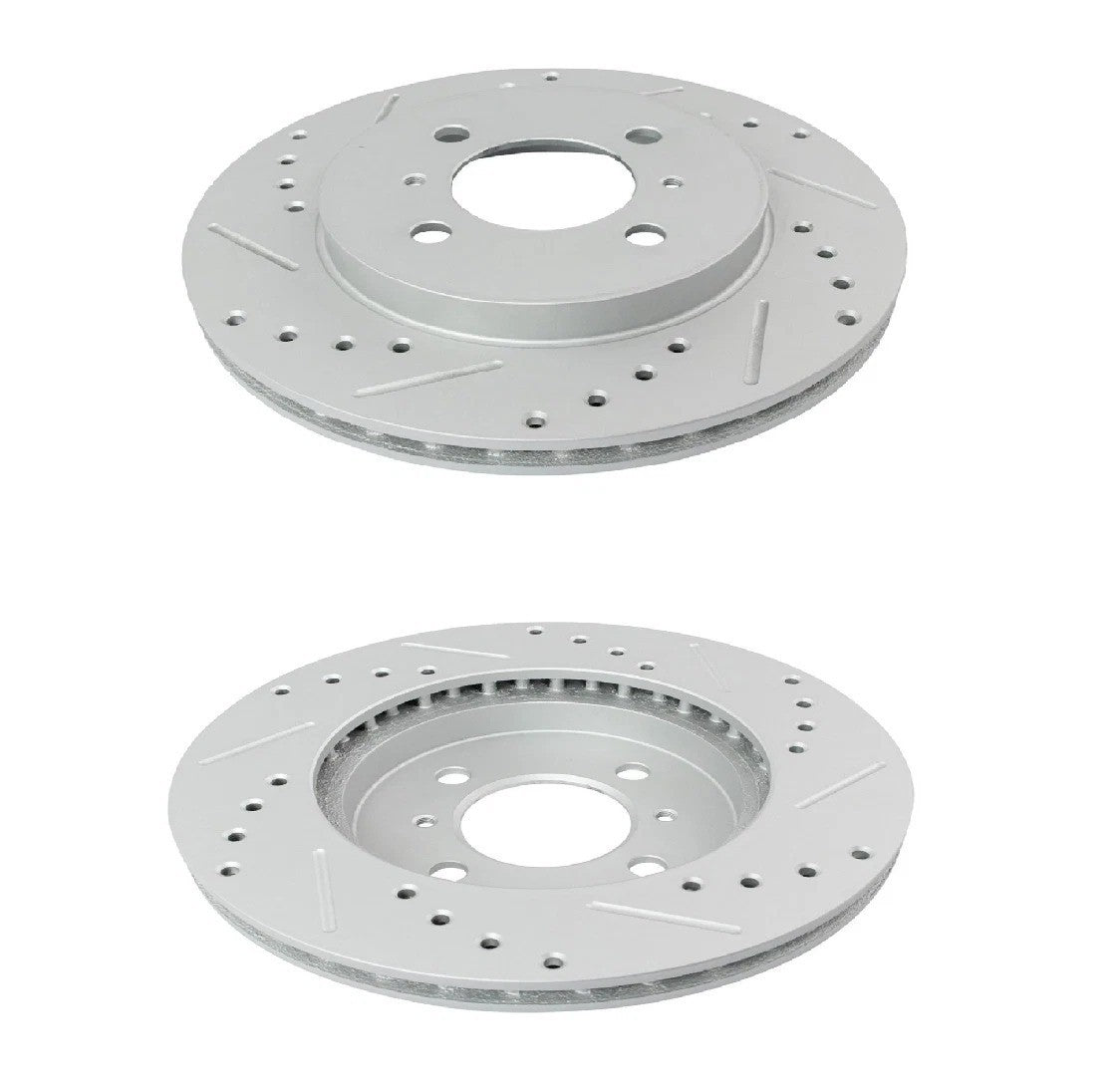

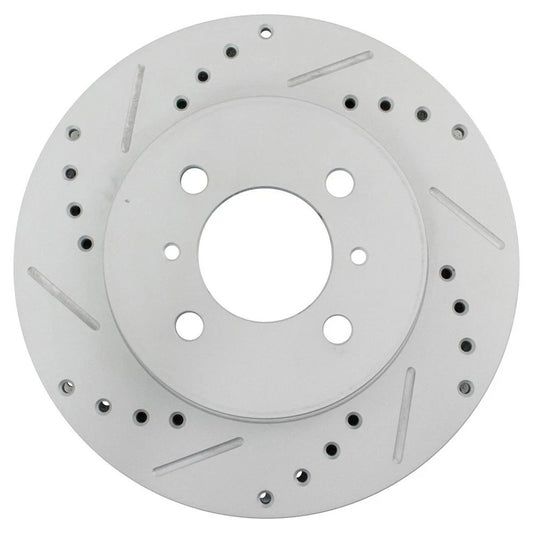

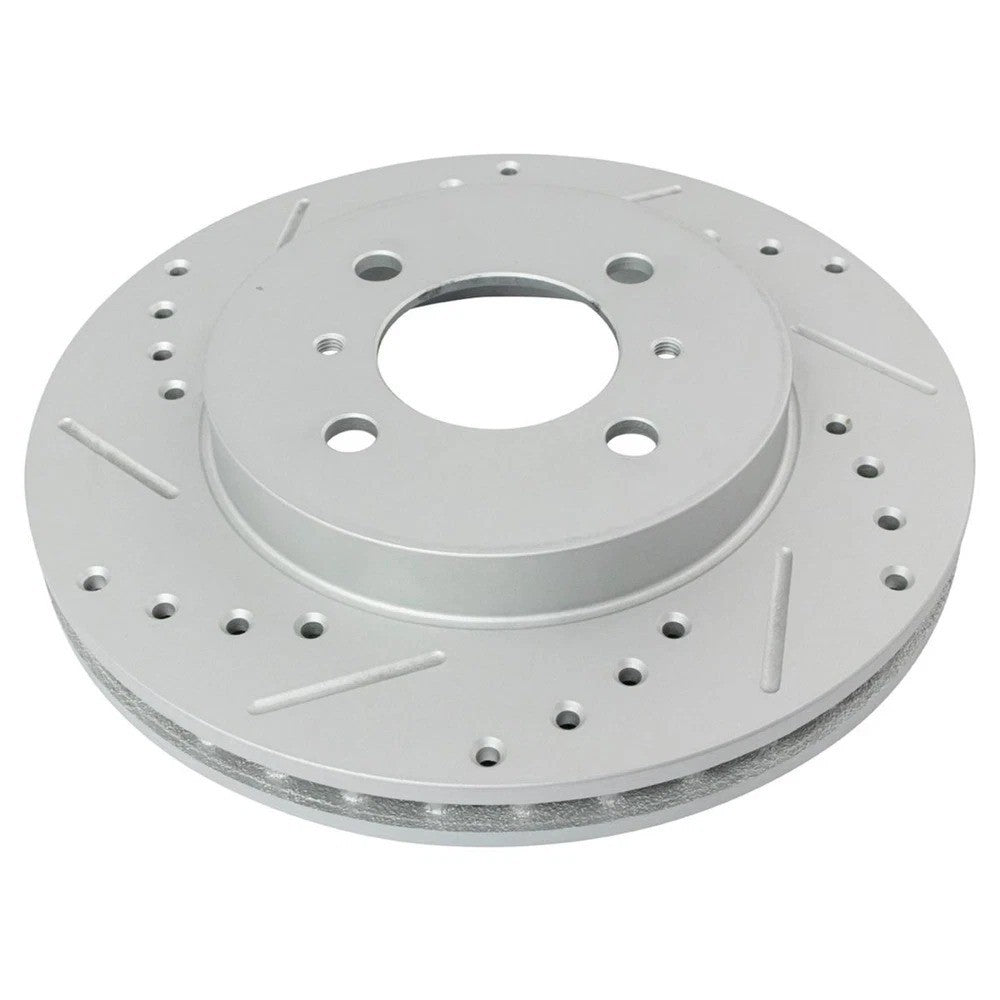

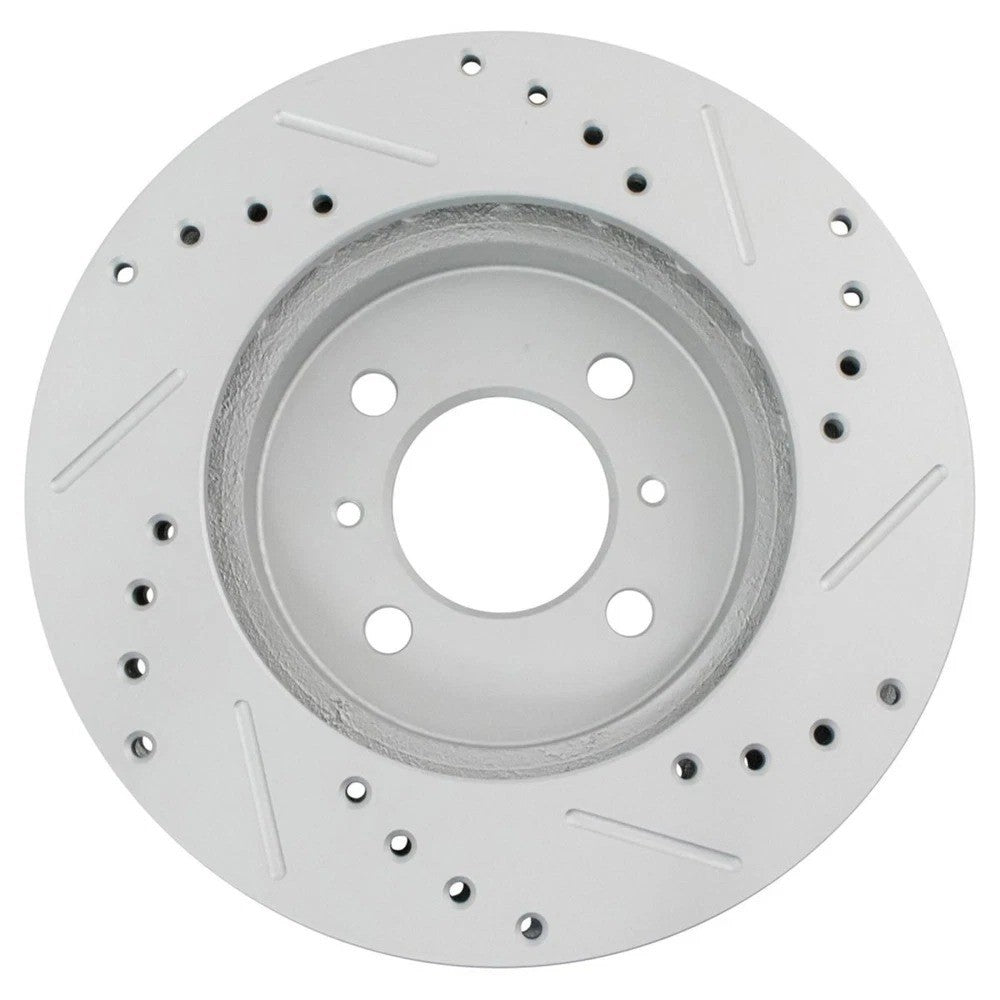

2-Piece Premium G-Coated Performance Brake Rotor Set

Cross-Drilled and Slotted Anti-Rust Rotors for Mitsubishi Lancer and Mirage

Upgrade your vehicle’s stopping power and visual appeal with this 2-Piece Premium G-Coated Performance Brake Rotor Set. Engineered specifically for Mitsubishi models equipped with 14-inch wheels, these rotors offer a significant upgrade over standard smooth discs. The specialized G-Coating provides a high-level barrier against rust and corrosion on the hub and vanes, ensuring your braking system stays looking clean and performing reliably even in harsh, salt-heavy environments.

The Drilled and Slotted design serves two critical purposes: the cross-drilled holes allow heat and gases to escape rapidly during heavy braking, while the slots sweep away water and brake dust from the friction surface. This combination maintains a consistent "bite" and reduces brake fade, providing you with increased confidence during spirited driving or emergency stops.

Fitment Verification and Vehicle Applications

This set is designed for the Front Axle on vehicles equipped with 14-inch wheels. Please verify your wheel size before purchase, as models with 15-inch or larger wheels may require a different diameter rotor.

• Mitsubishi Lancer ES: 2002–2003, 2005.

• Mitsubishi Lancer (ES, LS, OZ Rally, SE): 2004, 2006 (Models with 14-inch wheels).

• Mitsubishi Lancer: 2007 (Models with 14-inch wheels).

• Mitsubishi Mirage: 1998–2002 (Models with 14-inch wheels).

Technical Specifications and Attributes

• Outside Diameter: 10.08 in (256 mm).

• Nominal Thickness: 0.94 in (24 mm).

• Discard Thickness: 0.87 in (22 mm).

• Overall Height: 1.77 in (45 mm).

• Stud/Lug Hole Quantity: 4-Lug Pattern.

• Bolt Circle Diameter: 3.94 in (100 mm).

• Material: High-Grade Cast Iron.

• Venting Type: Internally Vented.

• Surface Type: Cross-Drilled and Slotted.

• Coating: Premium G-Coating (Rust Resistant).

• Design: Conventional (Non-ABS Tone Ring).

What’s in the Box

• (1) Front Driver Side G-Coated Performance Brake Rotor

• (1) Front Passenger Side G-Coated Performance Brake Rotor

Industry Cross-Reference Numbers

• Raybestos Brakes: 96973

• Bendix: PRT5377

• Wagner: BD126074

• DuraGo: BR31300

• Aimco: 31300

Installation and Technical Tips

• Directional Installation: Drilled and slotted rotors are often directional. Before mounting, ensure the "sweep" of the slots is facing the correct direction according to the manufacturer's markings to ensure optimal cooling and debris evacuation.

• Surface Cleaning: While these rotors feature a G-Coating, the friction surface should still be wiped down with a mild brake cleaner to remove any fingerprints or residues from the installation process before the pads are bedded.

• Wheel Clearance: These rotors are specifically designed for 14-inch wheel configurations. If you have upgraded your wheels to a larger aftermarket size, these will still fit provided your caliper bracket is the factory 14-inch version.

• Bedding-In Procedure: To ensure the longevity of the G-Coating and the performance of the rotors, perform a series of moderate stops (from 35 mph to 5 mph) to evenly transfer a thin layer of friction material from the pads to the rotors. Avoid "riding" the brakes during the first 50 miles.
