Front Brake Rotors Set For 2000-2002 Dodge Ram 2500 Ram 3500
Regular price
$177.17

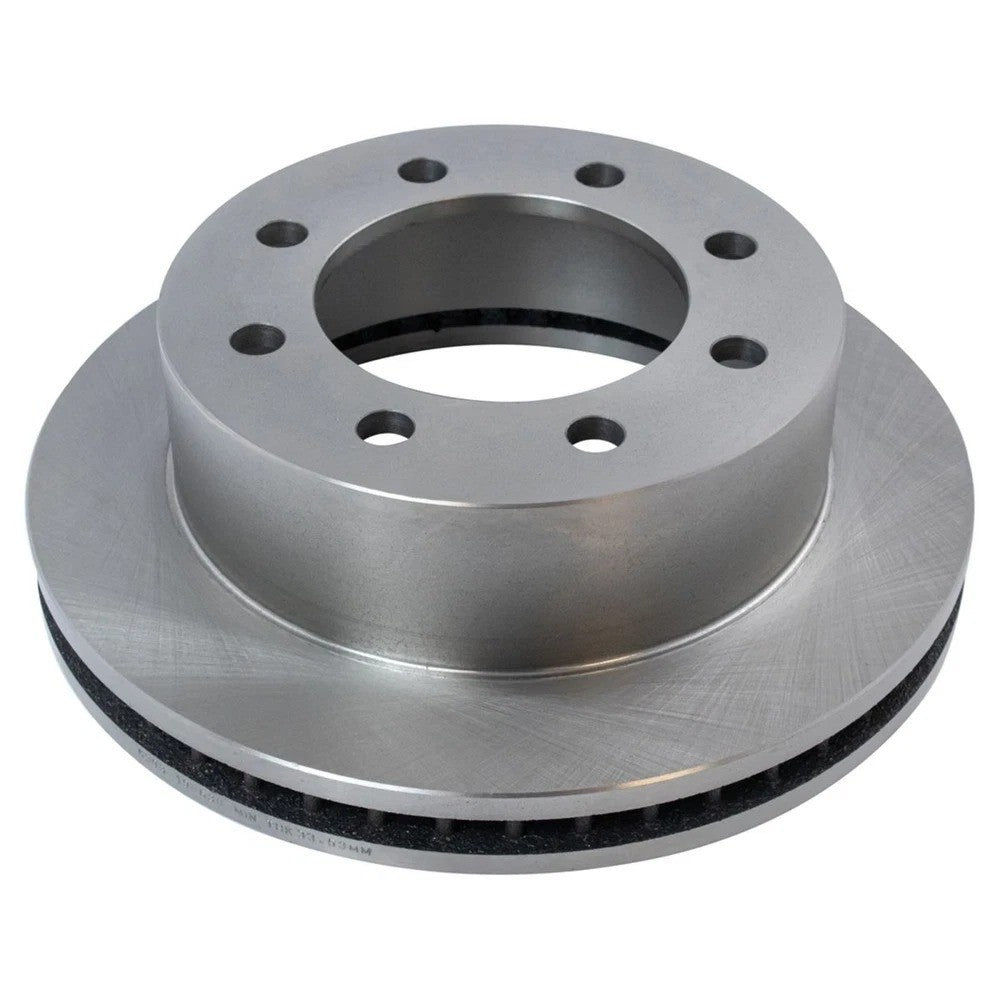

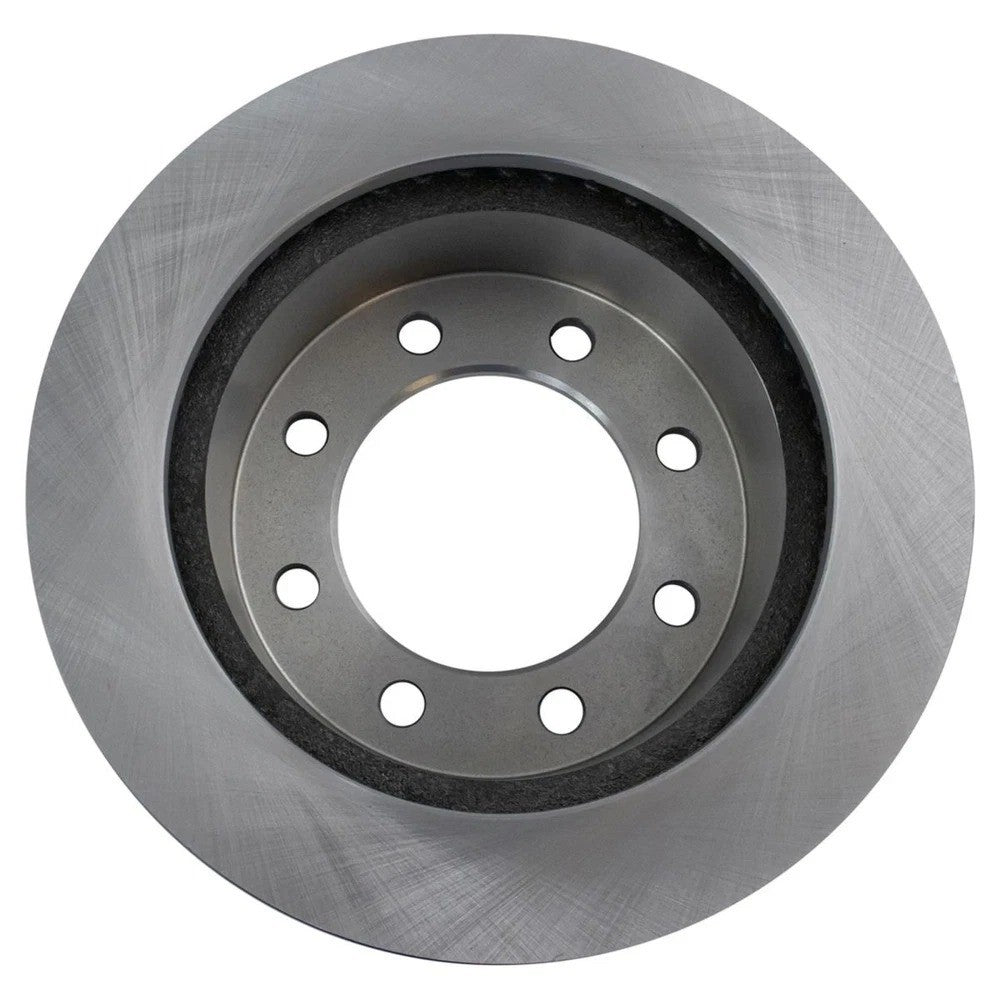

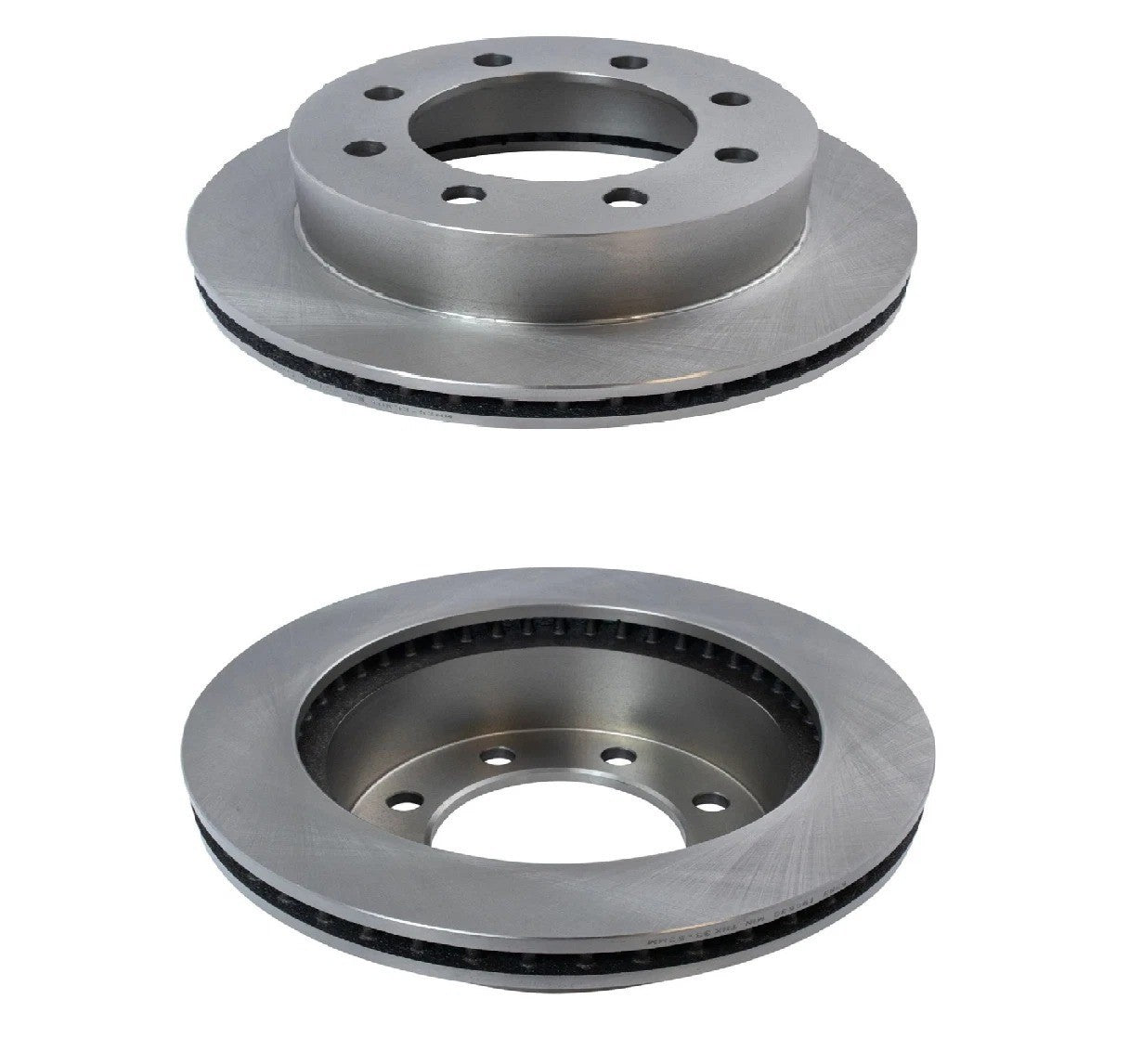

2-Piece Heavy-Duty Front Brake Rotor Set
Standard Replacement Front Discs for 2000–2002 Dodge Ram 2500 and 3500
Restore the braking integrity of your 3/4-ton or 1-ton pickup with this 2-Piece Front Brake Rotor Set. Engineered to meet the rigorous demands of heavy-duty hauling and towing, these rotors are a direct-fit replacement for the 2000–2002 Dodge Ram 2500 and 3500 series. Designed as a Standard Replacement Grade component, these rotors provide the structural reliability needed to manage the high thermal loads generated by these large-platform trucks during deceleration.
Each rotor is constructed from high-quality cast iron with an internally vented design. This venting allows for rapid heat dissipation, helping to prevent brake fade and rotor warping during prolonged downhill braking or while carrying maximum payloads.
Fitment Verification and Vehicle Applications
This set includes both the Front Driver Side and Front Passenger Side rotors for 8-lug hub configurations:
-
Dodge Ram 2500 Truck: 2000, 2001, 2002.
-
Dodge Ram 3500 Truck: 2000, 2001, 2002.
Important Fitment Note: These rotors feature an 8-lug bolt pattern with a 6.5-inch (165 mm) bolt circle diameter. They are designed for conventional front disc systems and do not include integrated ABS tone rings or wheel bearing races.
Technical Specifications and Attributes
Outside Diameter: 12.87 in (327 mm).
Nominal Thickness: 1.4 in (35.5 mm).
Discard Thickness: 1.34 in (34 mm).
Overall Height: 4.02 in (102 mm).
Center Hole Diameter: 4.8 in (122 mm).
Stud/Lug Hole Quantity: 8.
Mounting Bolt Circle: 6.5 in (165 mm).
Material: Heavy-Duty Cast Iron.
Venting Type: Vented (Internally).
Surface Type: Smooth / Non-Coated.
Quantity: 2-Piece Set.
What’s in the Box
(1) Front Driver Side Brake Rotor
(1) Front Passenger Side Brake Rotor
Industry Cross-Reference Numbers
-
Raybestos Brakes: 76920, 76920R, 76920P
Bendix: PRT5283
Wagner: BD125745
DuraGo: BR5393
Aimco: 5393
Installation and Technical Tips
Degrease Before Use: These rotors are shipped with a protective oil coating to prevent surface rust during storage. It is critical to clean both friction surfaces thoroughly with a high-quality brake cleaner prior to installation to avoid contaminating your new brake pads.
Hub Surface Preparation: Use a wire brush or abrasive pad to remove all rust and debris from the wheel hub mounting surface. Any unevenness on the hub can result in lateral runout, leading to a pulsating brake pedal shortly after installation.
-
Check Caliper Slides: Given the age and heavy-duty nature of these trucks, ensure your caliper slide pins are free-moving and well-lubricated with high-temperature silicone grease. Seized pins will cause uneven pad wear and can overheat your new rotors.
Correct Torque Sequence: Always use a calibrated torque wrench to tighten the 8 lug nuts in a star pattern to the factory-specified torque. Improper or uneven tightening with an impact wrench is the leading cause of premature rotor warping on heavy-duty Dodge trucks.
