Front Axle Differential Shift Actuator for Chevy GMC Cadillac Isuzu 4WD
Front Axle Differential Shift Actuator for Chevy GMC Cadillac Isuzu 4WD
$100.52

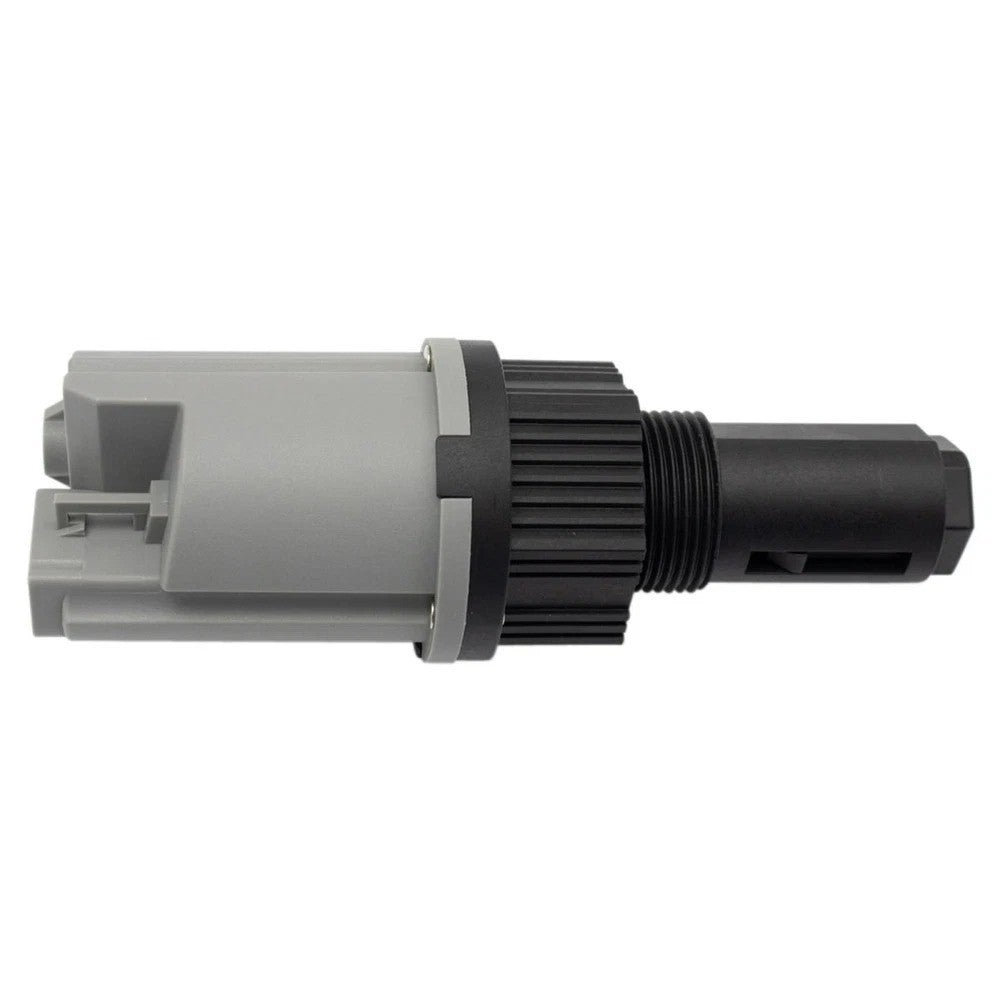

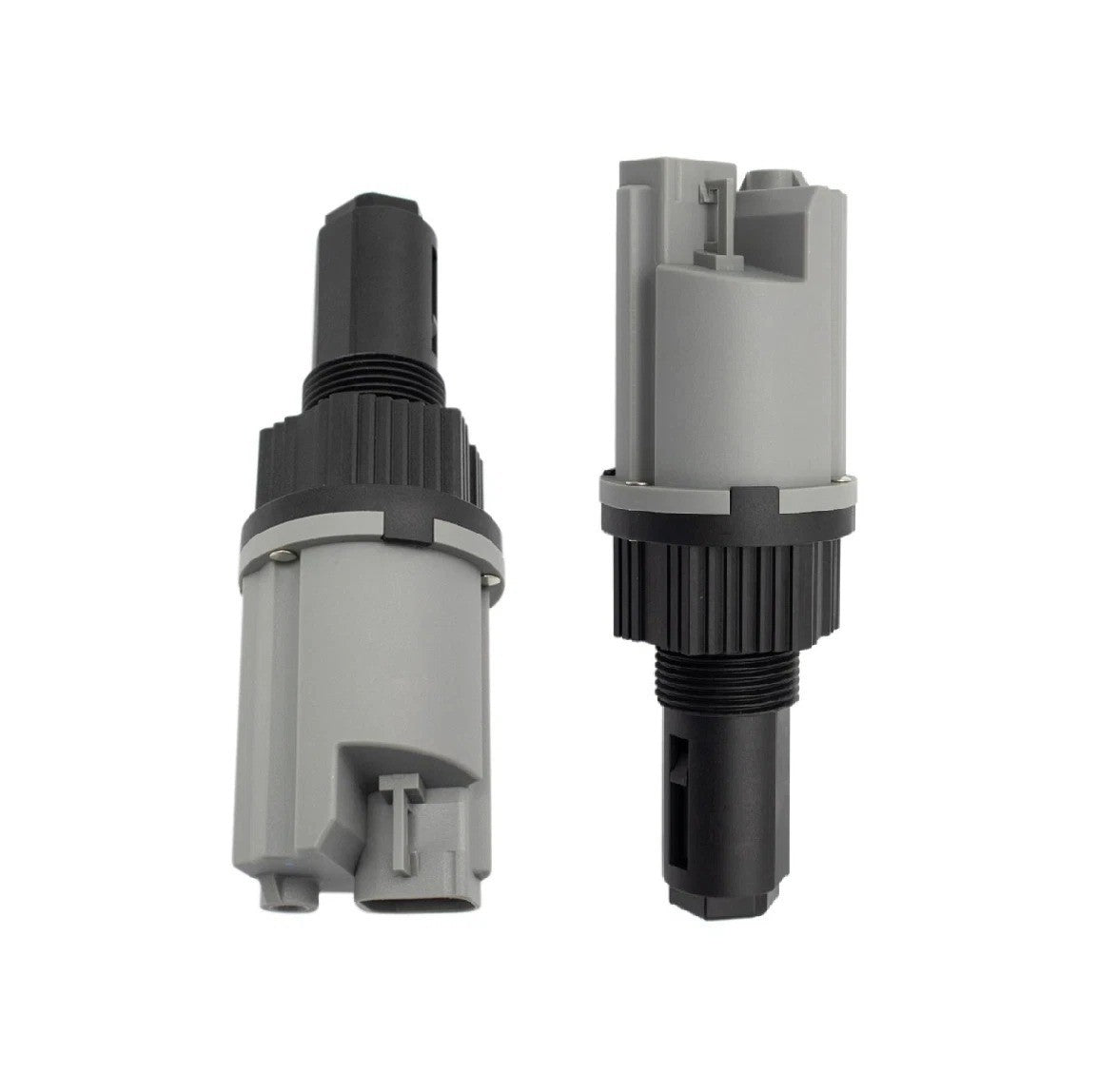

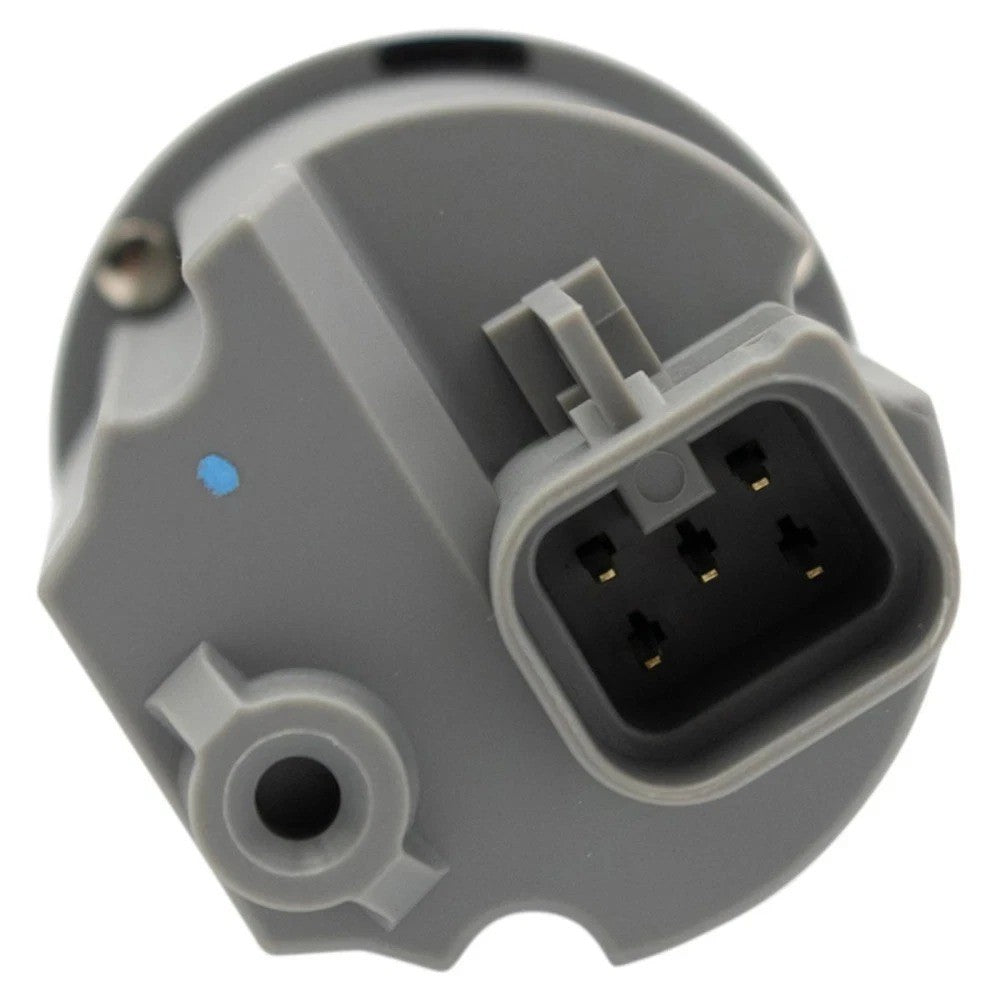

Front Differential 4WD Engagement Actuator

Precision Drivetrain Restoration for GM and Cadillac 4x4 Vehicles

Ensure your vehicle is ready for off-road challenges and winter weather with this premium Four Wheel Drive Actuator. As a critical component of your front differential system, this actuator is responsible for physically locking the front axle when 4WD is selected. If your truck is stuck in 2WD, or if your dash indicator light is flashing without engaging the front wheels, this high-torque replacement motor will restore the reliable mechanical connection your drivetrain requires.

Engineered to endure the harsh environment beneath your chassis, this actuator features a weather-sealed housing to prevent moisture and road salt from corroding the internal electronics. Designed as a direct-fit replacement, it utilizes factory-style connectors for a quick and secure electrical interface, ensuring your transfer case and front differential communicate perfectly for seamless traction.

Fitment Verification and Vehicle Applications

This actuator fits an extensive range of 4-Wheel Drive (4WD) and All-Wheel Drive (AWD) vehicles across several generations of GM trucks and SUVs:

Cadillac

  • Escalade: 1999, 2000, 2002–2006 (AWD), 2008–2013 (AWD).

Chevrolet

  • Silverado 1500 / 2500 / 3500 (inc. HD & Classic): 1999–2012.

  • Tahoe & Suburban (1500 / 2500): 1992–2012.

  • Avalanche (1500 / 2500): 2002–2010.

  • K-Series Trucks (K1500 / K2500 / K3500): 1988–2000.

  • Blazer & V-Series (V10 / V1500 / V2500 / V3500): 1987–1994.

GMC

  • Sierra 1500 / 2500 / 3500 (inc. HD & Classic): 1999–2011.

  • Yukon & Yukon XL (1500 / 2500): 1992–2012.

  • Canyon (L5 3.5L): 2005–2006.

  • K-Series Trucks & Suburbans: 1988–2000.

  • Jimmy & S-15 Jimmy: 1988–1991.

Technical Specifications and Attributes

  • Location: Front Axle / Front Differential Housing.

  • Material: Reinforced high-temperature composite housing.

  • Operation: Electronic plunger-style actuation.

  • Sealing: Advanced internal seals for water and debris resistance.

  • Fitment Type: Direct Bolt-on replacement.

What’s in the Box

  • (1) Four Wheel Drive Front Differential Actuator

Industry Cross-Reference Numbers

  • General Motors / Cadillac: 26060073

  • Standard Motor Products: TCA22 / TCA-22

  • Wells: 7F2000, SW2085

  • Dorman: 600-101

Installation and Technical Tips

  • Diagnostic Check: Before replacing the actuator, verify that your 4WD dash switch and transfer case shift motor are functioning correctly. If you hear a click from the differential but the axle doesn't lock, the actuator is likely the culprit.

  • System Cleaning: Before removing the old unit, clean the area around the differential mounting hole. Preventing dirt from entering the gear housing is essential for maintaining the longevity of your differential fluid and bearings.

  • Cold Weather Performance: If your 4WD takes a long time to engage in freezing temperatures, it is often a sign of a failing actuator motor. Replacing it now prevents total failure during heavy snow.

  • Fluid Inspection: While under the vehicle, check your front differential fluid level. If the fluid appears milky, it has been contaminated with water, which may have contributed to the original actuator's failure.
