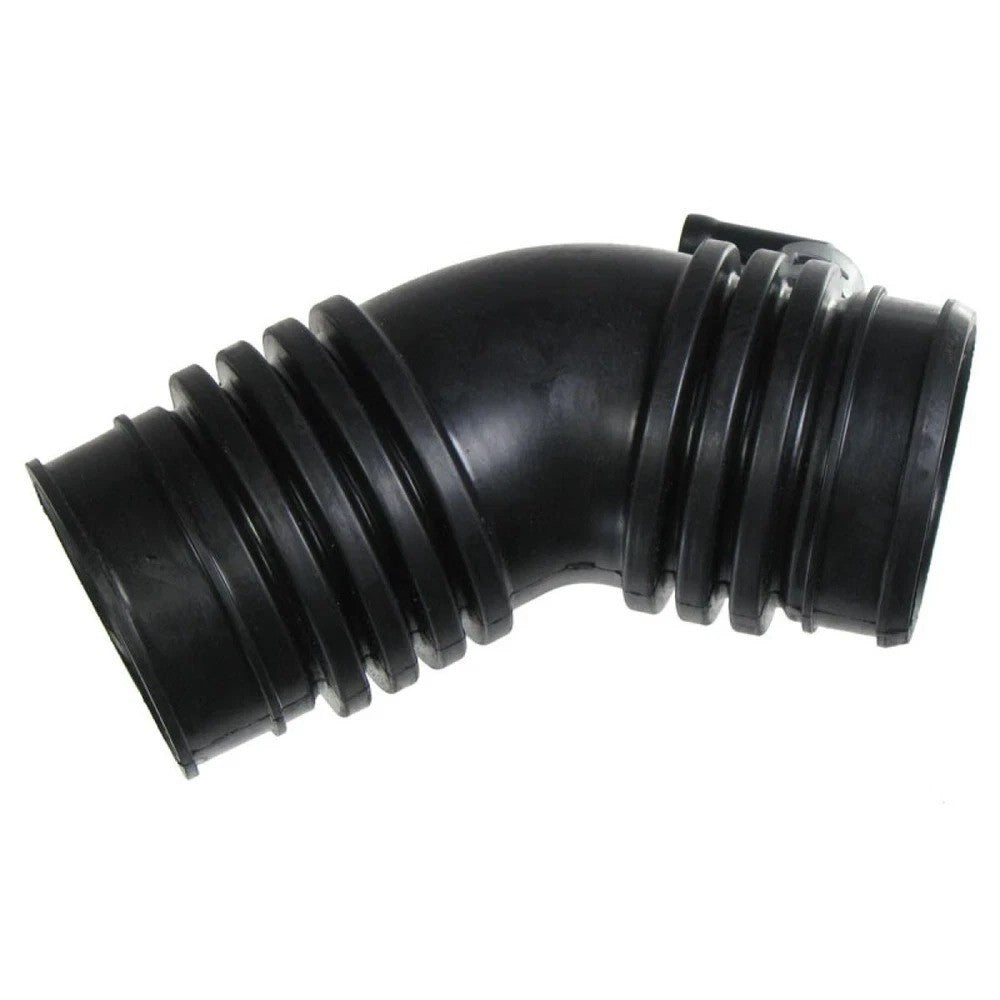

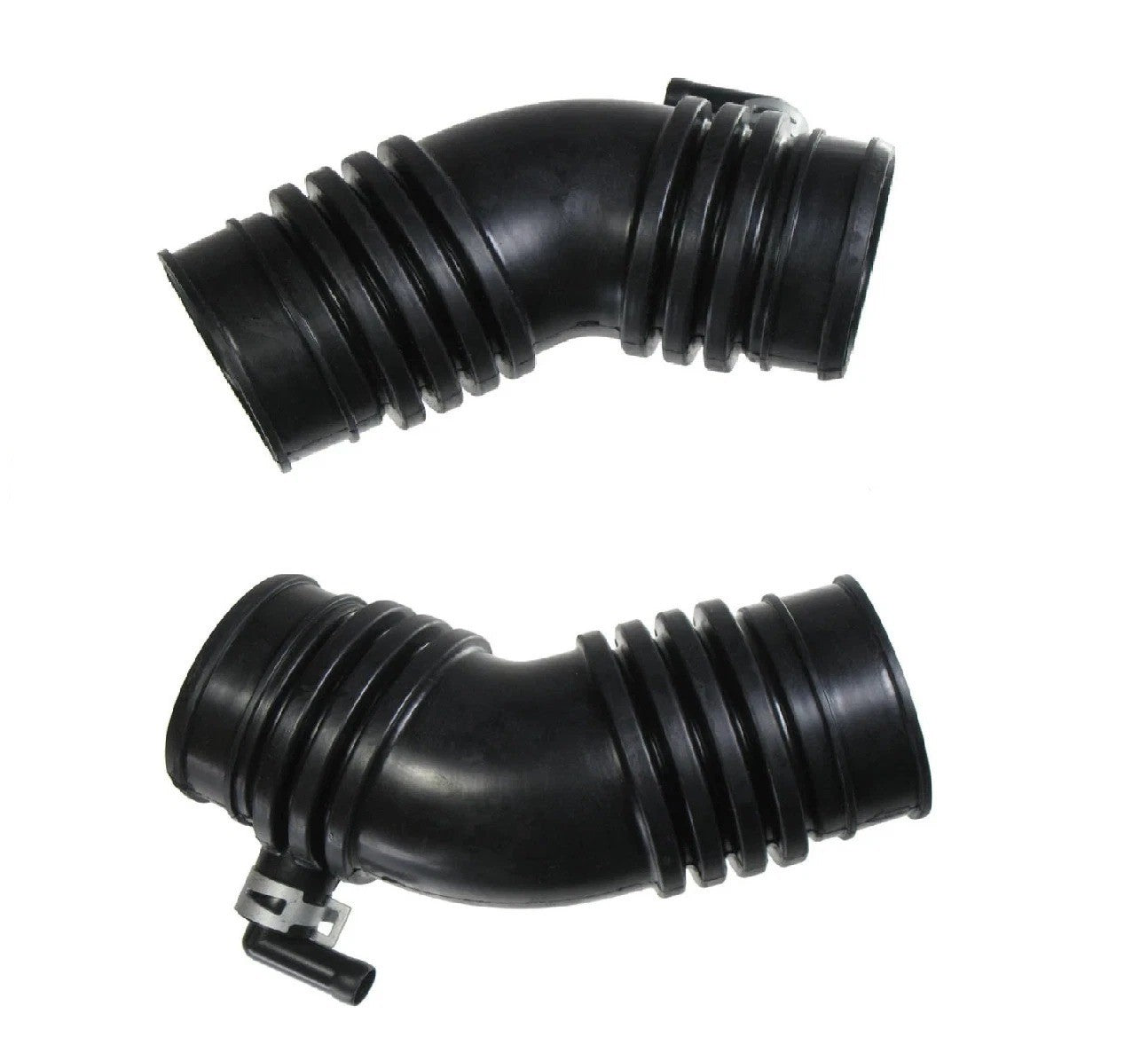

Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L

Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L

$46.22
Ask a Question

Add your personalization

Add your name, note or upload your customized idea image to personalise your item. Custom items cannot be returned or exchanged.

Hurry Up! Only 1 left in stock!

Estimate delivery times: 3-6 days (International)

Return within 45 days of purchase. Duties & taxes are non-refundable.

  • Sku: EBY-AM-310989811846
  • Available: instock
  • Vendor: AM Autoparts
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
Engine Throttle Body Air Intake Hose for 89-95 Toyota Pickup Truck 4Runner 3.0L
$46.22

Engine Throttle Body Air Intake Hose

Performance Restoration for 1989-1995 Toyota 3.0L V6 Engines

Restore your engine's air induction efficiency and idle stability with this premium Engine Air Intake Hose. Designed specifically for the legendary 1989–1995 Toyota Pickup and 4Runner models equipped with the 3.0L V6 (3VZ-E) engine, this hose is a critical link between the air cleaner assembly and the throttle body. Over decades of service, the original rubber is subjected to extreme under-hood heat and vibration, which leads to hardening, cracking, and eventual vacuum leaks.

A compromised intake hose allows "unmetered" air to enter the combustion chamber, bypassing the air flow meter. This frequently results in a lean-running condition, characterized by a rough idle, engine hesitation during acceleration, and decreased fuel economy. This replacement unit is constructed from high-grade, heat-resistant EPDM rubber to ensure a vacuum-tight seal and long-term durability against oil and ozone degradation.

Fitment Verification and Vehicle Applications

This intake hose is engineered specifically for the 3.0L V6 Gas engine. Please verify your engine type before purchasing:

  • Toyota 4Runner (V6 3.0L): 1989, 1990, 1991, 1992, 1993, 1994, 1995.

  • Toyota Pickup (V6 3.0L): 1989, 1990, 1991, 1992, 1993, 1994, 1995.

  • Fitment Note: This part is not compatible with the 2.4L (22R/22RE) 4-cylinder engines.

Technical Specifications and Attributes

  • Material: High-Temperature Reinforced EPDM Rubber.

  • Configuration: Multi-port design for factory vacuum and breather line integration.

  • Inlet/Outlet Shape: Round (Matches factory throttle body and air box).

  • Resistance: Optimized to withstand engine oil, fuel vapors, and thermal cycling.

  • Fitment Type: Direct Replacement.

What’s in the Box

  • (1) Engine Air Intake Hose (Upper)

Industry Cross-Reference Numbers

  • Toyota: 17881-65011, 1788165011, 17881-65020, 1788165020

  • Dorman - OE Solutions: 696-703

  • DIY Solutions: FLT00056

  • Hollander: 319-58149

  • Beck/Arnley: 143-0740

Installation and Technical Tips

  • Inspect Vacuum Connections: When removing the old, brittle hose, take extra care not to snap the plastic vacuum fittings or the small rubber breather lines. It is a good practice to have several inches of 3mm and 4mm vacuum tubing available in case the original lines fail during removal.

  • Throttle Body Cleaning: With the intake hose removed, you have direct access to the throttle body butterfly valve. Use a dedicated throttle body cleaner and a lint-free cloth to remove carbon buildup, which will significantly improve your vehicle's idle quality.

  • Clamp Tension: Ensure your factory tension clamps or new worm-gear clamps are seated squarely on the reinforced ribs of the hose. Do not over-tighten, as excessive pressure can cut into the new rubber over time.

  • Sealing the Ports: Verify that all vacuum and breather ports are pushed fully onto the hose's integrated nipples. Any air bypassing these points will trigger the same "lean" symptoms as a cracked main hose.
