Electric Fuel Pump and Sending Unit Module Assembly

High-Performance Fuel Delivery for Chevy Malibu Maxx, Pontiac G6, and Saturn Aura

Restore your vehicle’s power and fuel gauge accuracy with this Complete Electric Fuel Pump Module Assembly. Engineered specifically for the GM Epsilon platform, this in-tank unit provides a consistent, high-pressure fuel flow of 58–64 PSI to meet the demands of modern fuel-injected engines. Whether you are experiencing hard starts, engine hesitation, or an inaccurate fuel reading, this all-in-one module is designed to solve common fuel system failures in a single installation.

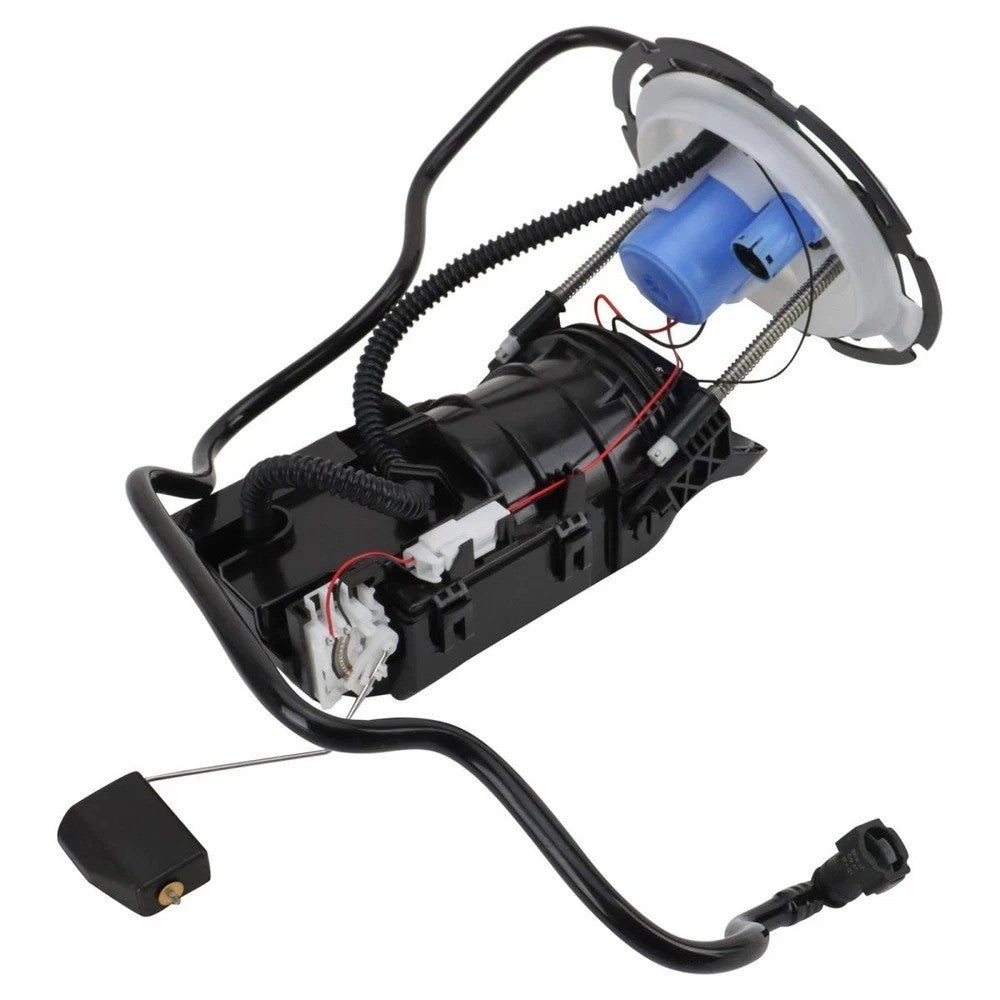

This assembly is a "loaded" module, meaning it includes the electric pump, the fuel level sending unit with float, the internal strainer, and a pre-installed fuel tank pressure sensor. By replacing the entire unit, you eliminate the need to swap old sensors or filters, reducing the risk of a leak or electrical mismatch.

Fitment Verification and Vehicle Applications

This module is designed for In-Tank use on the following vehicles:

• Chevrolet Malibu Maxx: Base, LS, LT, LTZ, and SS (2004, 2005, 2006, 2007).

• Pontiac G6: Base and GT (2005–2006).

• Pontiac G6 (L4 2.4L, V6 3.5L, V6 3.9L): 2007, 2008.

• Saturn Aura: 2007, 2008.

• Fitment Note: Verified for both 4-cylinder and 6-cylinder configurations. Please verify your vehicle's build date, as mid-year production changes can affect connector compatibility.

Technical Specifications and Attributes

• Pressure Range: 58 PSI Minimum to 64 PSI Maximum.

• Flow Rating: 37 gph to 44.91 gph.

• Resistance (Ohms): 40 Ohms (Full) / 250 Ohms (Empty).

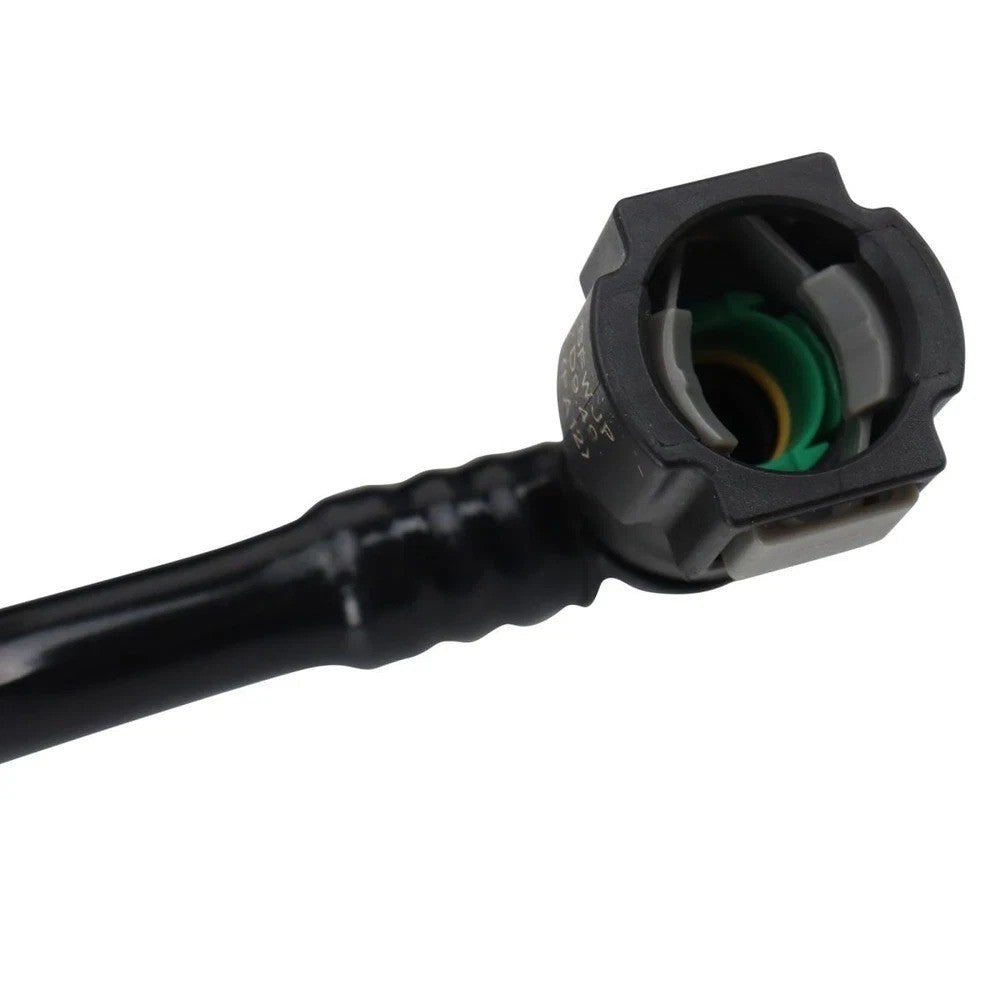

• Outlet Type: 9.49 mm Quick Connect.

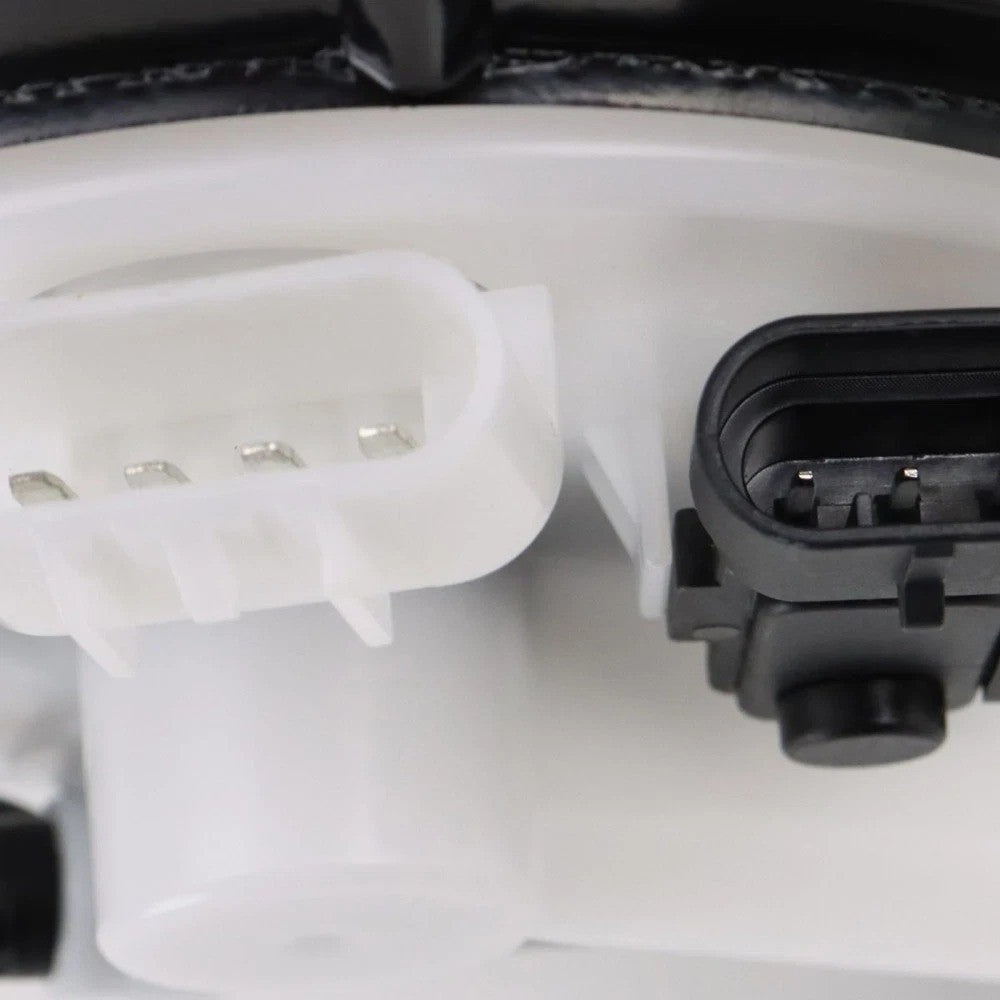

• Terminal Quantity: 4-Pin Connector.

• Pump Type: Electric (Gasoline).

• Internal Sensors: Includes Fuel Level Sending Unit and Fuel Tank Pressure Sensor.

• Grade Type: Standard Replacement.

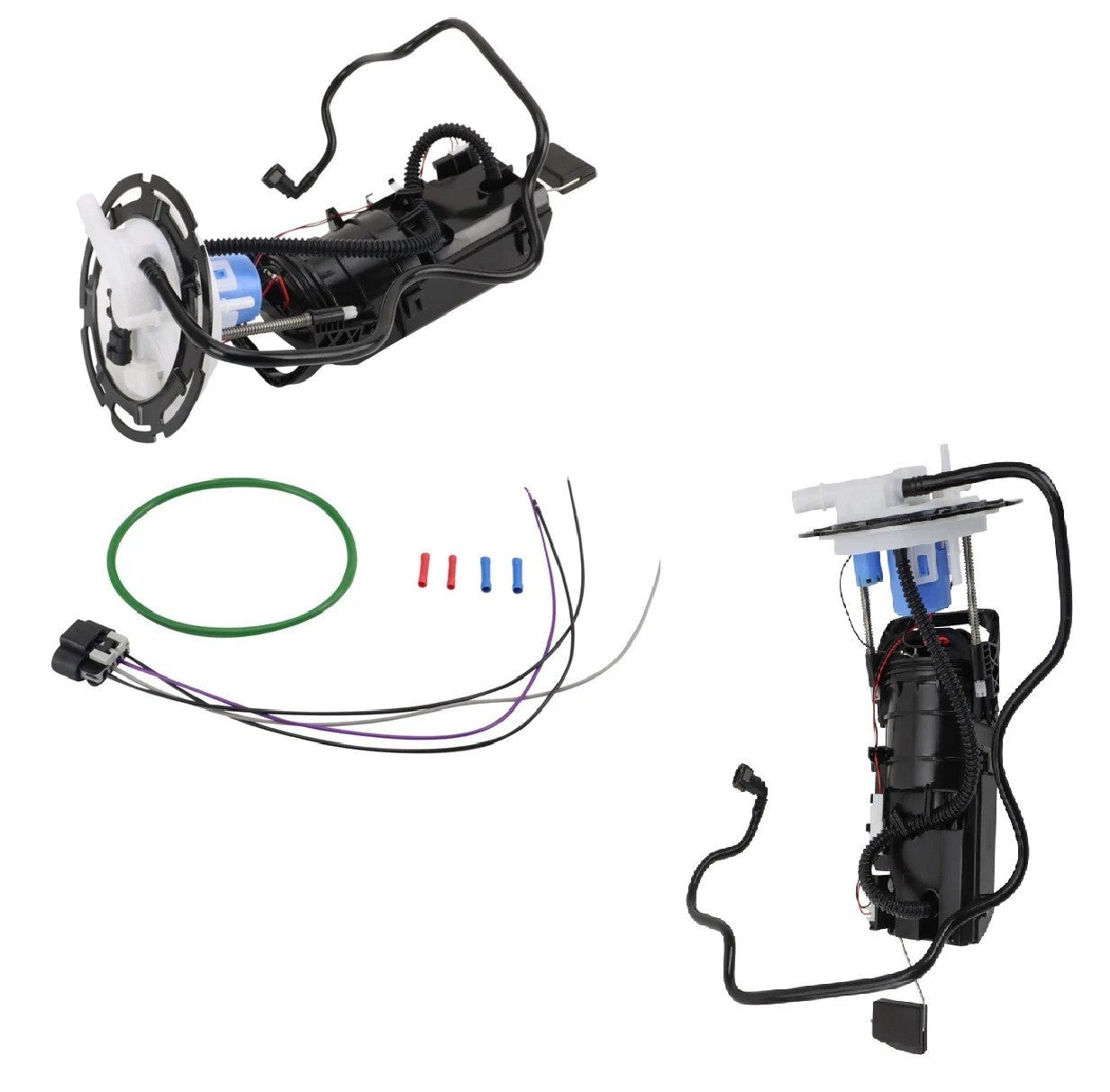

What’s in the Box

• (1) Electric Fuel Pump Module

• (1) Fuel Level Sending Unit and Float Arm

• (1) Internal Fuel Strainer

• (1) Fuel Tank Pressure Sensor

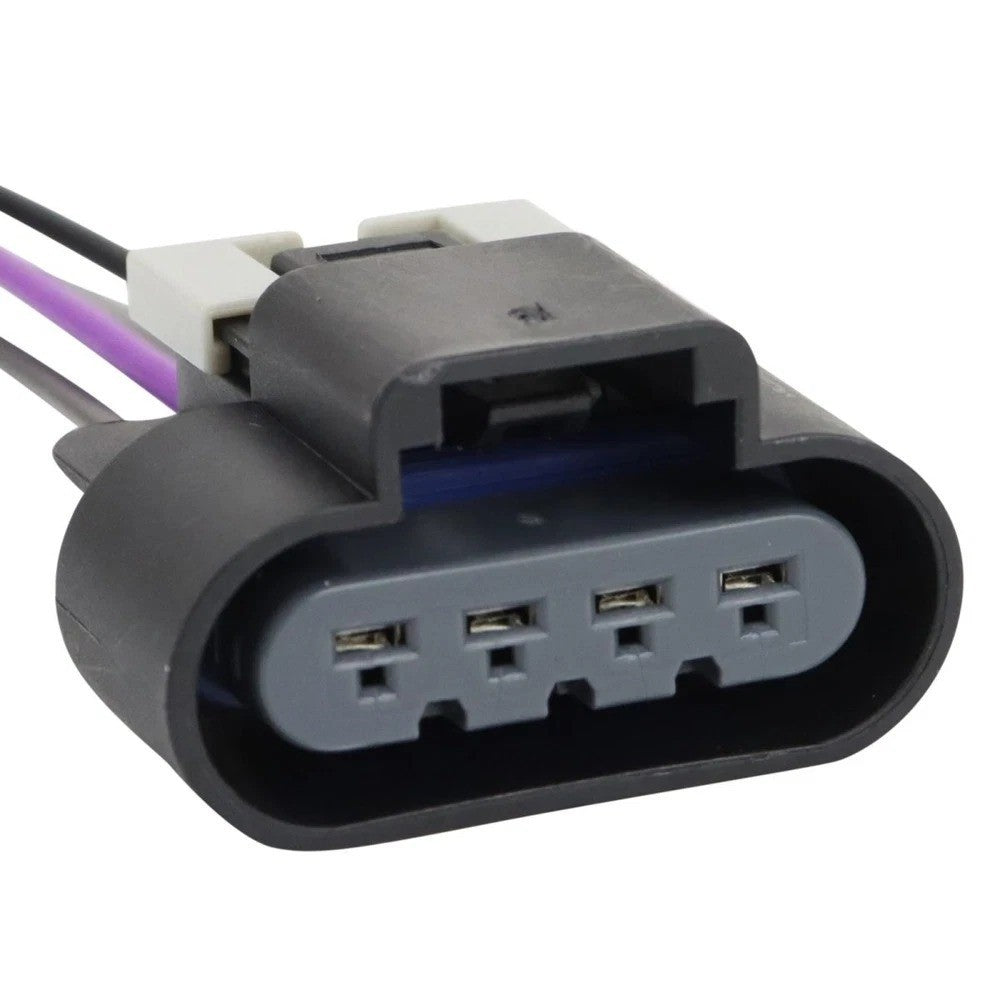

• (1) Wiring Harness

• (1) Tank Seal (Gasket)

• (1) Mounting Lock Ring

Industry Cross-Reference Numbers

• General Motors (GM): 19169179

• Airtex: E3591M, E3591MN

• Delphi: FG1384

• Carter: P76246M

• Spectra Premium: SP6602M

• Hollander: 323-01738

• Walbro: TU463

Installation and Technical Tips

• Safety Protocol: Always disconnect the negative battery cable before opening the fuel system. Relieve fuel pressure via the Schrader valve on the fuel rail before disconnecting the quick-connect lines at the tank.

• Debris Prevention: Before removing the old lock ring, clean the top of the fuel tank thoroughly. Dirt or sand falling into the tank can damage the new pump's internal turbine and clog the strainer instantly.

• Wiring Inspection: This kit includes a new wiring harness. If your original vehicle-side connector shows signs of melting or heat discoloration (common on these models), it is essential to splice in the new harness to prevent the new pump from burning out.

• Seal Seating: Use the new lock ring and gasket included in the box. Applying a light film of clean fuel or specialized lubricant to the gasket can help it seat perfectly, preventing EVAP system "Small Leak" codes (such as P0442 or P0455).
