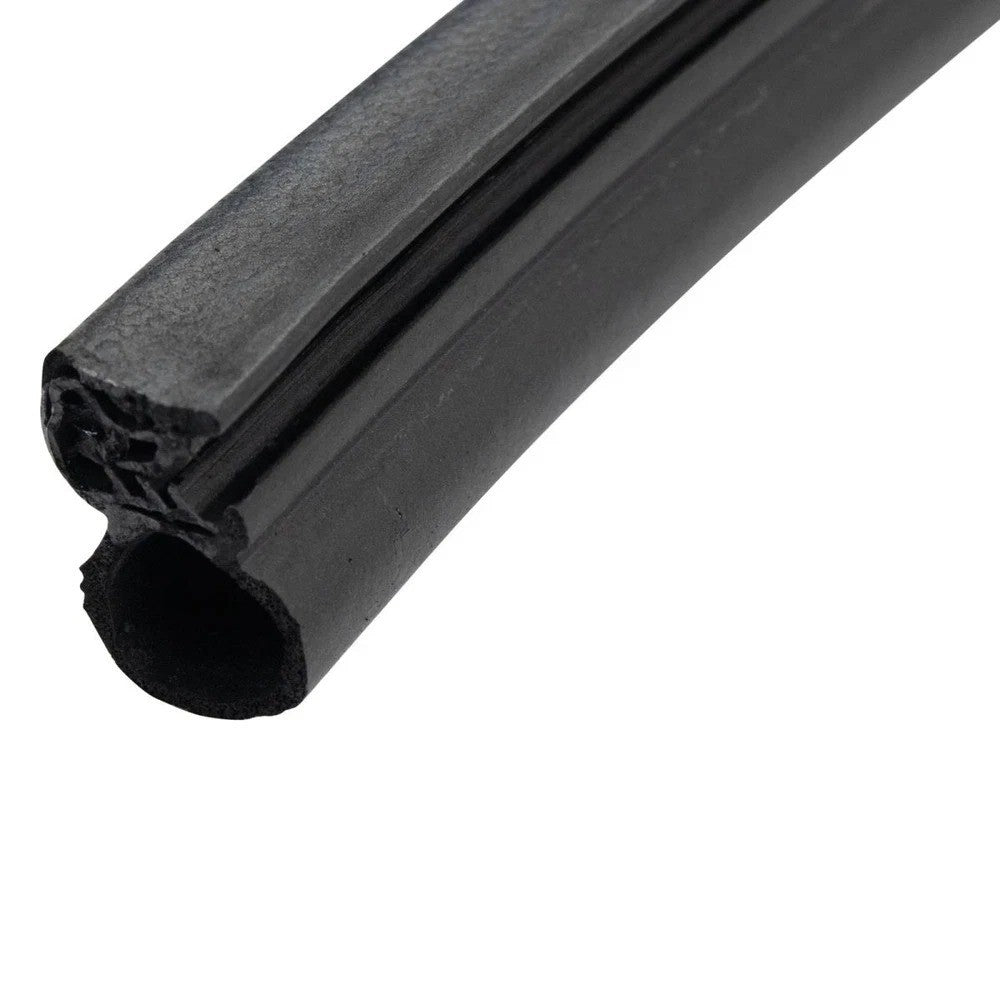

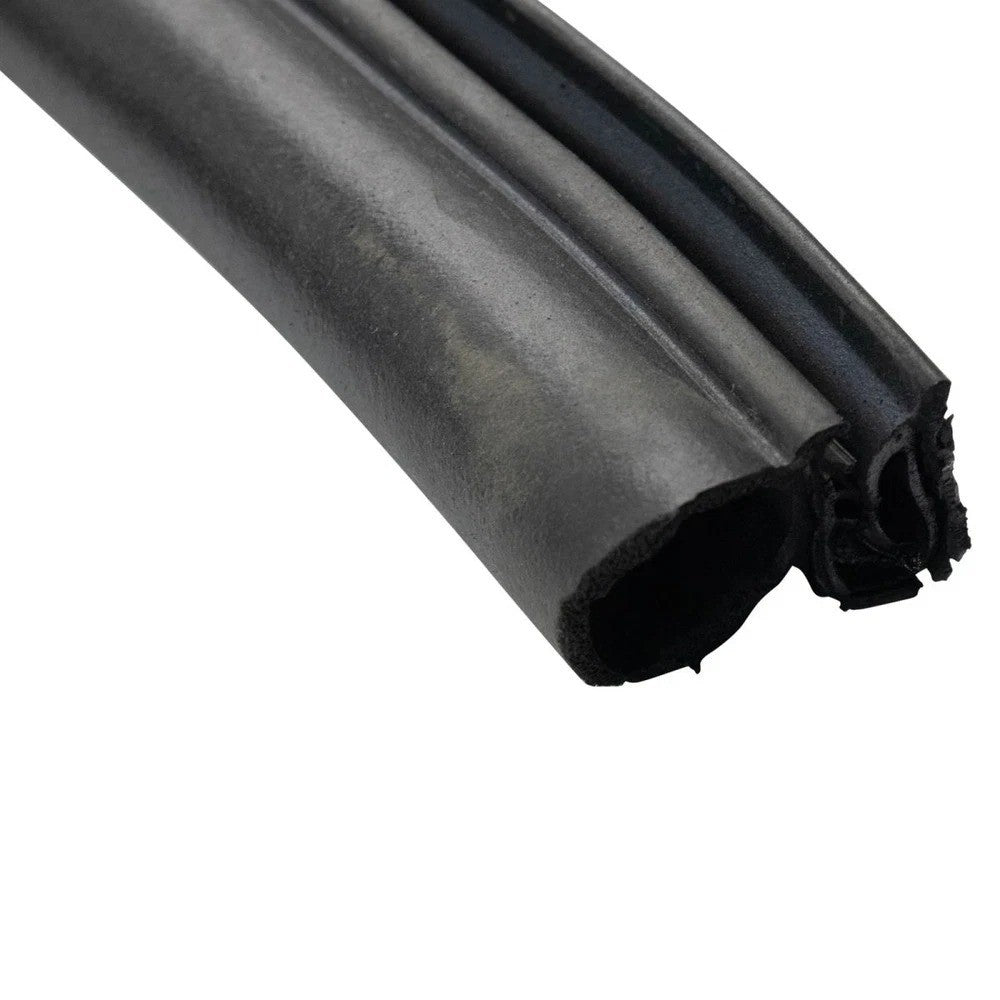

Body-Mounted Primary Door Weatherstrip Seal

Universal Fit Restoration for 1973–1991 Chevrolet & GMC Trucks, Blazers, and Suburbans

Protect your classic Square Body interior from the elements with this high-quality Body-Mounted Door Weatherstrip Seal. Engineered to replace aged, cracked, or flattened rubber, this seal provides a vital barrier against wind noise, moisture infiltration, and road debris. Whether you are restoring a vintage K5 Blazer or maintaining a heavy-duty C30 work truck, this seal ensures a tight, pressurized fit when the door is closed, keeping your cabin quiet and dry.

This seal is manufactured from high-grade EPDM sponge rubber, known for its exceptional resistance to UV rays and ozone. It features a universal Trim-to-Fit design, allowing it to be perfectly tailored to various cab configurations, including standard pickups, chassis cabs, and the extended door frames of the Suburban and Blazer.

Fitment Verification and Vehicle Applications

This seal is a versatile replacement for Front or Rear Door Openings (Body Side) on the following Classic GM platforms:

• Chevrolet/GMC C&K Series Pickups (C10, C20, C30, K10, K20, K30): 1973–1986.

• Chevrolet/GMC R&V Series Pickups (R1500, R2500, R3500, V1500, V2500, V3500): 1987.

• Chevrolet Blazer / GMC Jimmy (Full Size): 1973–1991.

• Chevrolet/GMC Suburban (C10, C20, K10, K20, R10, R20, V10, V20): 1973–1991.

• Fitment Note: This is a Trim-to-Fit component. One length is typically sufficient for one door opening; please measure your door perimeter to ensure total coverage for your specific model.

Technical Specifications and Attributes

• Installation Type: Trim-to-Fit (Tailor to exact door length).

• Position: Front or Rear; Driver or Passenger Side.

• Mounting Style: Body Mounted (Pinch-weld attachment).

• Material: EPDM Sponge Rubber with internal reinforcement.

• Color: Black.

• Function: Seals out water, dust, and wind whistling.

What’s in the Box

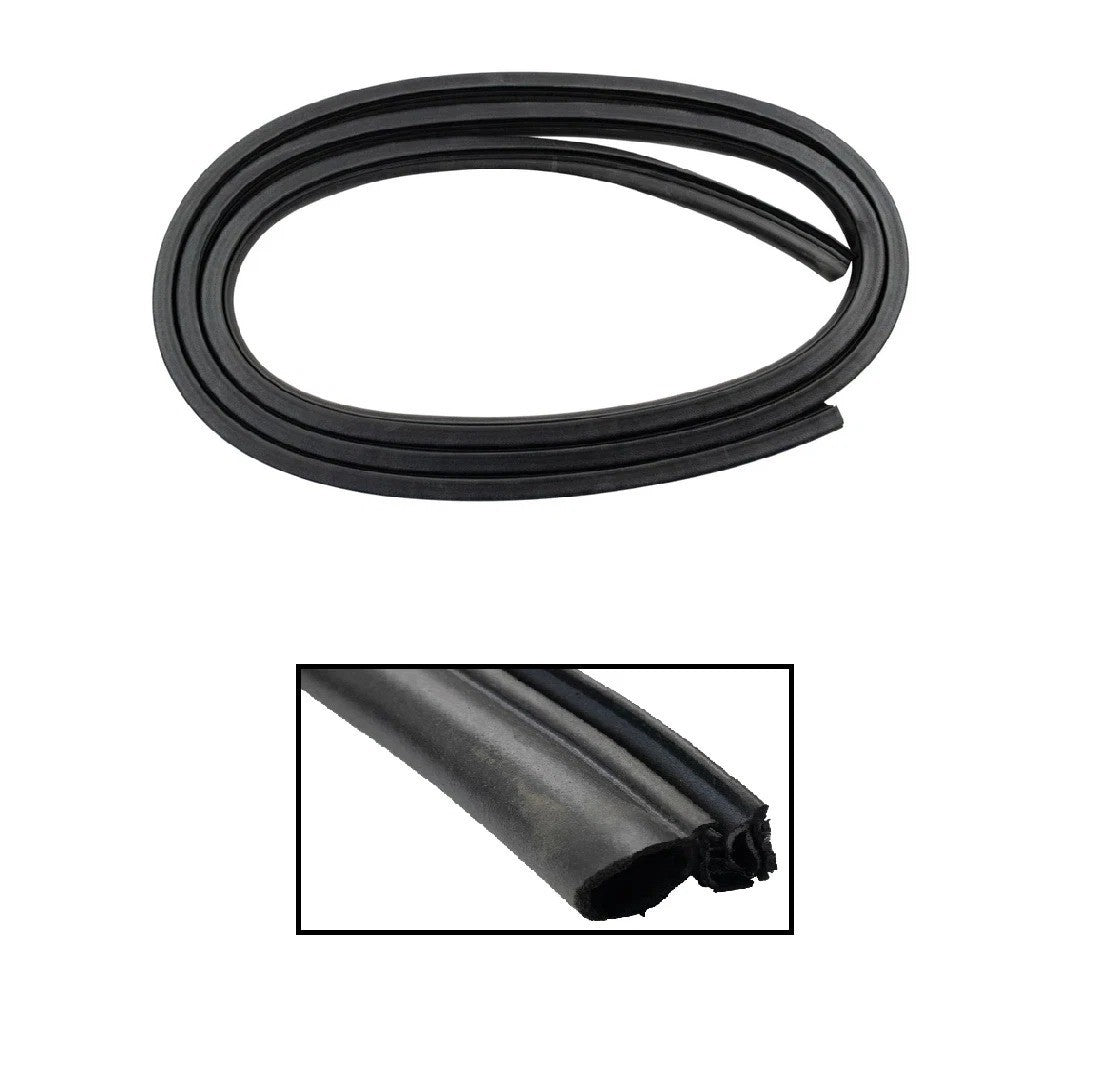

• (1) Roll of Premium Door Weatherstrip Seal

Industry Cross-Reference Numbers

• Fairchild Industries: G3008

• General Motors: 15603410, 15632313 (Historical equivalents)

• Precision: WSR 3008

• Steele Rubber: 70-1111-72

Installation and Technical Tips

• Preparation: Before installing the new seal, thoroughly clean the metal pinch-weld on the door frame. Remove any old adhesive, rust, or debris using a wire brush and a mild solvent to ensure a secure, flush seat.

• Seam Placement: Always start your installation at the bottom-center of the door frame. By placing the seam at the bottom, you prevent gravity-fed rainwater from entering through the split and ensure any moisture drains toward the exterior sill.

• The Rubber Mallet Technique: Use a rubber mallet to gently tap the seal onto the pinch-weld. This ensures the internal metal carrier "grips" the frame tightly. Avoid using a metal hammer, as this can deform the internal carrier and damage the EPDM rubber.

• Trimming for Success: Once you have worked the seal entirely around the door frame, leave an extra 1/4 inch of length before making your final cut. Compressing this slight "over-length" into the starting point creates a tighter butt-joint that won't pull apart as the rubber shrinks and expands with temperature changes.

• Setting the Seal: After installation, close the door and leave it latched for 24 to 48 hours. This allows the new, thick rubber to compress and take a "memory" of your specific door's alignment.
