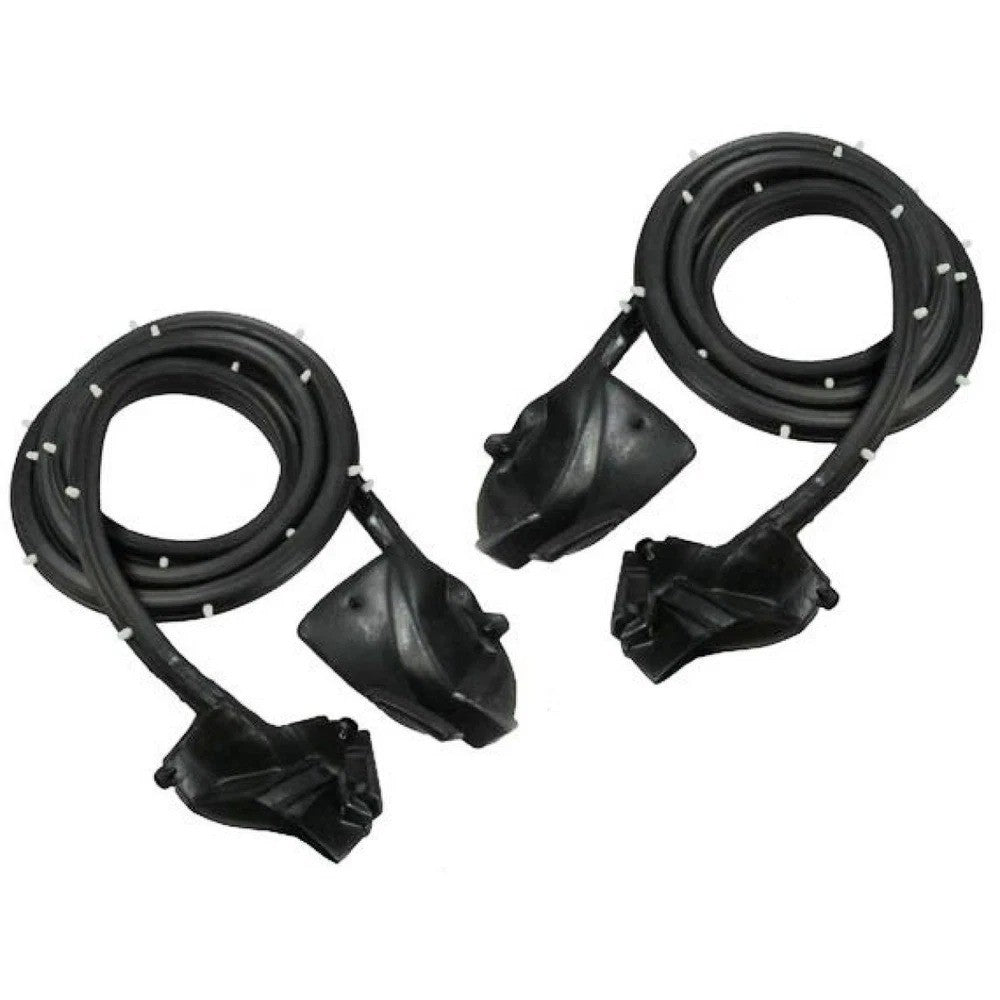

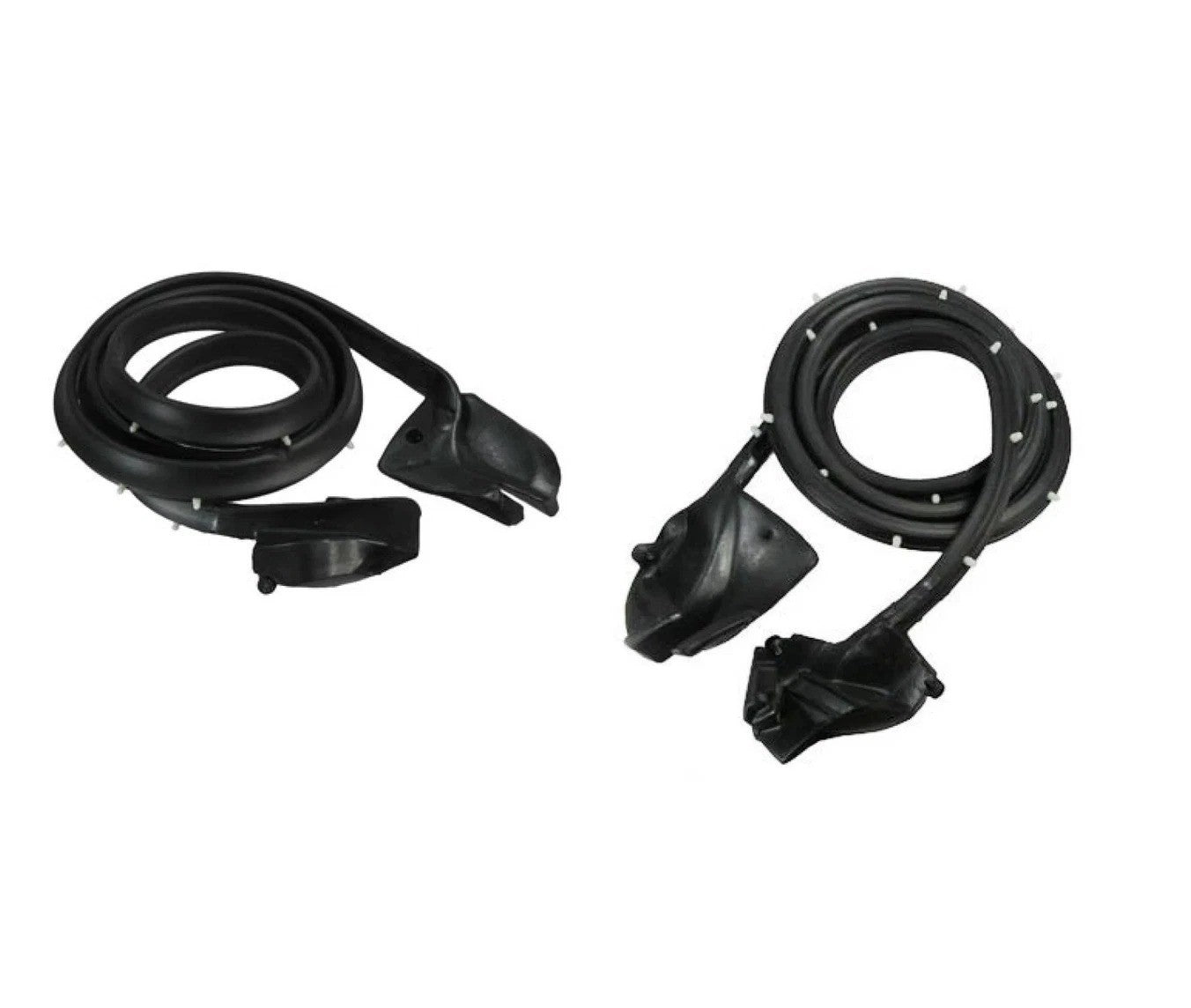

Front Door Weather-strip Seal Set

Body-Mounted Primary Seals for 1970–1981 Chevrolet Camaro and Pontiac Firebird

Restore the airtight integrity and quiet cabin of your classic GM F-Body with this Premium Door Weather-strip Seal Pair. These seals mount directly to the body frame, providing a critical barrier against wind noise, moisture, and road debris. Over decades, original rubber seals become compressed, brittle, or cracked, leading to cabin drafts and potential water damage to your interior upholstery and floorboards.

Manufactured from high-grade, closed-cell EPDM sponge rubber, these seals are engineered to replicate the original factory profile. The material is specifically formulated to withstand UV exposure and temperature fluctuations while remaining soft and pliable. Installing this set not only weather-seals your vehicle but also helps eliminate door rattles and restores that solid, factory-quality sound when closing the doors.

Fitment Verification and Vehicle Applications

This 2-piece kit is designed for the Primary Door Openings on the following models:

• Chevrolet Camaro (All Trims): 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981.

• Pontiac Firebird / Trans Am (All Trims): 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981.

Fitment Note: These seals are designed for the 2-door coupe body style. Because these vehicles often feature long, heavy doors, ensuring a proper seal is vital for maintaining the structural alignment and interior protection of your restoration project.

Technical Specifications and Attributes

• Quantity: 2-Piece Set (Driver and Passenger sides).

• Position: Body Mounted (Aperture).

• Material: Closed-cell EPDM Sponge Rubber for maximum compression and recovery.

• Design: Molded ends and corners tailored to factory body contours.

• Color: Matte Black.

• Grade Type: Restoration Standard Replacement.

What’s in the Box

• (1) Driver Side Body-Mounted Door Seal

• (1) Passenger Side Body-Mounted Door Seal

Industry Cross-Reference Numbers

• Fairchild Industries: KG3030

• General Motors (Reference Only): 9613000, 9613001

• Metro Moulded Parts: LM 12-E

Installation and Technical Tips

• Surface Preparation: Success depends on a clean mounting surface. Use a dedicated weatherstrip adhesive remover to strip away all old glue and rubber fragments. Follow up with a wax and grease remover to ensure the metal channel is perfectly clean.

• Adhesive Application: Use a high-quality black weatherstrip adhesive for a professional finish. Apply a thin bead to both the rubber seal and the body channel. Allow the adhesive to become tacky (usually 2-4 minutes) before pressing the seal into place to prevent sliding.

• Start at the Top: Begin installation at the top corners or the molded sections designated by the factory layout. This ensures the rest of the seal length is distributed evenly around the door frame without stretching the rubber too thin.

• The Compression Period: Once installed, close the doors and leave them shut for at least 48 hours. New seals are significantly thicker than worn originals; this period allows the EPDM rubber to "take a set" and conform to the shape of your door, ensuring a leak-free fit and easier door operation over time.
