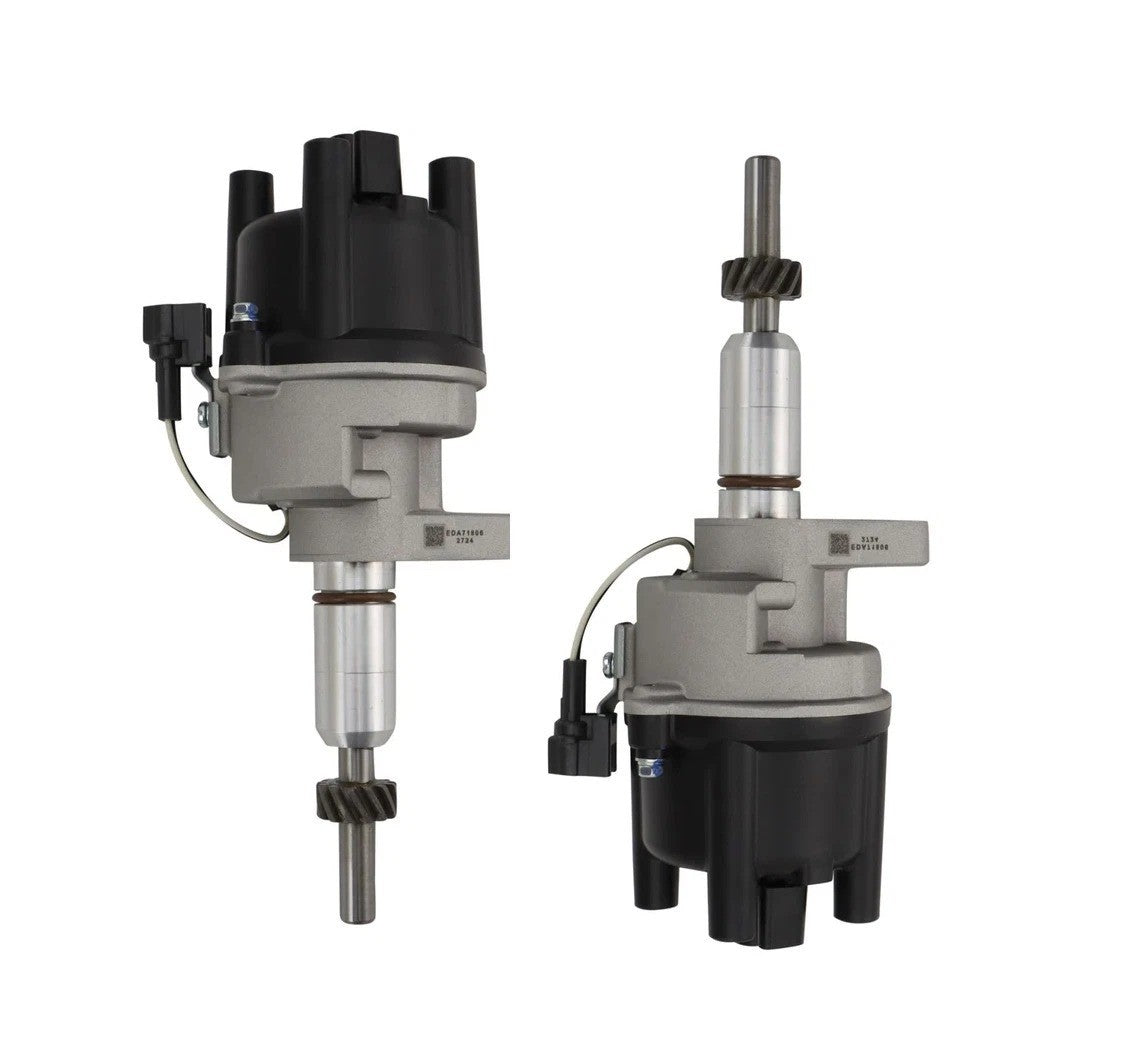

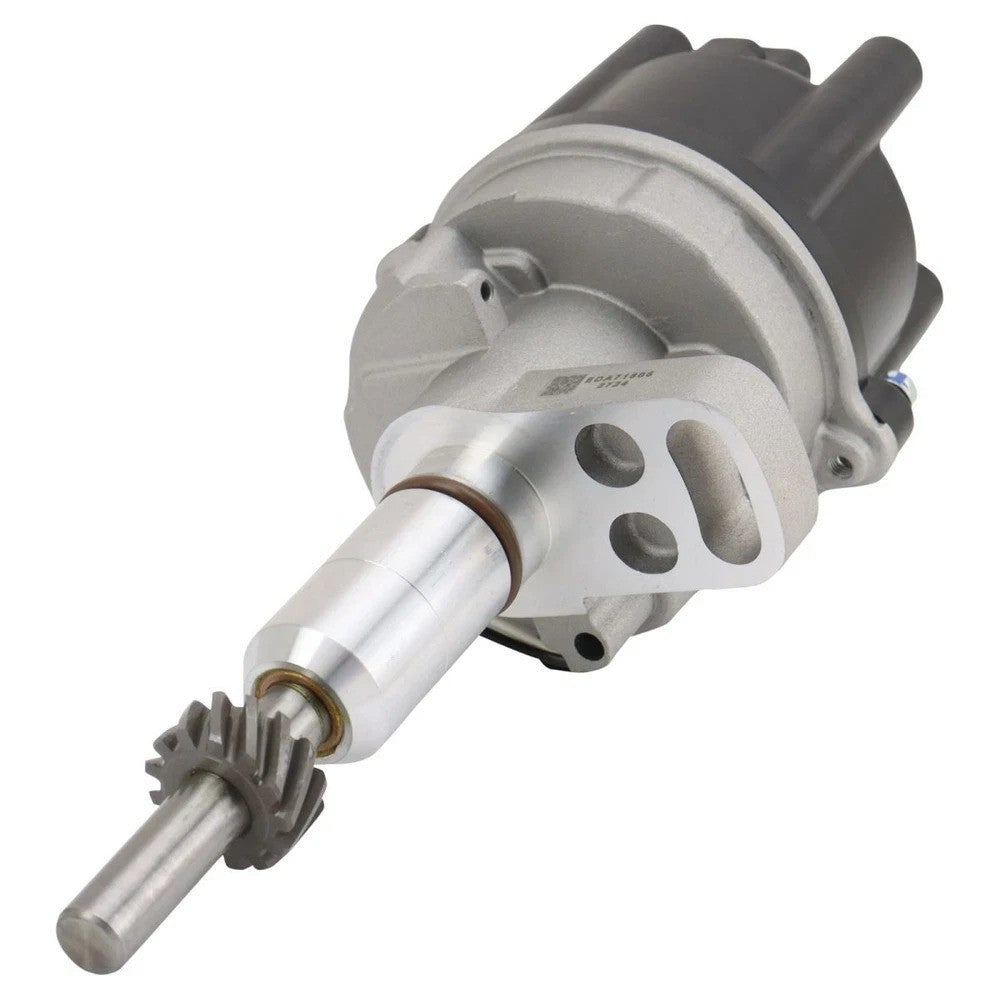

Complete Ignition Distributor Assembly

Performance Restoration for 1991-1995 Toyota 2.4L 22RE Engines

Engineered to restore factory-level ignition timing and spark delivery, this Complete Ignition Distributor is a direct-fit solution for the legendary Toyota 2.4L four-cylinder engine. As these vehicles age, internal components like the pickup coil and signal generator often fail due to heat-soak and mechanical wear, leading to intermittent stalling, rough idling, and difficult cold starts.

This assembly eliminates the need for tedious component-level repairs by providing a fully integrated housing, shaft, and electrical pickups. Constructed with a high-strength die-cast aluminum body and precision-machined internal gears, it ensures consistent spark timing across the entire RPM range, maintaining the reliability these Toyota trucks are known for.

Fitment Verification and Vehicle Applications

This distributor is specifically calibrated for the 2.4L L4 (22RE) engine. Please verify your engine code and model year:

• Toyota 4Runner (L4 2.4L): 1991, 1992, 1993, 1994, 1995.

• Toyota Pickup (L4 2.4L): 1991, 1992, 1993, 1994, 1995.

• Fitment Note: This unit is designed for the electronic fuel-injected (EFI) 22RE engine. It will not fit 3.0L V6 models or earlier carbureted 22R engines.

Technical Specifications and Attributes

• Grade Type: Standard Replacement.

• Included Components: Distributor Housing, Distributor Cap, and Ignition Rotor.

• Ignition Coil: Not Included (Requires reuse of external factory coil or new replacement).

• Housing Material: Heavy-Duty Die-Cast Aluminum.

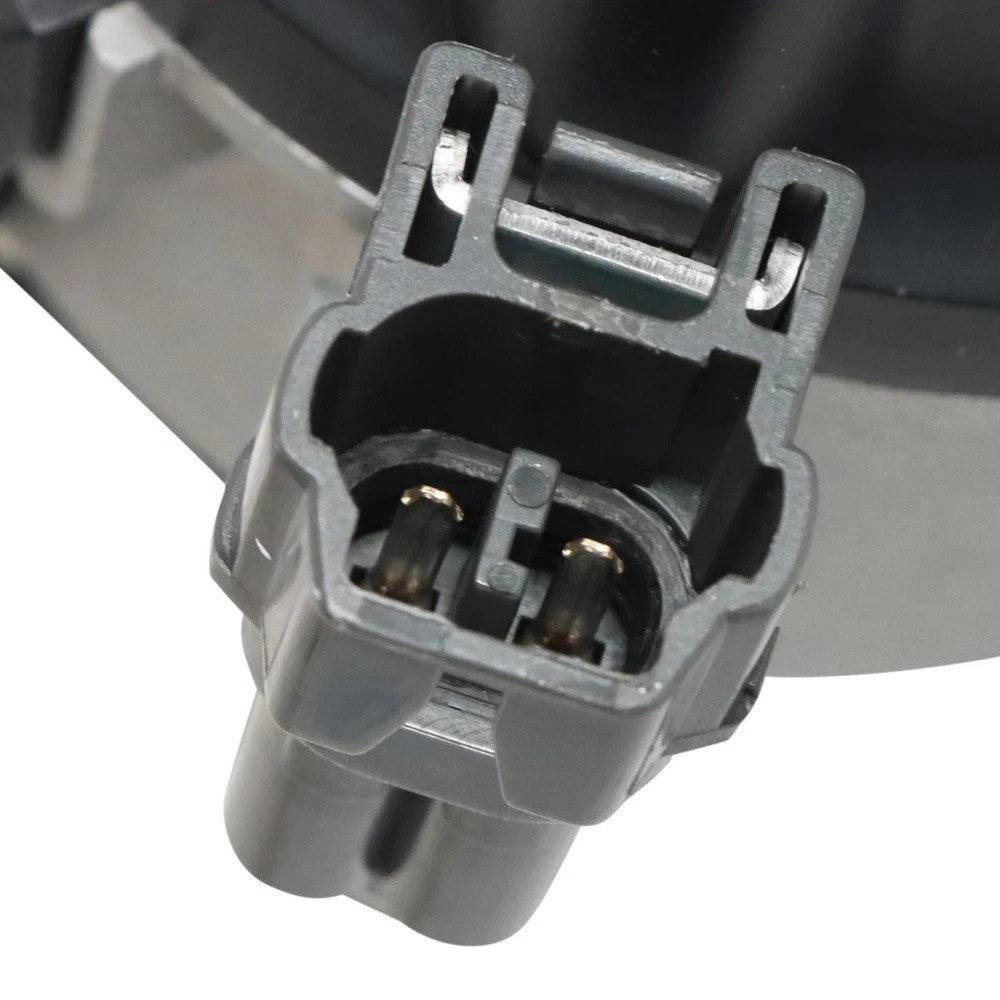

• Electrical: Integrated pickup coil for precise signal delivery to the igniter.

• Seal: Includes pre-installed base O-ring to prevent oil leaks from the cylinder head.

What’s in the Box

• (1) New Ignition Distributor Assembly

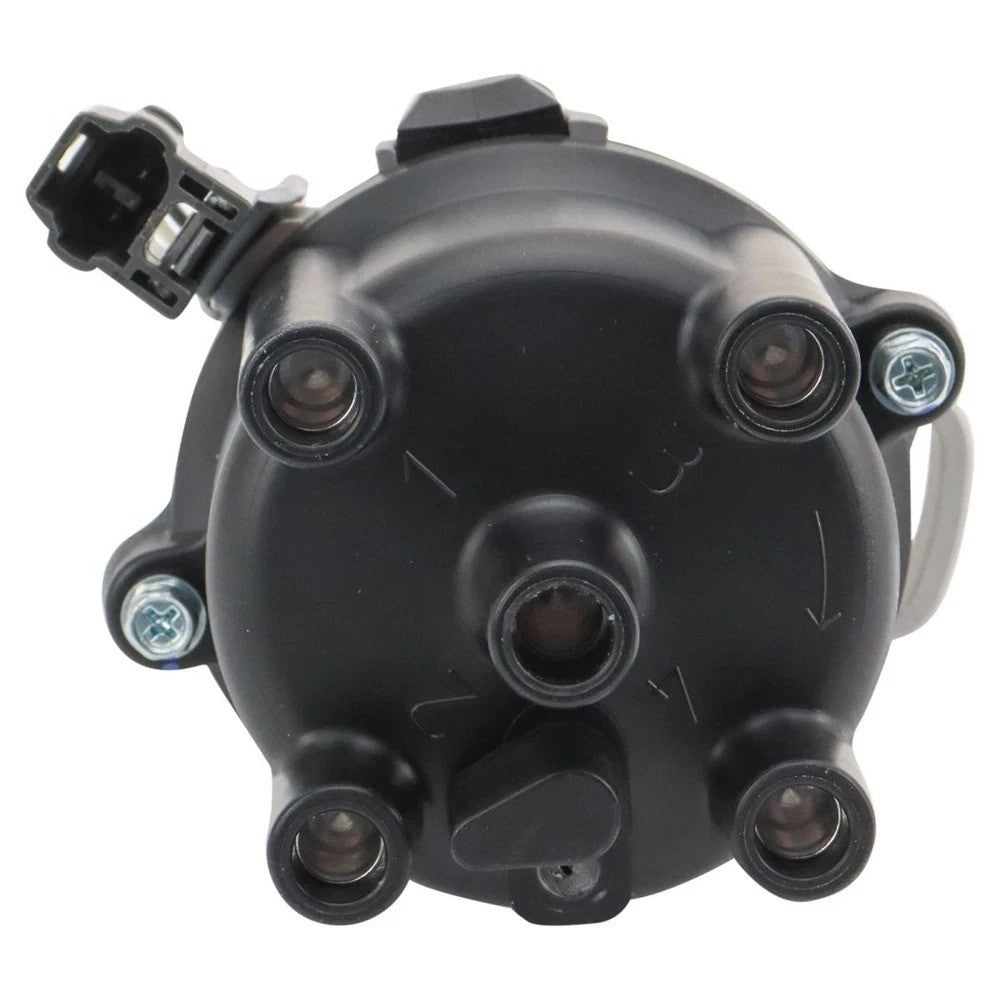

• (1) New Distributor Cap (Pre-installed)

• (1) New Ignition Rotor (Pre-installed)

Industry Cross-Reference Numbers

• Toyota: 19100-35240, 19100-35270, 1910035240, 1910035270

• CARDONE New: 84-73445

• WAI Global: DST73445

• Spectra Premium: TY32

Installation and Technical Tips

• Top Dead Center (TDC) Alignment: Before removing your old distributor, rotate the crankshaft to TDC on the compression stroke for Cylinder #1. Note the orientation of the rotor tip. If the new distributor is installed out of phase, the engine will not start or will backfire through the intake.

• O-Ring Lubrication: Apply a light film of clean engine oil to the base O-ring before sliding the distributor into the cylinder head. This ensures a proper seal and prevents the ring from tearing or binding during the installation process.

• Timing Calibration: While this is a direct replacement, base ignition timing must be checked with a timing light. On the 22RE engine, remember to jump the TE1 and E1 terminals in the diagnostic check connector to "lock" the timing before adjusting the distributor housing.
