Deck Spindle with Pulley Blade & Belt For Toro LX420 LX425 Lawn Tractor 42"
Deck Spindle with Pulley Blade & Belt For Toro LX420 LX425 Lawn Tractor 42"
$170.50

 Premium Quality Replacement Part



Spindle Assembly with Pulleys, Blade, Nut, Bolt & Belt



For Cub Cadet Models:


LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor
LT 1040 (13AX10CG710) - Cub Cadet 42" Lawn Tractor
LT 1040 (13BX10CG710) - Cub Cadet 42" Lawn Tractor
LT 1042 (13AX11CG010) - Cub Cadet 42" Lawn Tractor (2008 & After)
LT 1042 (13AX11CG709) - Cub Cadet 42" Lawn Tractor (2007 & Before)
LT 1042 (13AX11CG710) - Cub Cadet 42" Lawn Tractor (2007 & Before)
LT 1042 (13AX11CG756) - Cub Cadet 42" Lawn Tractor (2007 & Before)
LT 1042 (13BX11CG709) - Cub Cadet 42" Lawn Tractor (2007 & Before)
LT 1042 (13BX11CG710) - Cub Cadet 42" Lawn Tractor (2007 & Before)
LT 1042 (13BX11CG712) - Cub Cadet 42" Lawn Tractor (2007 & Before)


White Outdoor

P 616 G (13AP616G597) - Columbia 42" Lawn Tractor (2008)
V 606 G (13AV606G597) - Columbia 42" Lawn Tractor (2008)
V 61 6G (13AV616G597) - Columbia 42" Lawn Tractor (2008)
P 61 GG (13AP61GG897) - Columbia 42" Lawn Tractor (2009)
V 60 GG (13AV60GG897) - Columbia 42" Lawn Tractor (2009)
V 61 6G (13AV616G597) - Columbia 42" Lawn Tractor (2008)
V 61 GG (13AV61GG897) - Columbia 42" Lawn Tractor (2009)


Troy-Bilt

13AV60KG011 - Troy-Bilt Bronco Lawn Tractor (2008) Deck 42 Inch
13AV60KG066 - Troy-Bilt Bronco Lawn Tractor (2008) Deck 42 Inch
13AV60KG211 - Troy-Bilt Bronco Lawn Tractor (2008) Deck 42 Inch
13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2008) Deck 42 Inch
13BX60TG711 - Troy-Bilt Super Bronco Lawn Tractor (2007) Deck 42 Inch
13BX60TG766 - Troy-Bilt Super Bronco Lawn Tractor (2007) Deck 42 Inch
13AV60KG011 - Troy-Bilt Bronco Lawn Tractor (2009) Deck 42 Inch
13AV60KG066 - Troy-Bilt Bronco Lawn Tractor (2009) Deck 42 Inch
13AV60KG211 - Troy-Bilt Bronco Lawn Tractor (2009) Deck 42 Inch
13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2009) Deck 42 Inch


Toro


13AX60RG544 (LX 420) - Toro Lawn Tractor (SN: 1L215B10000 & Above) (2006)
13AX60RG744 (LX 420) - Toro Lawn Tractor (SN: 1L215B10000 & Above) (2006)
13BX60RG544 (LX 425) - Toro Lawn Tractor (SN: 1A087H10172 - 1E237H10144) (2007)
13BX60RG744 (LX 425) - Toro Lawn Tractor (SN: 1A087H10172 - 1C307H10417) (2007)
13BX60RG748 (LX 425) - Toro Lawn Tractor (SN: 1A087H10172 - 1E087H10250) (2007)


 Order Includes:

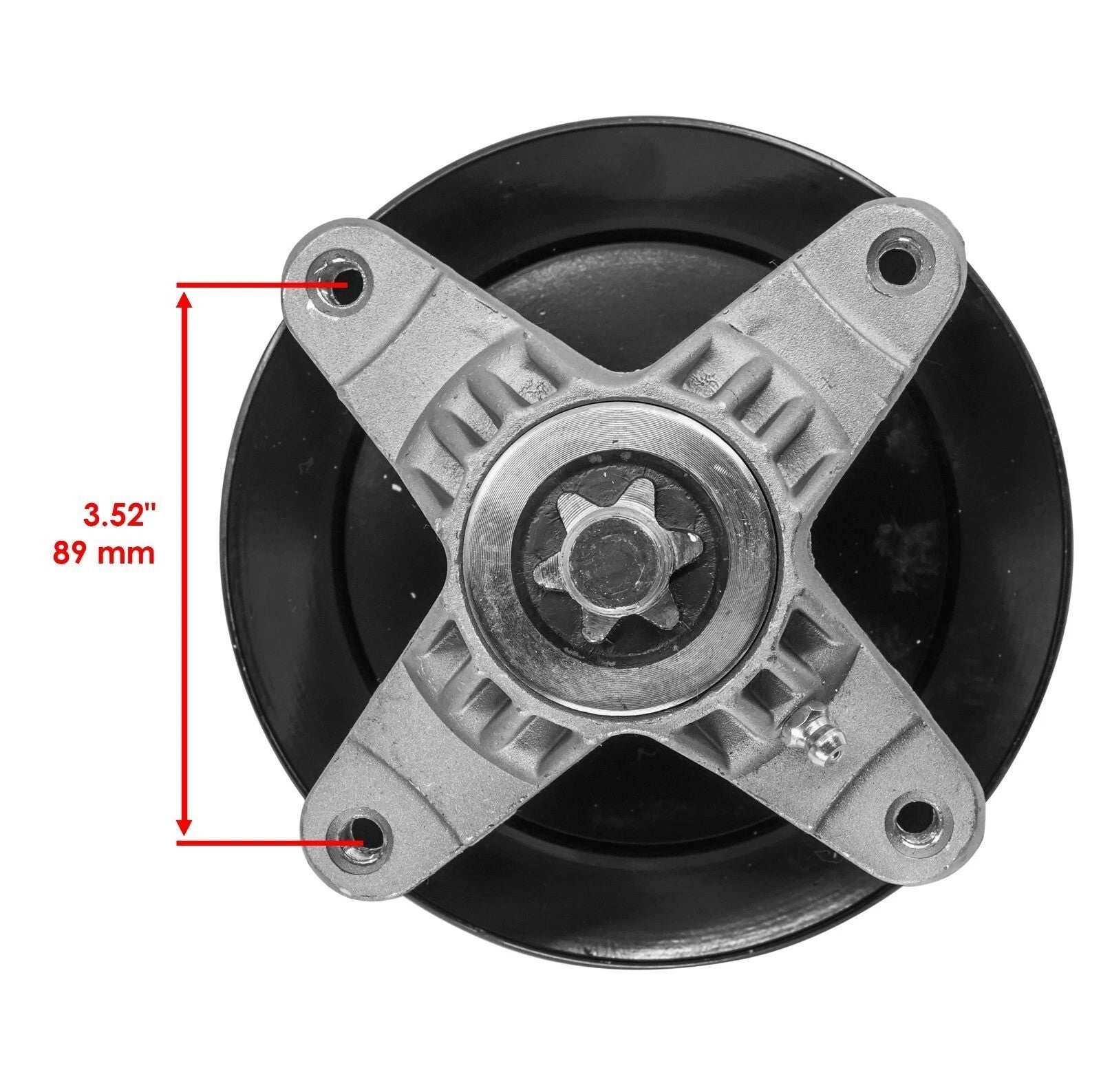

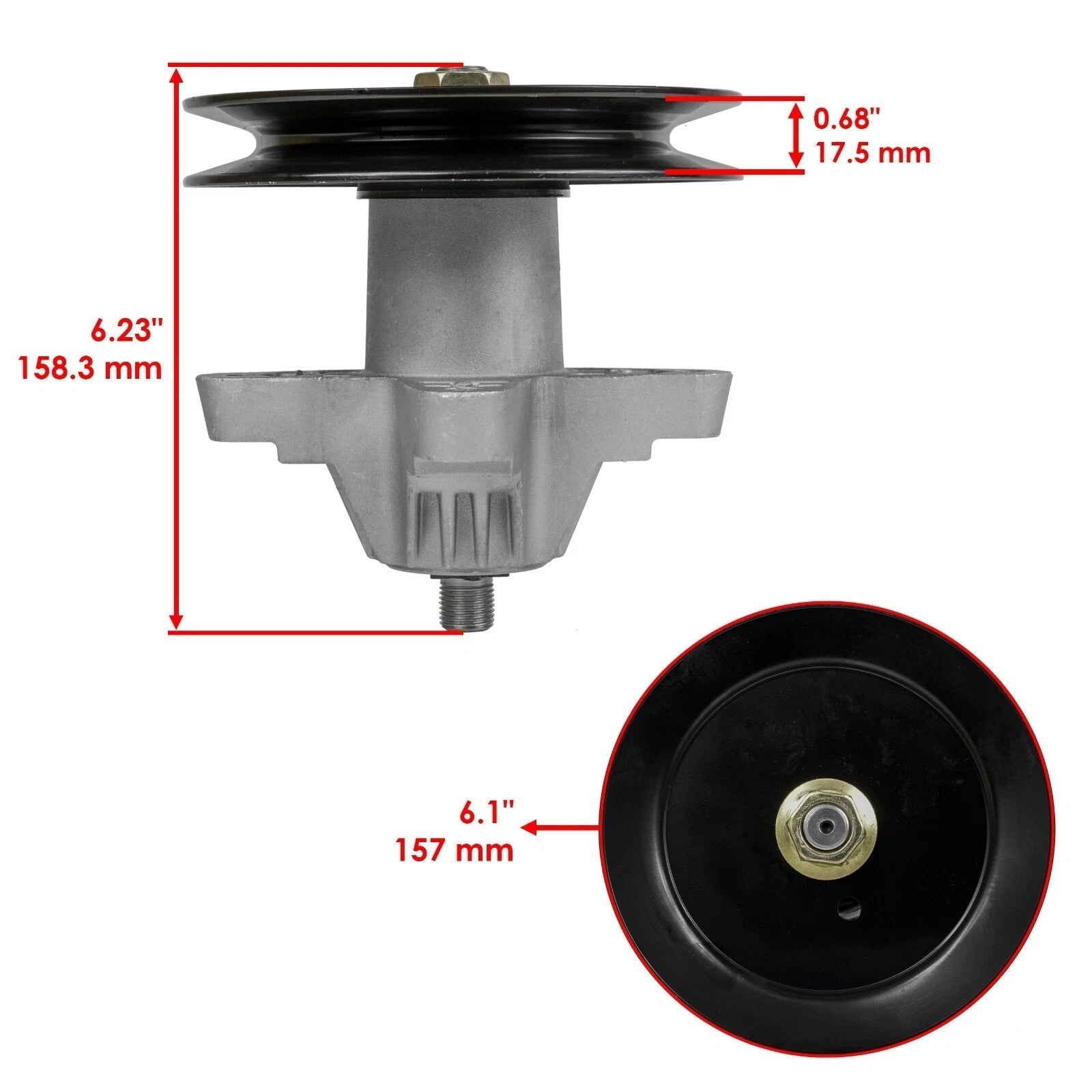

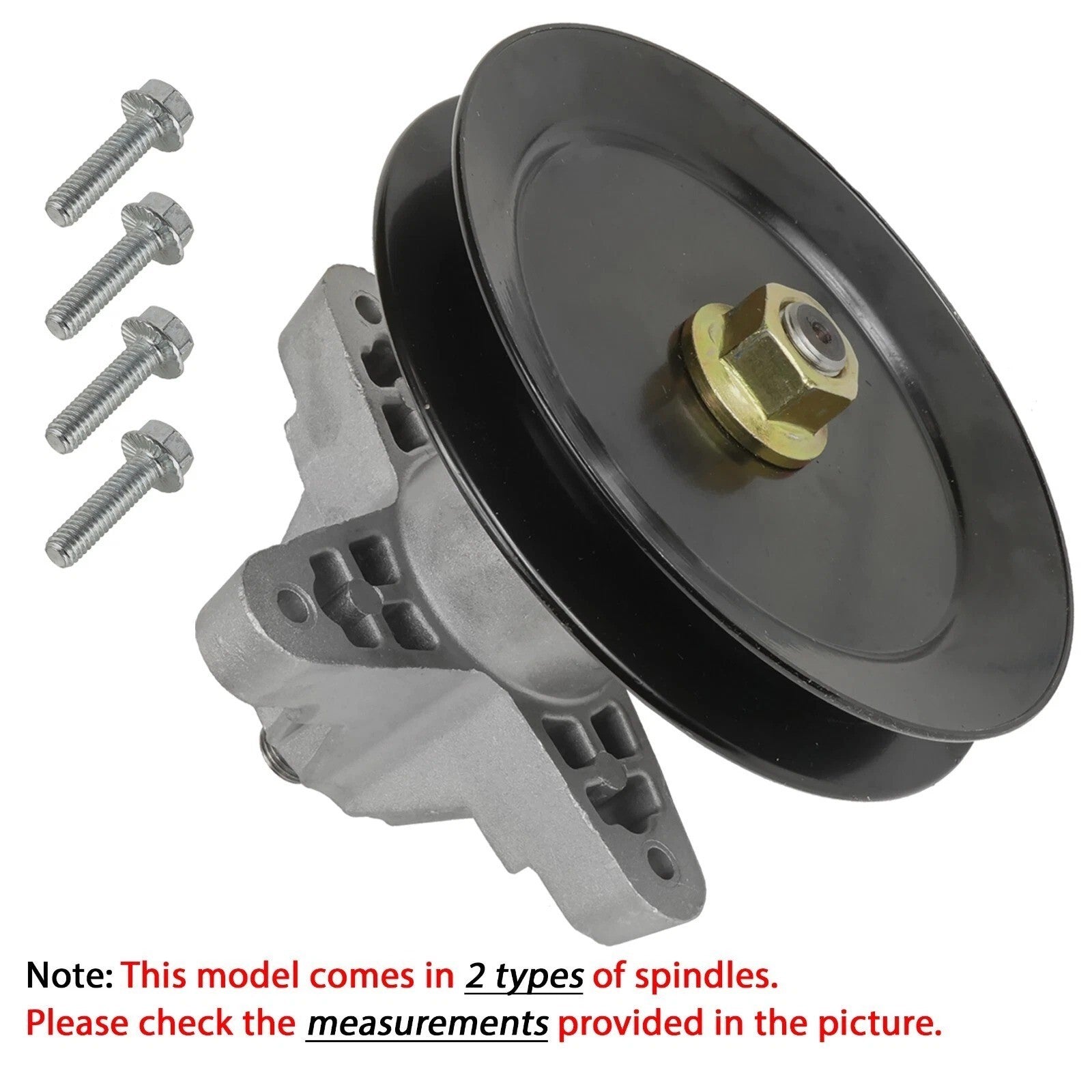

2 x Spindle Assembly: 618-04456, 618-04456A, 618-04456B,  618-0624B, 918-0624B, 6180624B, 9180624B, 618-04461, 618-04461A, 918-04456, 918-04456A, 918-04456B, 918-04461, 918-04461A, 112-0460, 918-0624B, 285-843, 61804456, 61804456A, 61804456B, 61804461, 61804461A, 91804456, 91804456A, 91804456B, 91804461, 91804461A, 1120460, 9180624B, 285843


Height:  152 mm - 5․9"
Mounting Hole Distance: 89․5 mm - 3.52"
Outer Diameter: 157mm - 6․1"
Material: Aluminium
Thread Size - M16-1.5

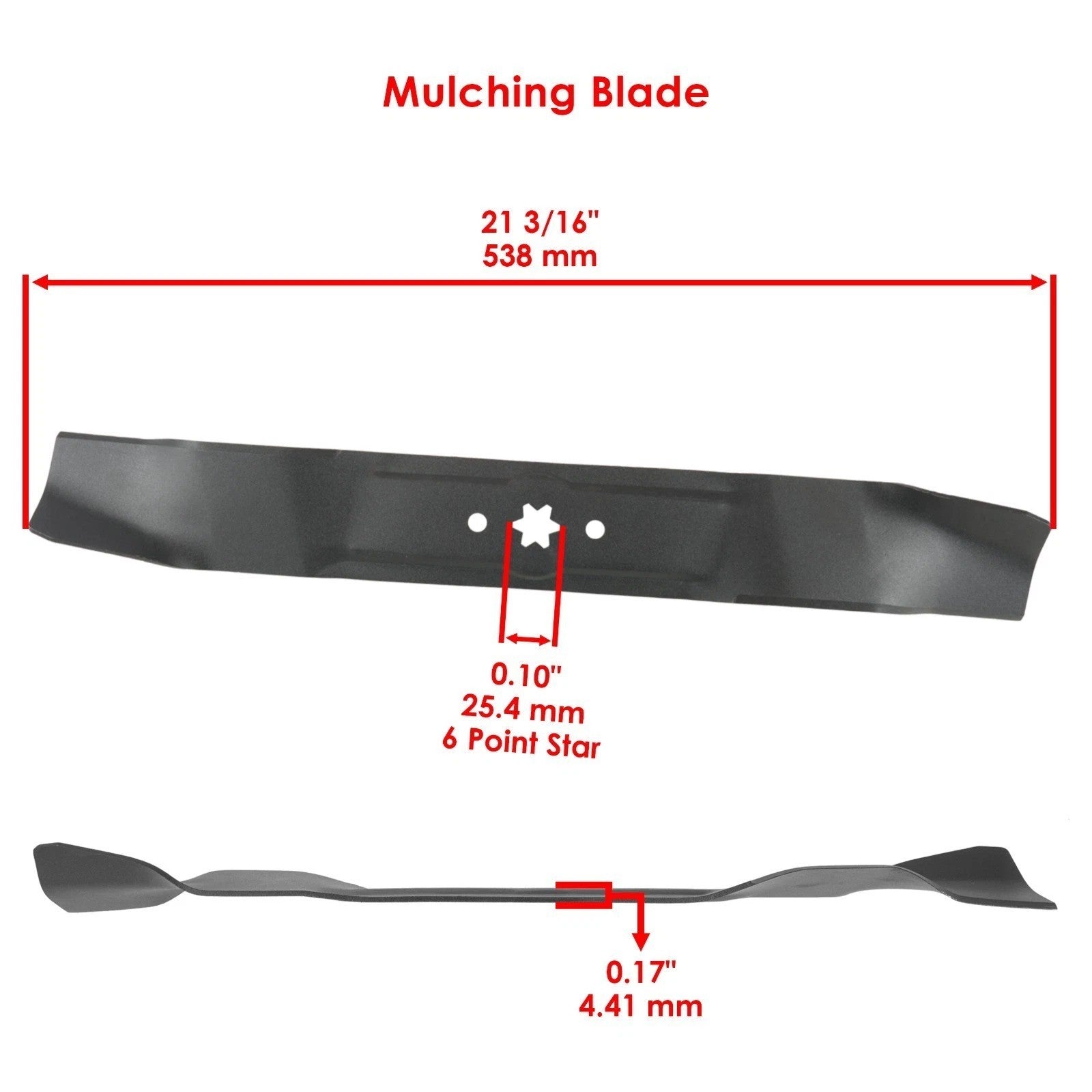

2 x Deck Blade: SPM214685078, 490-110-C109, 490-110-C122, 742-04087, 742-04126, 742-0616, 742-0616A, 942-04087, 942-04126, 942-0616, 942-0616A, 490-110-M115, 112-0315, 98022, 742-0616A-0637, GW-7420616, 335-807, 335-711, 490110C109, 490110C122, 74204087, 74204126, 7420616, 7420616A, 94204087, 94204126, 9420616, 9420616A, 490110M115, 1120315, 98022, 7420616A0637, GW7420616, 335807, 335711


Length: 533․4 mm - 21"
Width: 69․9 mm - 2․75"
Thickness: 4.41 mm - 0.17"
Mounting Hole Distance: 64 mm - 2․52"
Center Hole 6 Point Star
Hole Diameter: 25․4 mm - 1"
Material: Steel


2 x Flange Nut: 712-0417A, 753-05549, 712-0417, 712-0417AP, 912-0417A, 112-0330, 285-118, 7120417A, 75305549, 7120417, 7120417AP, 9120417A, 1120330, 285118


Width: 13.9 mm - 0.54"
Inner Diameter: 14.5 mm - 0.57"
Outer Diameter: 36.6 mm - 1.43"
Material:  Iron

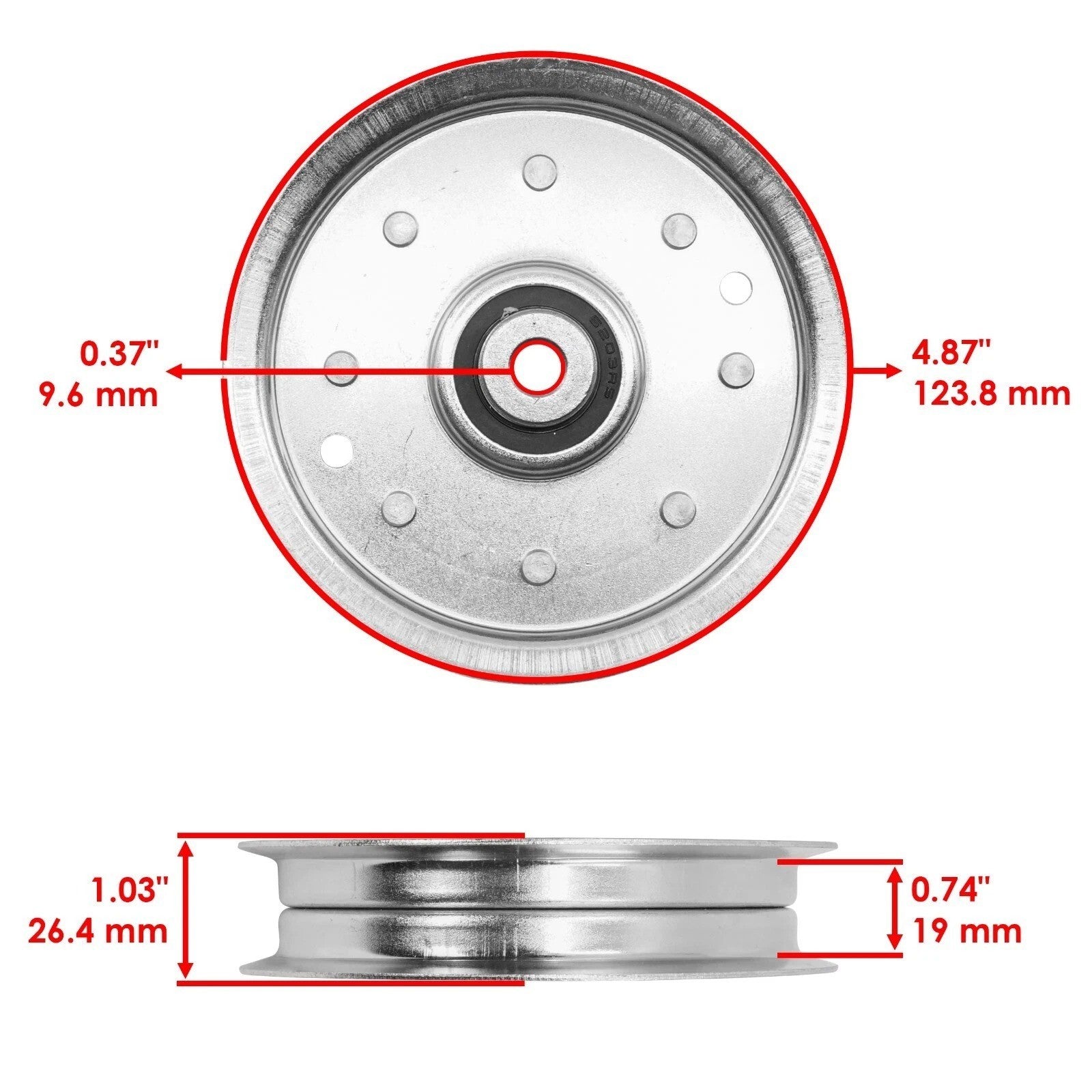

2 x Idler Pulley: 753-08068A, 753-08171, 756-04129, 756-04129B, 756-04129C, 956-04129, 956-04129C, 756-05042, 112-0314, 112-6277, 280-646, 75308068A, 75308171, 75604129, 75604129B, 75604129C, 95604129, 95604129C, 75605042, 1120314, 1126277, 280646

Width: 26․4 mm - 1.03"
Inner Diameter: 9.6mm - 0.37"
Outer Diameter: 123․8 mm - 4.87"
Material: Steel


1 x Belt : 754-04045, 954-04045, 112-5800, 265-195, 75404045, 95404045, 1125800, 265195

Width : 13.31mm - 0․52"
Thikness: 8․75mm - 0․34"
Overall Length : 2768.6mm - 109"
Material: Polyester
