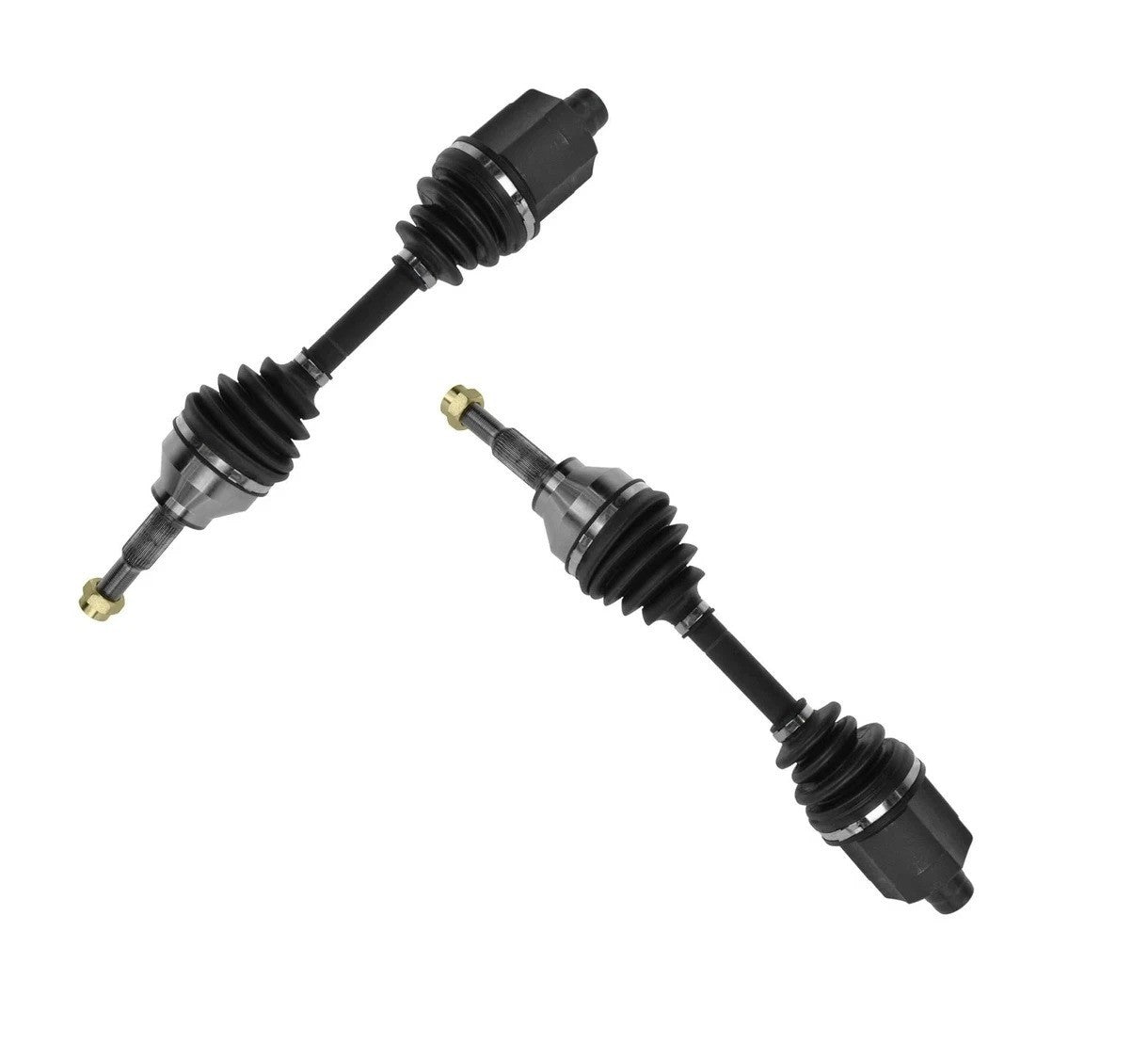

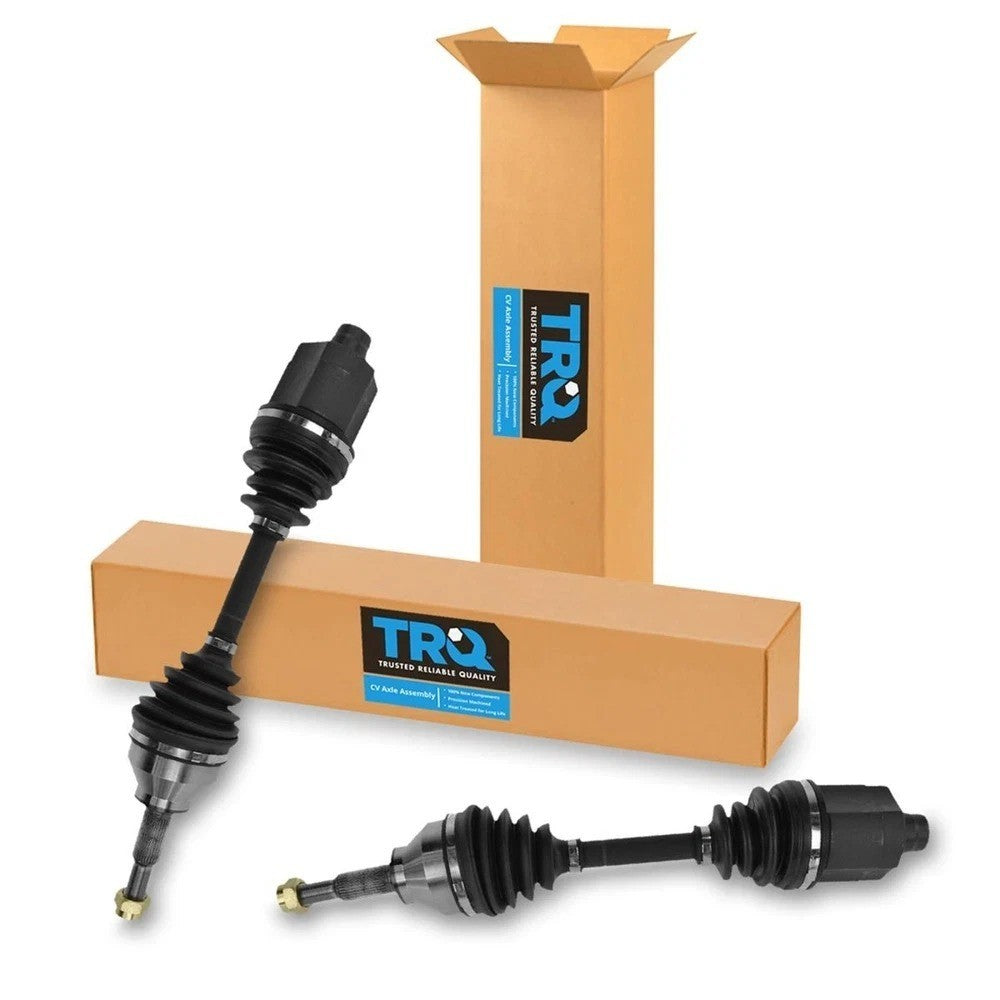

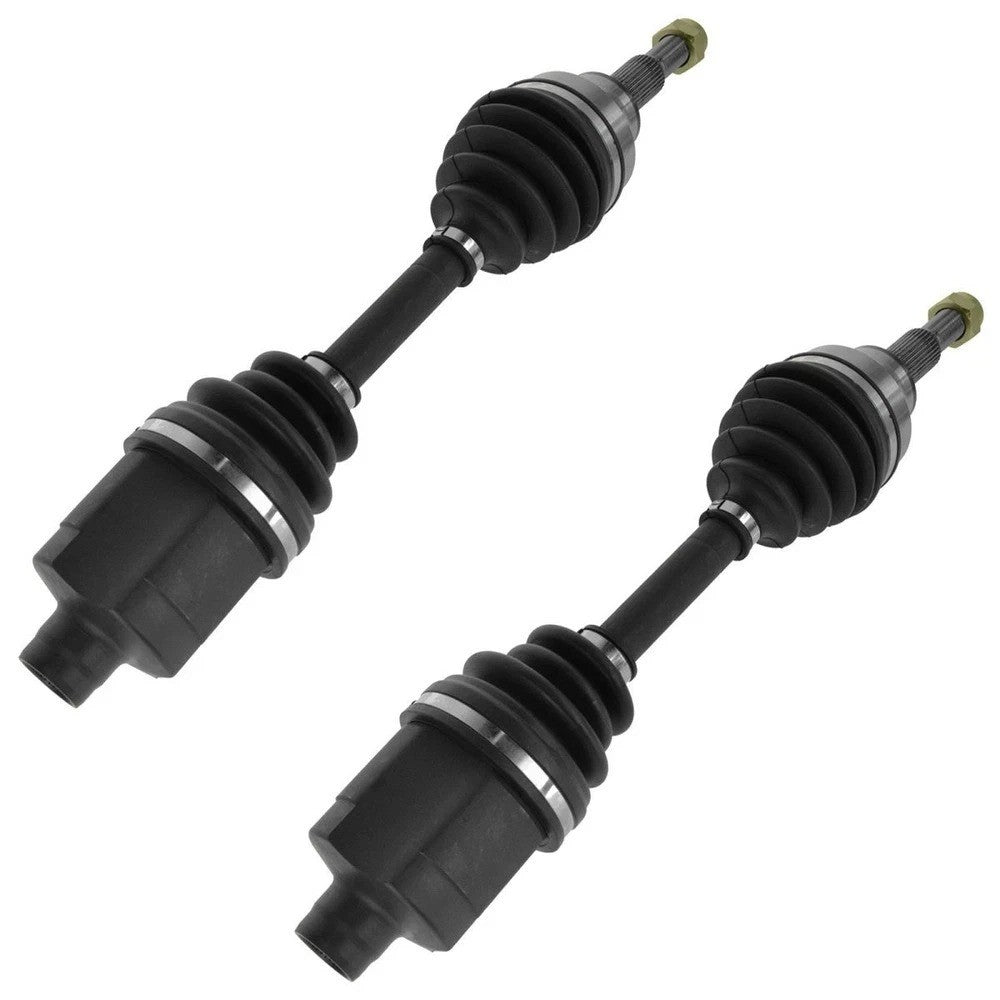

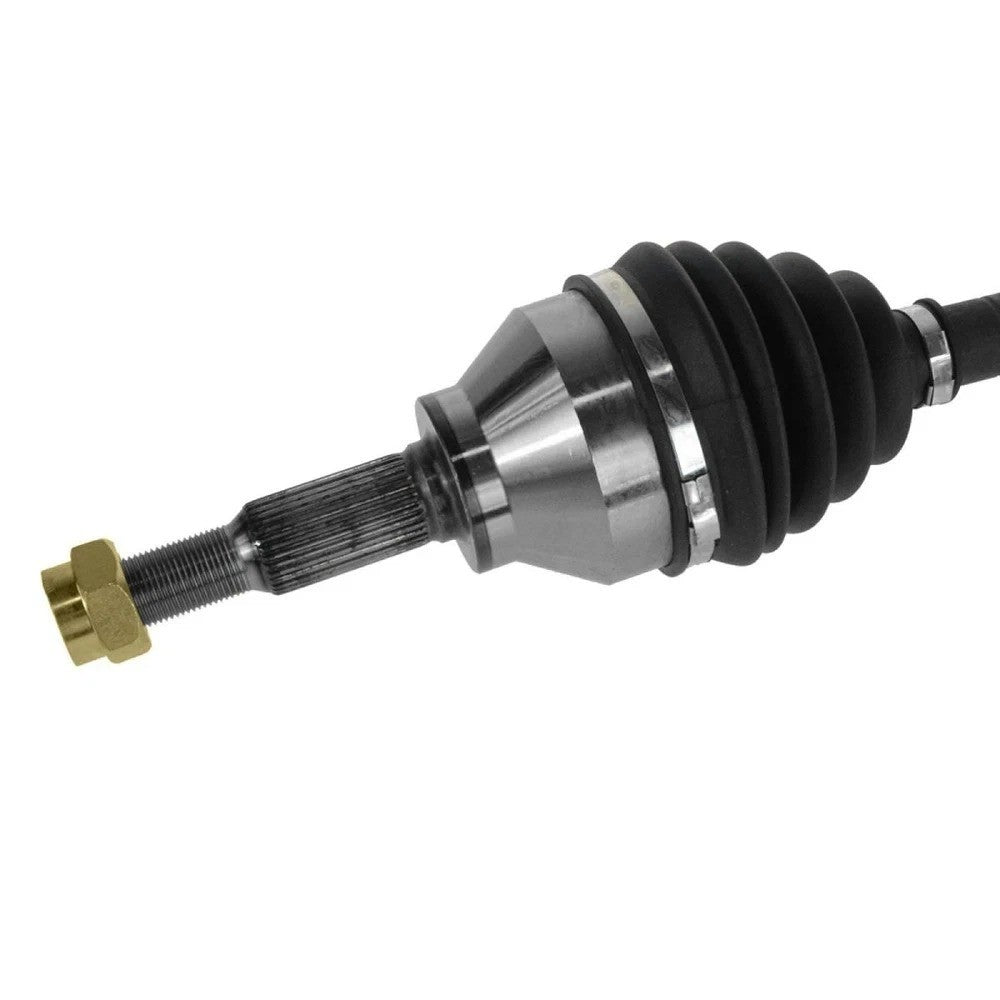

Front CV Axle Shaft Assembly Pair

Smooth Power Delivery for 2005–2011 GM Delta Platform Vehicles

Eliminate drivetrain vibrations, shuddering during acceleration, and clicking noises while turning with this premium 2-Piece Front CV Axle Shaft Set. Engineered as a direct-fit replacement for the Chevrolet Cobalt, HHR, Pontiac G5, and Saturn Ion, these axles (half-shafts) efficiently transfer torque from your transmission to the front wheels. This set is specifically calibrated for vehicles equipped with Automatic Transmissions, ensuring the spline counts and shaft lengths match factory requirements for a vibration-free ride.

Each assembly is constructed from high-strength heat-treated steel with precision-machined internal races and cages to reduce friction and thermal buildup. The units come fully loaded with high-grade neoprene boots, which offer superior resistance to ozone and road debris, and are pre-packed with specialized molybdenum grease to protect the Constant Velocity (CV) joints under extreme load.

Fitment Verification and Vehicle Applications

This pair is designed for the Front Driver and Passenger sides on the following models with Automatic Transmissions:

• Chevrolet Cobalt: 2005, 2006, 2007, 2008, 2009, 2010 (All 2.2L & 2.4L trims).

• Chevrolet HHR: 2006, 2007, 2008, 2009, 2010, 2011 (Includes LS, LT, and Panel models).

• Pontiac G5: 2007, 2008, 2009.

• Saturn Ion: 2005, 2006, 2007.

• Fitment Note: This set is designated for Automatic Transmission models only. It is not compatible with Manual Transmission (5-speed) or the Cobalt SS Supercharged/Turbocharged variants which utilize heavy-duty 27-spline or 30-spline architectures.

Technical Specifications and Attributes

• Quantity: 2-Piece Set (Left and Right Axles).

• Transmission Type: Automatic.

• Boot Material: Heavy-Duty Neoprene (Resistant to cracking and leaking).

• Joint Type: Constant Velocity (CV) with internal moly-grease.

• Construction: Precision-rolled splines and threads for easy installation.

• Fitment Type: Direct Replacement / Bolt-on.

What’s in the Box

• (1) Front Driver Side CV Axle Assembly

• (1) Front Passenger Side CV Axle Assembly

• (2) New Axle Spindle Nuts (Recommended for replacement upon install)

Industry Cross-Reference Numbers

• General Motors / Chevrolet: 10359409, 10359410, 22710926, 10382154

• CARDONE: 66-1376, 661376

• GSP: NCV10617

• Hollander: 447-00100, 447-00101

Installation and Technical Tips

• Transmission Seal Replacement: When removing the old axles, the inner splines slide through the transmission output seals. These seals are easily nicked and often leak after a high-mileage axle swap. It is highly recommended to install new Transmission Output Shaft Seals while the axles are removed.

• Ensure Positive Engagement: When inserting the new axle into the transmission, you should hear or feel a "click" as the internal circlip snaps into the side gear. After installation, give the inner "tulip" housing a firm pull outward; if it moves, the clip is not seated, which can cause fluid leaks or transmission damage.

• Torque to Specification: Always use a calibrated torque wrench for the 30mm axle nut. Avoid using an impact wrench for the final tightening, as excessive vibration can damage the internal wheel bearing or crush the CV joint's internal shoulder.

• Fluid Level Check: Be prepared for a small amount of transmission fluid to drain when the inner joints are removed. Ensure you have a drain pan ready and check your transmission fluid levels via the dipstick or fill plug after the job is complete.
