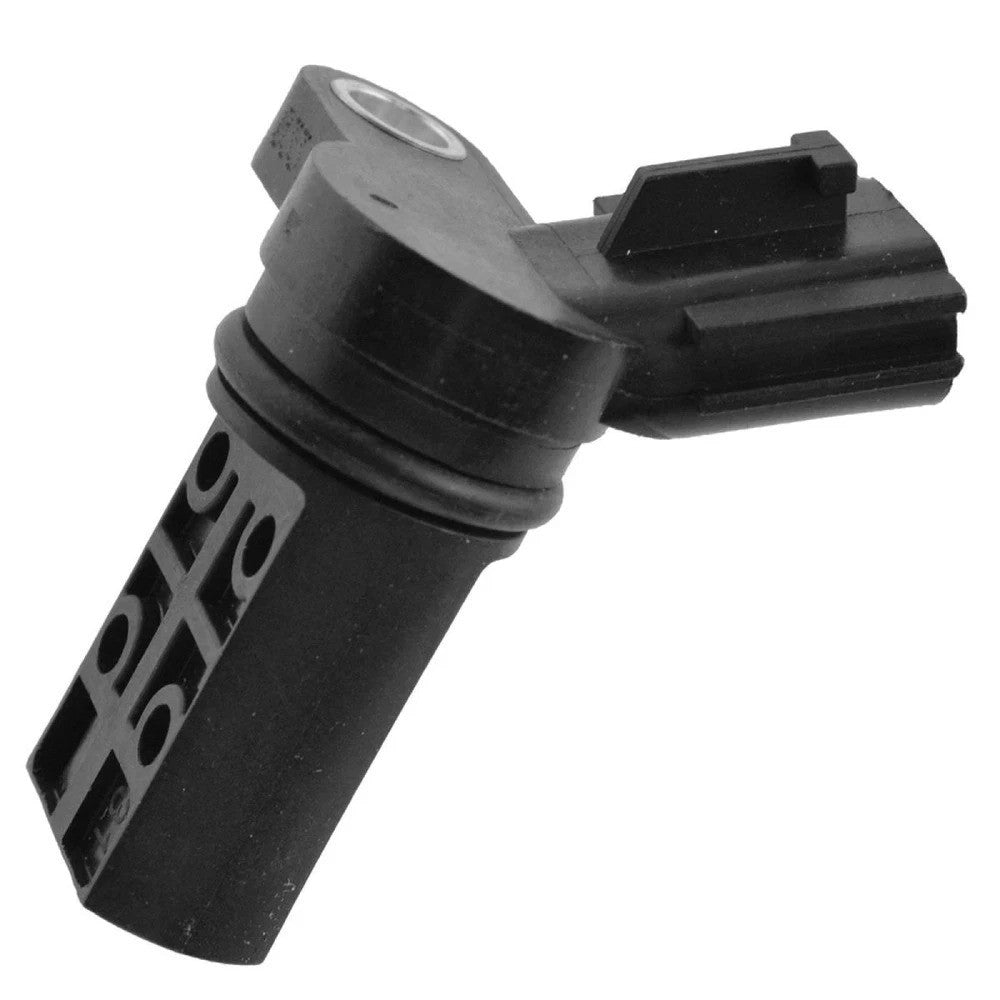

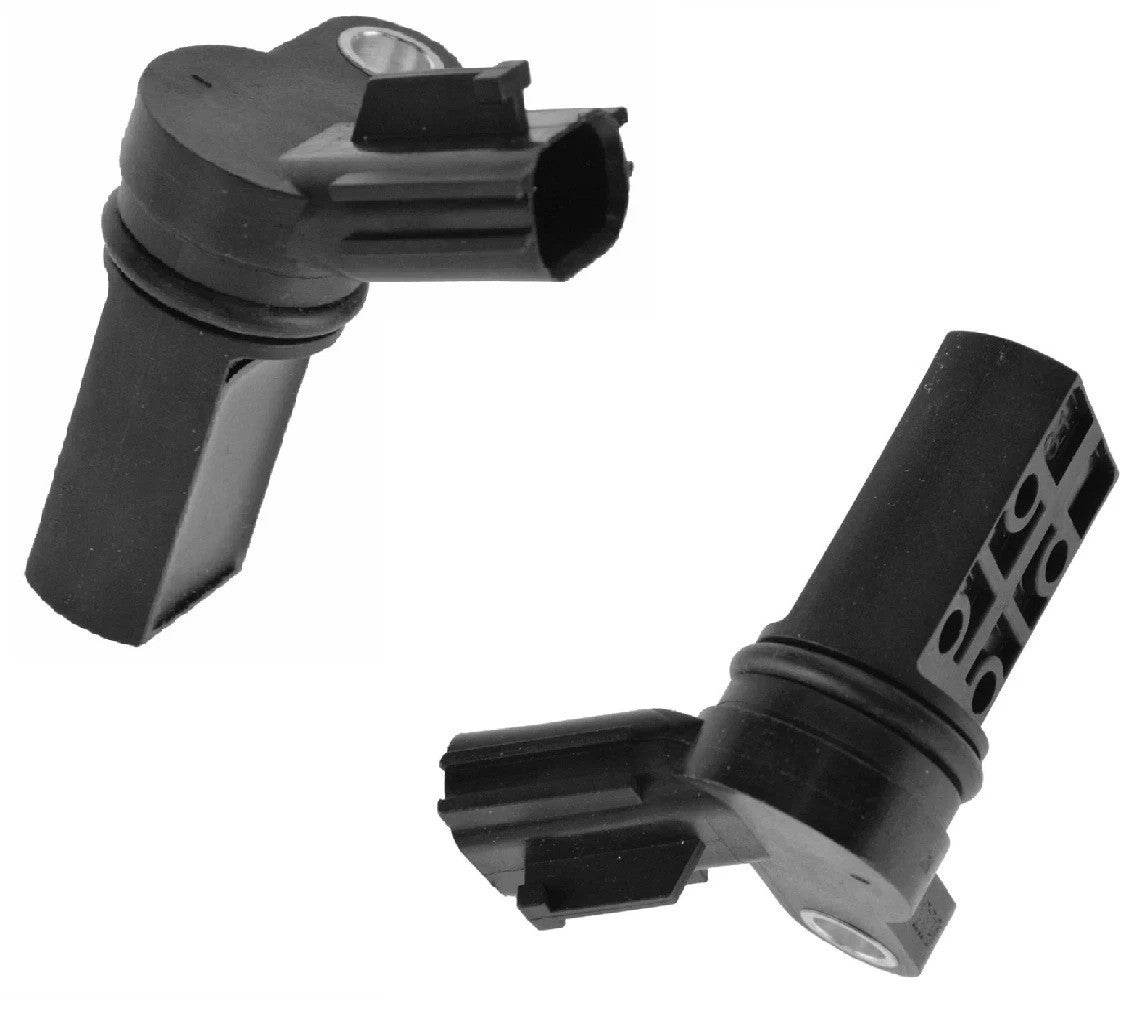

Engine Crankshaft and Camshaft Position Sensor

Critical Timing Support for Nissan and Infiniti V8 & L4 Engines

Ensure your engine runs with factory-level precision using this High-Performance Position Sensor. This component is a vital part of your vehicle's electronic management system, providing the Engine Control Unit (ECU) with the exact rotational position of the crankshaft or camshaft. This data is mandatory for the ECU to calculate the correct ignition timing and fuel injection pulses, ensuring smooth idling, rapid acceleration, and optimal fuel economy.

Fabricated with premium, heat-resistant composite materials, this sensor is designed to withstand the high-temperature environment of the engine block. It features a high-sensitivity electromagnetic pick-up to maintain signal integrity across all RPM ranges. Replacing a faulty sensor can resolve common issues such as intermittent stalling, hard starting, loss of power, and "Check Engine" light codes related to timing synchronization.

Fitment Verification and Vehicle Applications

This sensor is designed for the following vehicle applications:

• Infiniti FX45: 2003, 2004, 2005, 2006, 2007, 2008.

• Infiniti M45 / Q45: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010.

• Infiniti QX56: 2004, 2005, 2006, 2007, 2008, 2009, 2010.

• Nissan Armada: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015.

• Nissan Titan: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015.

• Nissan Pathfinder (5.6L V8): 2004, 2008, 2009, 2010, 2011, 2012.

• Nissan NV 2500 / 3500 (5.6L V8): 2012, 2013, 2014, 2015, 2016, 2017.

• Nissan Sentra (1.8L L4): 2000, 2001, 2002, 2003, 2004, 2005, 2006.

• Fitment Note: For 2001–2004 Sentra models, please verify if your vehicle requires the Angled Plug design to ensure a proper harness connection.

Technical Specifications and Attributes

• Signal Type: Hall Effect / Magnetic Induction.

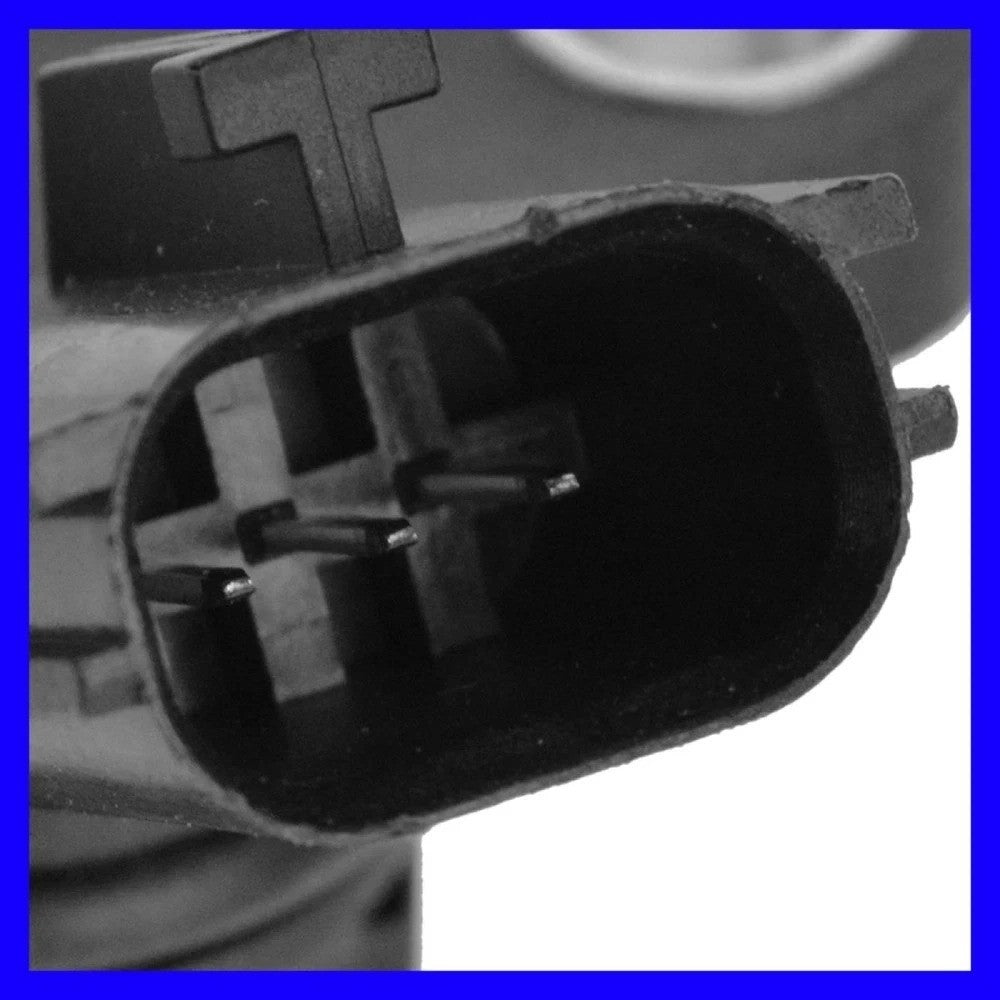

• Connector Style: Direct-Fit Plug-and-Play.

• Seal Type: Pre-installed O-ring for a leak-free fit.

• Material: Reinforced Thermal-Plastic.

• Grade Type: Standard Replacement.

• Installation: Single-bolt flange mounting.

What’s in the Box

• (1) Engine Position Sensor (Crankshaft/Camshaft dependent on application)

Industry Cross-Reference Numbers

• Nissan / Infiniti: 23731-4M500, 23731-4M506, 23731-5M006, 23731-5M000

• Dorman: 907-717

• Standard Motor Products: PC462 / PC462T

• Beck/Arnley: 180-0397

• Walker Products: 235-1085

• Delphi: SS10932

Installation and Technical Tips

• Verify the Harness: Before replacing the sensor, inspect the electrical connector for oil contamination or brittle wiring. Clean the connector with electrical contact cleaner if residue is found to ensure a clear signal.

• The "Angled" Check: Many Nissan 1.8L engines used both straight and angled connectors for the camshaft and crankshaft sensors. Visually compare your old sensor to the new unit to ensure the plug orientation matches your wiring harness.

• Lubrication: Apply a small amount of clean engine oil to the sensor’s O-ring before installation. This prevents the rubber from tearing or binding during insertion, ensuring a proper seal against the engine block.

• Code Clearing: Once the repair is complete, use an OBD-II scanner to clear any stored P0335 or P0340 fault codes. This allows the ECU to start fresh with the new sensor's data and ensures the "Check Engine" light stays off.
