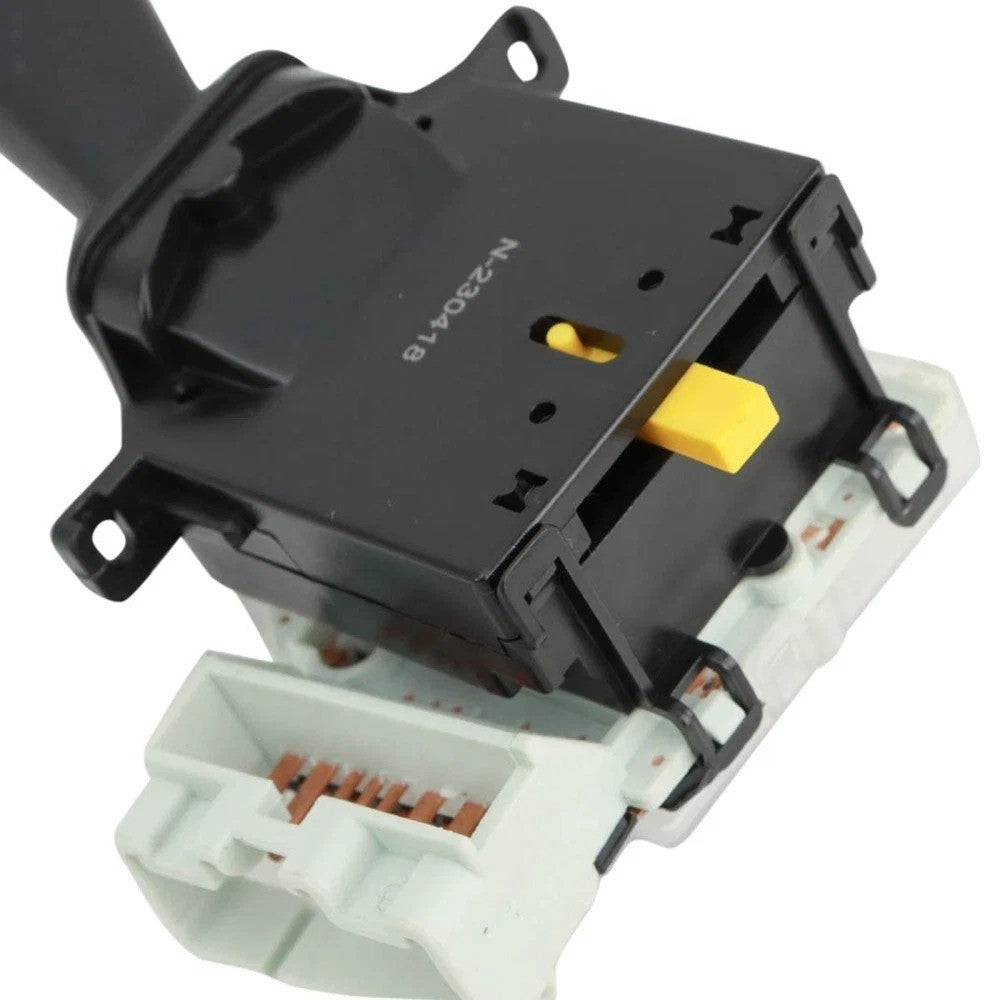

Multi-Function Steering Column Combination Switch

Premium Turn Signal and Headlight Control for 2008–2014 Subaru Models

Restore complete functionality to your vehicle's lighting and signaling systems with this high-quality Steering Column Combination Switch. Designed as a direct-fit replacement for the 2008–2014 Subaru platform, this stalk manages essential safety operations, including turn signals, headlight activation, and high-beam dimming. This specific version is engineered to support models equipped with factory-integrated fog lights, featuring the secondary rotating collar for seamless auxiliary lighting control.

Over years of use, the internal copper contact points in the steering column can wear down or develop carbon tracking, leading to flickering headlights, turn signals that fail to cancel, or high beams that will not stay engaged. This replacement unit features high-conductivity terminals and reinforced internal springs to provide a crisp, tactile "click" and reliable electrical continuity for years to come.

Fitment Verification and Vehicle Applications

This combination switch is designed for the following Subaru models, specifically those equipped with Fog Light controls:

• Subaru Forester: 2009, 2010, 2011, 2012, 2013.

• Subaru Impreza (Including WRX/STI): 2008, 2009, 2010, 2011, 2012, 2013, 2014.

• Subaru Legacy: 2008, 2009.

• Subaru Outback: 2008, 2009.

• Fitment Note: Please confirm your vehicle has the rotating fog light switch on the turn signal stalk. While this switch will fit non-fog light models, the extra switch position will remain inactive unless the vehicle is pre-wired for auxiliary lighting.

Technical Specifications and Attributes

• Functionality: Controls Turn Signals, Headlights (High/Low Beam), Parking Lights, and Fog Lights.

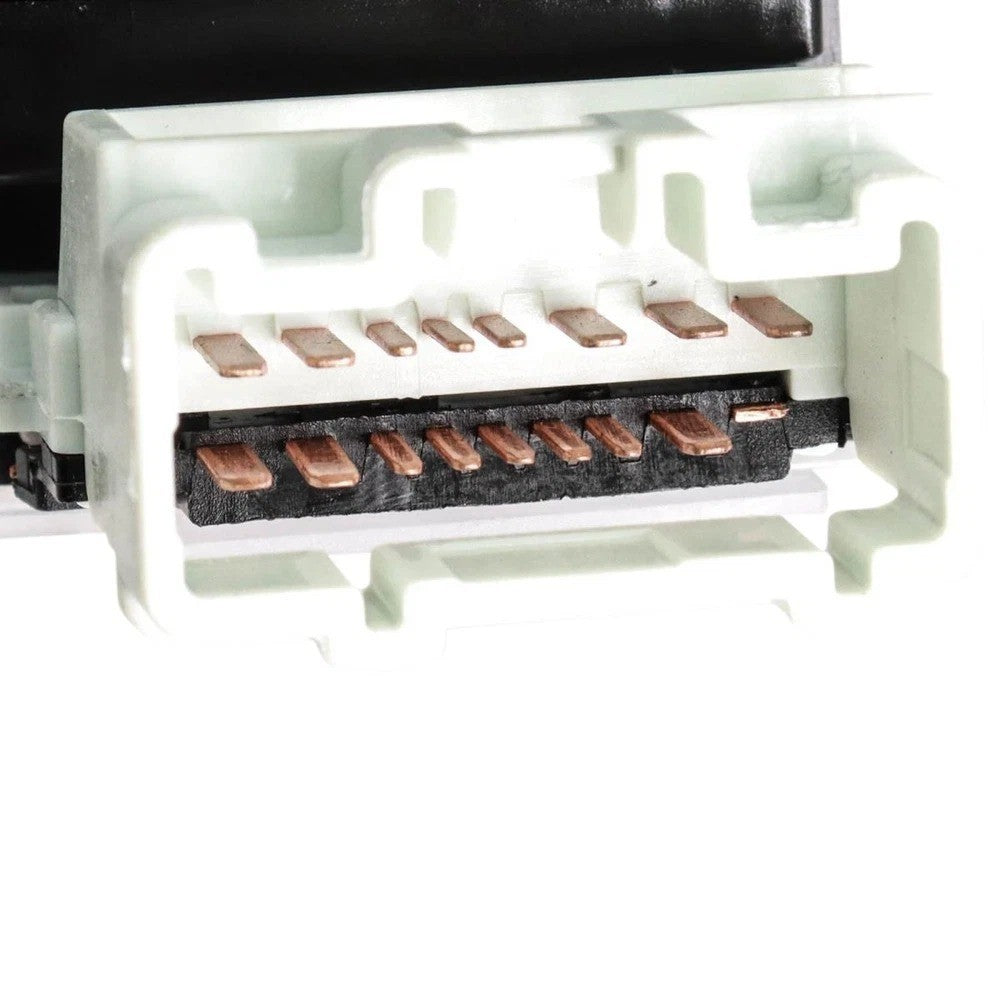

• Connector Type: Multi-pin, vehicle-specific plug-and-play interface.

• Material: Heat-stabilized ABS Plastic and High-Purity Copper contacts.

• Stalk Finish: Satin Black with durable, high-contrast white iconography.

• Design: Direct-fit replacement for the steering column assembly.

What’s in the Box

• (1) Multi-Function Combination Switch (Turn Signal/Headlight/Fog Light Stalk)

Industry Cross-Reference Numbers

• Standard Ignition: CBS-2034

• Subaru: 83115FG080, 83115AG00A, 83115FG000

• Interchange: CBS1826, 1S10889, 901-073

Installation and Technical Tips

• Disconnect the Battery: Since you are working in close proximity to the Supplemental Restraint System (SRS) clockspring and driver-side airbag, always disconnect the negative battery terminal and wait at least 10 minutes before beginning disassembly.

• Steering Shroud Removal: Most Subaru models require the removal of three screws on the underside of the steering column cover. Use a plastic trim tool to separate the upper and lower halves of the shroud to prevent marring the dashboard plastics.

• Clockspring Alignment: When sliding the switch onto the column, ensure you do not snag the clockspring wiring. The clockspring must remain centered to prevent the airbag light from illuminating or the internal ribbon cable from snapping during a full steering lock.

• Connector Integrity: Inspect your vehicle's wiring pigtail for signs of "pitting" or heat damage. If your factory headlights were upgraded to high-wattage bulbs without a relay, the increased amperage may have melted the plastic connector, which would require a pigtail repair in addition to the new switch.
