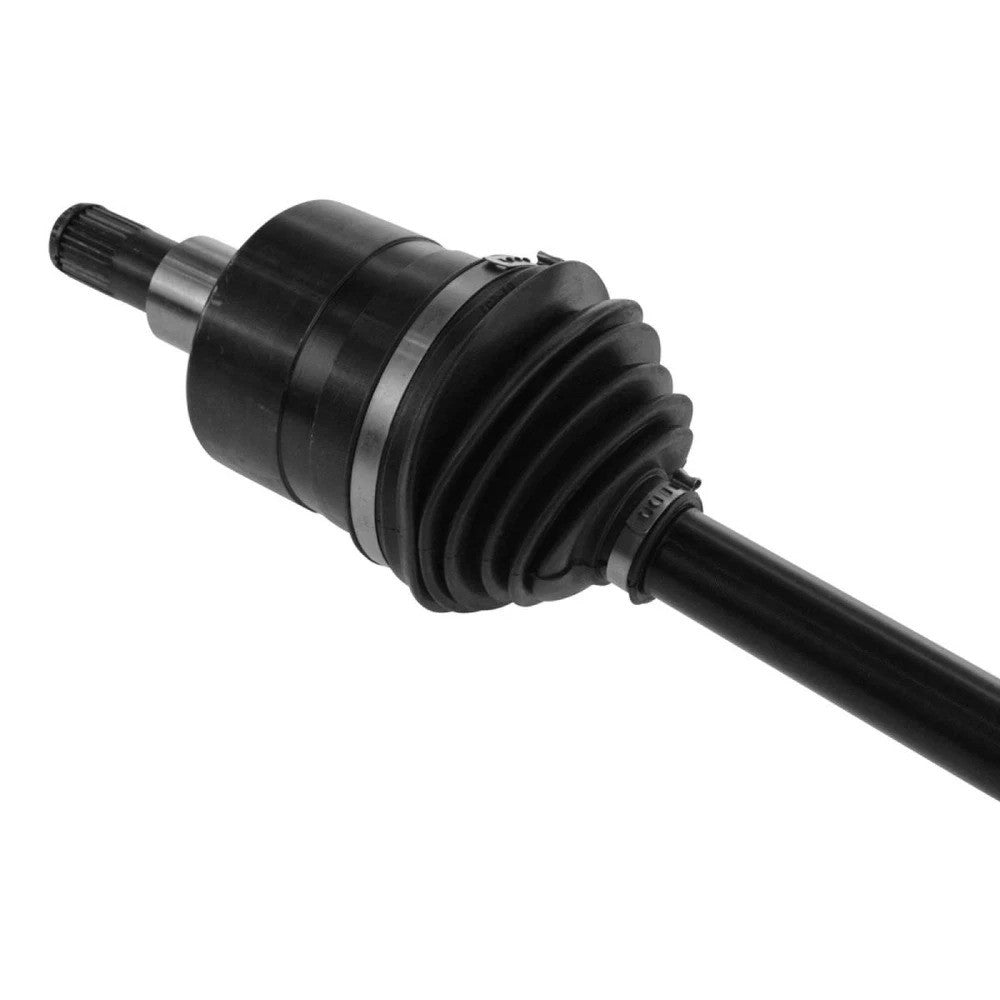

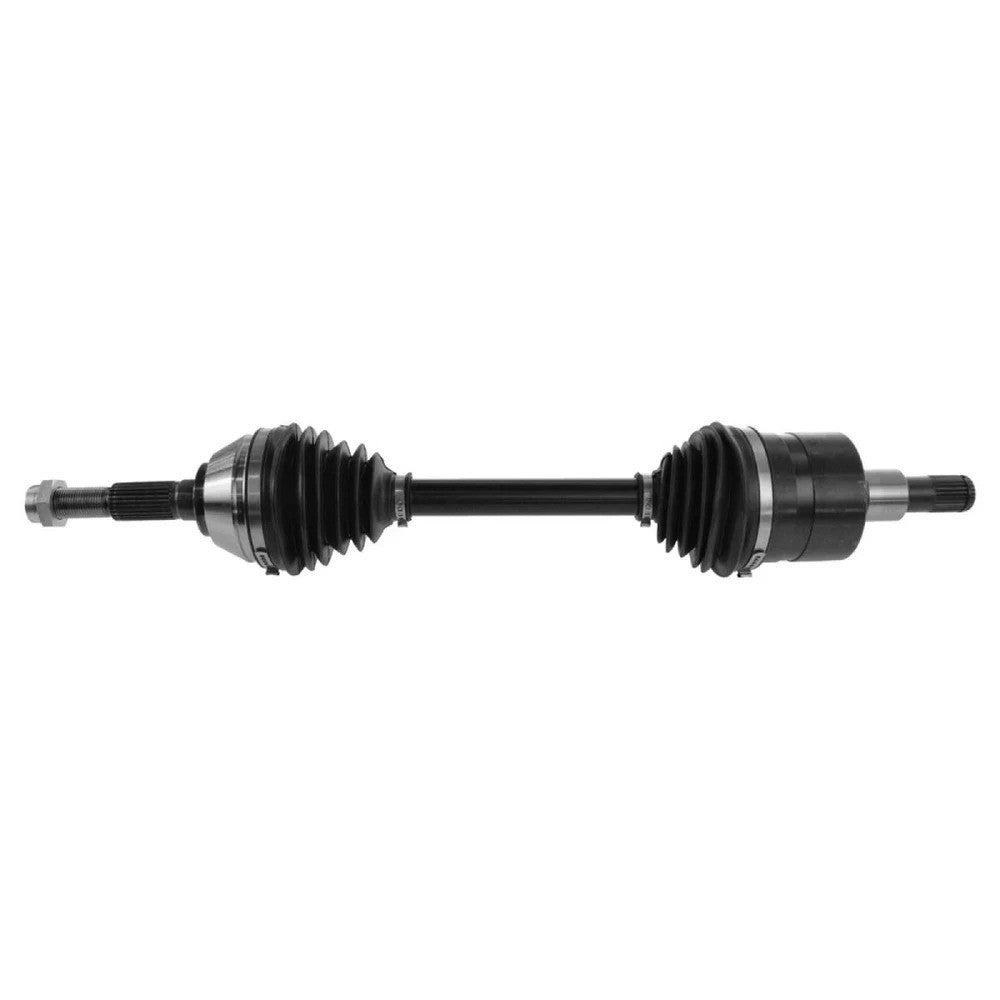

Front CV Axle Shaft Assembly

High-Torque Drivetrain Restoration for GM Mid-Size SUVs

Restore smooth, vibration-free power delivery to your wheels with this premium Front CV Axle Shaft Assembly. Specifically engineered for the GMT360 platform, this axle is a direct-fit solution for the common clicking, popping, or binding noises associated with worn constant velocity joints. Whether you are navigating rugged 4WD terrain or utilizing an AWD system on the highway, this assembly ensures consistent rotation and reliable torque transfer.

Each axle is constructed with precision-machined internal cages, races, and bearings, lubricated with high-temperature molybdenum grease. The joints are protected by heavy-duty Neoprene boots, which offer superior resistance to ozone, road debris, and extreme temperature fluctuations—preventing the boot failure that is the leading cause of CV joint contamination.

Fitment Verification and Vehicle Applications

This axle is interchangeable for the Front Driver Side (LH) or Front Passenger Side (RH) on the following 4WD and AWD models:

  • Chevrolet Trailblazer & EXT: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009.

  • GMC Envoy, XL, & XUV: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009.

  • Buick Rainier: 2004, 2005, 2006, 2007.

  • Oldsmobile Bravada: 2002, 2003, 2004.

  • Isuzu Ascender: 2003, 2004, 2005, 2006, 2007, 2008.

  • Saab 9-7X: 2005, 2006, 2007, 2008, 2009.

Technical Specifications and Attributes

  • Inboard Spline Count: 26

  • Outboard Spline Count: 27

  • Compressed Length: 27.64 inches (702 mm)

  • Axle Nut Thread Size: M24 x 2.0

  • Axle Nut Socket Size: 35 mm (1.38 in)

  • Joint Type: Male Inboard and Outboard

  • Boot Material: Premium Neoprene

  • ABS Tone Ring: Not Included (This platform typically utilizes hub-mounted ABS sensors)

  • Hardware: New Axle Nut included

What’s in the Box

  • (1) Complete Front CV Axle Assembly

  • (1) High-Strength Axle Nut

Industry Cross-Reference Numbers

  • General Motors / Buick / Saab: 26079789

  • Isuzu: 8260797890

  • CARDONE: 66-1345, 661345

  • GSP: NCV10248

  • TRQ: CSA82129

Installation and Technical Tips

  • Torque Accuracy: Use a calibrated torque wrench to tighten the new axle nut to the factory specification (typically 103 lb-ft for this platform). Improper torque can lead to premature wheel bearing failure or damaged CV threads.

  • Differential Seal Inspection: Before installing the new axle, inspect the differential output seals for leaks. It is highly recommended to replace these inexpensive seals while the axle is removed to prevent future fluid loss.

  • Avoid Joint Over-Extension: When handling the axle during installation, do not allow the joints to over-extend or "hang" by their own weight. Over-extension can cause the internal tripod bearings to pop out of their races.

  • Spline Preparation: Clean the hub and differential splines with a wire brush and apply a light coat of anti-seize or clean gear oil to ensure a smooth installation and prevent future seizing.
