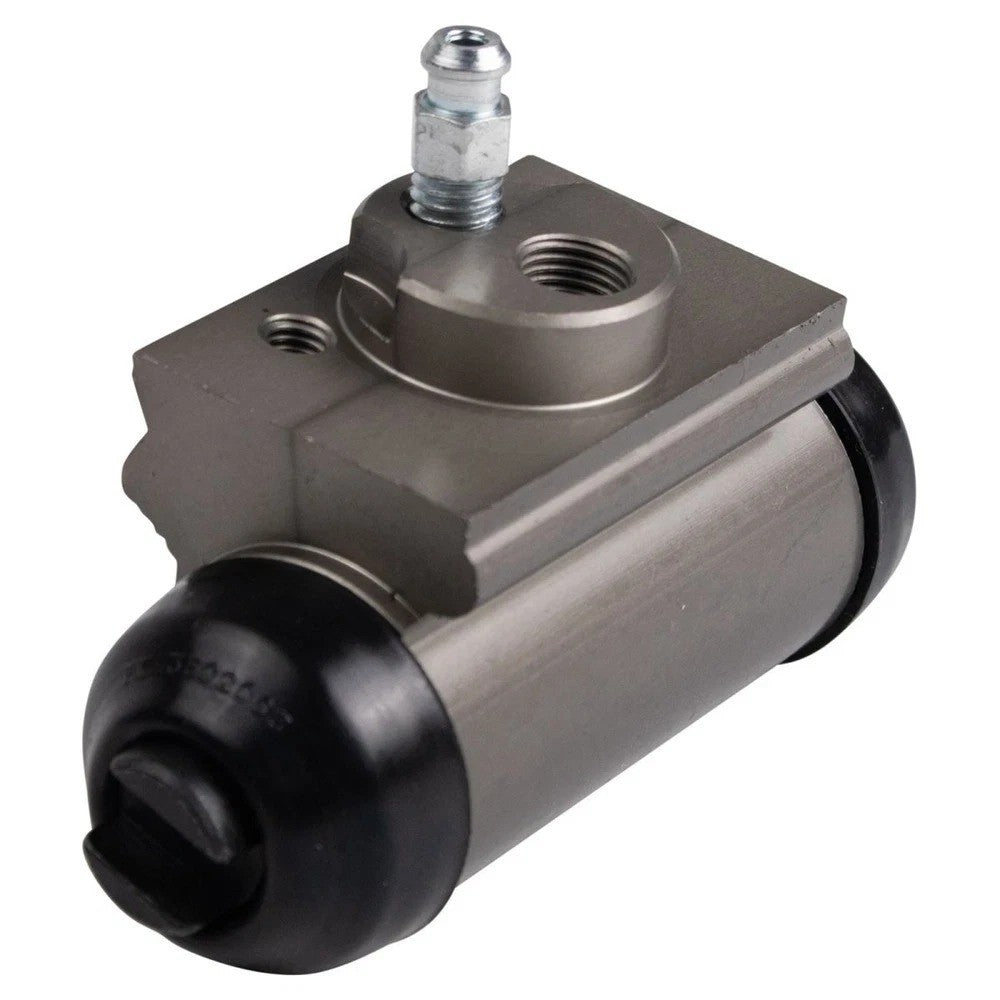

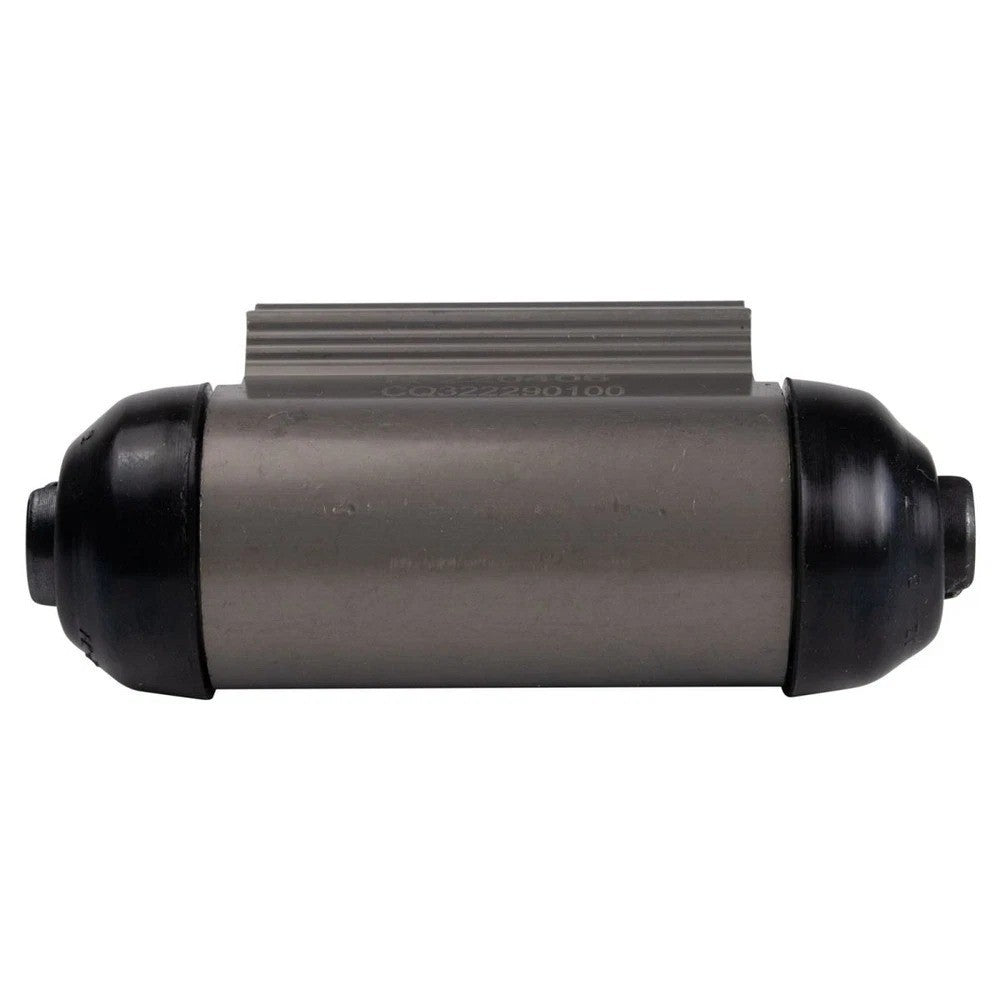

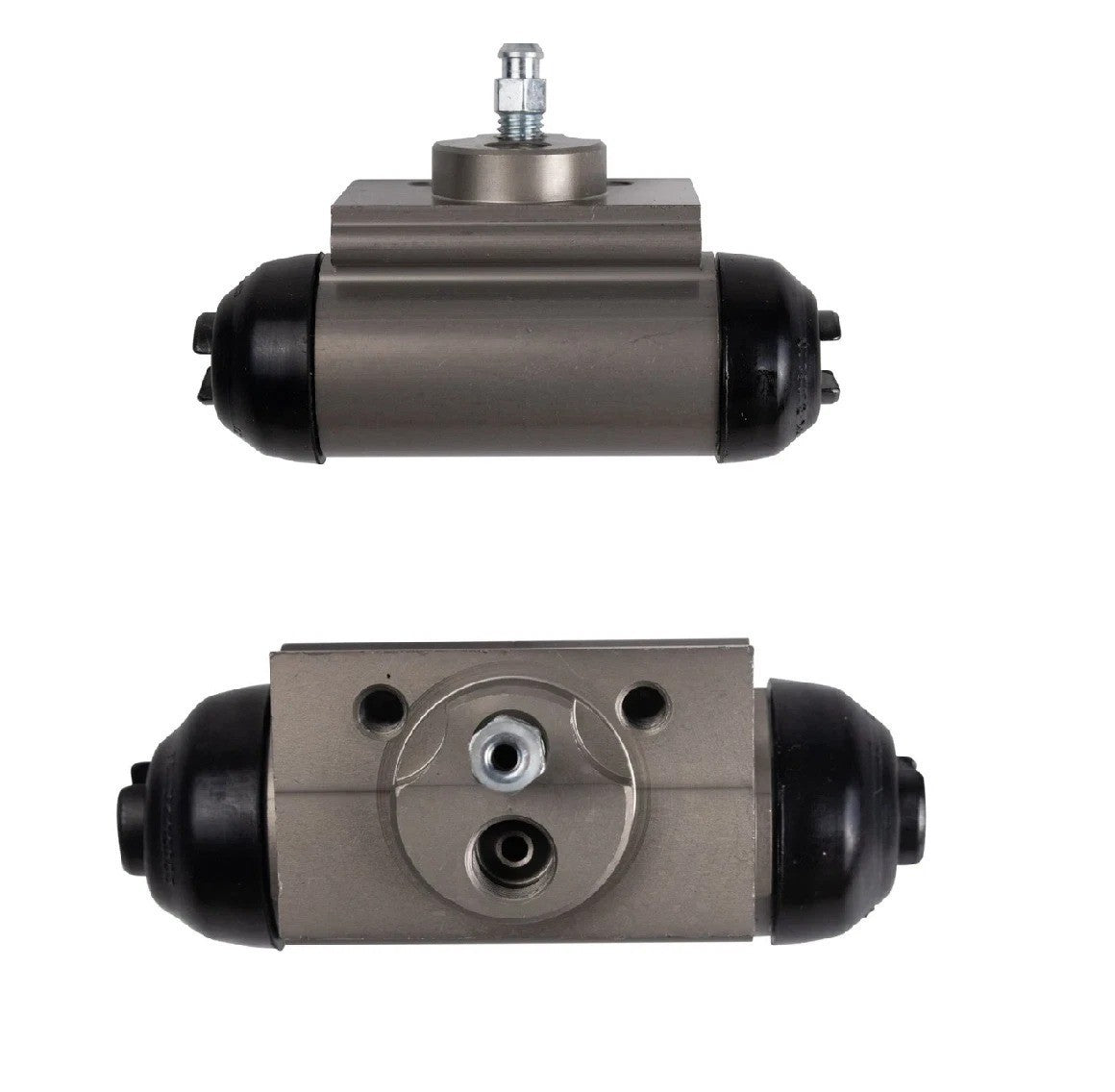

Brake Wheel Cylinder for Chevy Colorado GMC Canyon Isuzu i-280 i-290 i-350
Regular price
$54.02
Rear Drum Brake Wheel Cylinder
High-Performance Hydraulic Pressure for Colorado, Canyon, and i-Series Pickups
Ensure the safety and responsiveness of your truck's braking system with this Premium Rear Brake Wheel Cylinder. As the primary actuator in a drum brake system, the wheel cylinder converts hydraulic pressure from the brake lines into the mechanical force required to expand the brake shoes against the drums. Over time, heat and moisture can cause internal seals to leak or the cylinder bore to pit, resulting in a soft brake pedal and dangerous loss of stopping power.
This replacement unit is manufactured from high-grade aluminum, offering superior corrosion resistance compared to traditional cast iron. Equipped with heat-resistant EPDM rubber seals, it is designed to prevent fluid bypass and maintain a firm, consistent pedal feel under heavy load or towing conditions.
Fitment Verification and Vehicle Applications
This wheel cylinder is designed for the Rear Left (Driver) or Right (Passenger) side on the following models:
Chevrolet Colorado: 2004, 2005, 2006, 2007, 2008.
GMC Canyon: 2004, 2005, 2006, 2007, 2008.
Isuzu i-280: 2006.
Isuzu i-290: 2007, 2008.
Isuzu i-350: 2006.
Isuzu i-370: 2007, 2008.
Fitment Note: While this cylinder fits both the driver and passenger sides, please verify your vehicle's specific production date and brake shoe size, as some later 2008 models may feature updated hydraulic configurations.
Technical Specifications and Attributes
Casting Material: Lightweight, Corrosion-Resistant Aluminum.
Cylinder Bore Diameter: 0.94 inches (23.81 mm).
Brake Line Inlet Thread: M10 x 1 (10 mm Diameter).
Inlet Fitting Thread Pitch: 1 mm.
Bleeder Screw Thread Size: M8 x 1.25.
Bleeder Screw Included: Yes (Includes protective dust cap).
Grade Type: Standard Performance Replacement.
What’s in the Box
(1) Aluminum Rear Brake Wheel Cylinder
(1) Bleeder Screw with Dust Cap
Industry Cross-Reference Numbers
Dorman - First Stop: W610121
Raybestos Brakes: WC370148
General Motors: 89040339
Installation and Technical Tips
Use a Flare Nut Wrench: To prevent rounding the 10mm brake line fitting, always use a flare nut (line) wrench. These fittings are often seized due to road salt and grime; applying penetrating oil 24 hours before the job can prevent snapping the line.
Mandatory System Bleeding: Any time the hydraulic system is opened, air must be removed. Bleed the brakes starting at the rear passenger side, then the rear driver side, to ensure a firm pedal.
Inspect the Backing Plate: Before mounting the new cylinder, clean the area on the backing plate where the cylinder sits. Any rust buildup here can cause the cylinder to sit at an angle, leading to uneven brake shoe wear or potential leaks.
Replace in Pairs: Hydraulic components typically wear at the same rate. Replacing both rear wheel cylinders simultaneously ensures balanced braking pressure and prevents the need for a second system bleed in the near future.
