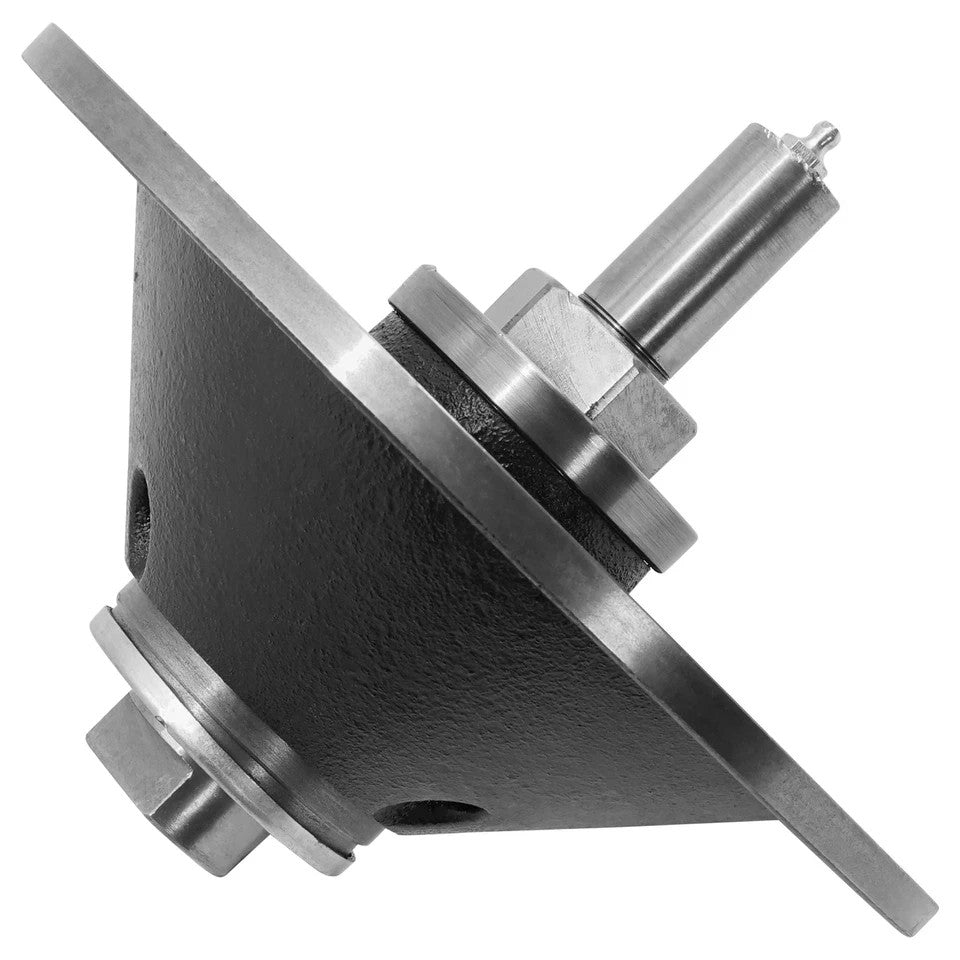

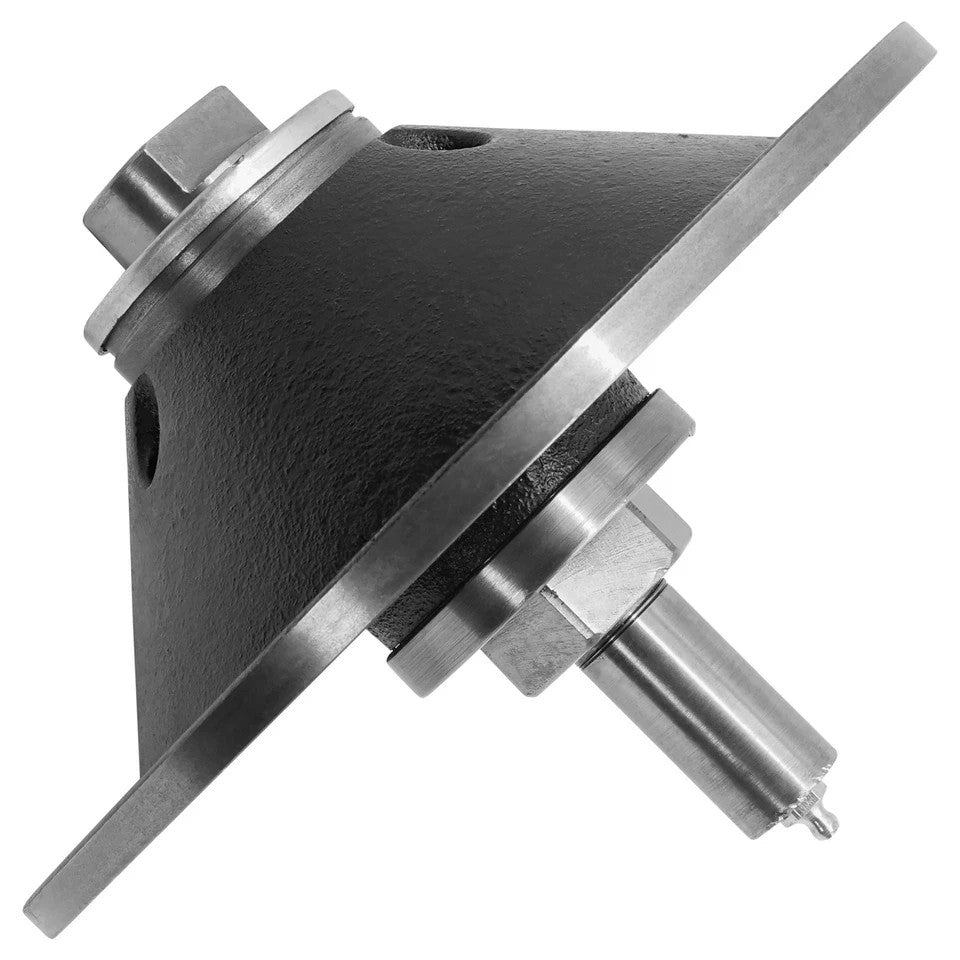

72" Deck Spindle for Snapper Pro S200XT S/N: 2016950123 to 2017458255 & Above
Regular price
$108.48
Premium Quality Replacement Part
Deck Spindle
Compatible with Snapper (S/N: 2016950123 to 2017458255 and above) Models :
Not Fits (S/N: 2016950122 & Below)
S 200XT (5900505) Pro 72"
S 200XT (5901287.0) Pro S200XT 72" 36hp B & S
S 200XT (5901287.1) Pro S200XT 72" 36hp B & S
S 200XT (5901511) Pro S200XT Series 72" 37hp B & S
S 200XT (5901667) Pro S200XT Series 72" 37hp B & S
S 200XT (5902098) Pro S200XT Series 72" 37hp B & S
Compatible with Simplicity Models :
5901798 Cobalt LE 61" 37hp B & S
5901799 Cobalt LE 72" 37hp B & S
Compatible with Massey Ferguson Zero-Turn Mower:
3900 (5900598) 72" 36hp B & S (S/N: 2016950123 & Above)
Compatible with Ferris (S/N: 2016950123 to 2017458255 and above) Models :
3100/72 (5900718) 72"
3100/72 (5901184) 72"
3100Z/72 (5900510) 72" iCD Mower Deck
3100Z/72 (5901221) 72" iCD Mower Deck
3200/72RDCE (5901580) 72"
3200Z/61RDCE (5901859) 61"
3200Z/72 (5901413) 72" iCD Mower Deck
3200Z/72 (5901572) 72" iCD Mower Deck
3300/61SRDCE (5901917) 61" Mower Deck
5000/61R (5900201) 61" (SN: 1210 & Above)
5000/61RCE (5900202) 61" (SN: 1210 & Above)
5000/72 (5900203) 72" (SN: 1210 & Above)
5000/72R (5900204) 72" (SN: 1210 & Above)
5000/72RCE (5900205) 72" (SN: 1210 & Above)
5100/61R (5900622) 61"
5100/61RCE (5900623) 61"
5100/61RCE (5900726) 61"
5100/72 (5900591) 72" iCD Mower Deck
5100/72 (5901167) 72"
5100/72CE (5900724) 72"
5100/72CE (5901010) 72" iCD Mower Deck
5100/72CE (5901171) 72"
5100/72R (5901168) 72"
5100/72RCE (5900725) 72"
5100/72RCE (5901169) 72"
F 320Z (5901522) F320Z Series 72" 35hp Kaw
F 320Z (5901523) F320Z Series 61" 37hp B & S
F 320Z (5901524) F320Z Series 61" 35hp Kaw
IS3100Z Series Models :
5900300 , 5900301 ,5900302 , 5900559 , 5900611 , 5900612 , 5900613 , 5900690 , 5900691 , 5900708
5900752 , 5900786 , 5900788 , 5900789 , 5900790 , 5900791 , 5900792 , 5900793 , 5900794 , 5900872
5900969 - IS3100Z Series w/ 61" S/N: 2015182912 & Below
5901284 - IS3100Z Series w/ 72" (IS3100ZBV3272)
5901285 - IS3100Z Series w/ 72" (IS3100ZKAV3772)
5901221 - 72" (3100Z/72)
5900736 , 5900753 , 5900787 , 5900795 , 5900873 , 5900970 , 5900717
IS5100Z Series Models :
5900618 , 5900934 , 5900944 , 5900979 , 5900944 , 5900979 , 5900996 - IS5100Z Series 61"
5901282 , 5901283 - IS5100Z Series 72"
IS5000ZC31D - IS5000Z Series (S/N: 1226 & above)
IS5000ZC31D61CE - IS5000Z Series w/ 61" (S/N: 1226 & above)
IS5000ZC31DCE - IS5000Z Series (S/N: 1226 & above)
5900507 , 5900602 , 5900617 , 5900723
5900620 , 5900721 - IS4500Z Series (2005)
IS3200Z Series Models :
5901350 , 5901351 , 5901354 , 5901356 , 5901358 - IS3200Z Series w/ 61"
5901359 , 5901412 , 5901414 , 5901458 , 5901533 - IS3200Z Series w/61"
5901554 , 5901567 , 5901568 , 5901569 , 5901575 - IS3200Z Series w/ 61"
5901577 , 5901579 , 5901781 , 5901831 - IS3200Z Series w/ 61"
5901832 , 5901833 , 84003242 , 5901841 , 5901859 - IS3200Z w/ 61"
5901352 , 5901353 , 5901355 , 5901357 , 5901360 , 5901459 - IS3200Z Series w/ 72"
5901570 , 5901571 , 5901572 , 5901573 . 5901574 , 5901576 - IS3200Z Series w/ 72"
F320Z Series Models :
5901522 , 5901525 , 5901645 , 5901646 , 5901712 - F320Z Series w/ 72"
5901523 , 5901524 , 5901643 , 5901644 , 5901710 , 5901711 - F320Z Series w/ 61"
IS6200 Series Models :
5901849 , 5901850 , 5901851 , 5902162 , 5902163 - IS6200 Series 72"
ISX3300 Series Models :
5901855 , 5901881 , 5901914 , 5901938 , 5901979 , 5901980 - ISX3300 Series w/ 61"
5901857 , 5901982 , 5902031 , 5902033 , 5902034 , 5902039 - ISX3300 w/ 61"
5901856 , 5901872 , 5901981 , 5901983 , 5902032 , 5901713 - ISX3300 Series w/ 72"
5902118 , 5902145 , 5902160 , 5902161 , 5902035 - ISX3300 Series 72"
5902064 , 5902065 , 5902066 . 5902067 , 5902068 - ISX3300 Series w/ 60"

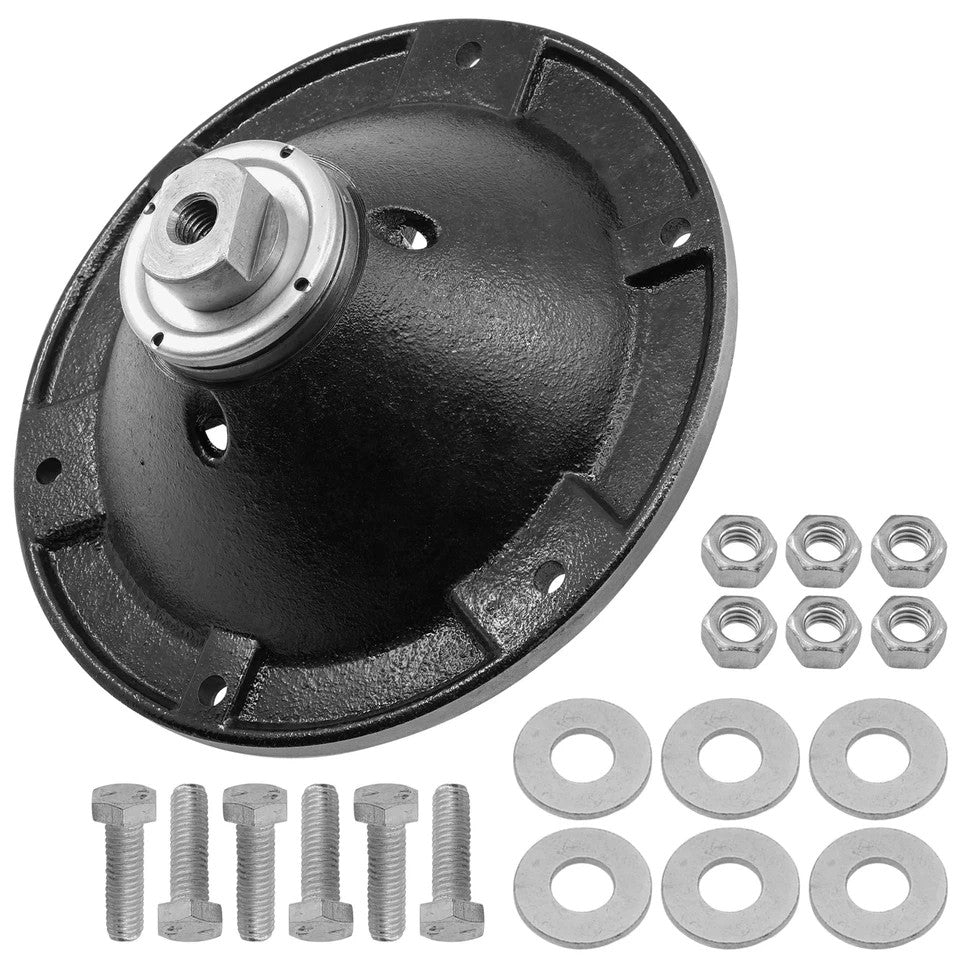

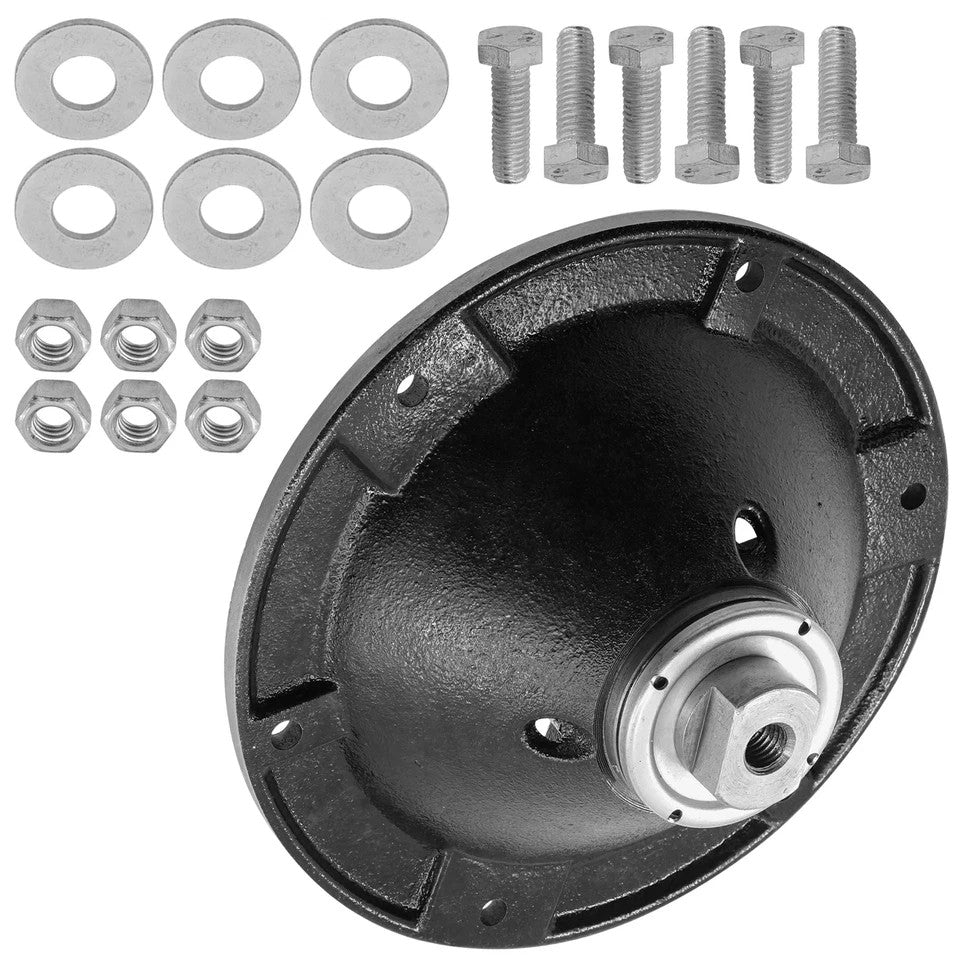

Order Includes:
1 x Spindle : 84003242 , 5413009 , 84007984 , 5049438
Outer Diameter : 254 mm - 10.0 in
Hole Distance : 226.7 mm - 8.92 in
Height : 208 mm - 8.18 in
Bolt Height : 37.53 mm - 1.47 in
Note:
This spindle shaft, where the pulley attaches, is non-threaded.
Some serial number models use a threaded shaft.
