54" Deck Spindle Blade for Hustler FasTrak SD / Z4 / Sport / Trimstar / 783506
Regular price
$279.00
Premium Quality Replacement Part
Deck Spindle with Pulley & Blade
Compatible with Hustler Models:
FasTrak 54" Produced Prior TO S/N 1011
FasTrak 54" Produced AFTER S/N 1011
FasTrak SD 54"
FasTrak SD 54" Produced AFTER S/N 1011
FasTrak SD 54" (Export)
54" Z4
54" Trimstar 929240, 929265, 929273 Produced Prior TO S/N 1101
54" TrimStar 930404 - HTTSRS054KAWFS600VRA
54" TrimStar 930404EX - HTTSRS054KAWFS600VRE
54" TrimStar 930412 - HTTSRS054KAWFS691VA
54" TrimStar 930412EX - HTTSRS054KAWFS691VE

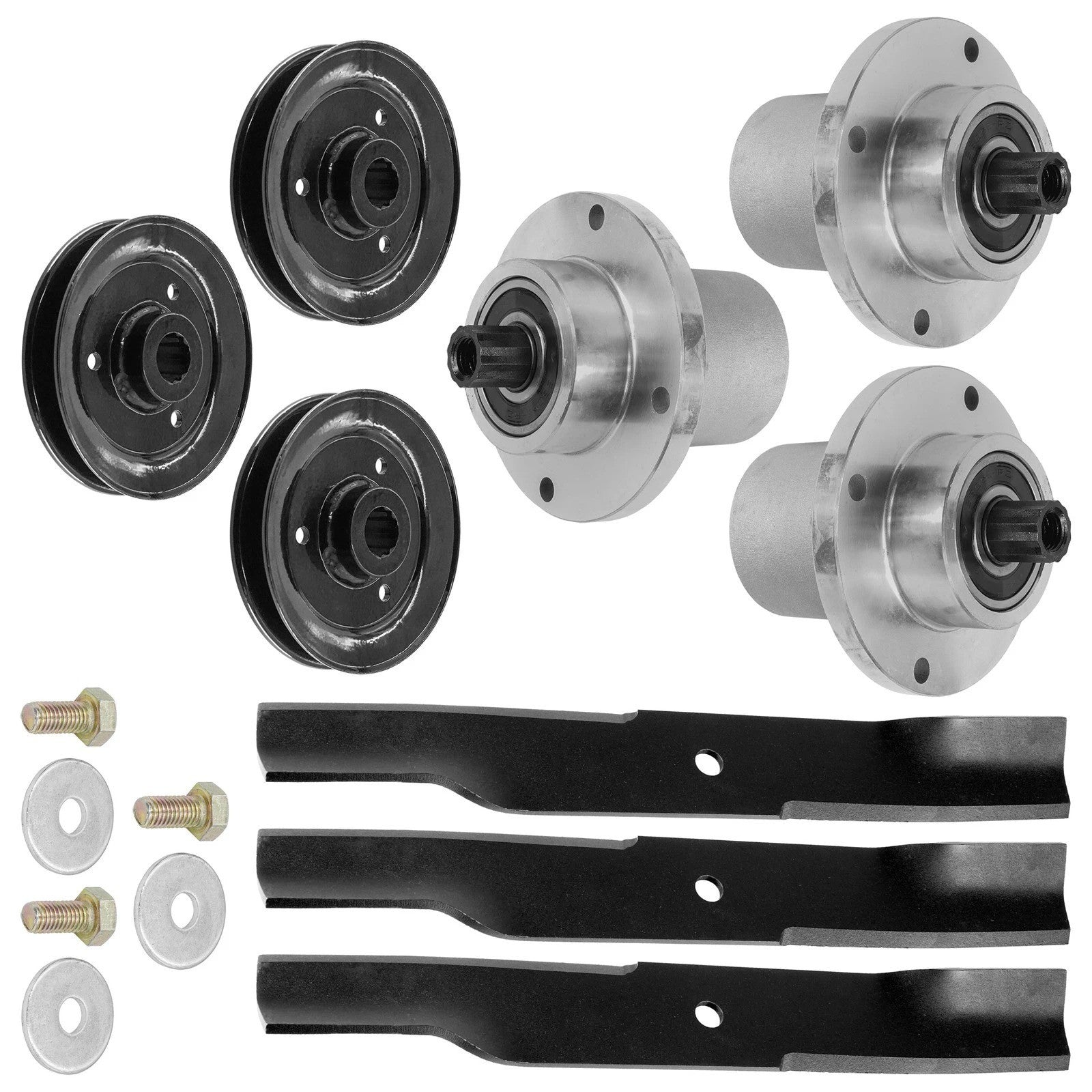

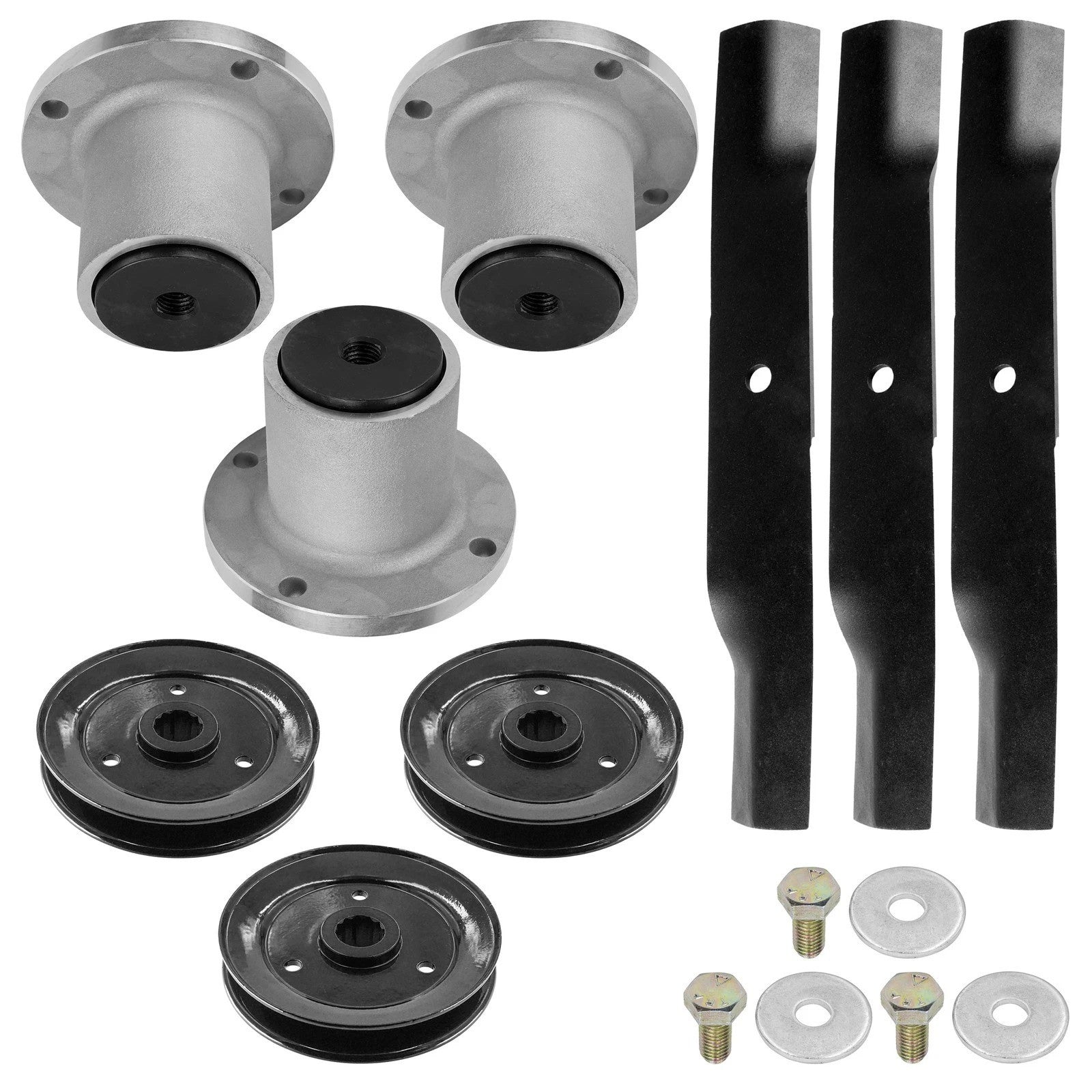

Order Includes:

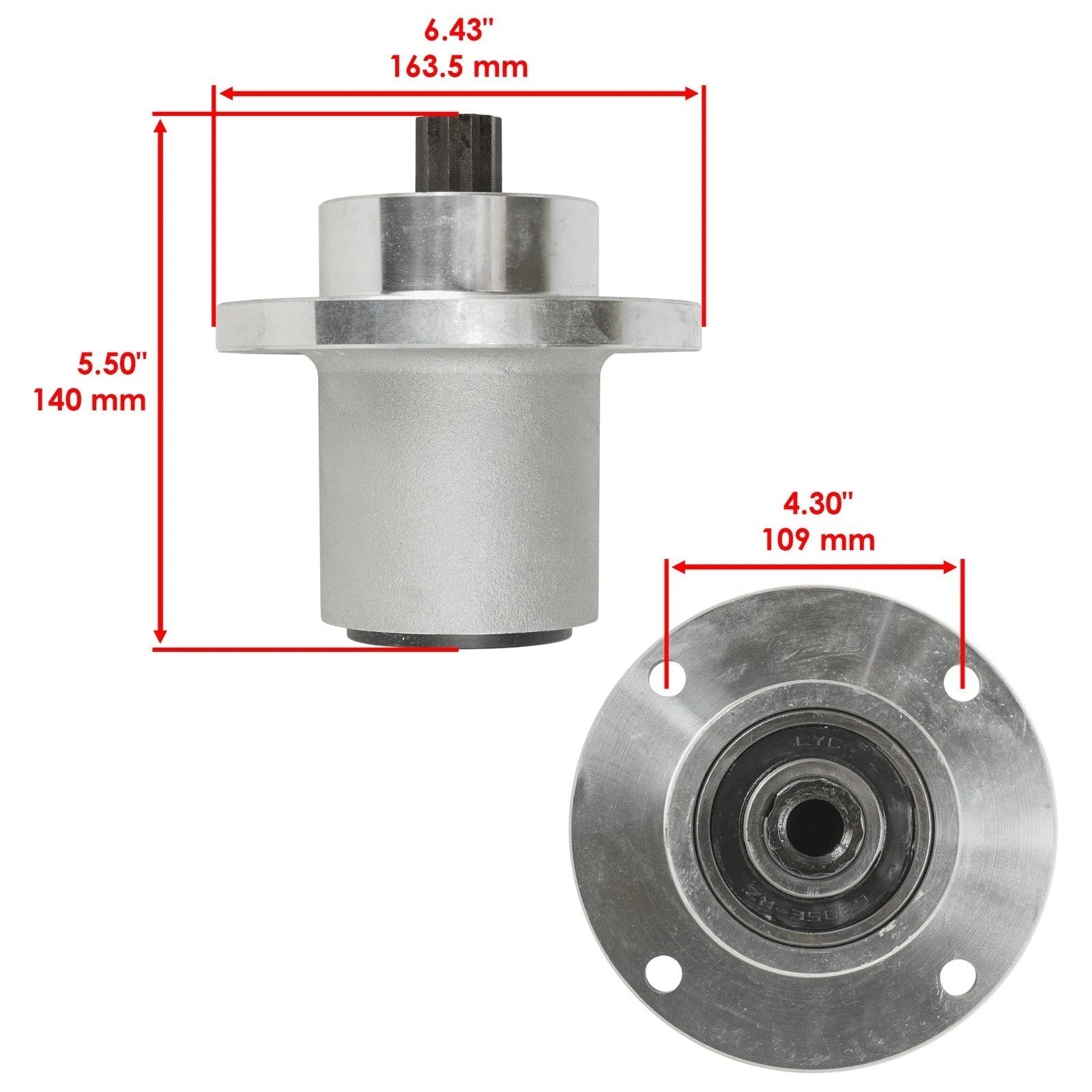

3 x Spindle Assembly : 783506
Length: 140 mm - 5.50 in
Outer Diameter: 163.5 mm - 6.43 in
Mounting Hole Distance: 109 mm - 4.30 in
Material: Aluminum

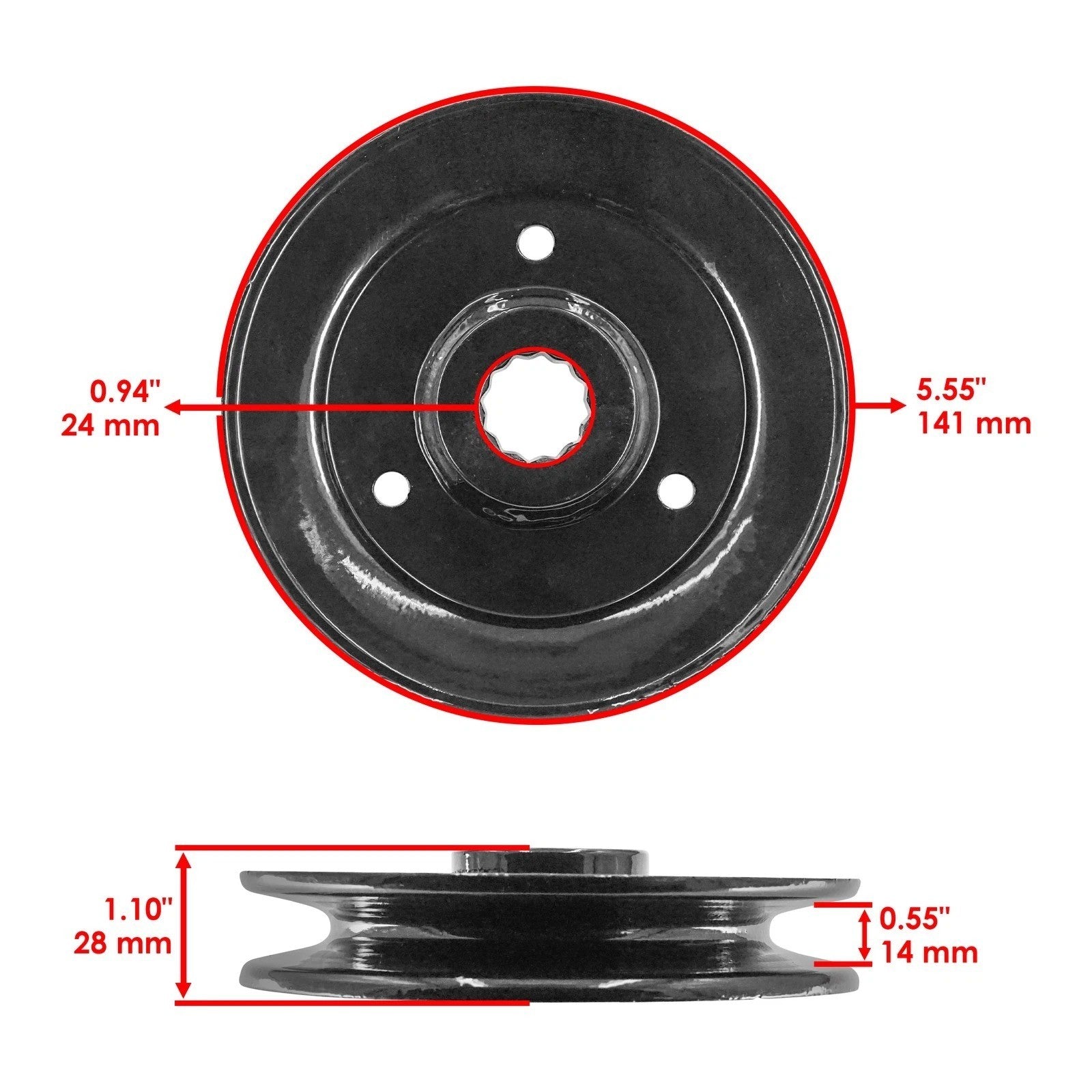

3 x Spindle Pulley: 786889
Width: 28 mm - 1.1 in
Inner Diameter: 24 mm - 0.94 in
Outer Diameter: 141 mm - 5.55 in

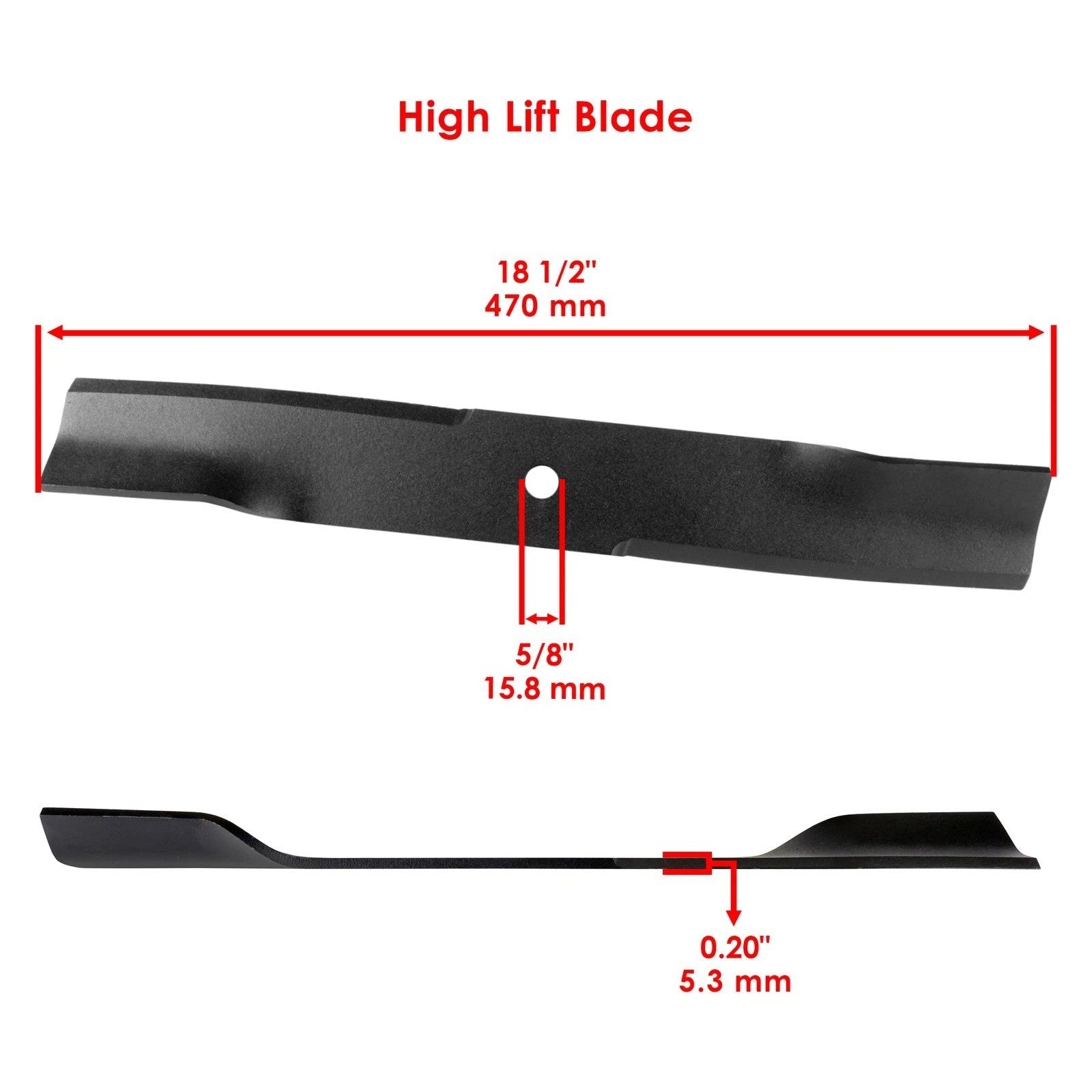

3 x High Lift Blade: 601124, 601124X, 601124Y, 797696, 797696X, 797696Y, 797704, 797704X
Length: 469.9 mm - 18.5 in
Thickness: 5.3 mm - 0.20 in
Center Hole Diameter: 15.8 mm - 0.625 in
Material: Steel
3 x Bolt: 781872, 782474
Stud Length: 31.5 mm - 1.24 in
Head Diameter: 25 mm - 0.98 in
Thread Size: 5/8-11
Length: 42.5 mm - 1.67 in
Material: Steel
3 x Spring Washer: 1-513208
Outer Diameter: 56.3 mm - 2.21 in
